6-47 — MUD GUARD AND INSULATOR (#53401) — 99 parça

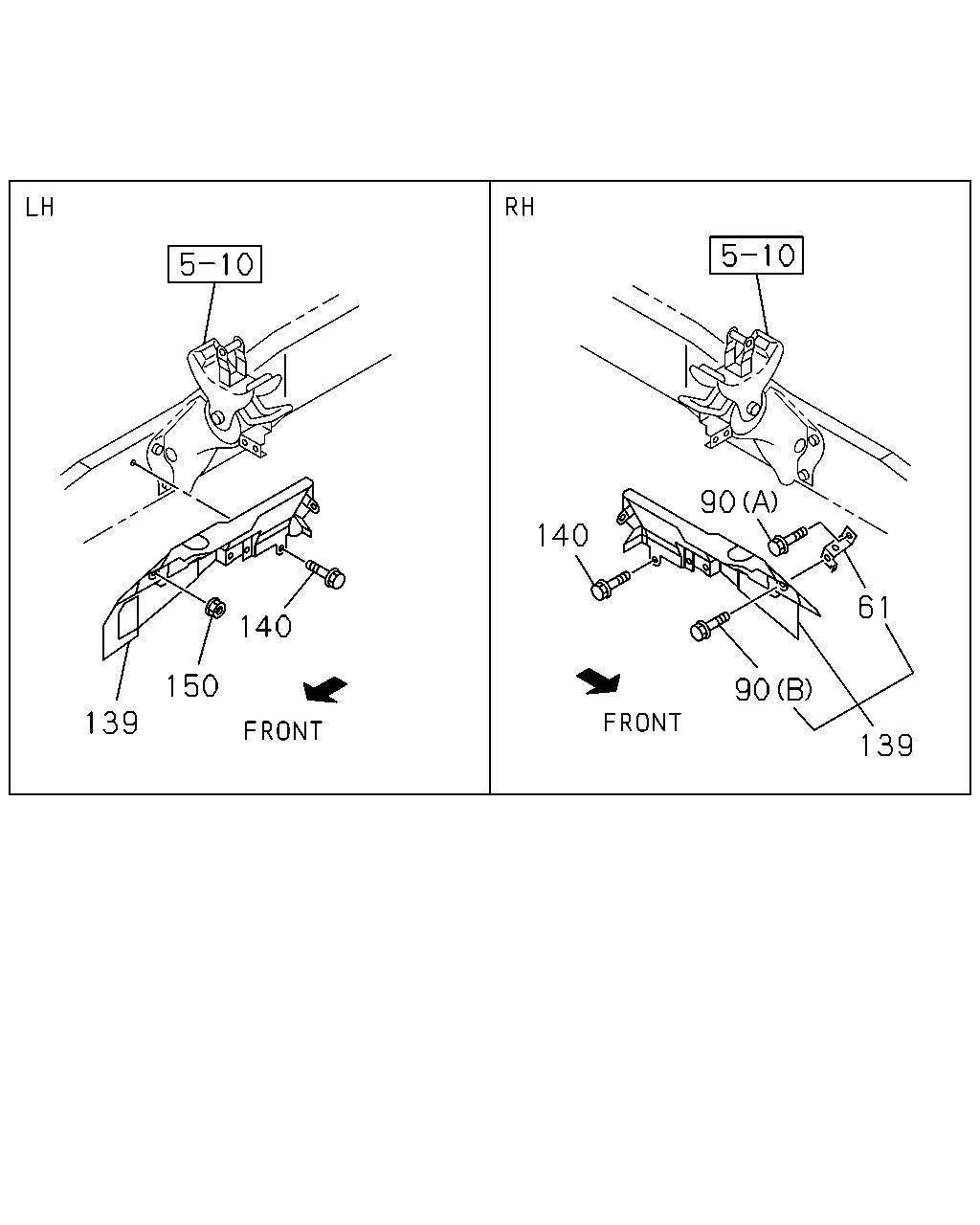

139 61 90 90 140 150 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	08.155 BRACKET; COVER	8-98033-140-0	01	1	0908-1011	●
61	08.155 BRACKET; COVER	8-98033-140-0	01	1	1012-	●	●
90	08.153 BOLT; COVER 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0908-1011	●
90	08.153 BOLT; COVER 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
90	08.153 BOLT; COVER 08.155 (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0908-1011	●
90	08.153 BOLT; COVER 08.155 (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1012-	●	●
139	08.153 PANEL; SIDE	8-98039-734-2	01	1	1012-		●
139	08.153 PANEL; SIDE	8-97385-590-3	01	1	0908-	●
139	08.153 PANEL; SIDE	8-98053-670-1	01	1	0908-1011	●
139	08.153 PANEL; SIDE	8-98053-670-1	01	1	1012-	●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	0908-1011	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	1012-	●	●
150	08.155 NUT; SIDE PANEL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0908-1011	●
150	08.155 NUT; SIDE PANEL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1012-	●	●

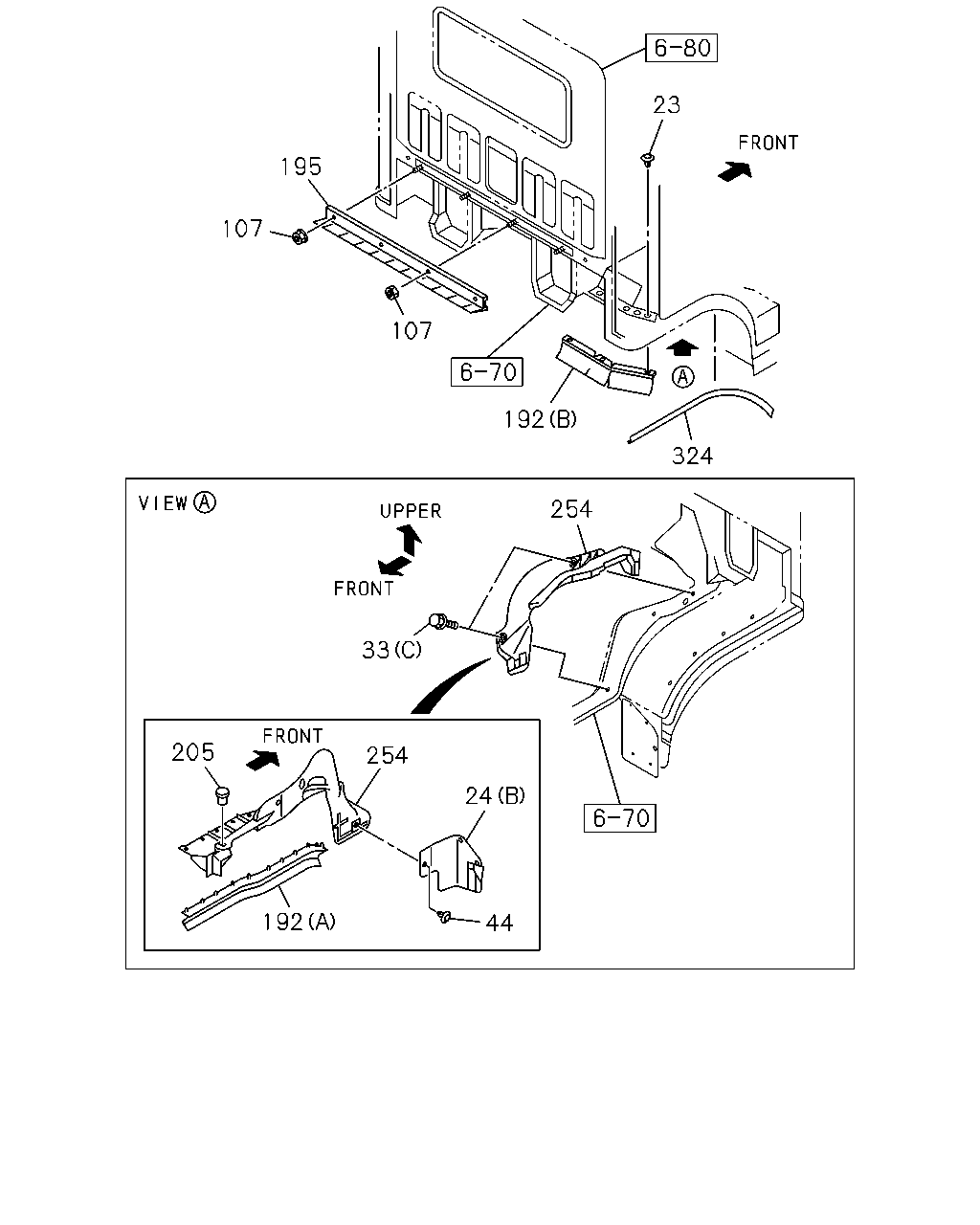

44 24 254 192 205 107 195 107 192 324 254 33 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0908-1011	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1012-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0908-1011	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1012-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98069-060-0	02	1	0908-0910	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	0911-1011	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1012-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0908-1011	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1012-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0908-1011	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0908-1011	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	0908-1011	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1012-	●	●
107	08.214 NUT; HEAT PROTECTOR 03.417 M6 FLANGE	8-94279-514-0	03	1	1012-		●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	0908-1011	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1012-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	0908-1011	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1012-	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-785-2	02	1	0908-1011	●
192	08.153 SEAL; MUD COVER (B)	8-98022-785-2	02	1	1012-1106	●	●
192	08.153 SEAL; MUD COVER (B)	8-98192-388-0	02	1	1107-	●	●
195	03.602 PROTECTOR; HEAT	8-94462-569-1	01	1	1012-		●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0908-1011	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1012-	●	●
254	08.153 COVER; MUD,VALANCE	8-98115-263-0	01	1	0908-1011	●
254	08.153 COVER; MUD,VALANCE	8-98115-263-0	01	1	1012-	●	●
254	08.153 COVER; MUD,VALANCE	8-98115-264-0	01	1	0908-1011	●
254	08.153 COVER; MUD,VALANCE	8-98115-264-0	01	1	1012-	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-1	02	1	0908-1011	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1012-	●	●

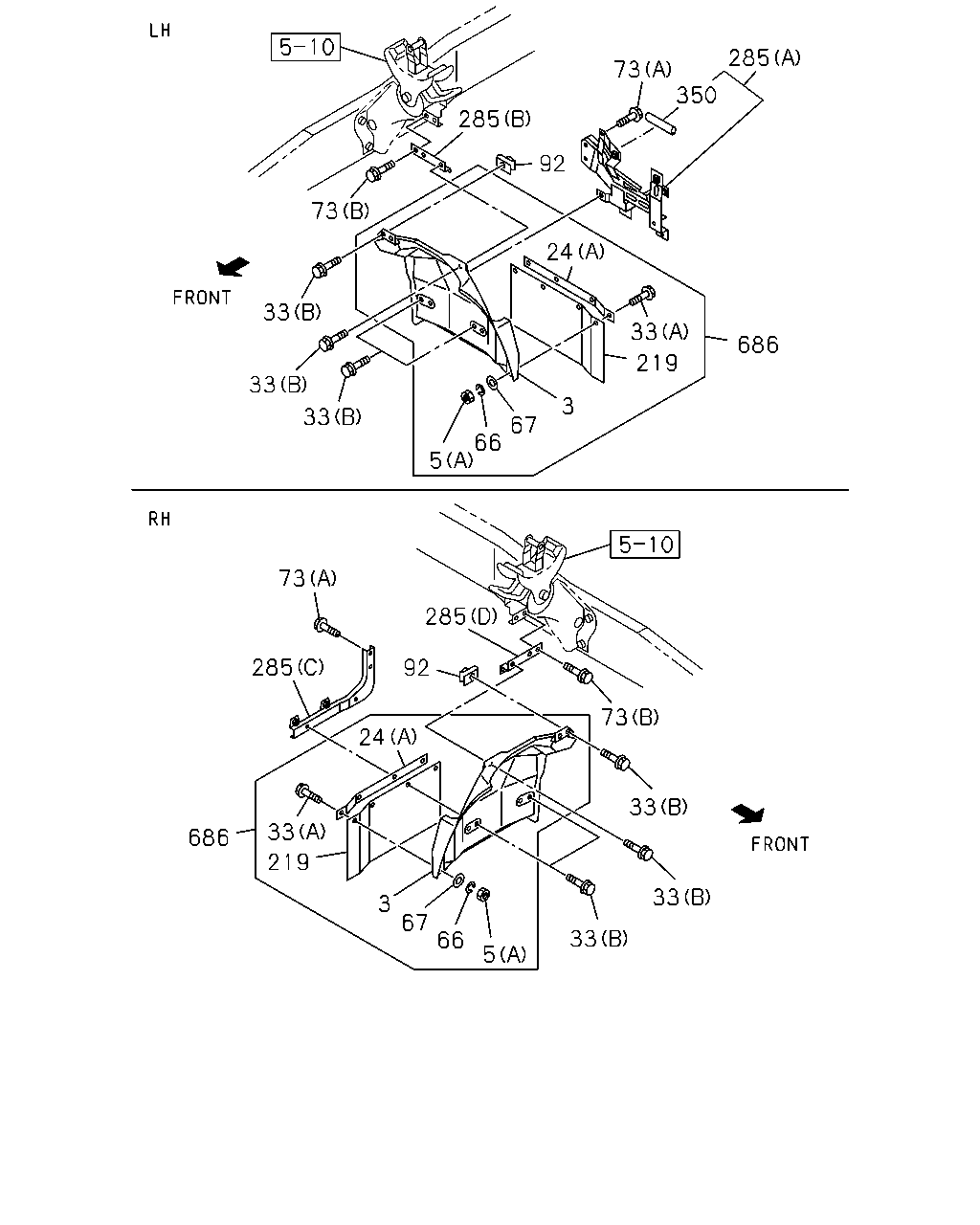

73 33 33 33 5 66 67 3 219 33 686 24 92 285 73 285 350 285 92 73 285 686 219 33 3 67 66 5 33 33 33 73 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	0908-1011	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1012-	●	●
3	08.153 GUARD; MUD,RR	8-98055-620-2	01	1	0908-1011	●
3	08.153 GUARD; MUD,RR	8-98055-620-2	01	1	1012-	●	●
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1012-		●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0908-1011	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	1012-1209	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0908-1011	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1012-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98069-060-0	02	1	0908-0910	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	0911-1011	●
24	08.155 PLATE; MUD COVER (B)	8-98154-261-0	02	1	1012-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0908-1011	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1012-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0908-1011	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1012-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0908-1011	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1012-	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	0908-1011	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	1012-1209	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	0908-1011	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	1012-1209	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0908-1011	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1012-	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0908-1011	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1012-	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0908-1011	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1012-	●	●
219	08.155 FLAP; MUD GUARD	8-98010-741-1	02	1	0908-1011	●
219	08.155 FLAP; MUD GUARD	8-98010-741-1	02	1	1012-	●	●
285	08.155 BRACKET; MUD COVER (D)	8-98001-313-2	01	1	1012-		●
285	08.155 BRACKET; MUD COVER (C)	8-98001-314-2	01	1	1012-		●
285	08.155 BRACKET; MUD COVER (B)	8-98038-865-1	01	1	0908-1011	●
285	08.155 BRACKET; MUD COVER (B)	8-98038-865-1	01	1	1012-	●	●
285	08.155 BRACKET; MUD COVER (D)	8-98059-689-0	01	1	0908-	●
285	08.155 BRACKET; MUD COVER (A)	8-98082-272-0	01	1	0908-1011	●
285	08.155 BRACKET; MUD COVER (A)	8-98082-272-0	01	1	1012-	●	●
285	08.155 BRACKET; MUD COVER (C)	8-98131-079-0	01	1	0908-	●
350	08.155 PROTECTOR; EDGE,MUD COVER 03.008 L=80	5-22439-006-0	01	1	0908-1011	●
350	08.155 PROTECTOR; EDGE,MUD COVER 03.008 L=80	5-22439-006-0	01	1	1012-	●	●
686	08.155 FLAP ASM; MUD	8-98001-302-6	01	1	0908-1011	●
686	08.155 FLAP ASM; MUD	8-98001-302-6	01	1	1012-	●	●
686	08.155 FLAP ASM; MUD	8-98055-455-4	01	1	0908-1011	●
686	08.155 FLAP ASM; MUD	8-98055-455-4	01	1	1012-	●	●

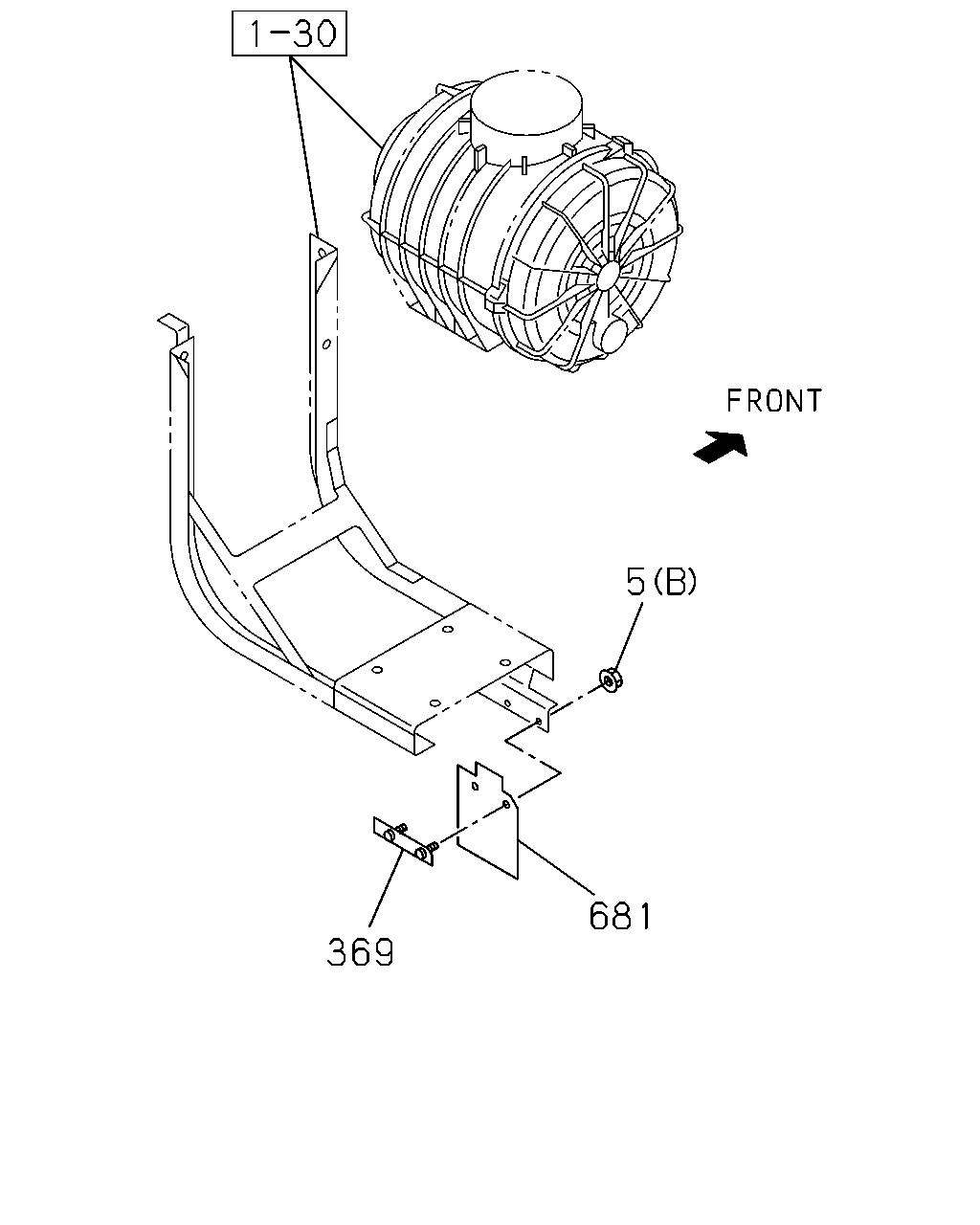

5 681 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	08.155 NUT; FLAP RUBBER 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	1012-		●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	0908-1011	●
5	08.155 NUT; FLAP RUBBER 03.330 (A) M6	0-91110-506-0	08	1	1012-1209	●	●
5	08.155 NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1210-	●	●
369	08.155 PLATE	8-98061-674-0	01	1	1012-		●
681	03.402 FLAP; AIR CLEANER	8-98061-671-0	01	1	1012-		●
