4-36 — POWER STEERING CONTROL; ENGINE SIDE (#534) — 134 parça
çizim 27997
10 10 15 15
BalonParca AdiParca NoAdetTipApplied Date
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (B) L=75 		1-09360-524-0 01 1 8712-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (A) 		1-09364-408-0 01 1 8712-9306
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (A) 		1-09364-431-0 01 1 9307-9310
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (A) L=380 		1-09364-459-0 01 1 9311-
15 CLIP; OIL PIPE SUCTION
EXC. HONG KONG EQUIPMENT(PQ1) (G) ID=15 H=24 L=20 		1-09700-606-0 01 1 8712-9306
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (D) ID=23.6 L=35 		1-09700-634-0 04 1 8712-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (E) W/NUT 		9-09917-564-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (F) WO/NUT 		9-09917-565-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
NYLON TUBE AIR PIPING<Z29> (H) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9002-9008
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 8712-9001
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (A) ID=19 L=32 		9-09525-866-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (B) WO/NUT 		9-09917-385-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (C) W/NUT 		9-09917-386-0 01 1 8712-

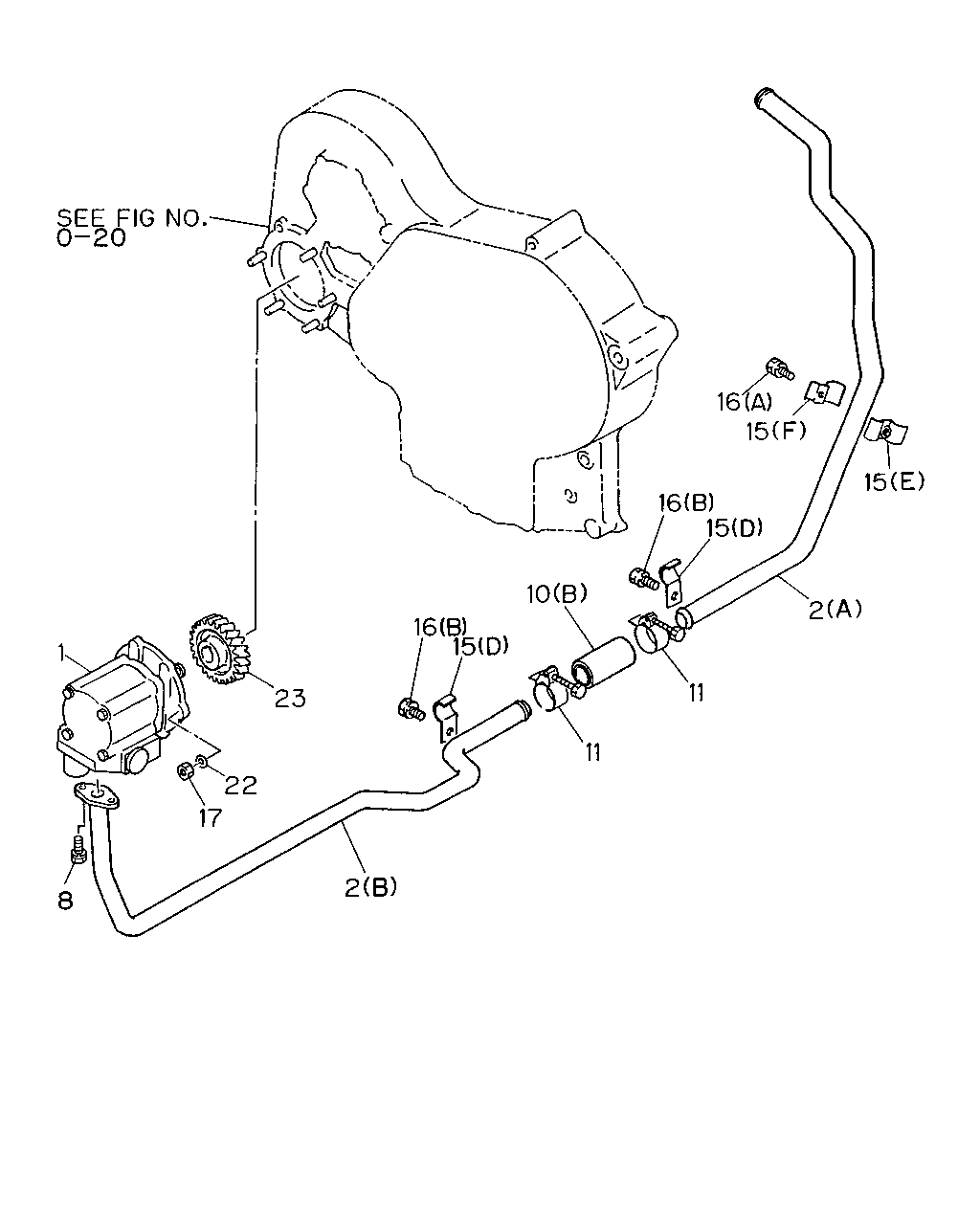

çizim 92226
16 15 15 16 15 2 11 11 2 16 15 10 23 22 17 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-292-4 01 1 8712-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-444-2 01 1 9307-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-296-2 01 1 8712-9001
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-381-3 01 1 9002-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> AUTO ENG SHUTOFF<KB6> 		1-19500-345-5 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> EXC. AUTO ENG SHUTOFF<KB6> 		1-19500-381-3 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-381-3 01 1 9308-9401
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-426-2 01 1 9402-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (A) 		1-21112-048-0 01 1 8712-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21112-581-1 01 1 8712-9306
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21114-163-0 01 1 9307-
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13311-904-1 01 1 8712-9001
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13312-789-0 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13312-012-1 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> AUTO ENG SHUTOFF<KB6> 		1-13312-655-0 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> EXC. AUTO ENG SHUTOFF<KB6> 		1-13312-012-1 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13312-012-1 01 1 9308-9401
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-075-0 01 1 9402-
8 BOLT; OIL PIPE
M8X18 W/LK WASHER 		9-01910-818-0 02 1 8712-9001
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (B) L=75 		1-09360-524-0 01 1 8712-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (A) 		1-09364-408-0 01 1 8712-9306
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (A) 		1-09364-431-0 01 1 9307-9310
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (A) L=380 		1-09364-459-0 01 1 9311-
11 CLIP; FLEX HOSE
L TYPE ENG<90L> ID=38 		9-09915-666-1 02 1 8712-
15 CLIP; OIL PIPE SUCTION
EXC. HONG KONG EQUIPMENT(PQ1) (G) ID=15 H=24 L=20 		1-09700-606-0 01 1 8712-9306
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (D) ID=23.6 L=35 		1-09700-634-0 04 1 8712-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (E) W/NUT 		9-09917-564-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (F) WO/NUT 		9-09917-565-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
NYLON TUBE AIR PIPING<Z29> (H) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9002-9008
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 8712-9001
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (A) ID=19 L=32 		9-09525-866-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (B) WO/NUT 		9-09917-385-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (C) W/NUT 		9-09917-386-0 01 1 8712-
16 BOLT; STAY,P/S OIL PUMP
HONG KONG EQUIPMENT(PQ1) (D) M8X30 FLANGE 		0-28010-830-0 01 1 8712-9204
16 BOLT; STAY,P/S OIL PUMP
HONG KONG EQUIPMENT(PQ1) (D) M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 		9-01910-822-0 01 1 8712-9005
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		9-01911-020-0 04 1 8712-9002
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9003-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (B) M8X14 		0-28020-814-0 01 1 8712-9005
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (B) M8X14 FLANGE 		0-28080-814-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (C) M6X25 		9-01910-625-0 02 1 8712-9001
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (B) M8X14 W/LK WASHER 		9-01910-814-0 02 1 8712-9001
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (A) M8X16 W/LK WASHER 		9-01910-816-0 01 1 8712-9001
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (C) M6X25 		0-28020-625-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (C) M6X25 FLANGE 		0-28080-625-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (A) M8X12 		0-28020-812-0 02 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (A) M8X12 FLANGE 		0-28080-812-0 02 1 9006-
17 NUT; POWER STRG PUMP
L TYPE ENG<90L> M8 		9-09110-408-0 05 1 8712-
17 NUT; POWER STRG PUMP
V TYPE ENG<91L> M10 		9-09110-410-0 02 1 8712-9001
17 NUT; POWER STRG PUMP
V TYPE ENG<91L> M10 FLANGE 		0-91150-110-0 02 1 9002-
22 WASHER; LK,OIL PUMP,P/S
L TYPE ENG<90L> ID=8.2 		9-09150-508-0 05 1 8712-
22 WASHER; LK,OIL PUMP,P/S
V TYPE ENG<91L> ID=10.2 		9-09150-510-0 02 1 8712-9001
23 GEAR; OIL PUMP
L TYPE ENG<90L> 		1-19581-006-3 01 1 8712-
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-1 01 1 8712-

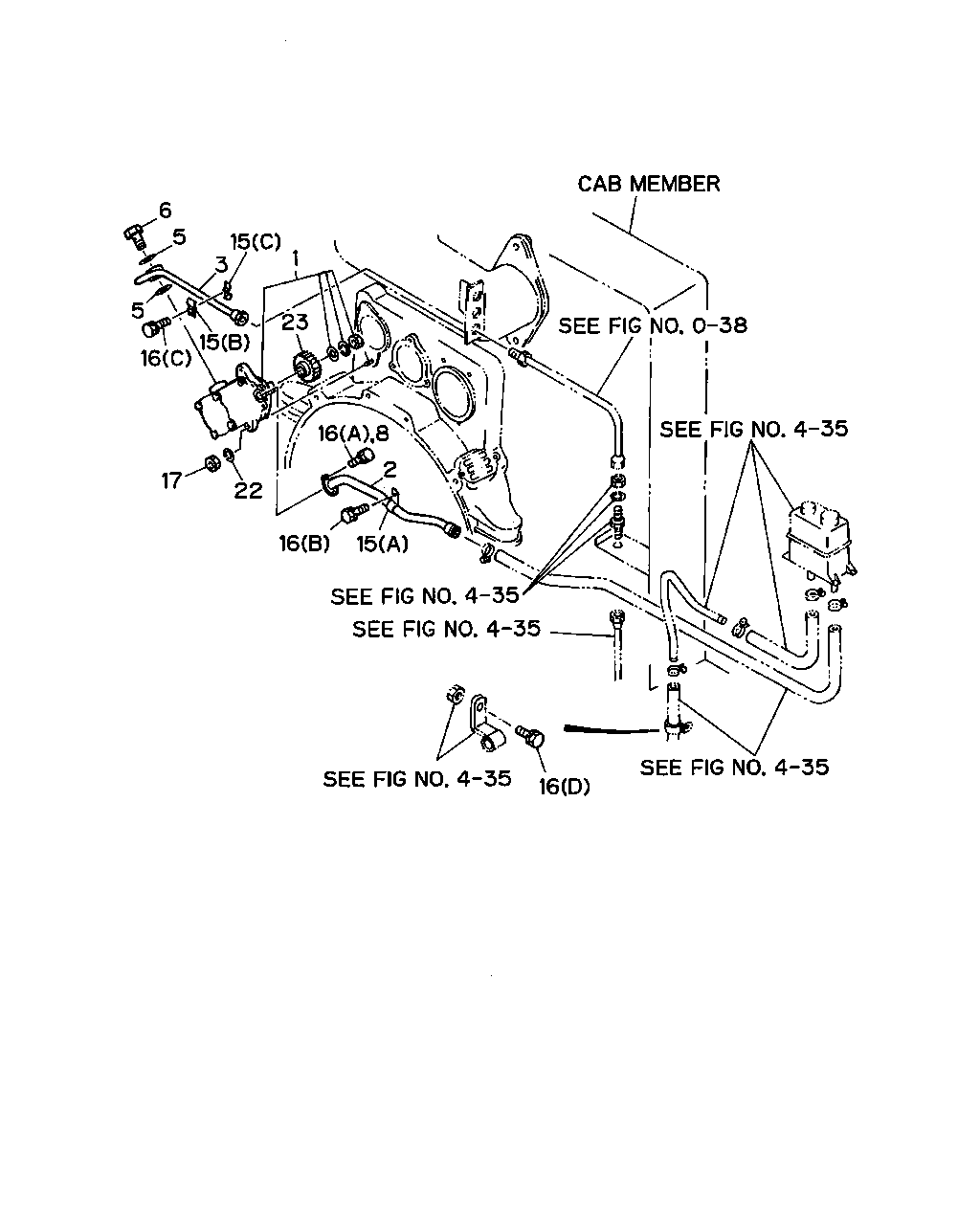

çizim 92256
6 5 15 3 5 23 1 15 16 16 17 22 8 2 15 16 16
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-292-4 01 1 8712-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-444-2 01 1 9307-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-296-2 01 1 8712-9001
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-381-3 01 1 9002-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> AUTO ENG SHUTOFF<KB6> 		1-19500-345-5 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> EXC. AUTO ENG SHUTOFF<KB6> 		1-19500-381-3 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-381-3 01 1 9308-9401
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. V TYPE ENG<91L> 		1-19500-426-2 01 1 9402-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (A) 		1-21112-048-0 01 1 8712-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21112-581-1 01 1 8712-9306
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21114-163-0 01 1 9307-
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13311-904-1 01 1 8712-9001
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13312-789-0 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13312-012-1 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> AUTO ENG SHUTOFF<KB6> 		1-13312-655-0 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> EXC. AUTO ENG SHUTOFF<KB6> 		1-13312-012-1 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13312-012-1 01 1 9308-9401
2 PIPE ASM; OIL,SUCTION
V TYPE ENG<91L> 		1-13313-075-0 01 1 9402-
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> 		1-13312-035-0 01 1 8712-9001
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13312-796-0 01 1 9002-9212
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-346-0 01 1 9301-9306
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13312-036-0 01 1 9002-9212
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-343-0 01 1 9301-9306
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> AUTO ENG SHUTOFF<KB6> 		1-13313-341-0 01 1 9307-9307
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> EXC. AUTO ENG SHUTOFF<KB6> 		1-13313-343-0 01 1 9307-9307
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> 		1-13313-343-0 01 1 9308-9401
3 PIPE; OIL,CHARGE,P/S
V TYPE ENG<91L> 		1-13313-342-0 01 1 9402-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). V TYPE ENG<91L> ID=18.2 OD=24.4 		1-09630-087-0 02 1 8712-
6 BOLT; EYE,P/S PIPE
V TYPE ENG<91L> M18X36 		1-09675-059-0 01 1 8712-8909
6 BOLT; EYE,P/S PIPE
V TYPE ENG<91L> M18X36 		1-09675-174-0 01 1 8910-
8 BOLT; OIL PIPE
M8X18 W/LK WASHER 		9-01910-818-0 02 1 8712-9001
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-
15 CLIP; OIL PIPE SUCTION
EXC. HONG KONG EQUIPMENT(PQ1) (G) ID=15 H=24 L=20 		1-09700-606-0 01 1 8712-9306
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (D) ID=23.6 L=35 		1-09700-634-0 04 1 8712-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (E) W/NUT 		9-09917-564-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (F) WO/NUT 		9-09917-565-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
NYLON TUBE AIR PIPING<Z29> (H) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9002-9008
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (A) ID=19 L=20 		9-09525-836-0 01 1 8712-9001
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (A) ID=19 L=32 		9-09525-866-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (B) WO/NUT 		9-09917-385-0 01 1 8712-
15 CLIP; OIL PIPE SUCTION
V TYPE ENG<91L> (C) W/NUT 		9-09917-386-0 01 1 8712-
16 BOLT; STAY,P/S OIL PUMP
HONG KONG EQUIPMENT(PQ1) (D) M8X30 FLANGE 		0-28010-830-0 01 1 8712-9204
16 BOLT; STAY,P/S OIL PUMP
HONG KONG EQUIPMENT(PQ1) (D) M8X30 FLANGE 		0-28080-830-0 01 1 9205-9306
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 		9-01910-822-0 01 1 8712-9005
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		9-01911-020-0 04 1 8712-9002
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9003-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (B) M8X14 		0-28020-814-0 01 1 8712-9005
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (B) M8X14 FLANGE 		0-28080-814-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (C) M6X25 		9-01910-625-0 02 1 8712-9001
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (B) M8X14 W/LK WASHER 		9-01910-814-0 02 1 8712-9001
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (A) M8X16 W/LK WASHER 		9-01910-816-0 01 1 8712-9001
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (C) M6X25 		0-28020-625-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (C) M6X25 FLANGE 		0-28080-625-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (A) M8X12 		0-28020-812-0 02 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
V TYPE ENG<91L> (A) M8X12 FLANGE 		0-28080-812-0 02 1 9006-
17 NUT; POWER STRG PUMP
L TYPE ENG<90L> M8 		9-09110-408-0 05 1 8712-
17 NUT; POWER STRG PUMP
V TYPE ENG<91L> M10 		9-09110-410-0 02 1 8712-9001
17 NUT; POWER STRG PUMP
V TYPE ENG<91L> M10 FLANGE 		0-91150-110-0 02 1 9002-
22 WASHER; LK,OIL PUMP,P/S
L TYPE ENG<90L> ID=8.2 		9-09150-508-0 05 1 8712-
22 WASHER; LK,OIL PUMP,P/S
V TYPE ENG<91L> ID=10.2 		9-09150-510-0 02 1 8712-9001
23 GEAR; OIL PUMP
L TYPE ENG<90L> 		1-19581-006-3 01 1 8712-
23 GEAR; OIL PUMP
V TYPE ENG<91L> Z=20 		1-19581-011-1 01 1 8712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
