6-30 — FRONT DOOR AND HINGE (#53396) — 35 parça

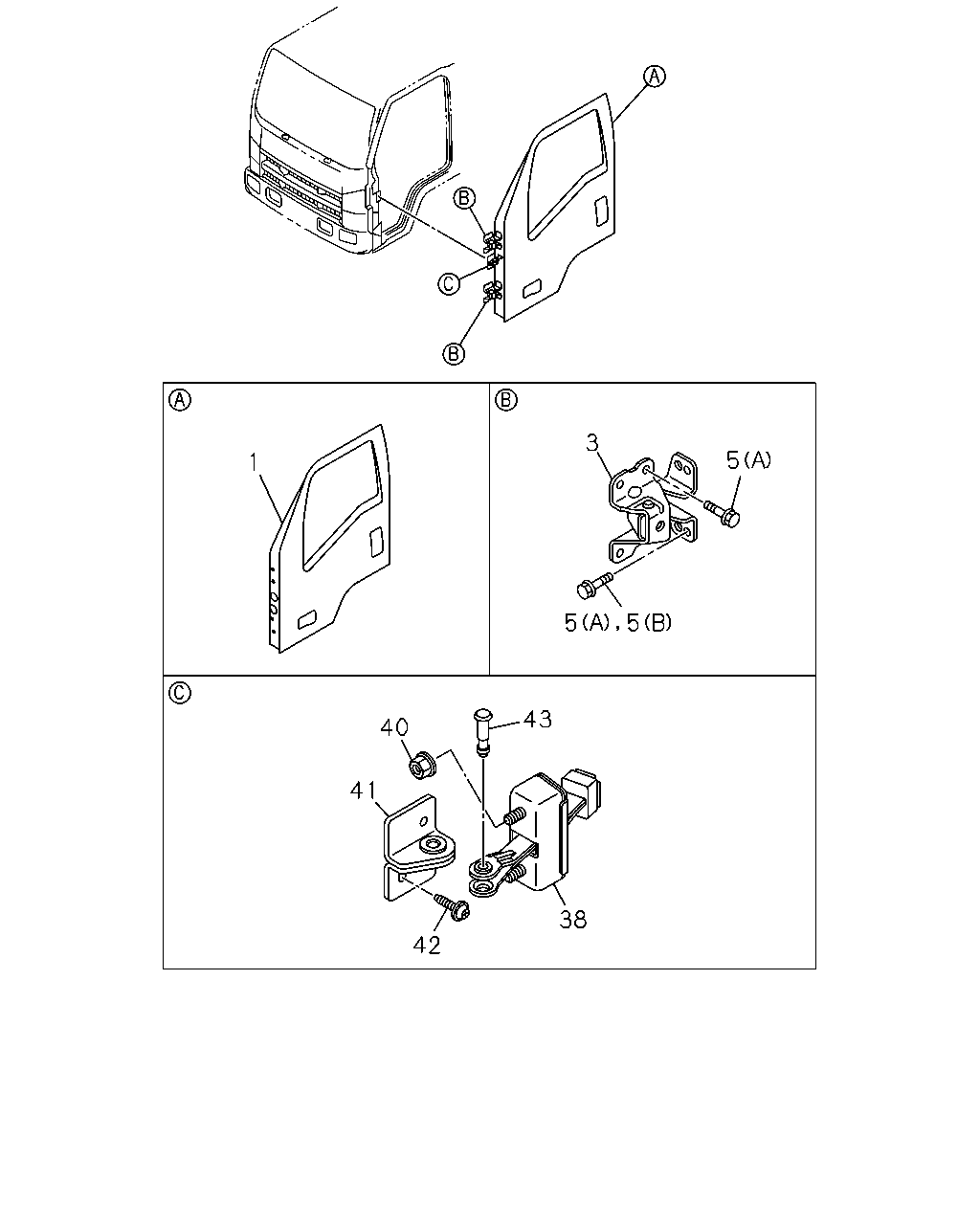

çizim 160033
5 5 5 40 43 41 38 42 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98171-227-0 01 1 1301-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> 		8-98260-605-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> CORNERING LAMP<T87> 		8-98171-236-0 01 1 1301-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> 		8-98260-606-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98075-726-1 01 1 0908-1011 ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98075-726-1 01 1 1012-1012 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98171-225-0 01 1 1101-1212 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98171-225-0 01 1 1301-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87> 		8-98260-601-0 01 1 1412- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98075-727-1 01 1 0908-1011 ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98075-727-1 01 1 1012-1012 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98171-233-0 01 1 1101-1212 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. CORNERING LAMP<T87> 		8-98171-233-0 01 1 1301-1411 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87> 		8-98260-602-0 01 1 1412- ● ●
3 16.320 HINGE; DOOR FRT 8-98038-293-0 04 1 0908-1011 ●
3 16.320 HINGE; DOOR FRT 8-98038-293-0 04 1 1012-1104 ● ●
3 16.320 HINGE; DOOR FRT 8-98191-302-0 04 1 1105- ● ●
5 16.320 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 0908-1011 ●
5 16.320 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1012- ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0908-1011 ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 0908-1011 ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1012- ● ●
5 16.320 BOLT; HINGE
(B) M8X23 FLANGE 		8-98029-440-0 08 1 1012- ●
38 16.320 CHECKER ASM; DOOR 8-98031-730-6 02 1 0908-1011 ●
38 16.320 CHECKER ASM; DOOR 8-98031-730-6 02 1 1012-1508 ● ●
38 16.320 CHECKER ASM; DOOR 8-98296-602-0 02 1 1509- ● ●
40 16.320 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 0908-1011 ●
40 16.320 NUT; CHECKER
M8 FLANGE 		8-98029-441-0 04 1 1012-1012 ● ●
40 16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 04 1 1101- ● ●
41 16.320 BRACKET; CHECKER 8-98029-290-3 02 1 0908-1011 ●
41 16.320 BRACKET; CHECKER 8-98029-290-3 02 1 1012- ● ●
42 16.320 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 0908-1011 ●
42 16.320 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1012- ● ●
43 16.320 PIN 8-98037-152-2 02 1 0908-1011 ●
43 16.320 PIN 8-98037-152-2 02 1 1012- ● ●
