Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

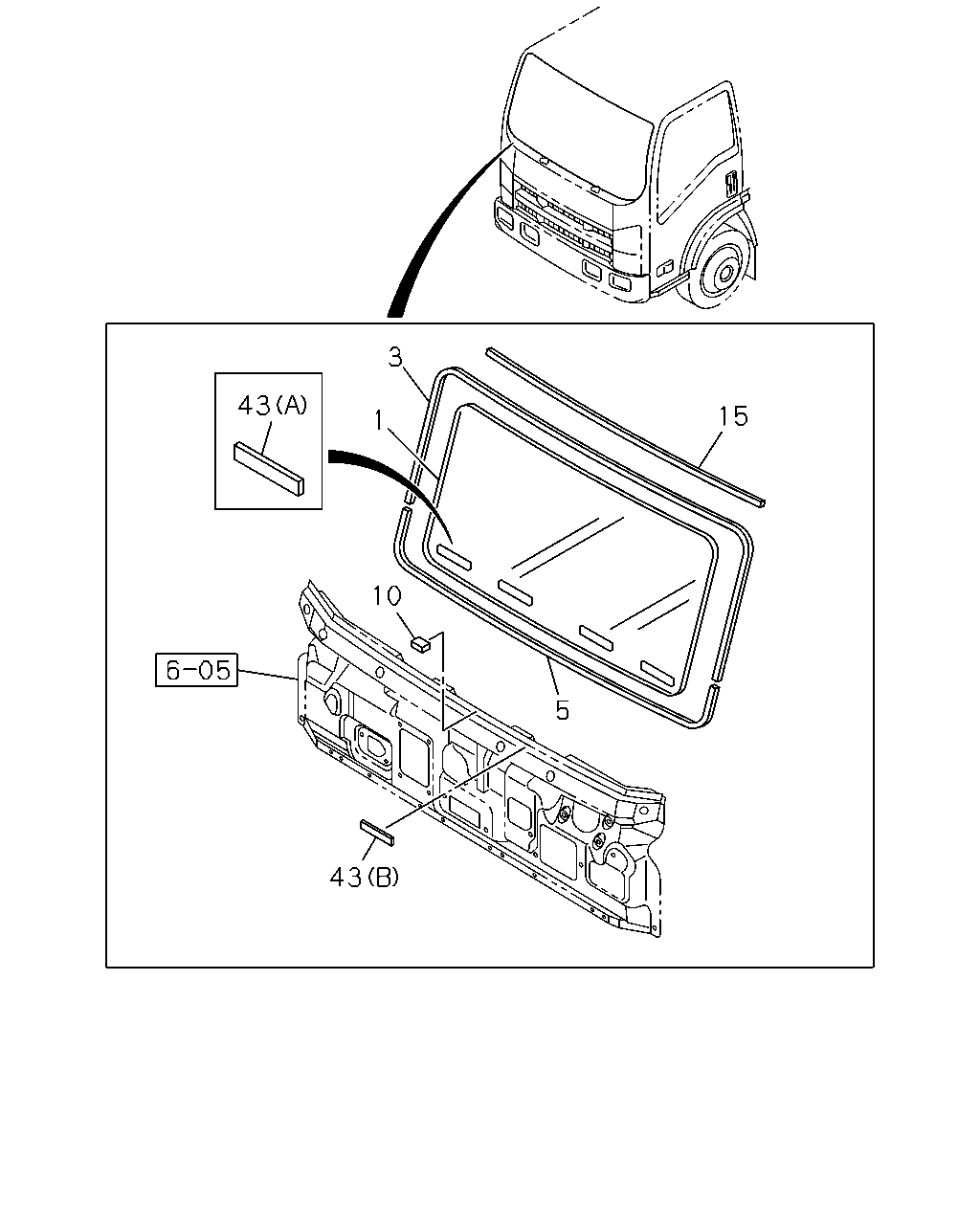

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#53394) — 13 parça
Tümü
A - NMS5SE
B - NMS5WE
15
3
1
10
43
43
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.005 GLASS; WINDSHIELD
8-98029-062-1
01
1
0908-1011
●
1
16.005 GLASS; WINDSHIELD
8-98029-062-1
01
1
1012-
●
●
3
16.470 MOLDING; WINDSHIELD
8-98029-078-1
01
1
0908-1011
●
3
16.470 MOLDING; WINDSHIELD
8-98029-078-1
01
1
1012-
●
●
5
16.041 MOLDING; WINDSHIELD,LWR
8-98083-541-1
01
1
0908-1011
●
5
16.041 MOLDING; WINDSHIELD,LWR
8-98083-541-1
01
1
1012-
●
●
10
08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5
8-98095-044-0
02
1
0908-1011
●
10
08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5
8-98095-044-0
02
1
1012-
●
●
15
16.041 FINISHER; WINDSHIELD
DARK GRAY
8-97412-957-0
01
1
1012-
●
43
16.041 TAPE; WINDSHIELD
(A) L=100 B=8
8-98029-086-1
09
1
0908-
●
43
16.041 TAPE; WINDSHIELD
(B) L=100 B=10
8-98083-198-1
09
1
0908-
●
43
16.041 TAPE; WINDSHIELD
(A) L=100 B=8
8-98029-086-1
04
1
1012-
●
43
16.041 TAPE; WINDSHIELD
(B) L=100 B=10
8-98083-198-1
04
1
1012-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
