◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#53393) — 166 parça

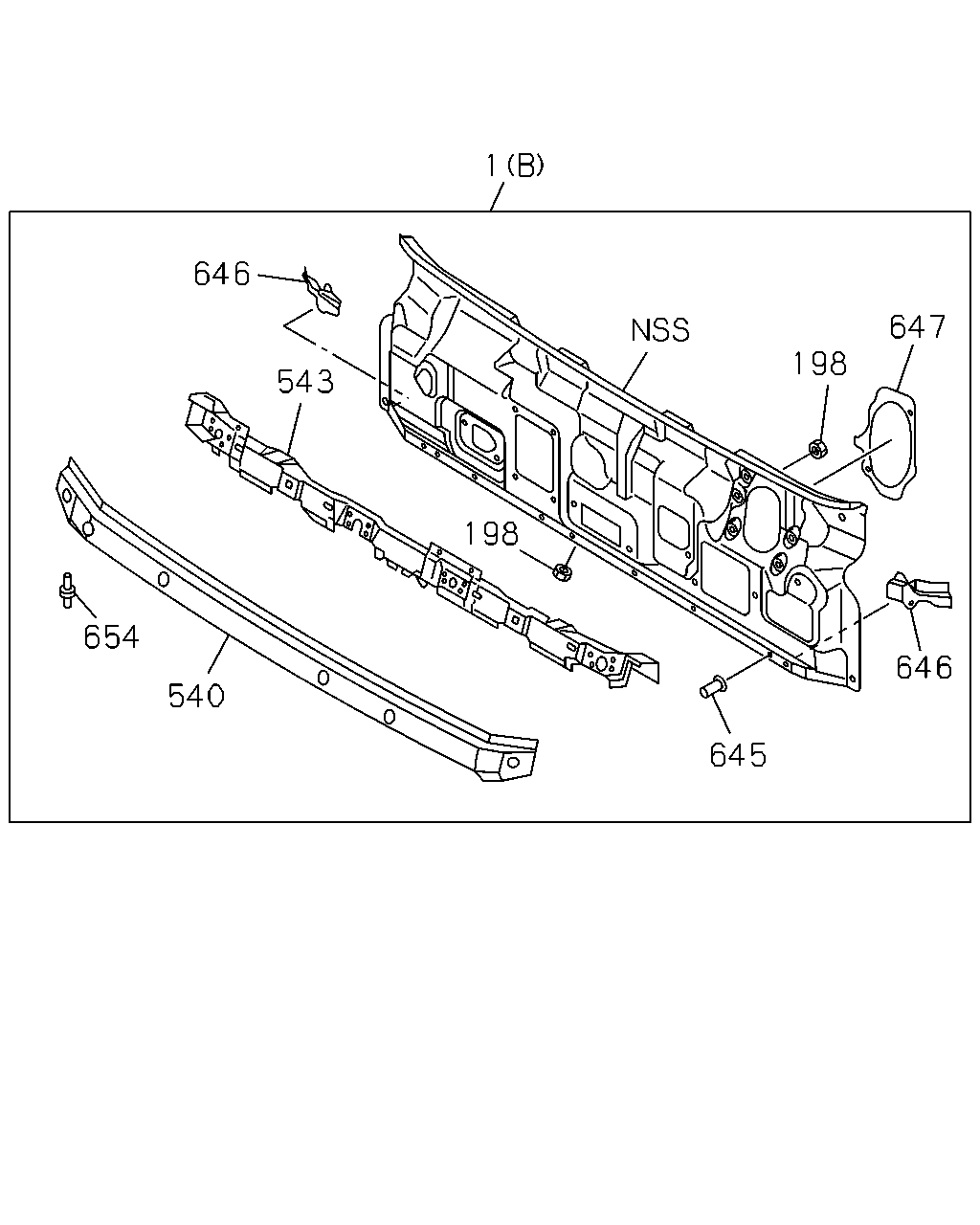

çizim 160070
1 198 647 646 645 498 543 646 540 654
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 0908-1011 ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 1012-1103 ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0908-1011 ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1012- ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 0908-1011 ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 1012-1103 ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104- ● ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 0908-1011 ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 1012- ● ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 0908-1011 ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1012- ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-962-3 01 1 0908-1011 ●
540 16.588 PANEL; FRONT,OUTER 8-97585-962-3 01 1 1012- ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-988-2 01 1 0908-1011 ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-988-2 01 1 1012- ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 0908-1011 ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1012- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 0908-1011 ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1012- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 0908-1011 ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1012- ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 0908-1011 ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1012- ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 0908-1011 ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1012- ● ●

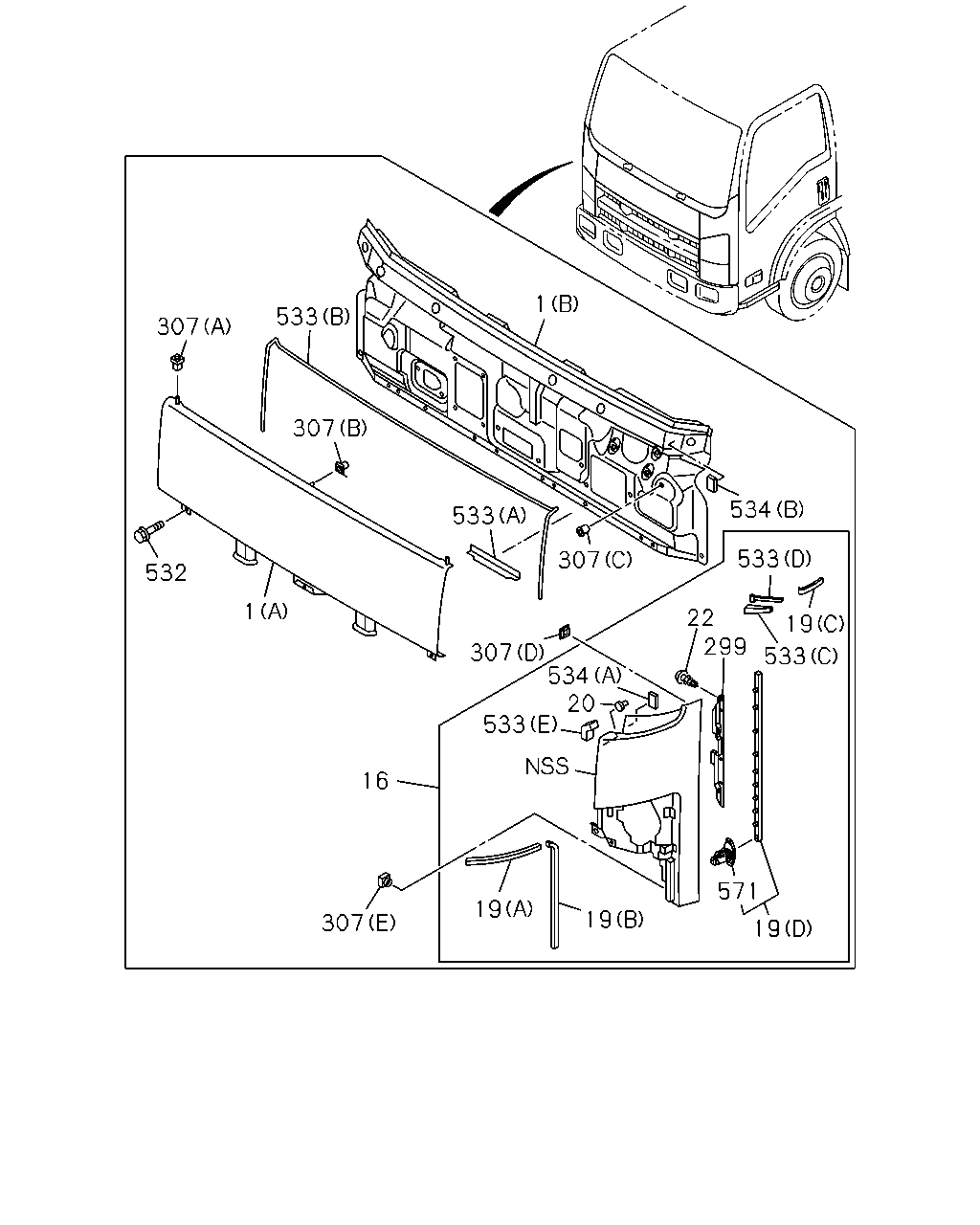

çizim 160073
307 533 307 532 1 16 307 19 19 571 19 299 533 533 534 307 533 1 22 19 534 307 533 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 0908-1011 ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 1012-1103 ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 0908-1011 ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1012- ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 0908-1011 ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 1012-1103 ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-750-9 01 1 1204- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-751-9 01 1 1204- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-904-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-904-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-909-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-909-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-302-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-302-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-308-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-308-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97417-303-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97417-303-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97417-310-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97417-310-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-304-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-304-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-311-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-311-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-305-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-305-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-312-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-312-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97407-905-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97407-905-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97407-910-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97407-910-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-039-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-039-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97407-342-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97407-342-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97407-343-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97407-343-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97407-906-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97407-906-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97407-911-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97407-911-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97407-907-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97407-907-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97407-912-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97407-912-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97417-306-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97417-306-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97417-314-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97417-314-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-715-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-715-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-307-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-307-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-313-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-313-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-842-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-842-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-843-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-843-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-635-9 01 1 0908- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-636-9 01 1 0908- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-870-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-870-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-343-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-343-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-345-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR BRIGHT YELLOW(538) YELLOW 		8-97417-345-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TELEMAGENTA(539) PINK 		8-97417-344-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TELEMAGENTA(539) PINK 		8-97417-344-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TELEMAGENTA(539) PINK 		8-97417-346-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TELEMAGENTA(539) PINK 		8-97417-346-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-498-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-498-9 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-499-9 01 1 0908-1011 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-499-9 01 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 0908-1011 ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 0908-1011 ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 0908-1011 ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 0908-1011 ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 0908-1011 ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1012- ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-0 04 1 0908-1011 ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1012- ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0908-1011 ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1012- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 0908-1011 ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1012- ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 0908-1011 ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 0908-1011 ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 0908-1011 ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 0908-1011 ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 0908-1011 ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 0908-1011 ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 0908-1011 ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1012- ● ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 0908-1011 ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-003-1 01 1 0908-1011 ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-003-1 01 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 0908-1011 ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 1012-1506 ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-763-0 01 1 1507- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 0908-1011 ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 0908-1011 ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 0908-1011 ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1012- ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 0908-1011 ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1012- ● ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 02 1 0908-1011 ●
534 16.550 FASTENER
(A) 40X25 		8-98089-412-1 02 1 1012- ● ●
534 16.550 FASTENER
(B) 40X25 		8-98089-411-1 02 1 0908-1011 ●
534 16.550 FASTENER
(B) 40X25 		8-98089-411-1 02 1 1012- ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 0908-1011 ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1012- ● ●

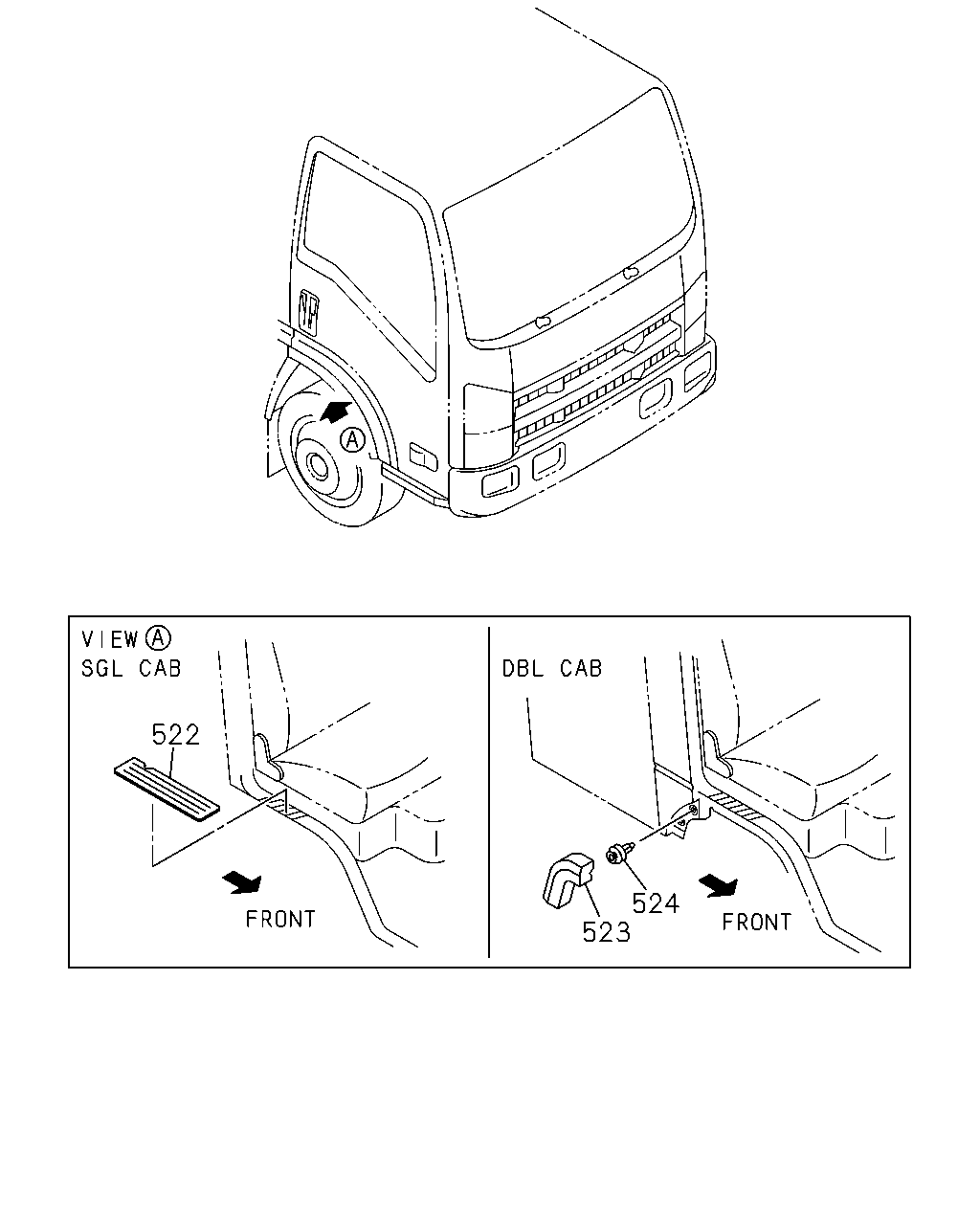

çizim 160147
524 523 522
BalonParca AdiParca NoAdetTipApplied Date A B
522 08.228 PROTECTOR; SILL SIDE 8-97406-953-0 01 1 0911-1011 ●
522 08.228 PROTECTOR; SILL SIDE 8-97406-953-0 01 1 1012- ● ●
523 08.212 COVER; FENDER RR 8-97410-295-2 01 1 1012- ●
523 08.212 COVER; FENDER RR 8-97410-296-2 01 1 1012- ●
524 08.212 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
