◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#53390) — 51 parça

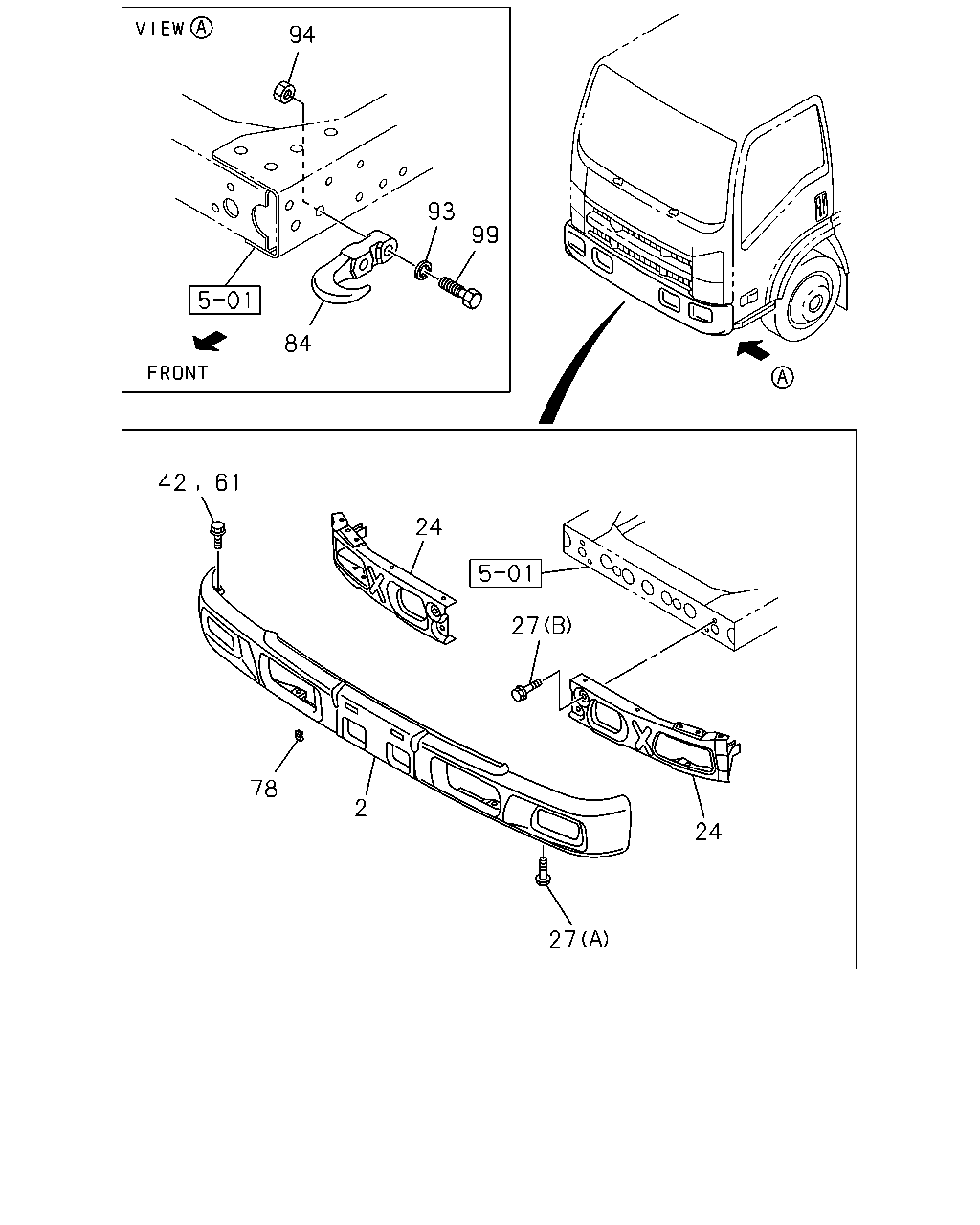

çizim 160046
27 24 2 78 27 24 61 42 84 99 93 94
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 1301- ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97406-813-4 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97406-813-4 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> FRONT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97406-813-4 01 1 1301- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 1301- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> EXC. FRONT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 1301- ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-078-2 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-078-2 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> PRIMER 		8-98055-078-2 01 1 1301- ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97406-819-4 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97406-819-4 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP W/O LAMP<T9H>,FOG LAMP<T96> DARK GRAY 		8-97406-819-4 01 1 1301- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-820-4 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-820-4 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMPW/O LAMP<T9H>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-820-4 01 1 1301- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-821-4 01 1 0908-1011 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-821-4 01 1 1012-1212 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRONT BUMPER DARK GRAY<EQ9>,FOG LAMPW/O LAMP<T9H>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-821-4 01 1 1301- ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-98025-211-4 01 1 0908-0908 ●
24 07.869 BAR; FRT BUMPER 8-98025-211-4 01 1 0909-1011 ●
24 07.869 BAR; FRT BUMPER 8-98025-211-4 01 1 1012- ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-98025-212-4 01 1 0908-0908 ●
24 07.869 BAR; FRT BUMPER 8-98025-212-4 01 1 0909-1011 ●
24 07.869 BAR; FRT BUMPER 8-98025-212-4 01 1 1012- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
16.679 (A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 0908-1011 ●
27 07.833 BOLT; BUMPER TO BACK BAR
16.679 (A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 1012-1211 ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 0908-1011 ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1012- ● ●
42 07.874 BOLT; BUMPER
FOG LAMP W/O LAMP<T9H> 08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1301-1303 ● ●
61 07.832 BOLT; BACK BAR
FOG LAMP<T96> 08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0908-0908 ●
61 07.832 BOLT; BACK BAR
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0909-1011 ●
61 07.832 BOLT; BACK BAR
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1012- ● ●
78 07.874 NUT; SPIRE
FOG LAMP<T96> M6 		8-98029-416-0 02 1 0908-0908 ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 0909-1011 ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 1012- ● ●
84 07.068 HOOK 8-97387-665-0 01 1 0908-1011 ●
84 07.068 HOOK 8-97387-665-0 01 1 1012- ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0908-1011 ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 1012- ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 0908-1011 ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 1012- ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0908-1001 ●
99 07.039 BOLT; HOOK
M14X55 		0-10956-455-0 02 1 1002-1011 ●
99 07.039 BOLT; HOOK
M14X55 		0-10956-455-0 02 1 1012-1103 ● ●
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1104- ● ●
