◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08B - CLUTCH MASTER CYLINDER ▶
2-08B — CLUTCH MASTER CYLINDER (#5339) — 44 parça

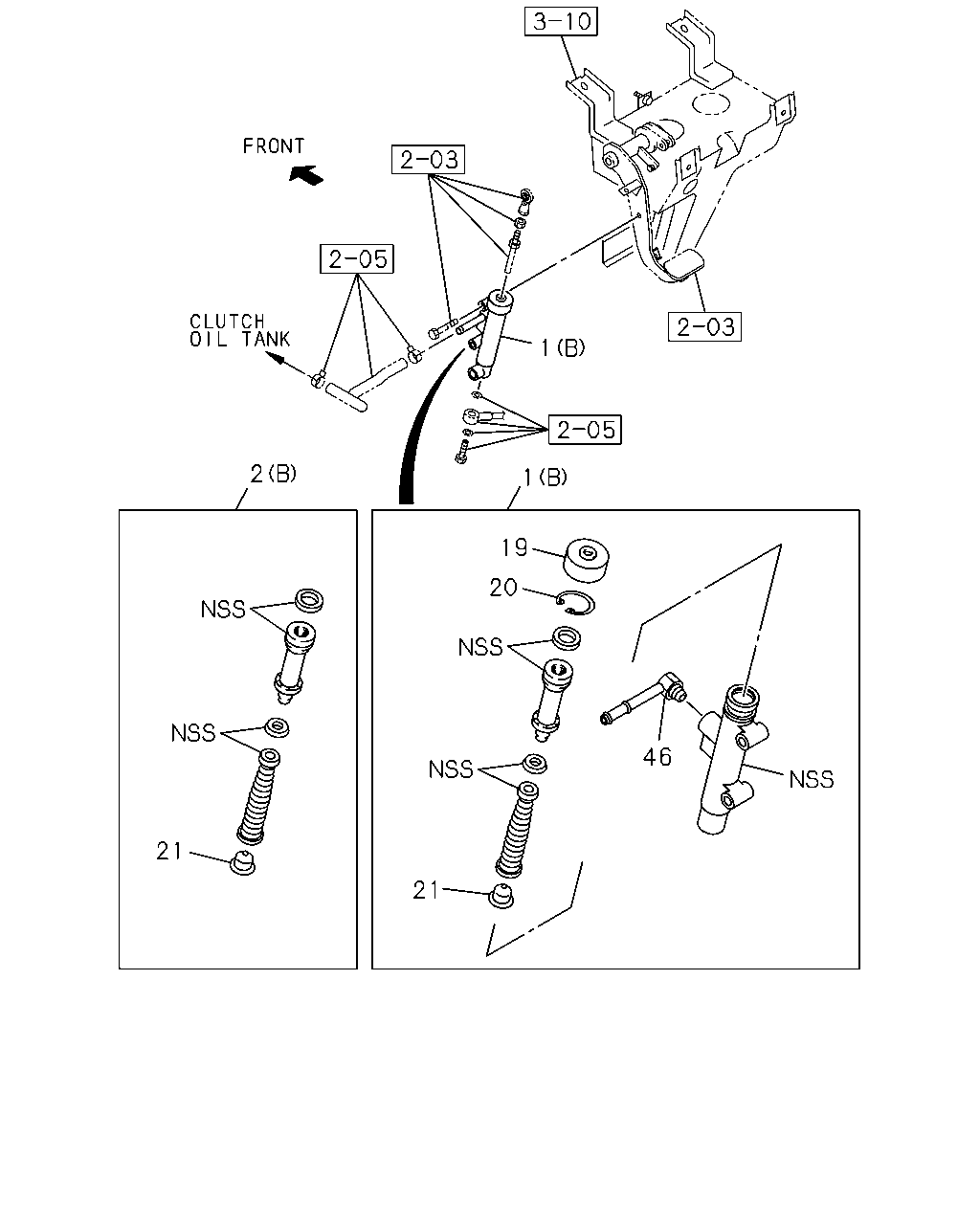

çizim 39880
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> (A) 		1-47500-239-1 01 1 9603-9901 ● ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> (A) 		1-47500-239-2 01 1 9902- ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-241-2 01 1 9603-9901 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-241-3 01 1 9902- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> (A) 		1-85572-010-0 01 1 9603-9901 ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> (A) 		1-85572-010-0 01 1 9902- ● ● ● ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9603-9901 ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9902- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9603-9901 ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9902- ● ● ● ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9603-9901 ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9902- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9603-9901 ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9902- ● ● ● ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9603-9901 ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9902- ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9603-9901 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9902- ● ● ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9603-9901 ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9902- ● ● ● ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9603-9901 ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9902- ● ● ●

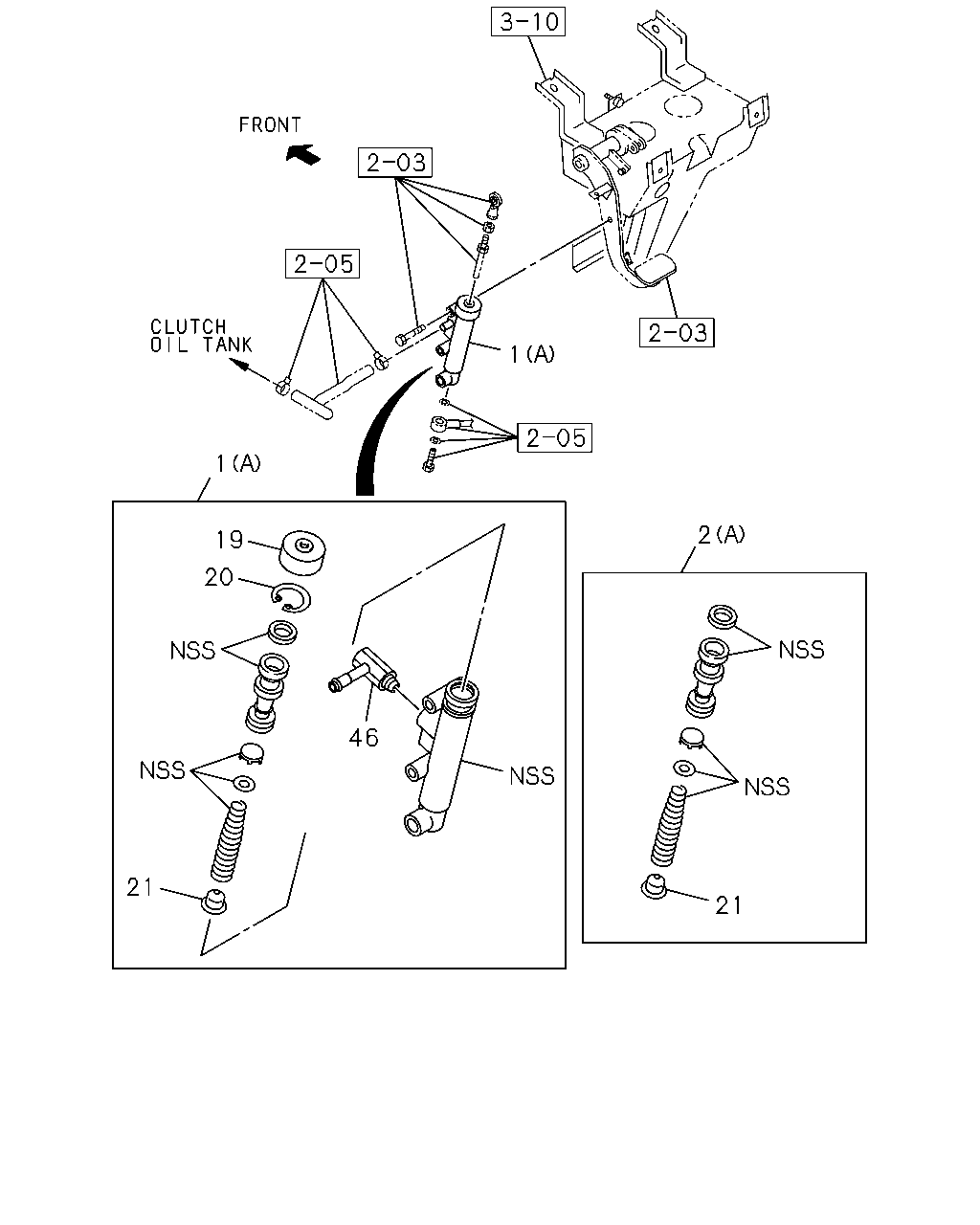

çizim 40213
1 1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> (A) 		1-47500-239-1 01 1 9603-9901 ● ●
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> (A) 		1-47500-239-2 01 1 9902- ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-241-2 01 1 9603-9901 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> (B) 		1-47500-241-3 01 1 9902- ● ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> (A) 		1-85572-010-0 01 1 9603-9901 ● ●
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> (A) 		1-85572-010-0 01 1 9902- ● ● ● ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9603-9901 ●
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> (B) 		1-47550-046-0 01 1 9902- ● ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9603-9901 ● ●
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 9902- ● ● ● ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9603-9901 ●
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 9902- ● ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9603-9901 ● ●
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 9902- ● ● ● ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9603-9901 ●
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 9902- ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9603-9901 ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9902- ● ● ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9603-9901 ● ●
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 9902- ● ● ● ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9603-9901 ●
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 9902- ● ● ●
