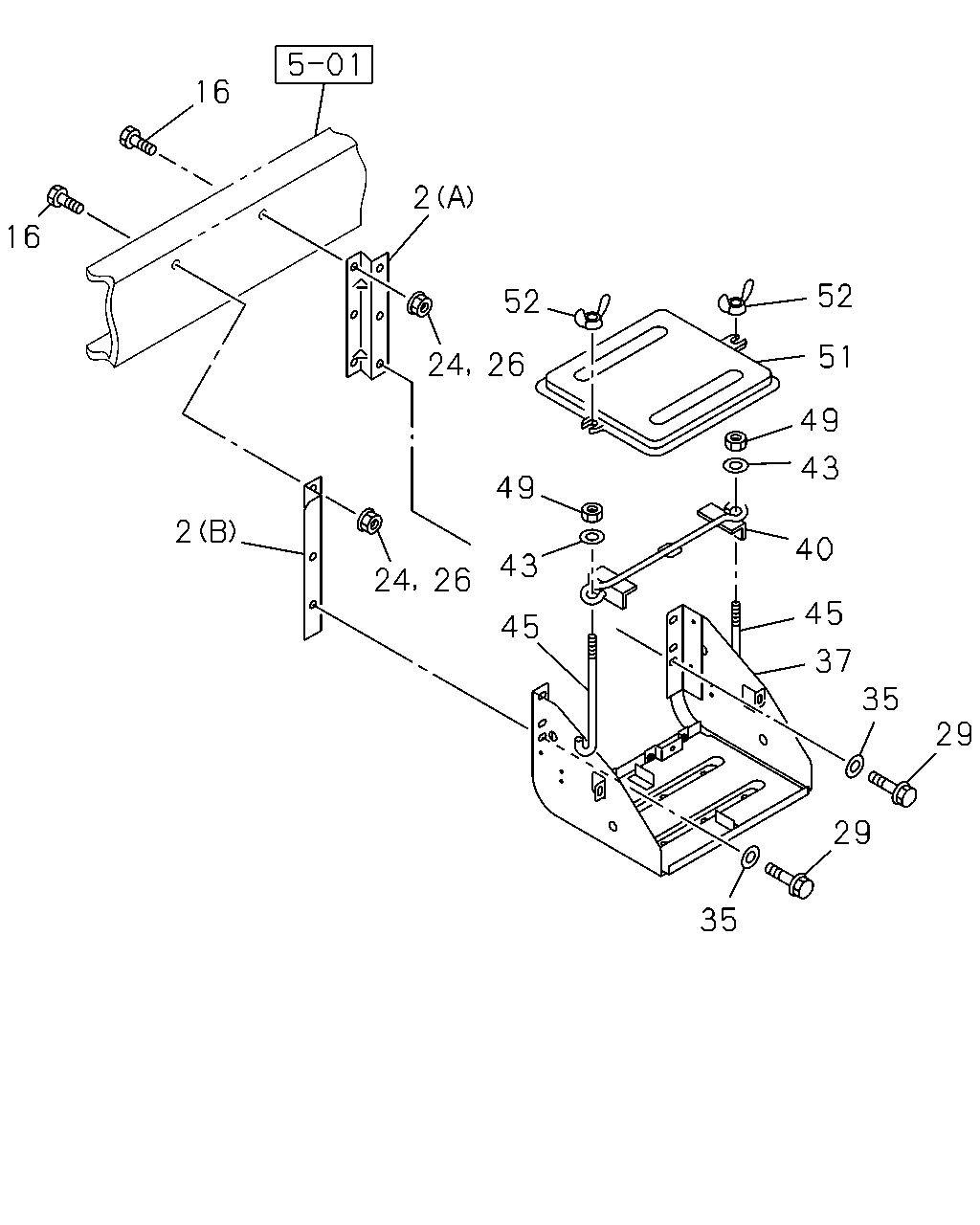

5-20 — BATTERY CARRIER (#53388) — 28 parça

16 16 2 24 45 43 49 26 52 2 24 52 51 49 43 40 45 37 35 29 29 35 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-97384-069-1	01	1	0908-	●
2	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (B)	8-97384-070-1	01	1	0908-	●
16	02.334 BOLT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0908-0912	●
16	02.334 BOLT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1001-	●
24	02.334 NUT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	01	1	0908-0912	●
24	02.334 NUT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1001-	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0908-1011	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1012-		●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0908-	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0908-1011	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1>	8-97384-067-2	01	1	0908-1011	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1>	8-97384-067-2	01	1	1012-	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97384-068-2	01	1	0908-1011	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	8-97384-068-2	01	1	1012-	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0908-1011	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1012-	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0908-1011	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-	●	●
45	02.334 ROD; TENSION,BATTERY	9-53616-615-0	02	1	0908-1011	●
45	02.334 ROD; TENSION,BATTERY	9-53616-615-0	02	1	1012-	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0908-1011	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	8-97120-747-0	01	1	0908-1011	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	8-97120-747-0	01	1	1012-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0908-1011	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1012-	●	●
