4-65B — REAR LEAF SPRING (#53383) — 16 parça

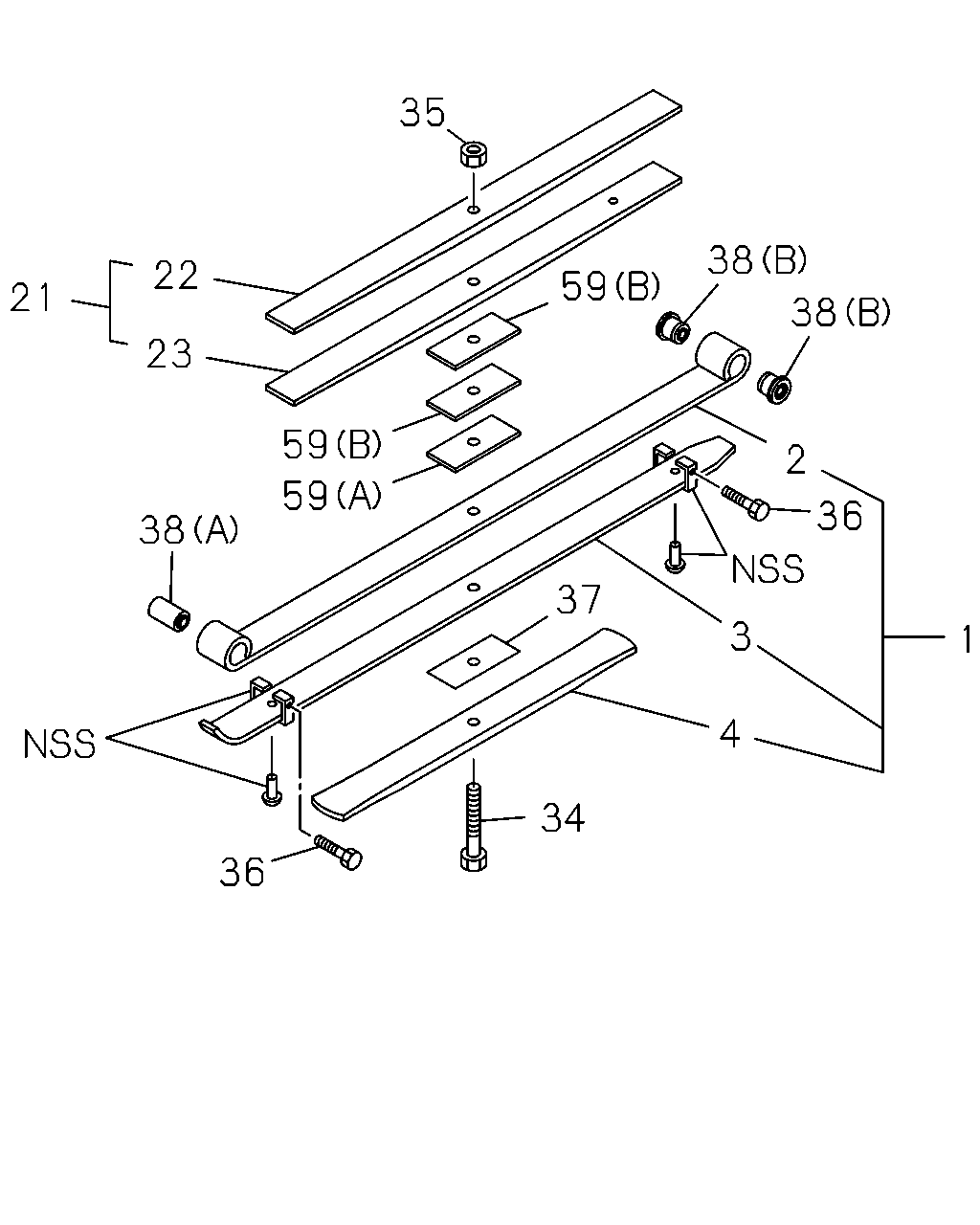

çizim 160189
35 38 59 38 2 1 3 4 34 37 36 59 38 59 36 23 22 21
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98032-763-0, 98032763 		8-98051-951-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98032-763-0, 98032763 		8-98051-952-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98032-763-0, 98032763 		8-98051-953-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98032-763-0, 98032763 		8-98051-954-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98032-763-0, 98032763 		8-98051-955-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98032-763-0, 98032763 		8-98051-956-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98032-763-0, 98032763 		8-98051-957-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: A = 8-98032-763-0, 98032763 		8-98028-860-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98032-763-0, 98032763 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-98032-763-0, 98032763 		8-97129-689-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98032-763-0, 98032763 		8-97084-102-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98032-763-0, 98032763 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98032-763-0, 98032763 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98032-763-0, 98032763 		8-97074-826-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
(A), T=9 ASM PART: A = 8-98032-763-0, 98032763 		8-98040-314-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
(B), T=7 ASM PART: A = 8-98032-763-0, 98032763 		8-98040-315-0 02 1 -
