Sayfa 4-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶

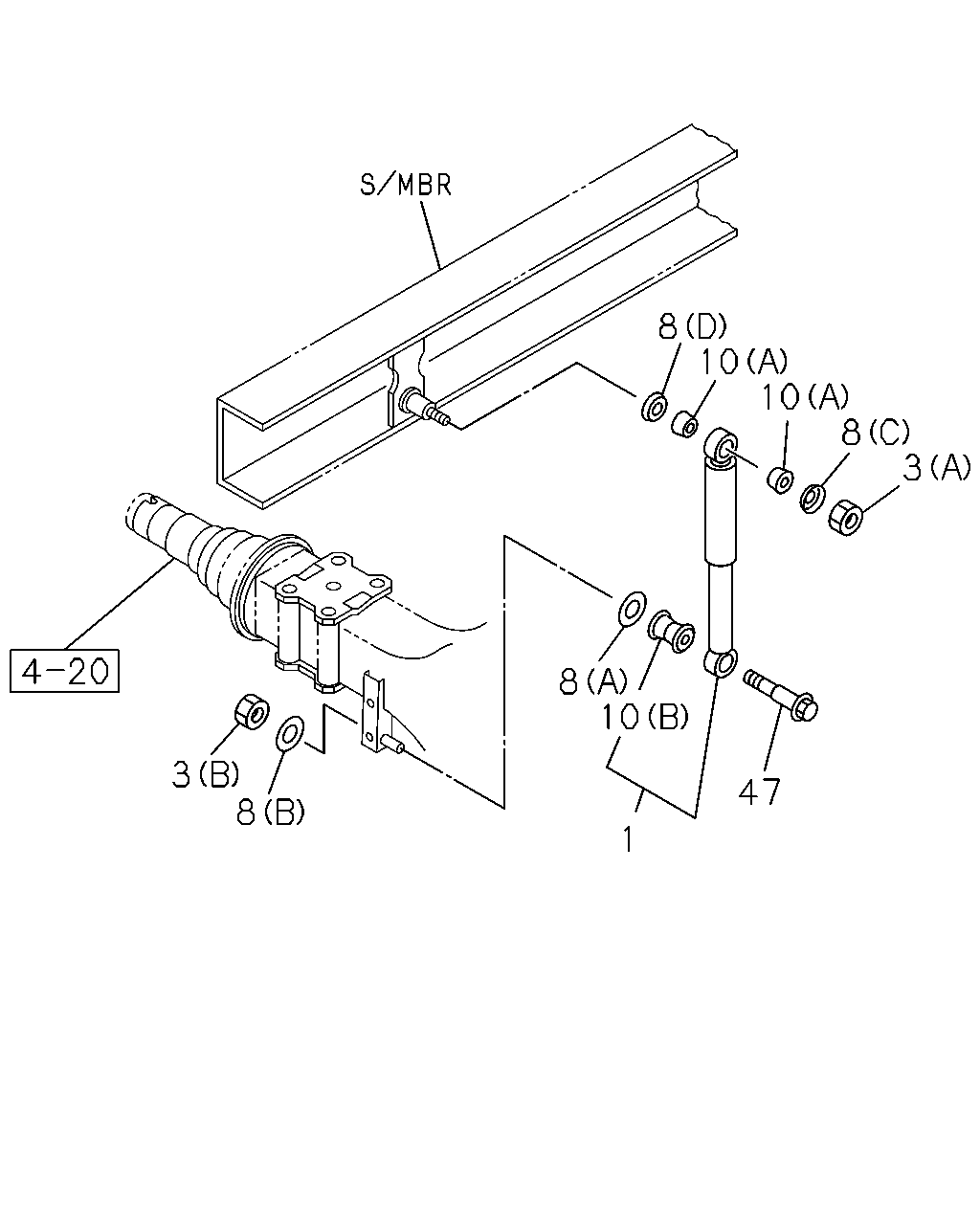

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#53381) — 26 parça

8 8 10 3 10 10 1 47 8 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.395 ABSORBER ASM; SHOCK,RR	8-98040-033-2	02	1	0908-1509	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-98270-959-0	02	1	1510-	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-651-2	02	1	1012-1506		●
1	07.395 ABSORBER ASM; SHOCK,RR	8-98316-233-0	02	1	1507-		●
1	07.395 ABSORBER ASM; SHOCK,RR BEST VALUE PARTS	5-87610-132-0	02	1	1105-1506		●
3	07.347 NUT; S/ABS 07.833 (A) M14	0-91110-514-0	02	1	0908-1011	●
3	07.347 NUT; S/ABS 07.833 (A) M14	0-91110-514-0	02	1	1012-	●	●
3	07.347 NUT; S/ABS 00.785 (B) M16	0-91111-516-0	02	1	0908-1011	●
3	07.347 NUT; S/ABS 00.785 (B) M16	0-91111-516-0	02	1	1012-	●	●
8	07.347 WASHER; S/ABS (C) ID=15	8-97360-056-0	02	1	0908-1011	●
8	07.347 WASHER; S/ABS (C) ID=15	8-97360-056-0	02	1	1012-	●	●
8	07.347 WASHER; S/ABS (D) ID=20.0	8-97360-057-0	02	1	0908-1011	●
8	07.347 WASHER; S/ABS (D) ID=20.0	8-97360-057-0	02	1	1012-	●	●
8	07.347 WASHER; S/ABS 07.516 (A) ID=16.4	8-97360-118-0	02	1	0908-1011	●
8	07.347 WASHER; S/ABS 07.516 (A) ID=16.4	8-97360-118-0	02	1	1012-	●	●
8	07.347 WASHER; S/ABS 07.427 (B) ID=16.5	8-98011-489-0	02	1	0908-1011	●
8	07.347 WASHER; S/ABS 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-	●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) KYB	8-97120-139-0	04	1	1510-	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0908-1011	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	1012-1509	●	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	1510-		●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	0908-1011	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	1012-1509	●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	1510-		●
47	07.347 PIN; S/ABS SETTING	8-97316-972-0	02	1	0908-1011	●
47	07.347 PIN; S/ABS SETTING	8-97316-972-0	02	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
