◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#53379) — 107 parça

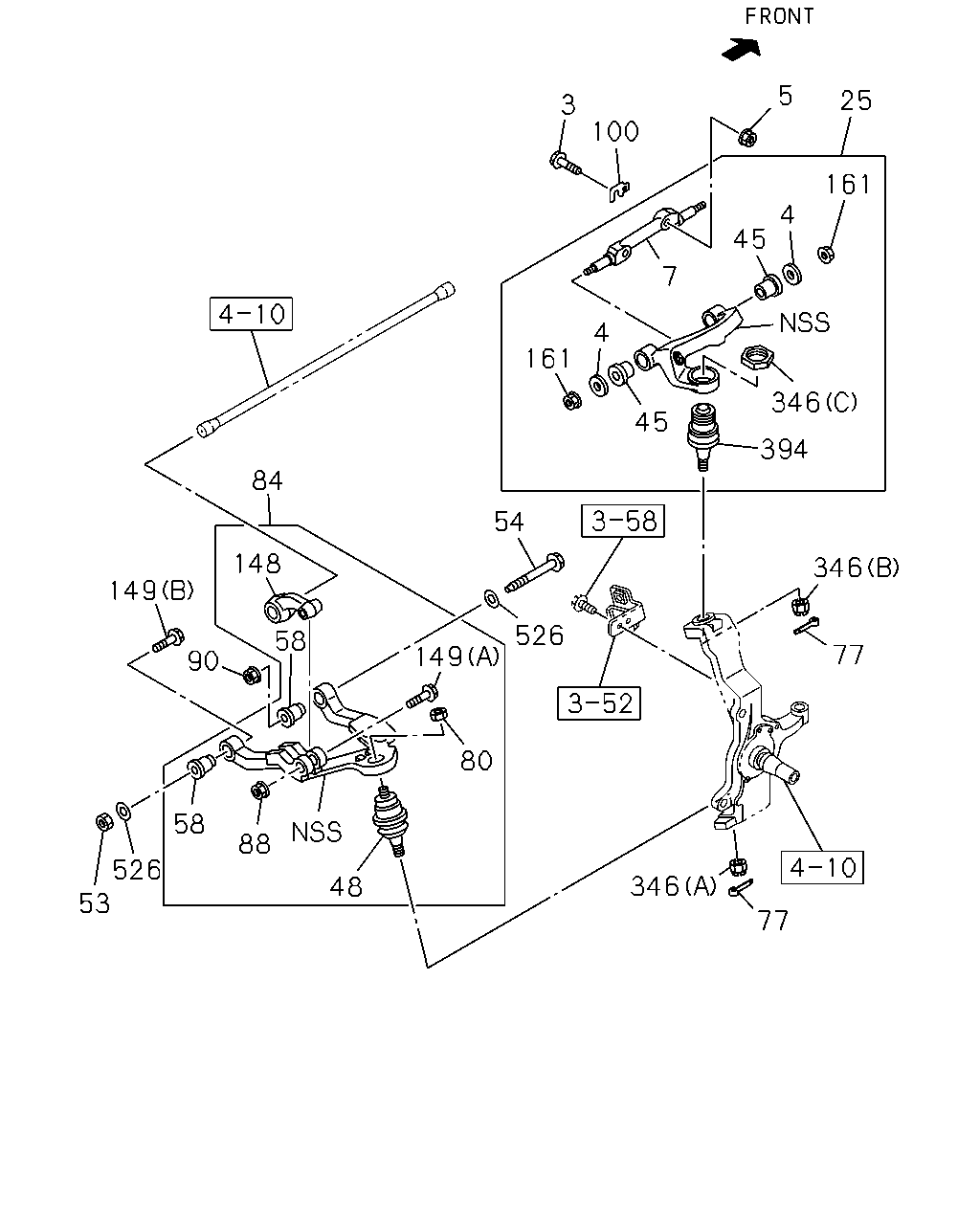

çizim 160016
77 346 77 346 394 346 161 25 5 4 45 7 45 4 161 100 3 54 526 149 80 48 88 58 526 53 90 149 148 84 58
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.164 BOLT; UPR LINK TO FRAME
M16X70 		8-97378-658-0 04 1 1012- ●
3 06.164 BOLT; UPR LINK TO FRAME
06.178 M16X70 FLANGE 		0-28861-670-0 04 1 0908- ●
4 06.164 WASHER; UPR LINK TO FRAME 8-98021-786-0 04 1 0908-1011 ●
4 06.164 WASHER; UPR LINK TO FRAME 8-98021-786-0 04 1 1012- ● ●
5 06.164 NUT; UPR LINK TO FRAME
M16 FLANGE 		0-91180-216-0 04 1 0908-1011 ●
5 06.164 NUT; UPR LINK TO FRAME
M16 FLANGE 		0-91180-216-0 04 1 1012- ● ●
7 06.174 PIN; FULCRUM,UPR LINK 8-98021-654-0 02 1 0908-1011 ●
7 06.174 PIN; FULCRUM,UPR LINK 8-98021-654-0 02 1 1012- ● ●
25 06.168 ARM; UPR CONT 8-98033-252-0 01 1 0908-1011 ●
25 06.168 ARM; UPR CONT 8-98033-252-0 01 1 1012- ● ●
25 06.168 ARM; UPR CONT 8-98033-253-0 01 1 0908-1011 ●
25 06.168 ARM; UPR CONT 8-98033-253-0 01 1 1012- ● ●
45 06.164 BUSHING; UPR LINK,FRT 8-97188-369-0 04 1 0908-1011 ●
45 06.164 BUSHING; UPR LINK,FRT 8-97188-369-0 04 1 1012- ● ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-97087-653-0 02 1 0908-1011 ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-97087-653-0 02 1 1012- ● ●
53 06.174 NUT; LWR LINK
07.529 M18 		0-91110-518-0 02 1 0908-1011 ●
53 06.174 NUT; LWR LINK
07.529 M18 		0-91110-518-0 02 1 1012- ● ●
54 06.174 PIN; FULCRUM,LWR LINK 8-98033-251-0 02 1 0908-1011 ●
54 06.174 PIN; FULCRUM,LWR LINK 8-98033-251-0 02 1 1012- ● ●
58 06.170 BUSHING; LWR LINK 8-97240-314-0 04 1 0908-1011 ●
58 06.170 BUSHING; LWR LINK 8-97240-314-0 04 1 1012- ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
05.812 OD=3.7 L=30 		0-81124-030-0 04 1 0908-1011 ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
05.812 OD=3.7 L=30 		0-81124-030-0 04 1 1012- ● ●
80 06.174 NUT; LWR LINK END TO KNUCKLE 8-98029-422-0 02 1 0908-1011 ●
80 06.174 NUT; LWR LINK END TO KNUCKLE 8-98029-422-0 02 1 1012- ● ●
84 06.168 ARM; LWR CONT 8-98001-292-2 01 1 0908-1011 ●
84 06.168 ARM; LWR CONT 8-98001-292-2 01 1 1012- ● ●
84 06.168 ARM; LWR CONT 8-98001-293-2 01 1 0908-1011 ●
84 06.168 ARM; LWR CONT 8-98001-293-2 01 1 1012- ● ●
88 06.174 NUT; LWR LINK
05.816 M12 FLANGE 		0-91180-212-0 02 1 0908-1011 ●
88 06.174 NUT; LWR LINK
05.816 M12 FLANGE 		0-91180-212-0 02 1 1012- ● ●
90 06.170 NUT; LWR LINK
07.529 M18 		0-91110-518-0 02 1 0908-1011 ●
90 06.170 NUT; LWR LINK
07.529 M18 		0-91110-518-0 02 1 1012- ● ●
100 06.164 SHIM; UPR LINK TO FRAME
T=1.2 		8-98029-250-0 AR 1 0908-1011 ●
100 06.164 SHIM; UPR LINK TO FRAME
T=1.2 		8-98029-250-0 AR 1 1012- ● ●
100 06.164 SHIM; UPR LINK TO FRAME
T=2.3 		8-98029-251-0 AR 1 0908-1011 ●
100 06.164 SHIM; UPR LINK TO FRAME
T=2.3 		8-98029-251-0 AR 1 1012- ● ●
100 06.164 SHIM; UPR LINK TO FRAME
T=4.5 		8-98029-252-0 AR 1 0908-1011 ●
100 06.164 SHIM; UPR LINK TO FRAME
T=4.5 		8-98029-252-0 AR 1 1012- ● ●
148 06.170 ARM; LWR LINK 8-97087-651-1 01 1 0908-0911 ●
148 06.170 ARM; LWR LINK 8-98134-779-0 01 1 0912-1011 ●
148 06.170 ARM; LWR LINK 8-98134-779-0 01 1 1012- ● ●
148 06.170 ARM; LWR LINK 8-97087-652-1 01 1 0908-0911 ●
148 06.170 ARM; LWR LINK 8-98134-780-0 01 1 0912-1011 ●
148 06.170 ARM; LWR LINK 8-98134-780-0 01 1 1012- ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
(A) M12X80 FLANGE 		0-28061-280-0 02 1 0908-1011 ●
149 06.172 BOLT; ARM TO LWR CONT ARM
(A) M12X80 FLANGE 		0-28061-280-0 02 1 1012- ● ●
149 06.172 BOLT; ARM TO LWR CONT ARM
06.174 (B) 		8-98033-251-0 02 1 0908-1011 ●
149 06.172 BOLT; ARM TO LWR CONT ARM
06.174 (B) 		8-98033-251-0 02 1 1012- ● ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.164 M16 FLANGE 		0-91180-216-0 04 1 0908-1011 ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.164 M16 FLANGE 		0-91180-216-0 04 1 1012- ● ●
346 06.174 NUT; LINK END
06.861 (A) M22 		0-91111-522-0 02 1 0908-1011 ●
346 06.174 NUT; LINK END
06.861 (A) M22 		0-91111-522-0 02 1 1012- ● ●
346 06.174 NUT; LINK END
(B) M18 SLOTTED 		8-97245-632-0 02 1 0908-1011 ●
346 06.174 NUT; LINK END
(B) M18 SLOTTED 		8-97245-632-0 02 1 1012- ● ●
346 06.174 NUT; LINK END
(C) M52 		8-98021-784-0 02 1 0908-0909 ●
346 06.174 NUT; LINK END
(C) M52 		8-98158-133-0 02 1 0910-1011 ●
346 06.174 NUT; LINK END
(C) M52 		8-98158-133-0 02 1 1012- ● ●
394 06.714 END ASM; FRT AXLE 8-97327-369-5 02 1 0908-1011 ●
394 06.714 END ASM; FRT AXLE 8-97327-369-5 02 1 1012- ● ●
526 06.172 WASHER; LWR LINK
ID=18.2 		0-91510-818-0 04 1 0908-1011 ●
526 06.172 WASHER; LWR LINK
ID=18.2 		0-91510-818-0 04 1 1012- ● ●

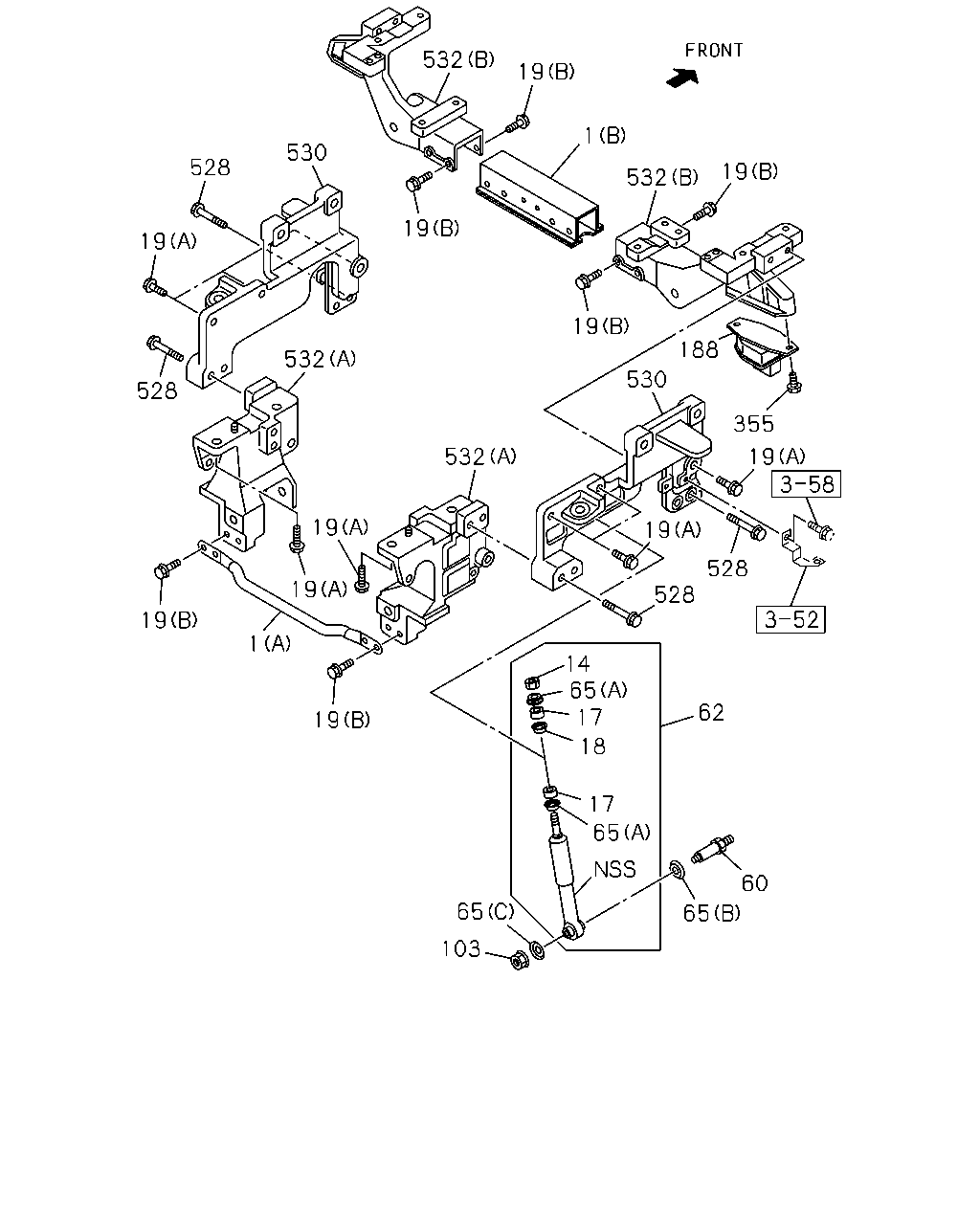

çizim 160047
532 19 1 532 19 19 19 188 530 355 19 19 528 528 62 14 65 17 18 17 65 65 103 60 65 532 19 19 1 19 19 532 528 19 528 530
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.010 MEMBER; CROSS,FRT SUSP
(A) 		8-98001-299-2 01 1 0908-1011 ●
1 07.010 MEMBER; CROSS,FRT SUSP
(A) 		8-98001-299-2 01 1 1012- ● ●
1 07.010 MEMBER; CROSS,FRT SUSP
(B) 		8-98009-501-1 01 1 0908-1011 ●
1 07.010 MEMBER; CROSS,FRT SUSP
(B) 		8-98009-501-1 01 1 1012- ● ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 0908-1011 ●
14 07.389 NUT; S/ABS,UPR
M10 T=8 		9-09640-020-0 02 1 1012- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0908-1011 ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1012- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 0908-1011 ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 1012- ● ●
19 07.425 BOLT; FRT SUSP TO C/MBR
00.724 (A) M12X45 FLANGE 		0-28061-245-0 14 1 0908-1011 ●
19 07.425 BOLT; FRT SUSP TO C/MBR
00.724 (A) M12X45 FLANGE 		0-28061-245-0 14 1 1012- ● ●
19 07.425 BOLT; FRT SUSP TO C/MBR
00.004 (B) M12X35 FLANGE 		0-28661-235-0 12 1 0908-1011 ●
19 07.425 BOLT; FRT SUSP TO C/MBR
00.004 (B) M12X35 FLANGE 		0-28661-235-0 12 1 1012- ● ●
60 07.347 BOLT; S/ABS TO LWR LINK 8-98003-210-0 02 1 0908-1011 ●
60 07.347 BOLT; S/ABS TO LWR LINK 8-98003-210-0 02 1 1012- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98001-526-1 02 1 0908-1011 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98001-526-1 02 1 1012- ● ●
65 07.347 WASHER; S/ABS
(B) ID=21 OD=40 		0-91614-620-0 02 1 0908-1011 ●
65 07.347 WASHER; S/ABS
(B) ID=21 OD=40 		0-91614-620-0 02 1 1012- ● ●
65 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 0908-1011 ●
65 07.347 WASHER; S/ABS
(C) ID=15 		8-97360-056-0 02 1 1012- ● ●
65 07.347 WASHER; S/ABS
(A) OD=40 		9-51631-614-0 04 1 0908-1011 ●
65 07.347 WASHER; S/ABS
(A) OD=40 		9-51631-614-0 04 1 1012- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 0908-1011 ●
103 07.347 NUT; S/ABS TO LWR LINK
07.833 M14 		0-91110-514-0 02 1 1012- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-97230-008-0 02 1 0908-1011 ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-97230-008-0 02 1 1012- ● ●
355 07.436 BOLT; CUSHION RUBBER
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0908-1011 ●
355 07.436 BOLT; CUSHION RUBBER
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ●
528 06.172 BOLT; UPR CONT ARM
00.004 M12X35 FLANGE 		0-28661-235-0 08 1 0908-1011 ●
528 06.172 BOLT; UPR CONT ARM
00.004 M12X35 FLANGE 		0-28661-235-0 08 1 1012- ● ●
530 06.172 BRACKET; UPR CONT ARM 8-98010-557-1 01 1 0908-1011 ●
530 06.172 BRACKET; UPR CONT ARM 8-98010-557-1 01 1 1012- ● ●
530 06.172 BRACKET; UPR CONT ARM 8-98010-558-1 01 1 0908-1011 ●
530 06.172 BRACKET; UPR CONT ARM 8-98010-558-1 01 1 1012- ● ●
532 06.172 BRACKET; FRT SUSP
(A) 		8-98001-307-1 01 1 0908-1011 ●
532 06.172 BRACKET; FRT SUSP
(A) 		8-98001-307-1 01 1 1012- ● ●
532 06.172 BRACKET; FRT SUSP
(A) 		8-98001-308-1 01 1 0908-1011 ●
532 06.172 BRACKET; FRT SUSP
(A) 		8-98001-308-1 01 1 1012- ● ●
532 06.172 BRACKET; FRT SUSP
(B) 		8-98009-502-2 01 1 0908-1011 ●
532 06.172 BRACKET; FRT SUSP
(B) 		8-98009-502-2 01 1 1012- ● ●
532 06.172 BRACKET; FRT SUSP
(B) 		8-98009-503-2 01 1 0908-1011 ●
532 06.172 BRACKET; FRT SUSP
(B) 		8-98009-503-2 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
