4-40 — STEERING UNIT (#53376) — 11 parça

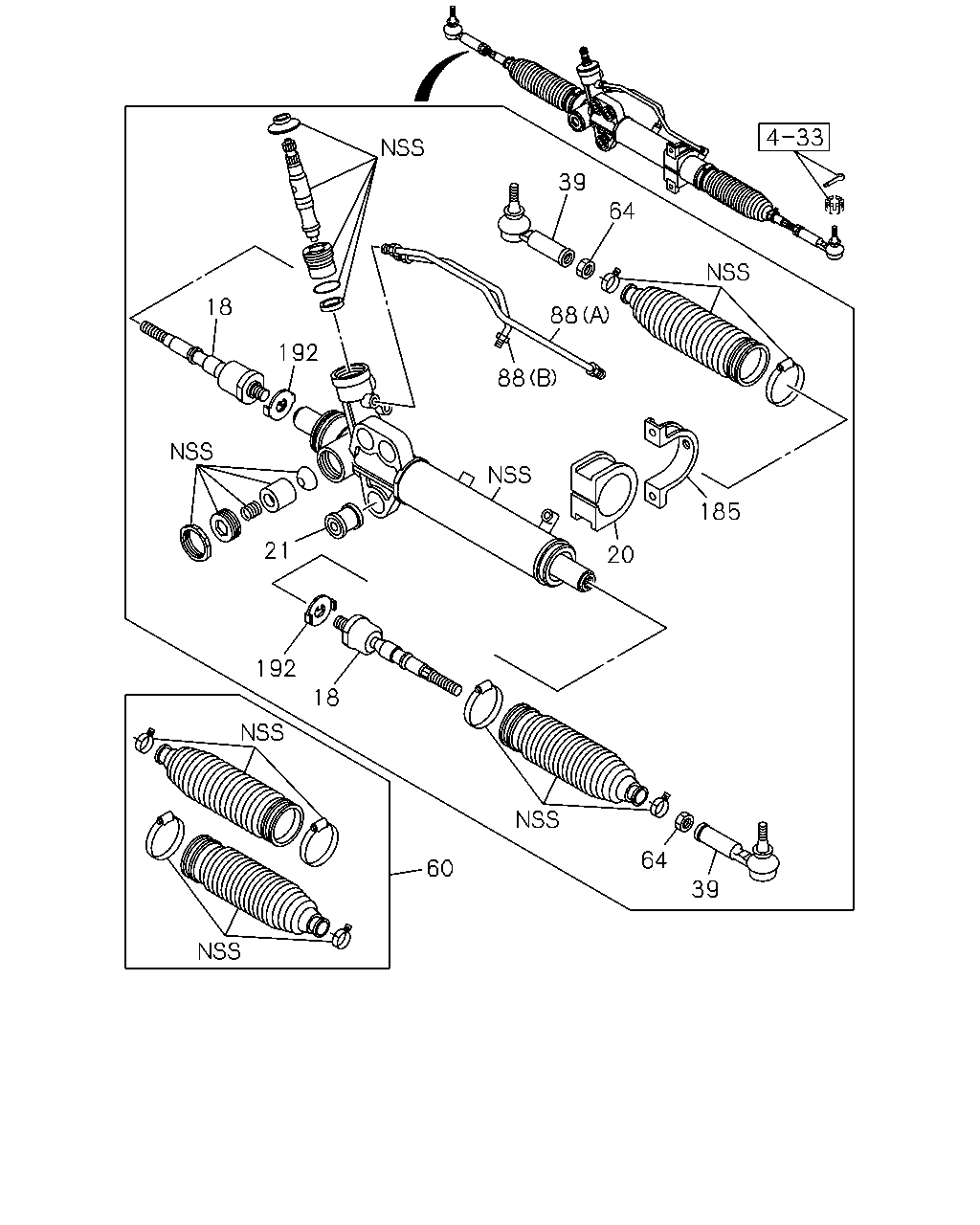

çizim 160018
39 88 64 88 185 20 192 18 21 192 18 64 39 60
BalonParca AdiParca NoAdetTipApplied Date
18 06.230 ROD ASM; INNER
ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-97374-354-0 02 1 -
20 06.509 RUBBER; MTG
ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-98061-373-0 01 1 -
21 06.509 RUBBER; MTG,PINION SIDE
ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-98061-372-0 03 1 -
39 06.233 ROD END ASM; OUTER
ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-98008-838-0 02 1 -
60 06.242 BOOT KIT; STRG HSG
ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-97357-199-0 01 1 -
64 06.242 NUT; ROD END OUTER TO INNER
03.330, M18 ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		0-91111-518-0 02 1 -
88 06.671 PIPE; HSG TO VLV
(A) ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-97373-378-0 01 1 -
88 06.671 PIPE; HSG TO VLV
(B) ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-97373-379-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: B = 8-98279-325-1, 98279325 		8-97373-370-0 01 1 -
185 06.509 BRACKET; P/S
ASM PART: A = 8-98001-414-2, 98001414 		8-97373-371-0 01 1 -
192 06.521 WASHER; LK,JOINT
ASM PART: A = 8-98001-414-2, 98001414, B = 8-98279-325-1, 98279325 		8-97357-196-0 02 1 -
