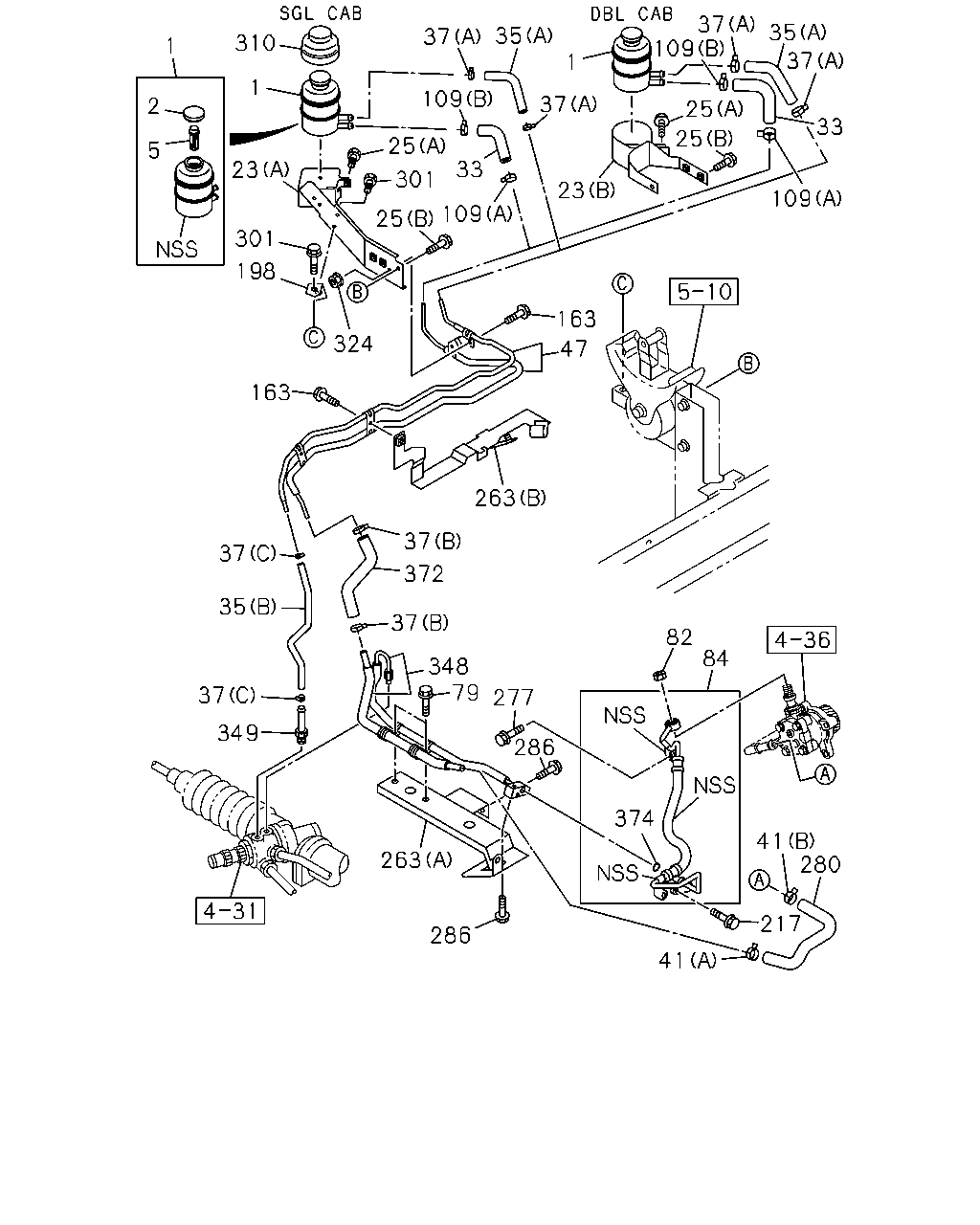

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#53374) — 81 parça

41 217 280 41 374 84 82 277 286 286 263 349 37 35 37 37 372 37 348 79 263 47 163 324 163 198 301 23 5 2 1 310 1 25 301 25 109 37 35 33 109 37 1 23 25 25 109 37 35 37 109 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0908-1011	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0908-1011	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0908-1011	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-	●	●
23	06.672 BRACKET; OIL TANK,P/S (B)	8-98001-427-3	01	1	1012-		●
23	06.672 BRACKET; OIL TANK,P/S (A)	8-98053-625-2	01	1	0908-	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-		●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0908-1011	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0908-	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-		●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	0908-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-1012		●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1012-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-264-0	01	1	0908-1011	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-273-1	01	1	0908-1011	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-273-1	01	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0908-0911	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1011	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 06.672 (B) ID=21	8-94242-034-0	02	1	0908-0911	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	0912-1011	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1012-	●	●
37	01.762 CLIP; HOSE,P/S 04.686 (C) ID=11-19.5	8-94426-597-0	02	1	0908-1005	●
37	01.762 CLIP; HOSE,P/S 04.681 (C) ID=11-17	8-98173-762-1	02	1	1006-1011	●
37	01.762 CLIP; HOSE,P/S 04.681 (C) ID=11-17	8-98173-762-1	02	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S (B) ID=21	8-94242-034-0	01	1	0908-0911	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	0912-1011	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1012-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	0908-1011	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1012-	●	●
47	06.671 PIPE; RETURN	8-98054-231-0	01	1	1012-		●
47	06.671 PIPE; RETURN	8-98118-521-0	01	1	0908-1011	●
47	06.671 PIPE; RETURN	8-98173-326-0	01	1	1012-	●
79	06.672 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0908-1011	●
79	06.672 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0908-1011	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0908-1011	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1012-	●	●
84	06.670 HOSE; FLEX,P/S	8-98032-377-3	01	1	0908-1011	●
84	06.670 HOSE; FLEX,P/S	8-98032-377-3	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0908-0911	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-1011	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1012-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0908-1003	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-1011	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0908-1011	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	0908-	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0908-1011	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98032-327-3	01	1	0908-1011	●
263	06.672 BRACKET; P/S PIPE (A)	8-98032-327-3	01	1	1012-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-330-0	01	1	0908-1011	●
263	06.672 BRACKET; P/S PIPE (B)	8-98032-330-0	01	1	1012-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0908-1011	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0908-1011	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98032-375-3	01	1	0908-1011	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98032-375-3	01	1	1012-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0908-1011	●
286	06.672 BOLT; CLIP,P/S HOSE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0908-1011	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0908-	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0908-	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0908-1011	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98032-337-2	01	1	0908-1011	●
348	06.671 PIPE; OIL,P/S PRESS	8-98032-337-2	01	1	1012-	●	●
349	06.671 PIPE; OIL,P/S RETURN	8-98008-162-1	01	1	0908-1011	●
349	06.671 PIPE; OIL,P/S RETURN	8-98008-162-1	01	1	1012-	●	●
372	06.673 HOSE; RUBBER	8-98054-271-0	01	1	0908-1011	●
372	06.673 HOSE; RUBBER	8-98054-271-0	01	1	1012-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	0908-1011	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
