◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51258 - NLS RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#53372) — 68 parça

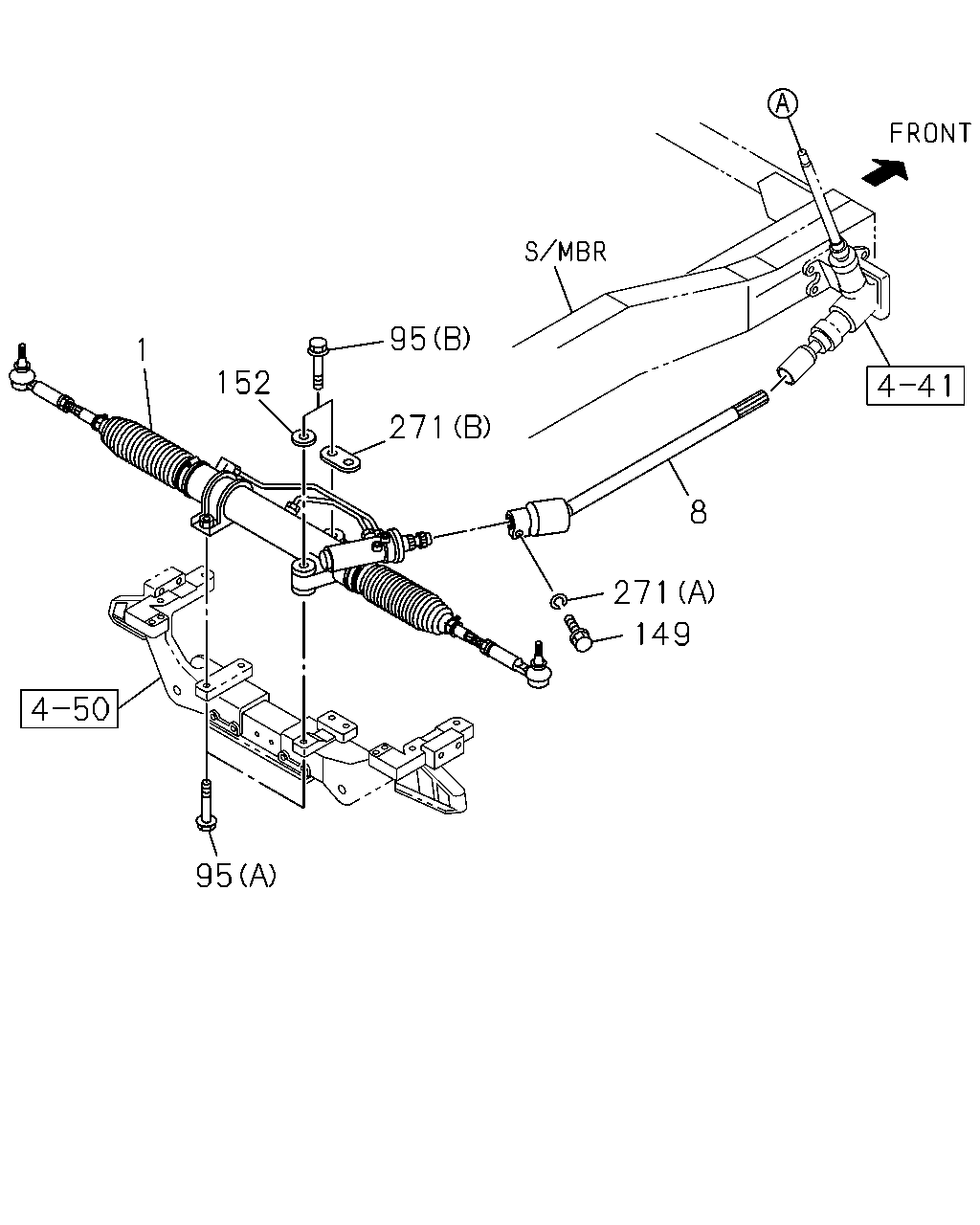

çizim 160009
95 149 27 8 271 95 152 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98001-414-1 01 1 0908-1011 ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98001-414-2 01 1 1012-1412 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98279-325-1 01 1 1501- ● ●
8 06.525 JOINT; UNIVERSAL 8-98115-713-0 01 1 0908-1011 ●
8 06.525 JOINT; UNIVERSAL 8-98115-713-0 01 1 1012- ● ●
95 06.509 BOLT; STRG UNIT
(A) M14X50 FLANGE 		0-28851-450-0 02 1 0908-1011 ●
95 06.509 BOLT; STRG UNIT
(A) M14X50 FLANGE 		0-28851-450-0 02 1 1012- ● ●
95 06.509 BOLT; STRG UNIT
(B) M14X70 FLANGE 		0-29261-470-0 03 1 0908-1011 ●
95 06.509 BOLT; STRG UNIT
(B) M14X70 FLANGE 		0-29261-470-0 03 1 1012- ● ●
149 06.525 BOLT; GEAR BOX
M8X30 		8-97359-615-0 02 1 0908-1011 ●
149 06.525 BOLT; GEAR BOX
M8X30 		8-97359-615-0 02 1 1012- ● ●
152 00.796 WASHER; LK,STRG UNIT
03.704 ID=15 OD=40 		9-09851-995-0 01 1 0908-1011 ●
152 00.796 WASHER; LK,STRG UNIT
03.704 ID=15 OD=40 		9-09851-995-0 01 1 1012- ● ●
271 06.514 WASHER; LK,GEAR BOX
02.559 (A) ID=8.2 		0-91510-808-0 02 1 0908-1011 ●
271 06.514 WASHER; LK,GEAR BOX
02.559 (A) ID=8.2 		0-91510-808-0 02 1 1012- ● ●
271 06.514 WASHER; LK,GEAR BOX
(B) 		8-97354-092-0 01 1 0908-1011 ●
271 06.514 WASHER; LK,GEAR BOX
(B) 		8-97354-092-0 01 1 1012- ● ●

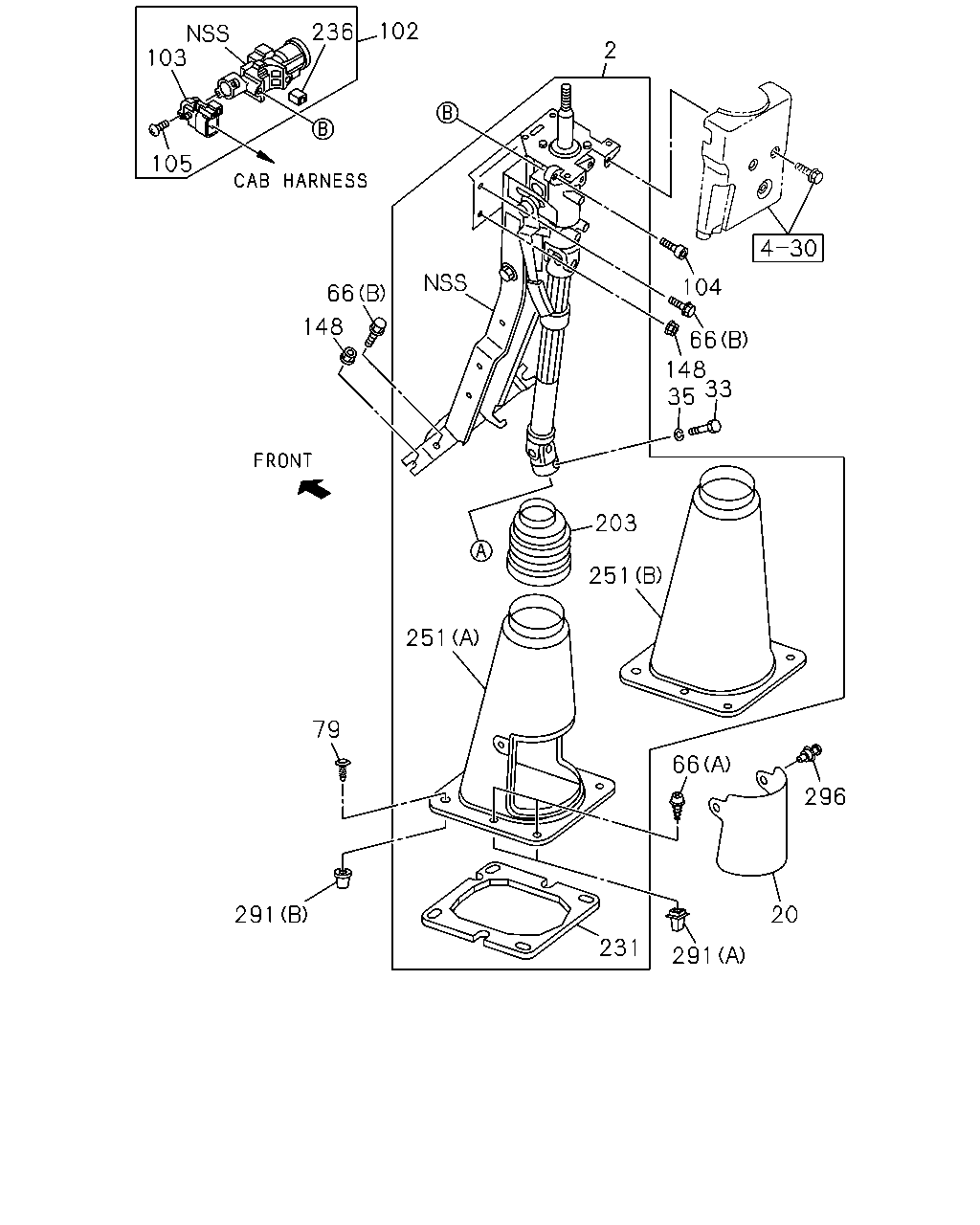

çizim 160028
103 236 102 105 2 104 66 148 35 33 66 148 203 251 251 66 296 20 291 231 291 79
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1007- ●
2 06.518 SHAFT ASM; STRG
BLACK 		8-97406-375-6 01 1 0908-1006 ●
2 06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-6 01 1 1007-1011 ●
2 06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-8 01 1 1012- ●
2 06.518 SHAFT ASM; STRG
BLACK 		8-97406-375-8 01 1 1012- ●
20 06.525 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 0908-1006 ●
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1007-1011 ●
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1012- ●
20 06.525 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 1012- ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0908-1011 ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 1012- ● ●
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 0908-1011 ●
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ●
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1201- ● ●
66 06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 0908-1011 ●
66 06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 1012- ● ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0908-1011 ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 1012-1112 ● ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ●
79 06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK 		8-94363-776-0 02 1 0908-1011 ●
79 06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK 		8-94363-776-0 02 1 1012- ● ●
102 06.500 LOCK ASM; STRG 8-97387-036-0 01 1 0908-1011 ●
102 06.500 LOCK ASM; STRG 8-97387-036-0 01 1 1012- ● ●
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 0908-1011 ●
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 1012- ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0908-1011 ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1012- ● ●
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 0908-1011 ●
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 1012- ● ●
148 06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 03 1 0908-1011 ●
148 06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 03 1 1012- ● ●
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 0908-1011 ●
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 1012- ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 0908-1011 ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 1012- ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0908-1011 ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 1012- ● ●
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0912-1006 ●
251 06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1007-1011 ●
251 06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1012- ●
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 1012- ●
251 06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1007- ●
251 06.518 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 0908-0911 ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 		8-94463-268-1 04 1 0908-1011 ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 		8-94463-268-1 04 1 1012- ● ●
291 06.518 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 0908-1011 ●
291 06.518 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 1012- ● ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0908-1006 ●
296 06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1007-1011 ●
296 06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1012- ●
296 06.525 CLIP; COVER
BLACK 		8-97868-409-0 01 1 1012- ●
