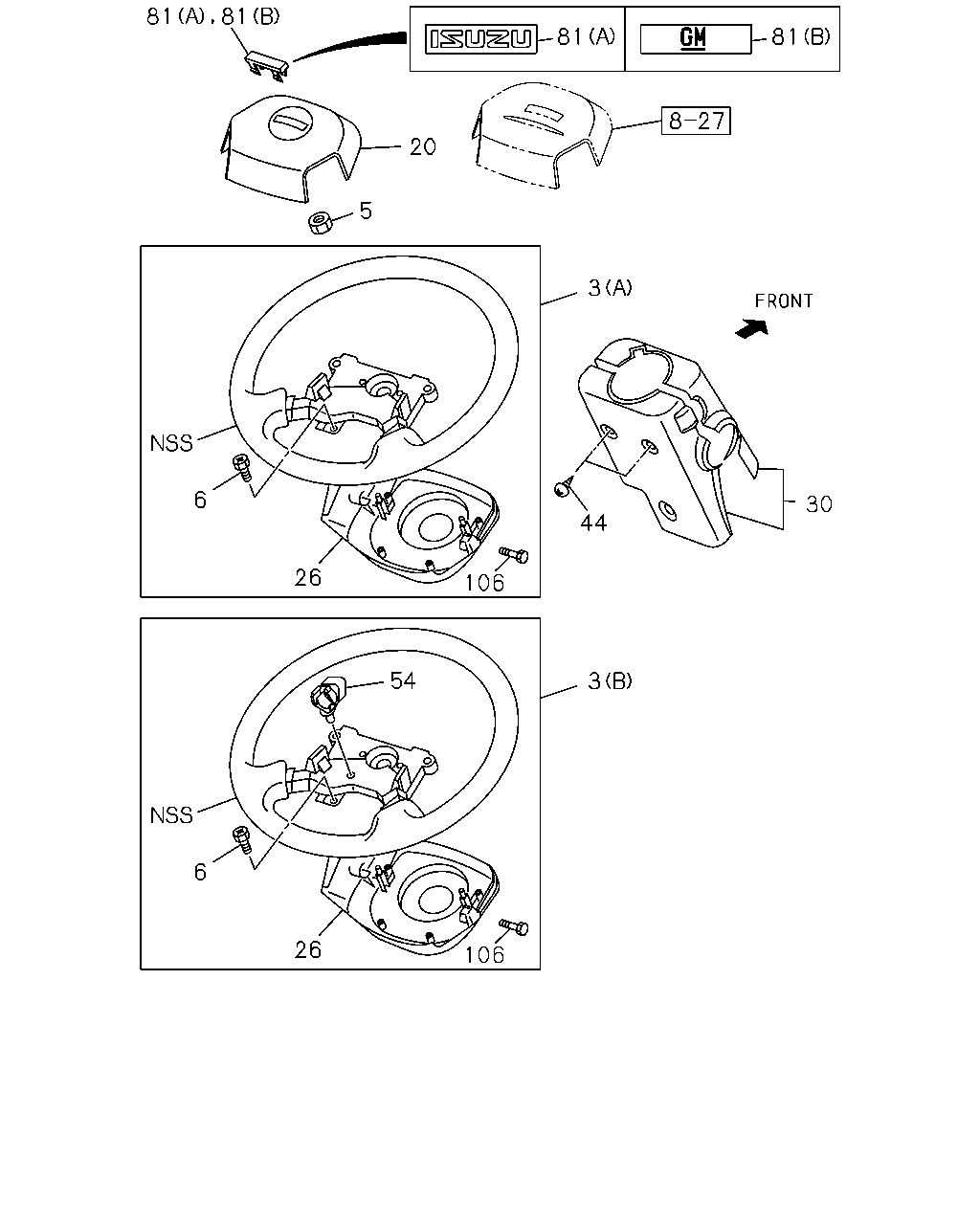

4-30 — STEERING WHEEL AND COWL (#53371) — 28 parça

81 81 20 3 30 44 3 106 26 54 81 81 5 6 6 26 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97405-726-1	01	1	0908-1006	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1007-1011	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1012-1210	●	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1211-	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	0908-1011	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	1012-	●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	0908-1011	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1012-	●	●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	0908-1011	●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	1012-	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	0908-1011	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	1012-	●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97405-841-0	01	1	0908-1006	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1007-1011	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1012-	●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	0908-1011	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	1012-	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	0908-1011	●
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1012-1110	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-	●	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	0908-1011	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1012-	●	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1211-	●	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	0908-1011	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	1012-	●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	0908-1011	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1012-	●	●
106	05.453 BOLT; TORX	8-98231-397-0	02	1	1012-	●	●
