Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#53370) — 222 parça

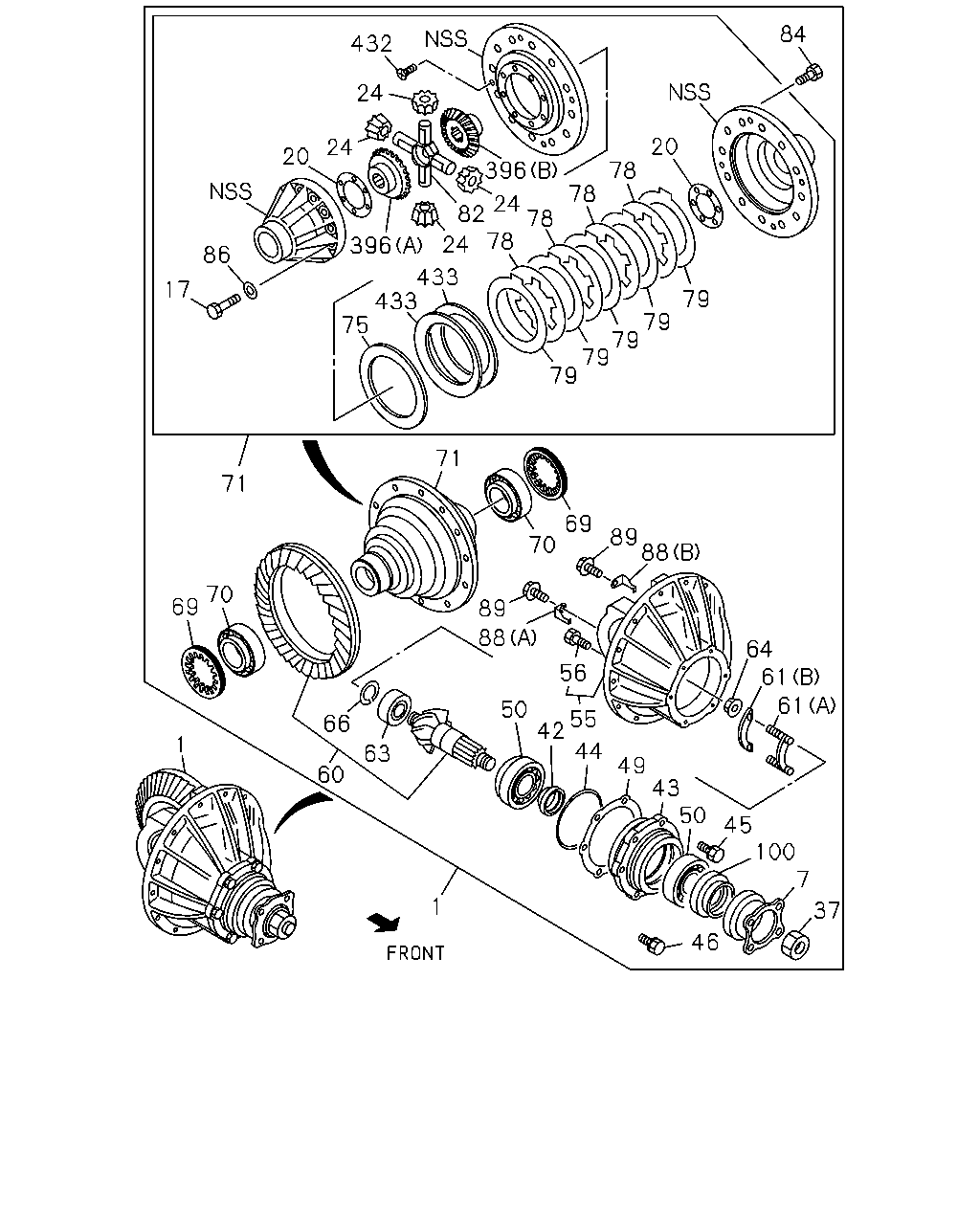

84 20 78 78 78 78 24 396 82 24 433 433 75 396 17 86 20 24 24 432 79 79 79 79 79 71 70 69 89 88 64 61 61 37 7 100 45 50 43 49 44 42 50 55 56 88 89 71 70 69 66 63 60 46 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/10	8-98015-158-0	01	1	0908-1011	●
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/10	8-98015-158-0	01	1	1012-	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/10	8-98015-136-0	01	1	0908-1011	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/10	8-98015-136-0	01	1	1012-	●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0908-1011	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1012-	●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0908-1011	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1012-	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0908-1011	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1012-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0908-1011	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1012-	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0908-1011	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1012-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0908-1011	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1012-	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0908-1011	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1012-	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0908-1011	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1012-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0908-0909	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1011	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1012-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0908-0909	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-1011	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1012-	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0908-1011	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1012-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0908-1011	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1012-	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0908-1011	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1012-	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0908-1011	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1012-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97319-155-0	01	1	0908-1011	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97319-155-0	01	1	1012-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-98092-052-0	01	1	1312-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0908-1011	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1012-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0908-1011	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1012-	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0908-1011	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1012-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0908-1011	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1012-	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0908-1011	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1012-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0908-1011	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1012-	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0908-1011	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1012-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-1	01	1	0908-1011	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	1012-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-0	01	1	0908-1011	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	1012-	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0908-1011	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	1012-	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0908-1011	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	1012-	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0908-1011	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	1012-	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0908-1011	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	1012-	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0908-1011	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	1012-	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0908-1011	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	1012-	●	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0908-1011	●
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	1012-	●	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0908-1011	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	1012-	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0908-1011	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	1012-	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0908-1011	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1012-	●	●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0908-1011	●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	1012-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0908-1011	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1012-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0908-1011	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1012-	●	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0908-1011	●
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	1012-	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0908-1011	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1012-	●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0908-1011	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1012-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0908-1011	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0908-1011	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1012-	●	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-599-0	01	1	0908-1011	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-599-1	01	1	1012-	●	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-602-0	01	1	0908-1011	●
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-602-0	01	1	1012-	●	●
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0908-1011	●
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	1012-	●	●
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0908-1011	●
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	1012-	●	●

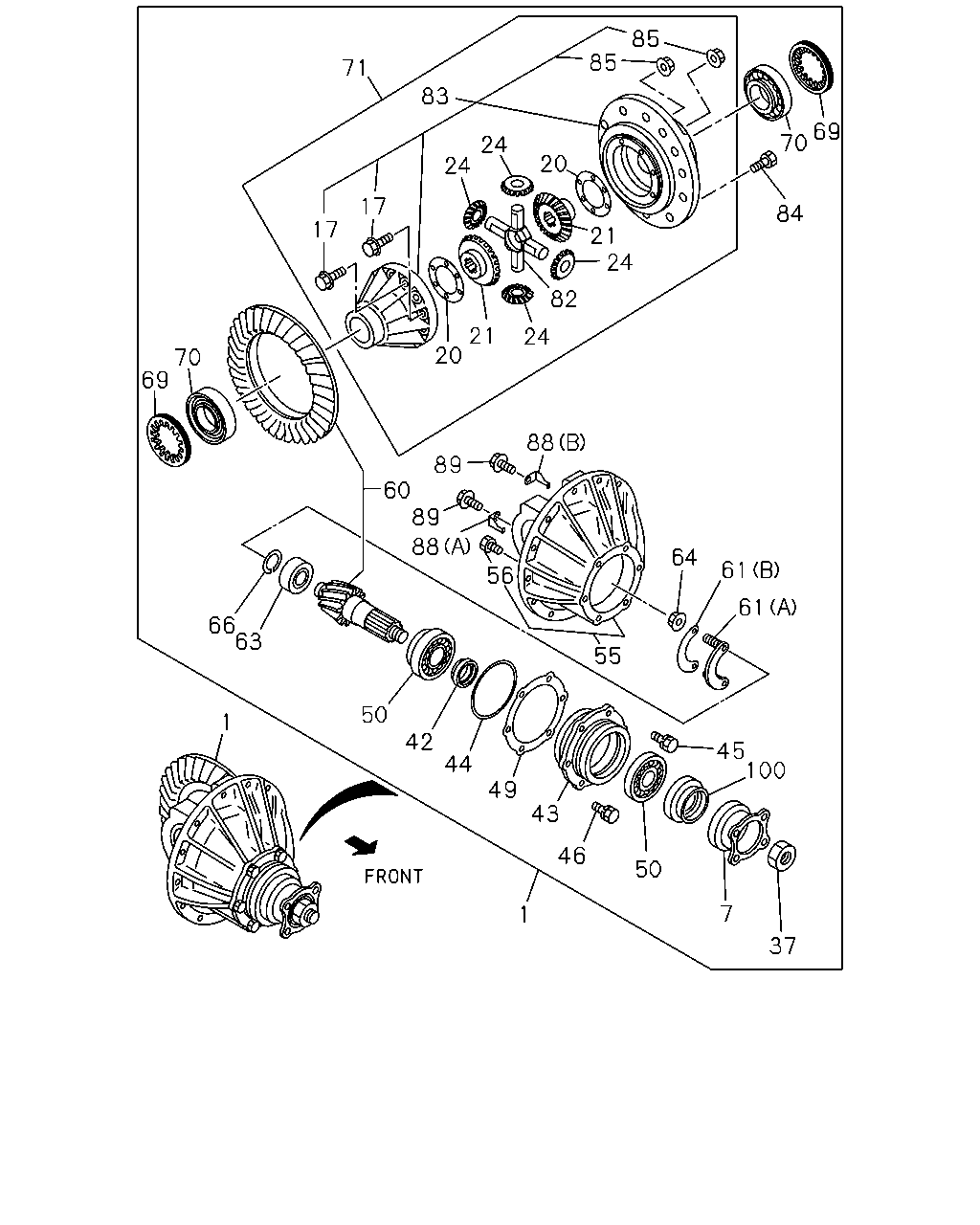

69 70 84 61 61 64 88 37 7 50 46 43 49 44 42 50 63 66 1 1 88 89 60 89 56 55 45 100 24 21 82 24 21 20 17 17 71 83 24 24 20 85 85 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/10	8-98015-158-0	01	1	0908-1011	●
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/10	8-98015-158-0	01	1	1012-	●	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/10	8-98015-136-0	01	1	0908-1011	●
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/10	8-98015-136-0	01	1	1012-	●	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0908-1011	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1012-	●	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0908-1011	●
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	1012-	●	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0908-1011	●
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	1012-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0908-1011	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1012-	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-0	02	1	0908-1011	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> 05.515 Z=20	8-97362-599-1	02	1	1012-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0908-1011	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1012-	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0908-1011	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1012-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0908-1011	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1012-	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0908-1011	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1012-	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0908-1011	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1012-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0908-0909	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-1011	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1012-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0908-0909	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-1011	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1012-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0908-1011	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1012-	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0908-1011	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1012-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0908-1011	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1012-	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0908-1011	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1012-	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0908-1011	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1012-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97319-155-0	01	1	0908-1011	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97319-155-0	01	1	1012-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-98092-052-0	01	1	1312-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0908-1011	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1012-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0908-1011	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1012-	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0908-1011	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1012-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0908-1011	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1012-	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0908-1011	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1012-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0908-1011	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1012-	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0908-1011	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1012-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-1	01	1	0908-1011	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-187-2	01	1	1012-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-0	01	1	0908-1011	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-181-1	01	1	1012-	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0908-1011	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	1012-	●	●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0908-1011	●
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	1012-	●	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	0908-1011	●
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-398-1	01	1	1012-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0908-1011	●
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	1012-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0908-1011	●
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	1012-	●	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0908-1011	●
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0908-1011	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1012-	●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0908-1011	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1012-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0908-1011	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0908-1011	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
