◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07B - CLUTCH BOOSTER; MINIPACK ▶
2-07B — CLUTCH BOOSTER; MINIPACK (#5337) — 24 parça

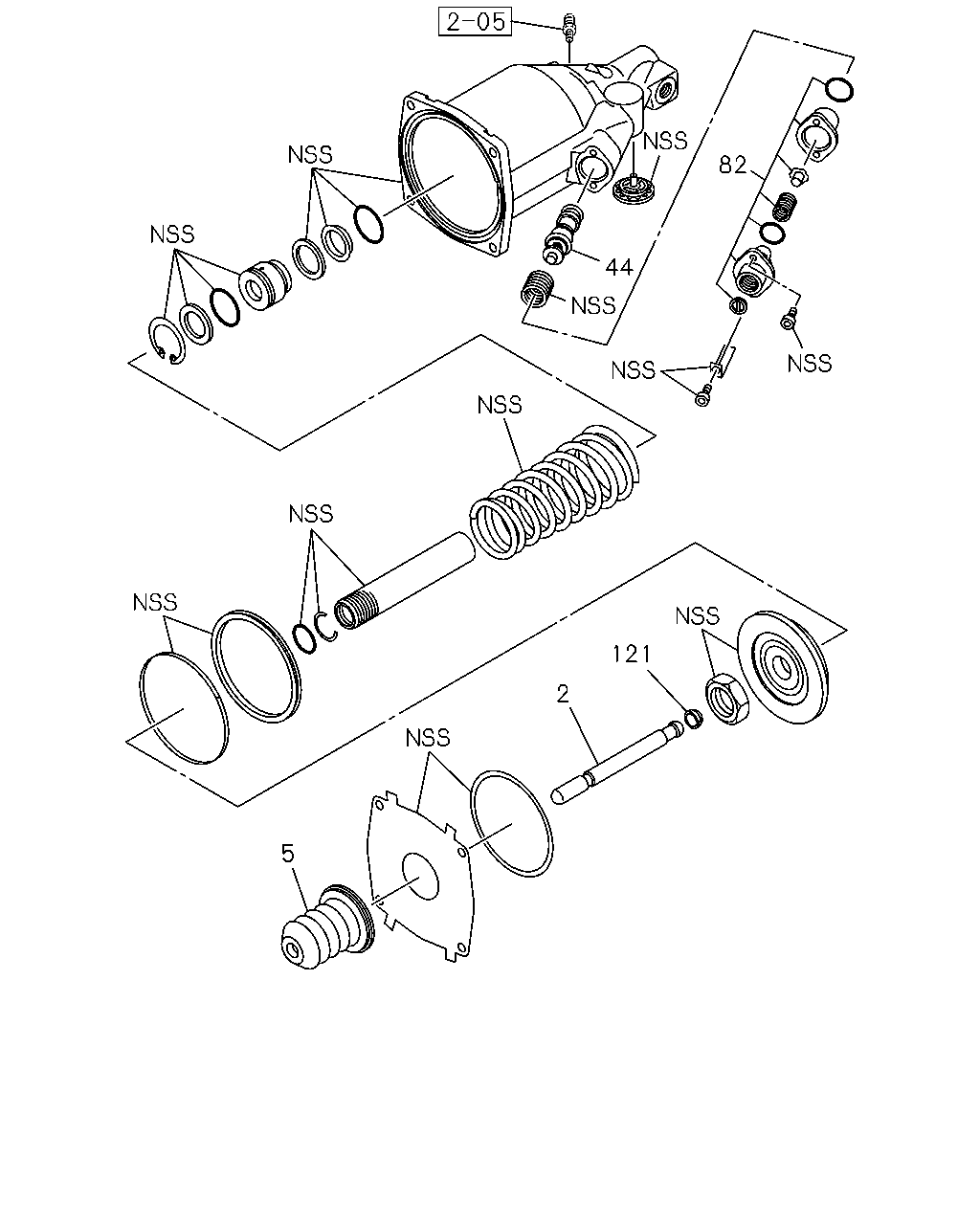

çizim 4476
82 44 121 2 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 ROD; PUSH,CLU BOOSTER 1-31829-370-0 01 1 9603-9901 ●
2 ROD; PUSH,CLU BOOSTER 1-31829-370-0 01 1 9902-9909 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31829-370-0 01 1 9910- ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9603-9901 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9902-9909 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9910- ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9603-9901 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9902-9909 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9910- ● ● ●
82 VALVE ASM; POPPET,BOOSTER 1-31829-412-0 01 1 9603-9901 ●
82 VALVE ASM; POPPET,BOOSTER 1-31829-412-0 01 1 9902-9909 ● ●
82 VALVE ASM; POPPET,BOOSTER 1-31829-412-0 01 1 9910- ● ● ●
121 GUIDE; ROD 1-31829-374-0 01 1 9603-9901 ●
121 GUIDE; ROD 1-31829-374-0 01 1 9902-9909 ● ●
121 GUIDE; ROD 1-31829-374-0 01 1 9910- ● ● ●

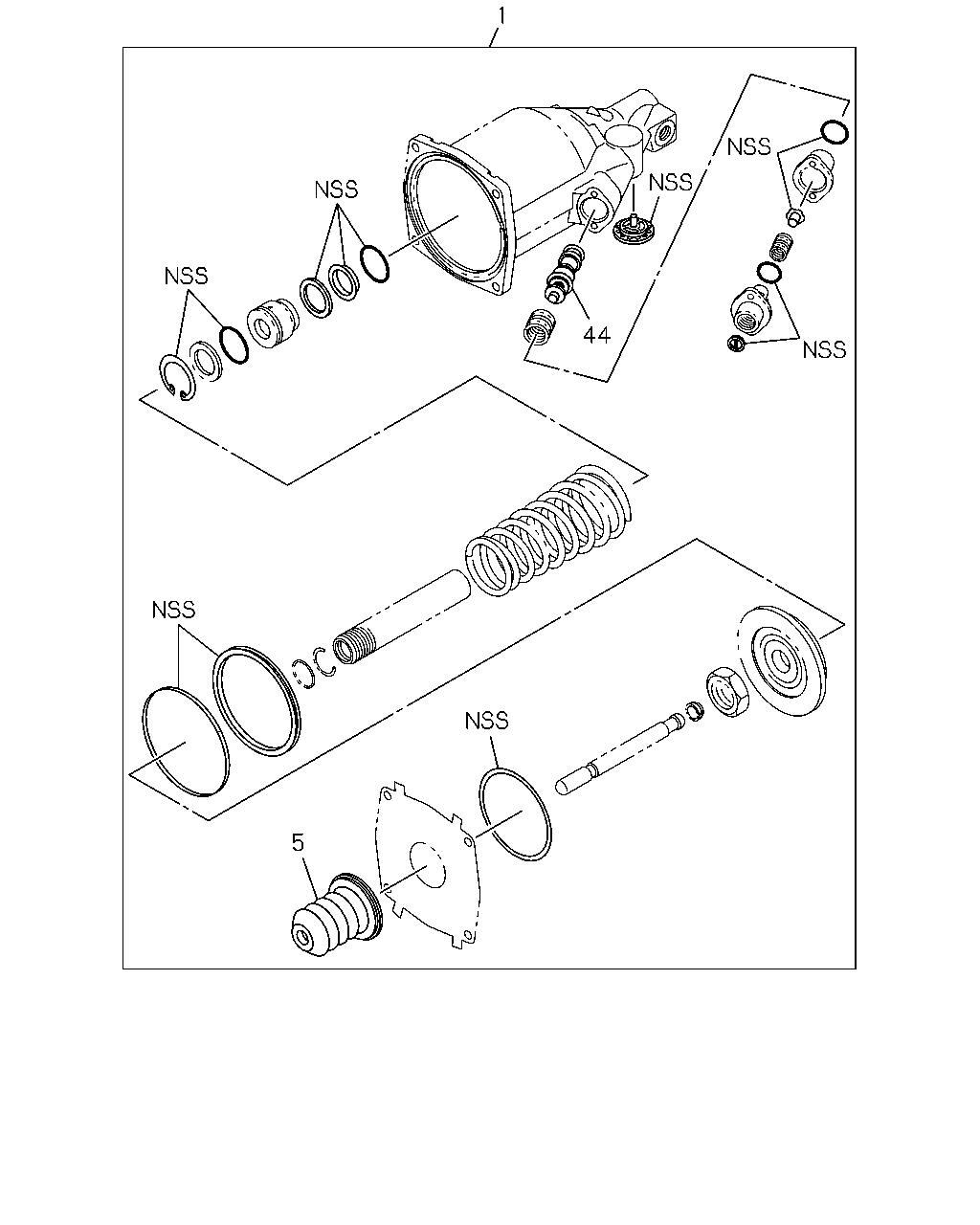

çizim 6886
1 44 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-414-0 01 1 9603-9901 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-414-0 01 1 9902-9909 ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-414-0 01 1 9910- ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9603-9901 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9902-9909 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-371-0 01 1 9910- ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9603-9901 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9902-9909 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31829-413-0 01 1 9910- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
