Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

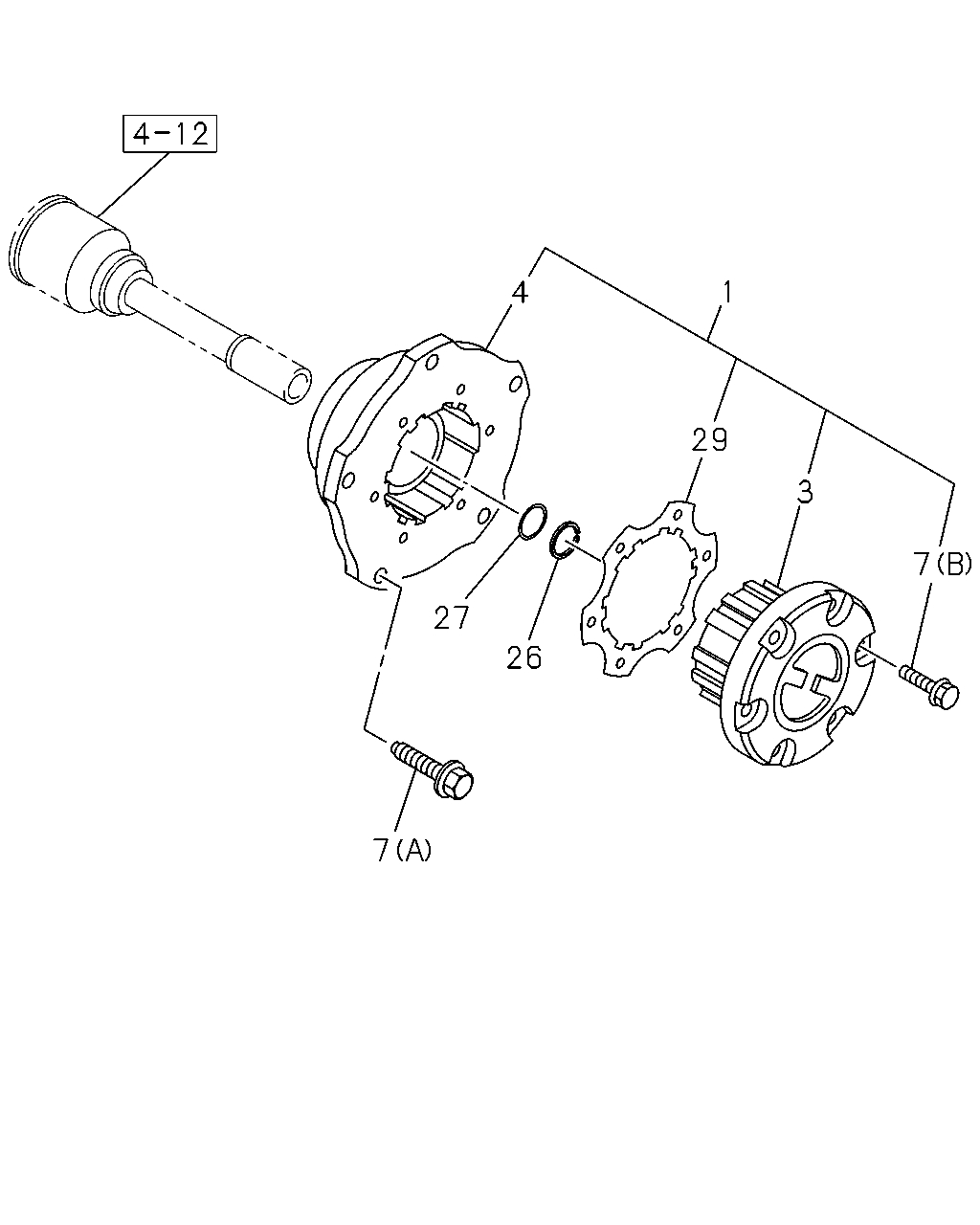

4-16 - FREE WHEEL HUB
▶
4-16 — FREE WHEEL HUB
(#53368) — 22 parça
Tümü
A - NMS5SE
B - NMS5WE
7
3
29
1
4
26
27
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
06.308 HUB ASM; FREE WHEEL
8-97118-415-0
02
1
0908-1011
●
1
06.308 HUB ASM; FREE WHEEL
8-97118-415-0
02
1
1012-
●
●
3
06.308 COVER SUB ASM; FREE WHEEL HUB
8-97040-011-0
02
1
0908-1011
●
3
06.308 COVER SUB ASM; FREE WHEEL HUB
8-97040-011-0
02
1
1012-
●
●
4
06.308 BODY SUB ASM; FREE WHEEL HUB
8-97118-416-0
02
1
0908-1011
●
4
06.308 BODY SUB ASM; FREE WHEEL HUB
8-97118-416-0
02
1
1012-
●
●
7
06.308 BOLT; FREE WHEEL HUB
07.068 (A) M10X30 FLANGE
0-28661-030-0
10
1
0908-1011
●
7
06.308 BOLT; FREE WHEEL HUB
07.068 (A) M10X30 FLANGE
0-28661-030-0
10
1
1012-
●
●
7
06.308 BOLT; FREE WHEEL HUB
(B) M6X16 W/PL WASHER
8-97021-822-0
12
1
0908-1011
●
7
06.308 BOLT; FREE WHEEL HUB
(B) M6X16 W/PL WASHER
8-97021-822-0
12
1
1012-
●
●
26
06.323 RING; SNAP,HUB
8-94386-349-2
02
1
0908-1011
●
26
06.323 RING; SNAP,HUB
8-94386-349-2
02
1
1012-
●
●
27
06.308 SHIM; AXLE SHAFT
T=0.8
8-94368-735-1
AR
1
0908-1011
●
27
06.308 SHIM; AXLE SHAFT
T=0.8
8-94368-735-1
AR
1
1012-
●
●
27
06.308 SHIM; AXLE SHAFT
T=1.0
8-94368-736-0
AR
1
0908-1011
●
27
06.308 SHIM; AXLE SHAFT
T=1.0
8-94368-736-0
AR
1
1012-
●
●
27
06.308 SHIM; AXLE SHAFT
T=0.5
8-94368-737-0
AR
1
0908-1011
●
27
06.308 SHIM; AXLE SHAFT
T=0.5
8-94368-737-0
AR
1
1012-
●
●
27
06.308 SHIM; AXLE SHAFT
T=0.3
8-94368-738-0
AR
1
0908-1011
●
27
06.308 SHIM; AXLE SHAFT
T=0.3
8-94368-738-0
AR
1
1012-
●
●
29
06.308 GASKET; FREE WHEEL HUB
8-98069-277-0
02
1
0908-1011
●
29
06.308 GASKET; FREE WHEEL HUB
8-98069-277-0
02
1
1012-
●
●
