4-12 — FRONT DRIVE SHAFT (#53366) — 99 parça

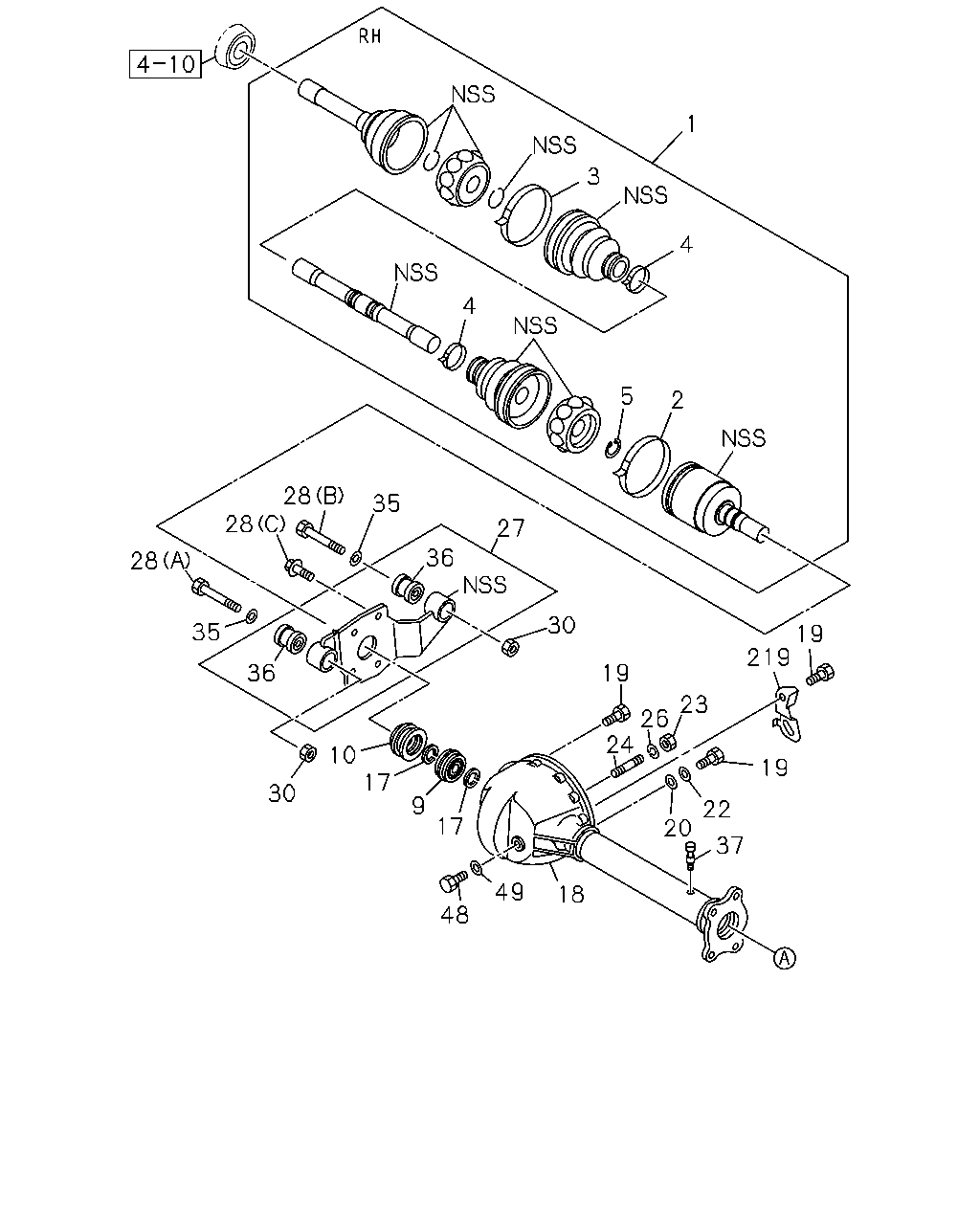

çizim 160012
19 23 219 19 19 2 5 4 4 1 3 35 27 36 30 26 24 22 37 20 18 49 48 17 9 17 10 30 36 28 28 28 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-681-1 01 1 0908-1011 ●
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-681-2 01 1 1012- ● ●
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-682-1 01 1 0908-1011 ●
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-682-2 01 1 1012- ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT 8-94313-084-0 02 1 0908- ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT 8-94313-082-0 02 1 0908- ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT 8-94313-094-0 04 1 0908- ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
ID=26.9 		9-09180-029-0 02 1 0908- ● ●
9 06.056 BEARING; AXLE SHAFT,INNER 8-94407-724-0 02 1 0908-1011 ●
9 06.056 BEARING; AXLE SHAFT,INNER 8-94407-724-0 02 1 1012- ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER 8-97373-555-0 02 1 0908-1011 ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER 8-97373-555-0 02 1 1012- ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
04.416 ID=27.9 		9-09180-030-0 04 1 0908-1011 ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
04.416 ID=27.9 		9-09180-030-0 04 1 1012- ● ●
18 06.008 CASE; FRT AXLE 8-97218-708-1 01 1 0908-1011 ●
18 06.008 CASE; FRT AXLE 8-97218-708-1 01 1 1012- ● ●
19 06.156 BOLT; FRT AXLE
M8X25 W/LK WASHER 		8-98022-410-0 05 1 0908-1011 ●
19 06.156 BOLT; FRT AXLE
M8X25 W/LK WASHER 		8-98022-410-0 05 1 1012- ● ●
19 06.156 BOLT; FRT AXLE
M8X30 W/LK WASHER 		8-98022-411-0 02 1 0908-1011 ●
19 06.156 BOLT; FRT AXLE
M8X30 W/LK WASHER 		8-98022-411-0 02 1 1012- ● ●
19 06.156 BOLT; FRT AXLE
M8X90 W/LK WASHER 		8-98022-412-0 02 1 0908-1011 ●
19 06.156 BOLT; FRT AXLE
M8X90 W/LK WASHER 		8-98022-412-0 02 1 1012- ● ●
19 06.156 BOLT; FRT AXLE
M8X40 W/LK WASHER 		8-98030-089-0 02 1 0908-1011 ●
19 06.156 BOLT; FRT AXLE
M8X40 W/LK WASHER 		8-98030-089-0 02 1 1012- ● ●
20 06.156 GASKET; AXLE CASE
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 0908-1011 ●
20 06.156 GASKET; AXLE CASE
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 1012- ● ●
22 06.056 WASHER; PL,AXLE CASE
ID=8.4 OD=16 		0-91614-508-0 01 1 0908-1011 ●
22 06.056 WASHER; PL,AXLE CASE
ID=8.4 OD=16 		0-91614-508-0 01 1 1012- ● ●
23 06.056 NUT; FRT AXLE
02.334 M8 		0-91110-508-0 02 1 0908-1011 ●
23 06.056 NUT; FRT AXLE
02.334 M8 		0-91110-508-0 02 1 1012- ● ●
24 06.056 STUD; CASE,FRT AXLE
03.275 M8X25 L=37 		0-41010-825-0 02 1 0908-1011 ●
24 06.056 STUD; CASE,FRT AXLE
03.275 M8X25 L=37 		0-41010-825-0 02 1 1012- ● ●
26 06.056 WASHER; LK,CASE,FRT AXLE
02.559 ID=8.2 		0-91510-808-0 02 1 0908-1011 ●
26 06.056 WASHER; LK,CASE,FRT AXLE
02.559 ID=8.2 		0-91510-808-0 02 1 1012- ● ●
27 06.056 BRACKET; AXLE CASE 8-98002-128-0 01 1 0908-1011 ●
27 06.056 BRACKET; AXLE CASE 8-98002-128-0 01 1 1012- ● ●
27 06.056 BRACKET; AXLE CASE 8-98002-129-0 01 1 0908-1011 ●
27 06.056 BRACKET; AXLE CASE 8-98002-129-0 01 1 1012- ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
(A) 		0-29261-400-0 02 1 0908-1011 ●
28 06.056 BOLT; BRKT TO AXLE CASE
(A) 		0-29261-400-0 02 1 1012- ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
(B) 		8-98032-667-0 02 1 0908-1011 ●
28 06.056 BOLT; BRKT TO AXLE CASE
(B) 		8-98032-667-0 02 1 1012- ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
(C) M12X25 FLANGE 		8-98033-645-0 08 1 0908-1011 ●
28 06.056 BOLT; BRKT TO AXLE CASE
(C) M12X25 FLANGE 		8-98033-645-0 08 1 1012- ● ●
30 06.008 NUT; FRT AXLE MTG
06.174 M14 FLANGE 		8-97360-124-0 04 1 0908-1011 ●
30 06.008 NUT; FRT AXLE MTG
06.174 M14 FLANGE 		8-97360-124-0 04 1 1012- ● ●
35 06.008 WASHER; FRT AXLE MTG 8-98029-949-0 04 1 0908-1011 ●
35 06.008 WASHER; FRT AXLE MTG 8-98029-949-0 04 1 1012- ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG 8-94368-734-0 04 1 0908-1011 ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG 8-94368-734-0 04 1 1012- ● ●
37 06.008 BREATHER; FRT AXLE CASE 8-94311-349-0 01 1 0908-1011 ●
37 06.008 BREATHER; FRT AXLE CASE 8-94311-349-0 01 1 1012- ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0908-1011 ●
48 05.400 PLUG; DRAIN,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1012- ● ●
49 05.400 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 0908-1011 ●
49 05.400 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 1012- ● ●
219 06.008 BRACKET; HARNESS 8-98041-200-0 01 1 0908-1011 ●
219 06.008 BRACKET; HARNESS 8-98041-200-0 01 1 1012- ● ●

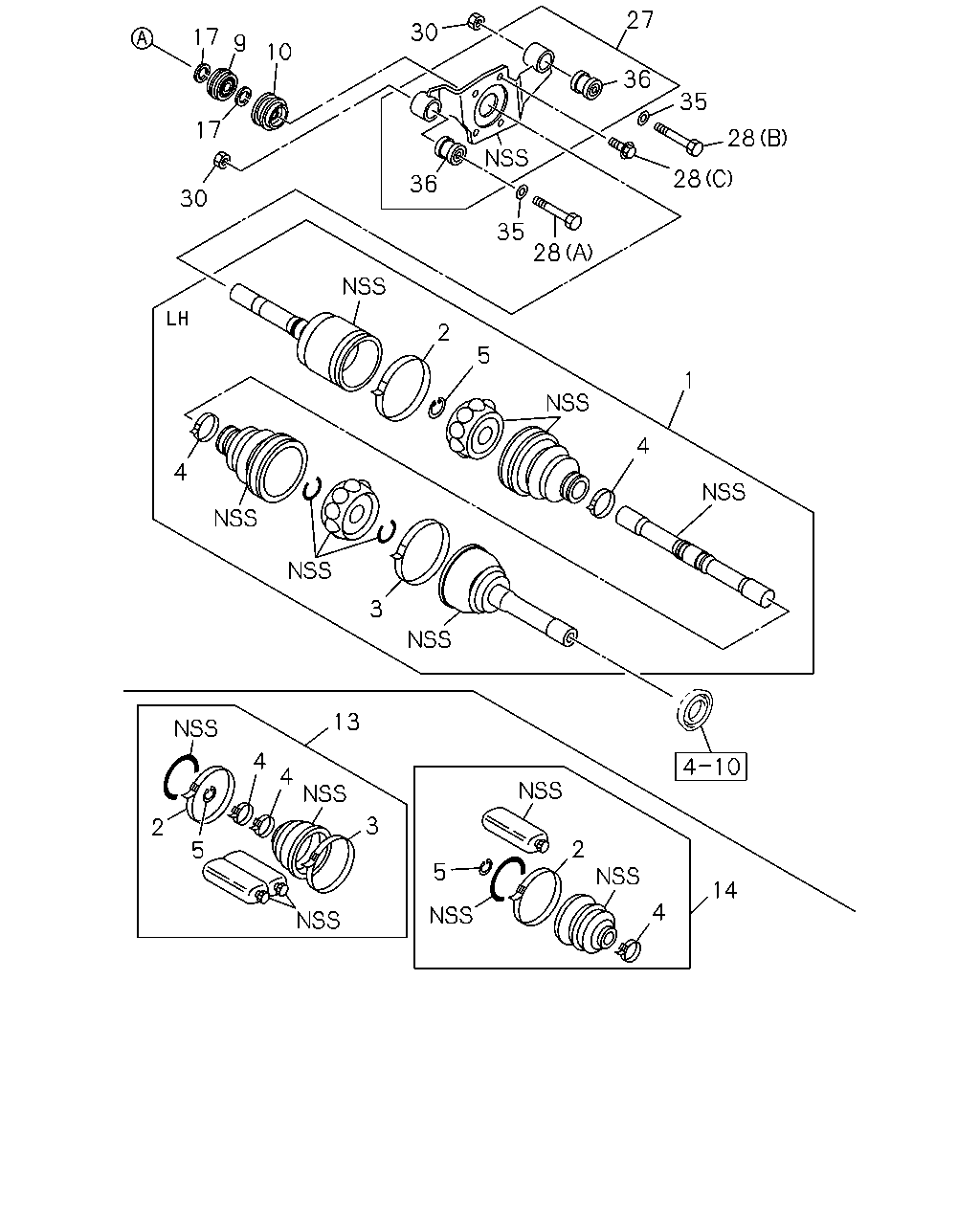

çizim 160015
14 4 5 2 13 3 4 4 2 5 3 4 2 1 4 28 35 36 27 36 28 28 35 10 30 9 17 17 30 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-681-1 01 1 0908-1011 ●
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-681-2 01 1 1012- ● ●
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-682-1 01 1 0908-1011 ●
1 06.055 SHAFT ASM; FRT DRIVE 8-97218-682-2 01 1 1012- ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT 8-94313-084-0 02 1 0908- ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT 8-94313-082-0 02 1 0908- ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT 8-94313-094-0 04 1 0908- ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
ID=26.9 		9-09180-029-0 02 1 0908- ● ●
9 06.056 BEARING; AXLE SHAFT,INNER 8-94407-724-0 02 1 0908-1011 ●
9 06.056 BEARING; AXLE SHAFT,INNER 8-94407-724-0 02 1 1012- ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER 8-97373-555-0 02 1 0908-1011 ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER 8-97373-555-0 02 1 1012- ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 8-97231-782-0 02 1 0908-1011 ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 8-98271-589-0 02 1 1012- ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 8-94313-080-0 02 1 0908-1011 ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 8-98271-588-0 02 1 1012- ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
04.416 ID=27.9 		9-09180-030-0 04 1 0908-1011 ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
04.416 ID=27.9 		9-09180-030-0 04 1 1012- ● ●
27 06.056 BRACKET; AXLE CASE 8-98002-128-0 01 1 0908-1011 ●
27 06.056 BRACKET; AXLE CASE 8-98002-128-0 01 1 1012- ● ●
27 06.056 BRACKET; AXLE CASE 8-98002-129-0 01 1 0908-1011 ●
27 06.056 BRACKET; AXLE CASE 8-98002-129-0 01 1 1012- ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
(A) 		0-29261-400-0 02 1 0908-1011 ●
28 06.056 BOLT; BRKT TO AXLE CASE
(A) 		0-29261-400-0 02 1 1012- ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
(B) 		8-98032-667-0 02 1 0908-1011 ●
28 06.056 BOLT; BRKT TO AXLE CASE
(B) 		8-98032-667-0 02 1 1012- ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
(C) M12X25 FLANGE 		8-98033-645-0 08 1 0908-1011 ●
28 06.056 BOLT; BRKT TO AXLE CASE
(C) M12X25 FLANGE 		8-98033-645-0 08 1 1012- ● ●
30 06.008 NUT; FRT AXLE MTG
06.174 M14 FLANGE 		8-97360-124-0 04 1 0908-1011 ●
30 06.008 NUT; FRT AXLE MTG
06.174 M14 FLANGE 		8-97360-124-0 04 1 1012- ● ●
35 06.008 WASHER; FRT AXLE MTG 8-98029-949-0 04 1 0908-1011 ●
35 06.008 WASHER; FRT AXLE MTG 8-98029-949-0 04 1 1012- ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG 8-94368-734-0 04 1 0908-1011 ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG 8-94368-734-0 04 1 1012- ● ●

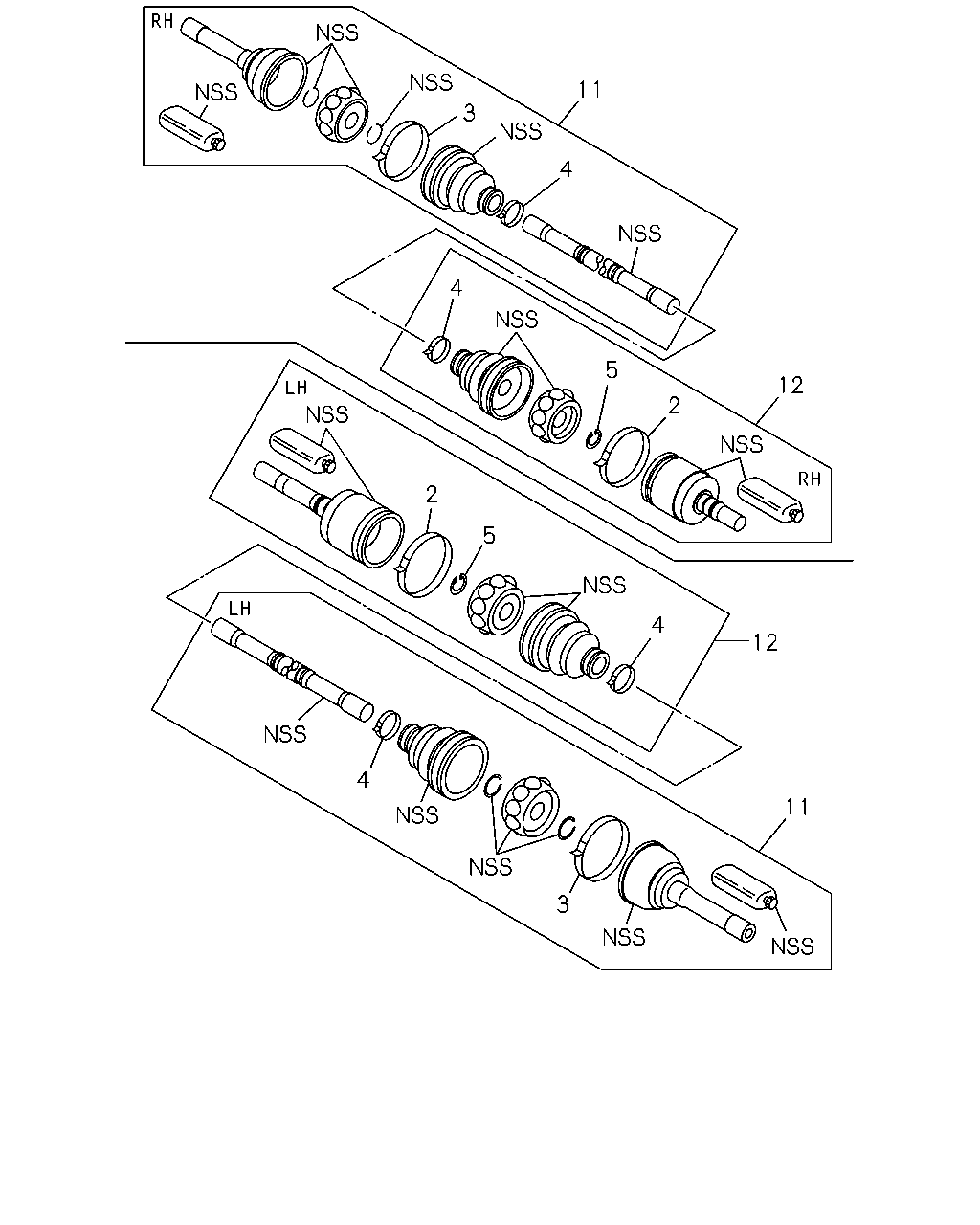

çizim 417252
4 12 11 3 4 2 5 5 4 2 12 4 11 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.061 BAND; "A",FRT DRIVE SHAFT 8-94313-084-0 02 1 0908- ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT 8-94313-082-0 02 1 0908- ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT 8-94313-094-0 04 1 0908- ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
ID=26.9 		9-09180-029-0 02 1 0908- ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 8-98271-592-0 02 1 0908- ● ●
12 06.060 JOINT ASM 8-98271-590-0 01 1 0908- ● ●
12 06.060 JOINT ASM 8-98271-591-0 01 1 0908- ● ●
