4-01 — PROPELLER SHAFT (#53363) — 111 parça

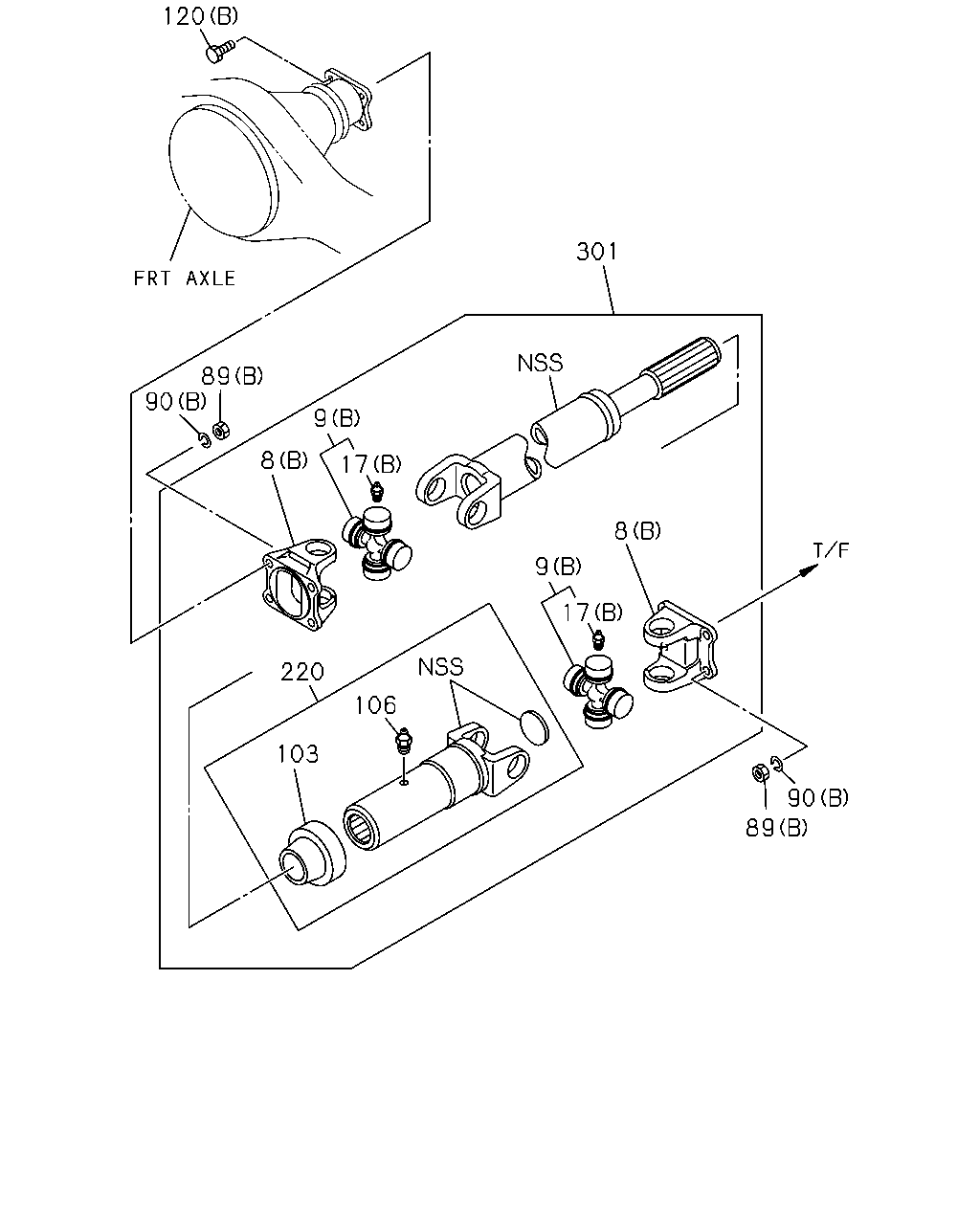

89 90 103 220 106 9 17 8 301 17 9 8 90 89 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	01	1	1012-	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	01	1	1012-	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97211-116-0	02	1	0908-1011		●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97211-116-0	02	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	02	1	0908-		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97211-133-0	02	1	0908-1011		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97211-133-0	02	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-98033-605-1	02	1	0908-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	0908-1011		●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0908-	●	●
89	05.586 NUT; YOKE TO RR AXLE (A) M12	8-97365-450-0	08	1	0908-1011		●
89	05.586 NUT; YOKE TO RR AXLE (A) M12	8-97365-450-1	08	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE (B) M10	8-98056-949-0	08	1	0908-1011		●
89	05.586 NUT; YOKE TO RR AXLE (B) M10	8-98056-949-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (B) ID=10.2	0-91510-610-0	08	1	0908-1011		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (B) ID=10.2	0-91510-610-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (A) ID=12.2	0-91510-812-0	08	1	0908-1011		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (A) ID=12.2	0-91510-812-0	08	1	1012-	●	●
103	05.544 BOOT; PROP SHAFT 05.545	8-97020-597-1	01	1	0908-1011		●
103	05.544 BOOT; PROP SHAFT 05.545	8-97020-597-1	01	1	1012-	●	●
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0908-1011		●
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE (A) M12X35	8-97365-451-0	04	1	0908-1011		●
120	05.586 BOLT; YOKE TO RR AXLE (A) M12X35	8-97365-451-1	04	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE (B) M10X29	8-98056-948-0	04	1	0908-1011		●
120	05.586 BOLT; YOKE TO RR AXLE (B) M10X29	8-98056-948-0	04	1	1012-	●	●
220	05.544 YOKE; SPLINED 05.545 L=177	8-97211-131-0	01	1	0908-1011		●
220	05.544 YOKE; SPLINED 05.545 L=177	8-97211-131-0	01	1	1012-	●	●
301	05.544 SHAFT ASM; PROP,FRT L=753	8-97303-009-1	01	1	0908-1011		●
301	05.544 SHAFT ASM; PROP,FRT L=753	8-97303-009-1	01	1	1012-	●	●

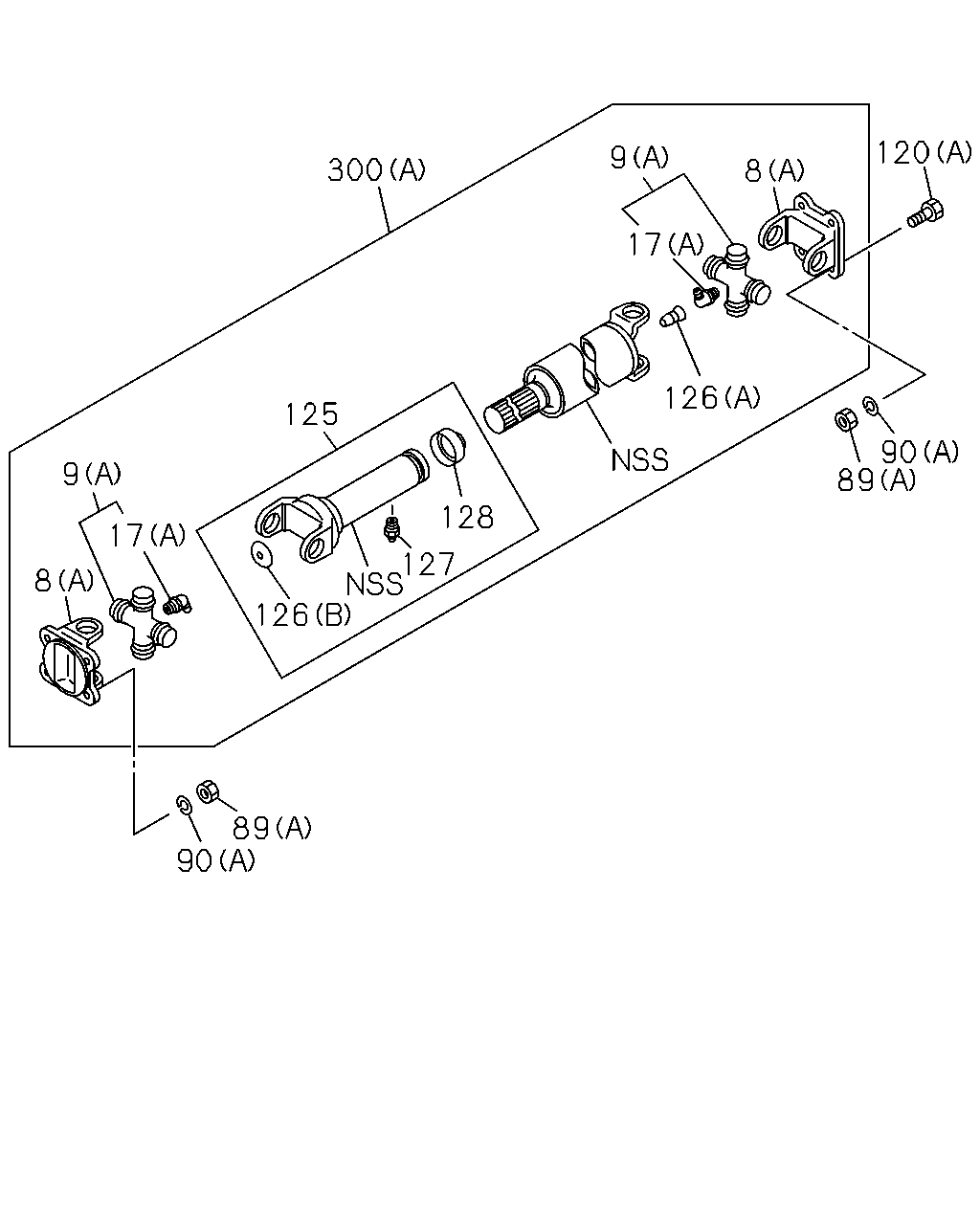

90 89 8 9 17 126 127 128 125 300 126 89 90 17 9 8 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	01	1	1012-	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	01	1	1012-	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97211-116-0	02	1	0908-1011		●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97211-116-0	02	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	02	1	0908-		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97211-133-0	02	1	0908-1011		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97211-133-0	02	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-98033-605-1	02	1	0908-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	0908-1011		●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0908-	●	●
89	05.586 NUT; YOKE TO RR AXLE (A) M12	8-97365-450-0	08	1	0908-1011		●
89	05.586 NUT; YOKE TO RR AXLE (A) M12	8-97365-450-1	08	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE (B) M10	8-98056-949-0	08	1	0908-1011		●
89	05.586 NUT; YOKE TO RR AXLE (B) M10	8-98056-949-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (B) ID=10.2	0-91510-610-0	08	1	0908-1011		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (B) ID=10.2	0-91510-610-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (A) ID=12.2	0-91510-812-0	08	1	0908-1011		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (A) ID=12.2	0-91510-812-0	08	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE (A) M12X35	8-97365-451-0	04	1	0908-1011		●
120	05.586 BOLT; YOKE TO RR AXLE (A) M12X35	8-97365-451-1	04	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE (B) M10X29	8-98056-948-0	04	1	0908-1011		●
120	05.586 BOLT; YOKE TO RR AXLE (B) M10X29	8-98056-948-0	04	1	1012-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1012-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	0908-		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1012-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0908-1011		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1012-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0908-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0908-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0908-		●
300	05.544 SHAFT ASM; PROP,RR (B) L=940	8-98169-001-1	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=806	8-98169-002-1	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR (A) L=1079	8-98105-690-1	01	1	0908-		●

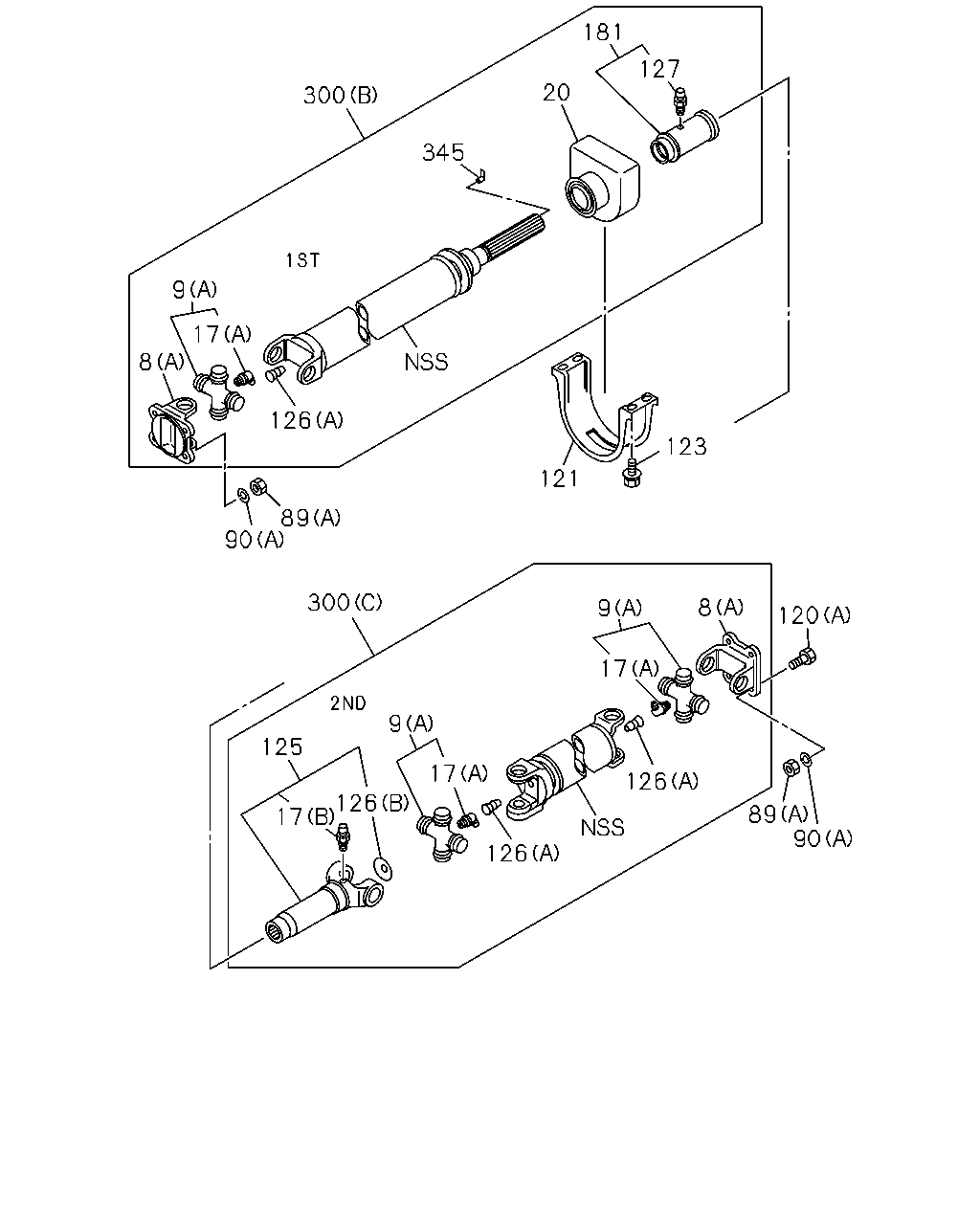

90 89 120 8 126 126 17 17 125 9 9 17 300 90 89 121 123 126 8 9 17 300 345 20 181 127 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	01	1	1012-	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	01	1	1012-	●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97211-116-0	02	1	0908-1011		●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97211-116-0	02	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A) D=80	8-97322-663-0	02	1	0908-		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97211-133-0	02	1	0908-1011		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97211-133-0	02	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-98033-605-1	02	1	0908-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	0908-1011		●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0908-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	1012-	●
89	05.586 NUT; YOKE TO RR AXLE (A) M12	8-97365-450-0	08	1	0908-1011		●
89	05.586 NUT; YOKE TO RR AXLE (A) M12	8-97365-450-1	08	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE (B) M10	8-98056-949-0	08	1	0908-1011		●
89	05.586 NUT; YOKE TO RR AXLE (B) M10	8-98056-949-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (B) ID=10.2	0-91510-610-0	08	1	0908-1011		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (B) ID=10.2	0-91510-610-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (A) ID=12.2	0-91510-812-0	08	1	0908-1011		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 (A) ID=12.2	0-91510-812-0	08	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE (A) M12X35	8-97365-451-0	04	1	0908-1011		●
120	05.586 BOLT; YOKE TO RR AXLE (A) M12X35	8-97365-451-1	04	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE (B) M10X29	8-98056-948-0	04	1	0908-1011		●
120	05.586 BOLT; YOKE TO RR AXLE (B) M10X29	8-98056-948-0	04	1	1012-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1012-	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1012-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=246	8-98034-338-1	01	1	0908-		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1012-	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0908-1011		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1012-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0908-	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0908-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
181	05.586 COVER; BRG,PROP SHAFT	8-98046-526-0	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR (B) L=940	8-98169-001-1	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=806	8-98169-002-1	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR (A) L=1079	8-98105-690-1	01	1	0908-		●
345	05.600 PLUG; PROP SHAFT	8-98042-692-0	01	1	1012-	●
