Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#53362) — 468 parça

116 39 39 39 39 165 184 165 184 184 116 120 203 12 13 12 12 13 12 12 157 12 157 157 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1012-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0908-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1012-	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	03	1	0908-1011		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	03	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	8-94238-568-0	02	1	0908-0911		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1011		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	1012-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-695-2	01	1	0908-1011		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-695-2	01	1	1012-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-98027-352-3	01	1	0908-1011		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (B)	8-98027-352-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (E)	8-98017-168-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (E)	8-98017-168-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (D)	8-98027-350-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (D)	8-98027-350-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (C)	8-98027-351-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (C)	8-98027-351-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (B)	8-98027-353-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (B)	8-98027-353-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (A)	8-98027-354-2	01	1	0908-1011		●
157	04.931 HOSE; JOINT (A)	8-98027-354-2	01	1	1012-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0908-1011		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0908-1011		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0908-1011		●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1103	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0908-1011		●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1012-	●	●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	0908-1011		●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	1012-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0908-1011		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-	●	●

80 98 85 66 66 116 236 96 39 39 78 80 122 136 78 136 158 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	8-94238-568-0	02	1	0908-0911		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1011		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0908-0911		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-1011		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (F) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98173-662-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0911-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0908-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	0908-1011		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0911-		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98146-875-1	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	0908-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98106-596-0	01	1	0908-1010		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1011-1011		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1012-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	0908-1011		●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	1012-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0908-1011		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1012-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0908-		●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	1012-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (D)	8-98064-717-1	01	1	1012-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL(KF0) (C)	8-98076-068-1	01	1	0911-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0908-0910		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0908-0910		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-		●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0908-0910		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0908-0910		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0908-0911		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-1011		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●
158	04.681 CLIP; HOSE 02.559 (C) ID=28 H=45 L=30	1-09700-707-0	01	1	1012-	●
158	04.681 CLIP; HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	0911-		●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	0908-1011		●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	1012-	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0908-1011		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●

80 66 85 66 80 39 116 236 96 39 78 136 136 122 235 80 108 136 136 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	8-94238-568-0	02	1	0908-0911		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1011		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0908-0911		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-1011		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (F) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98173-662-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0911-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0908-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	0908-1011		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0911-		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98146-875-1	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	0908-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98106-596-0	01	1	0908-1010		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1011-1011		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1012-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	0908-1011		●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	1012-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0908-1011		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1012-	●	●
108	04.931 GROMMET; PIPE 02.343 ID=17	8-94128-319-2	01	1	1012-	●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	1012-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (D)	8-98064-717-1	01	1	1012-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL(KF0) (C)	8-98076-068-1	01	1	0911-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0908-0910		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0908-0910		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-		●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0908-0910		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0908-0910		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0908-0911		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-1011		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0908-1011		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●

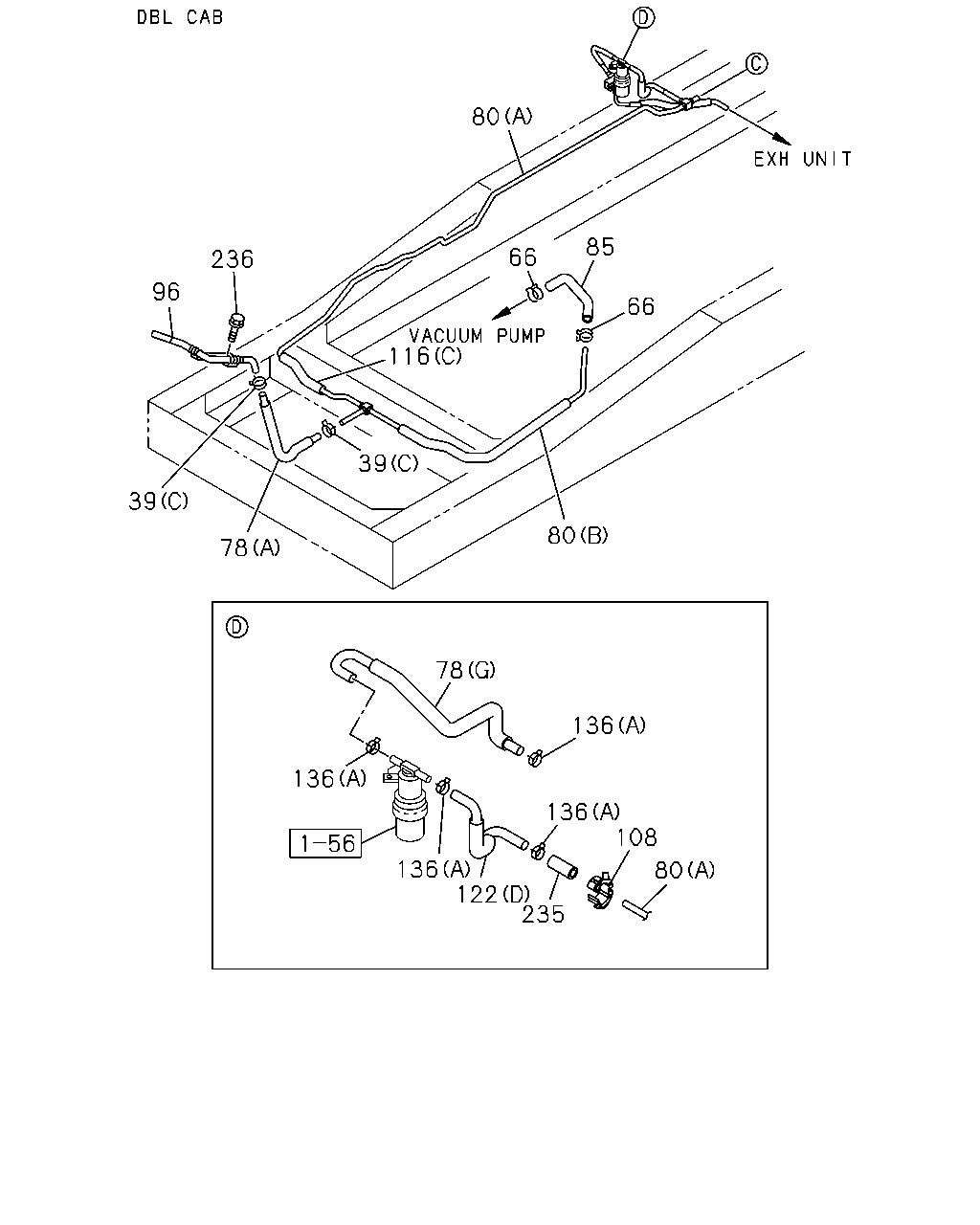

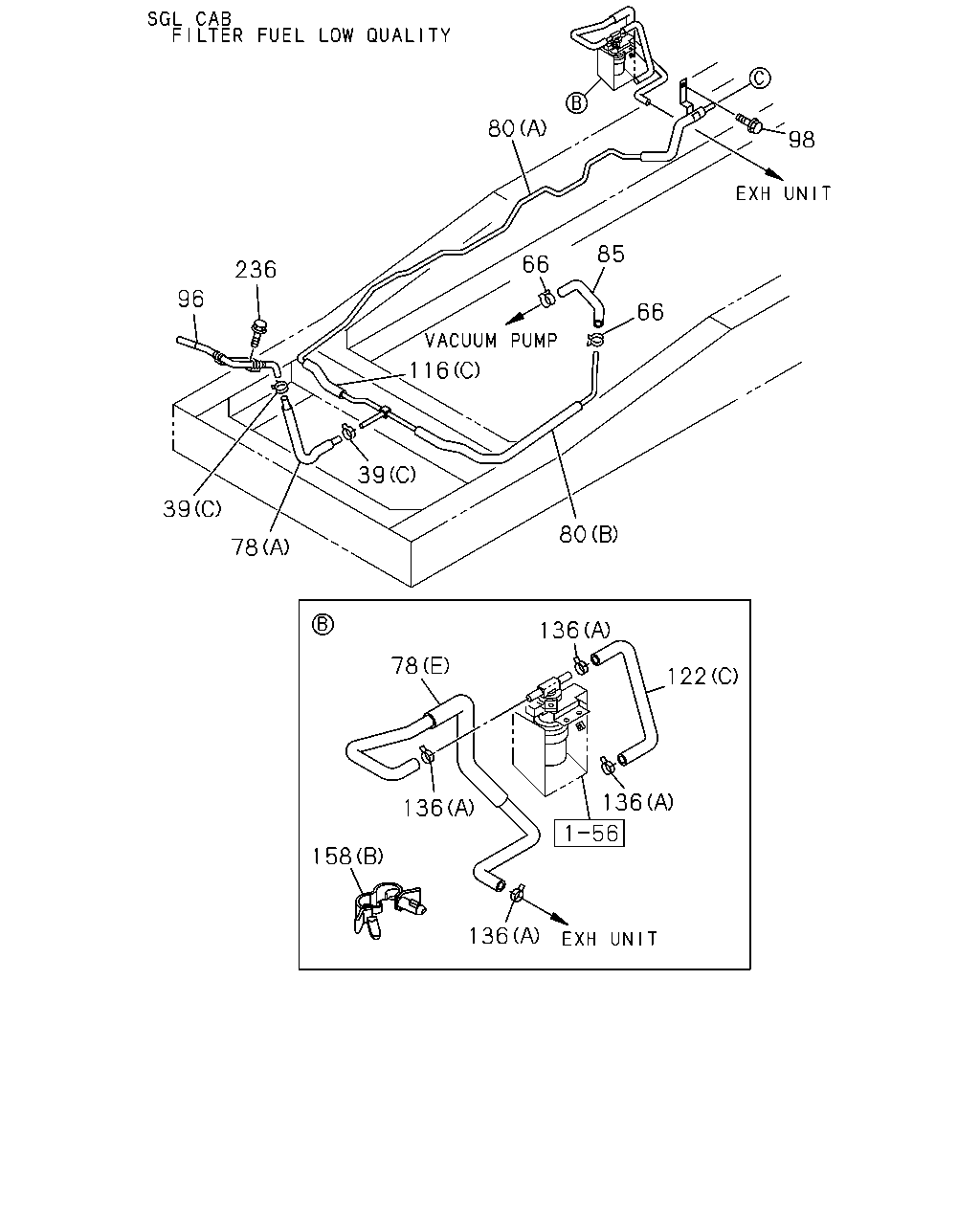

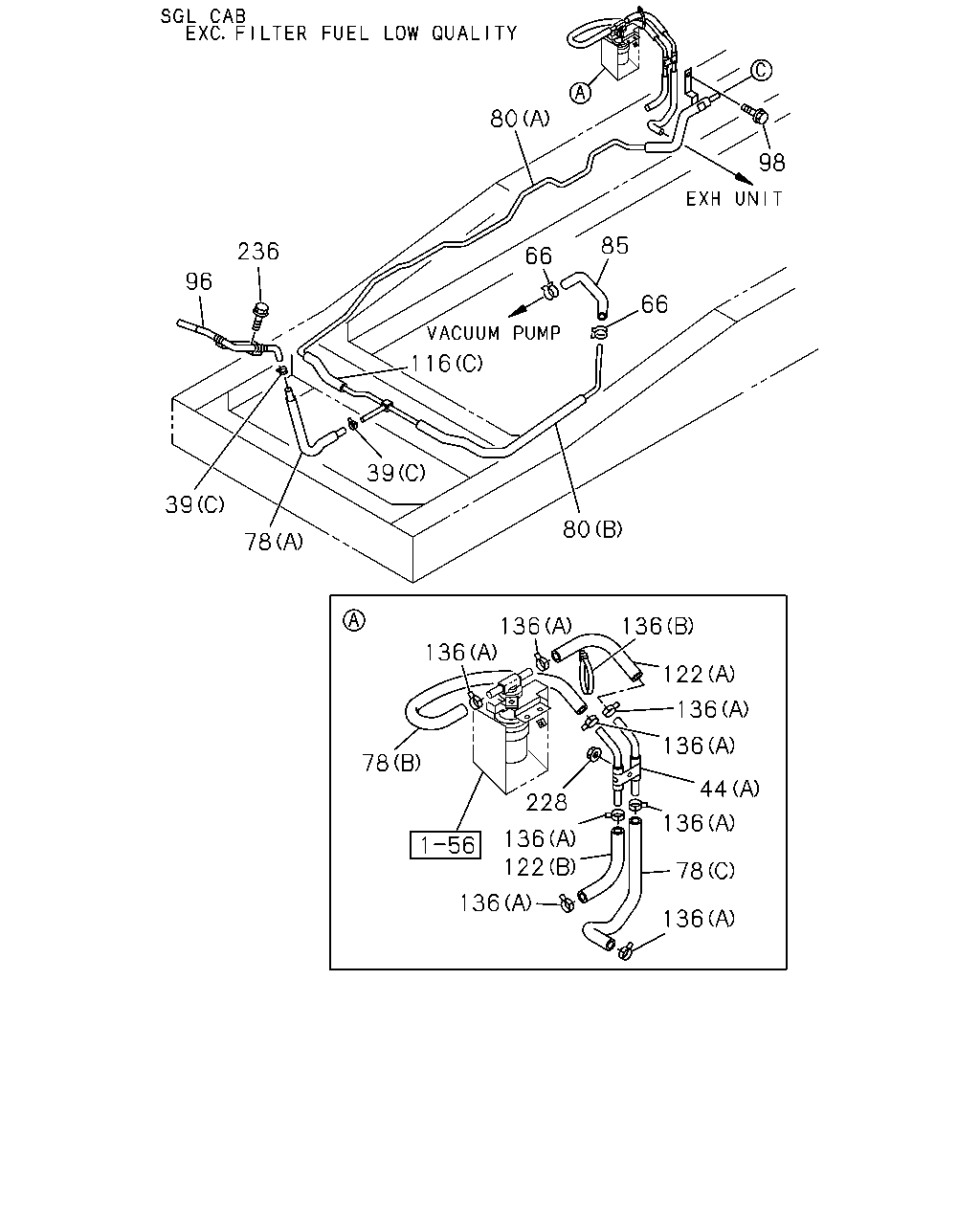

80 85 66 66 116 39 236 96 39 78 80 136 136 136 78 122 136 136 44 136 228 136 122 136 78 136 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	8-94238-568-0	02	1	0908-0911		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1011		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
44	04.930 PIPE; VAC,MAG VLV (B) L=399	8-98173-628-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98042-654-0	01	1	0908-0910		●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98042-654-0	01	1	0911-		●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0908-0911		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-1011		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (F) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98173-662-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0911-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0908-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	0908-1011		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0911-		●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98146-875-1	01	1	1012-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	0908-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98106-596-0	01	1	0908-1010		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1011-1011		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98181-901-0	01	1	1012-	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	0908-1011		●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-177-0	01	1	1012-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0908-1011		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1012-	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0908-		●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	1012-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (D)	8-98064-717-1	01	1	1012-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE POOR QUALITY DIESEL FUEL(KF0) (C)	8-98076-068-1	01	1	0911-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0908-0910		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0908-0910		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-		●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0908-0910		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0908-0910		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911		●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0908-0911		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-1011		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1012-	●	●
228	04.930 NUT; PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-0910		●
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M6 FLANGE	0-91180-106-0	01	1	0911-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0908-1011		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●

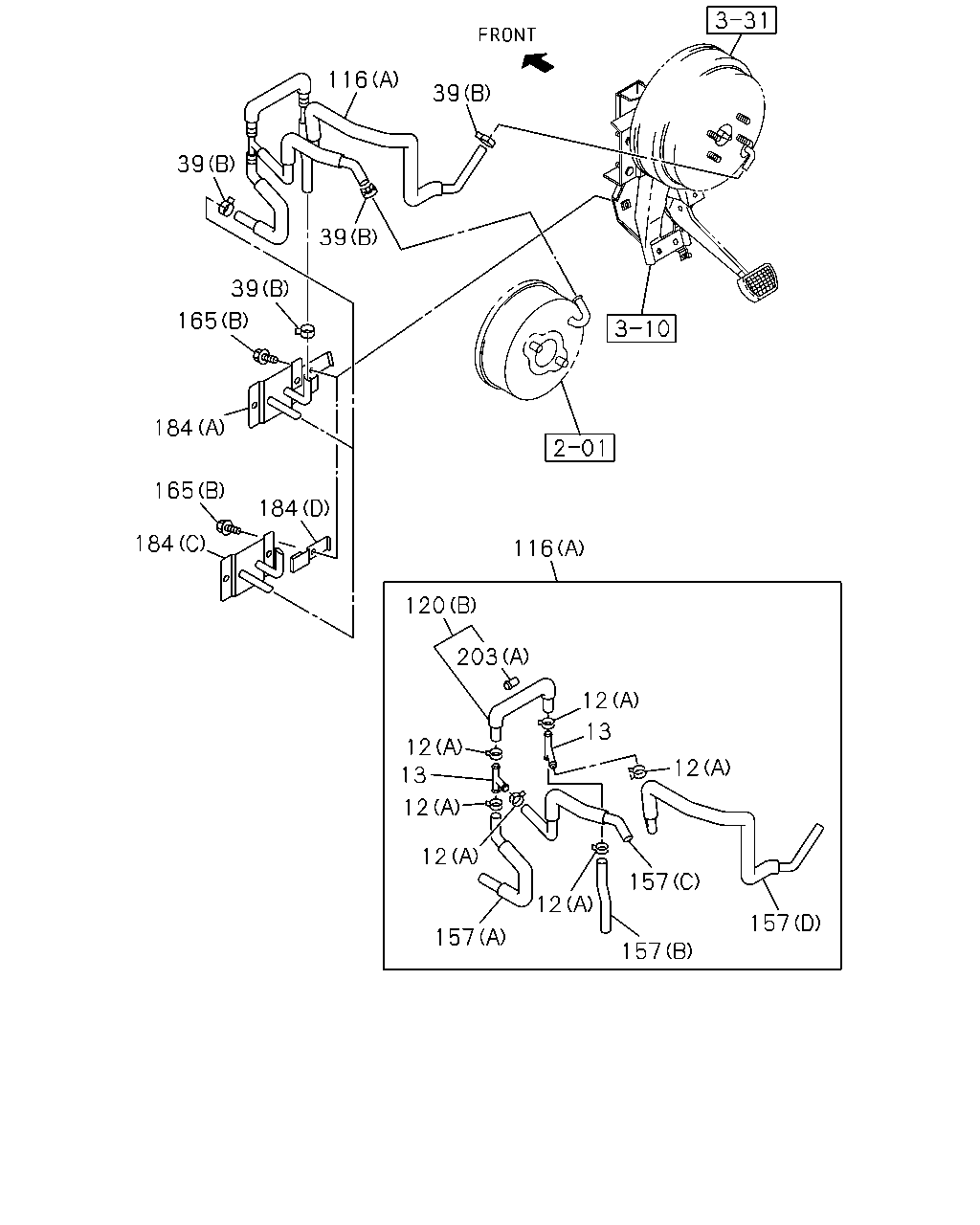

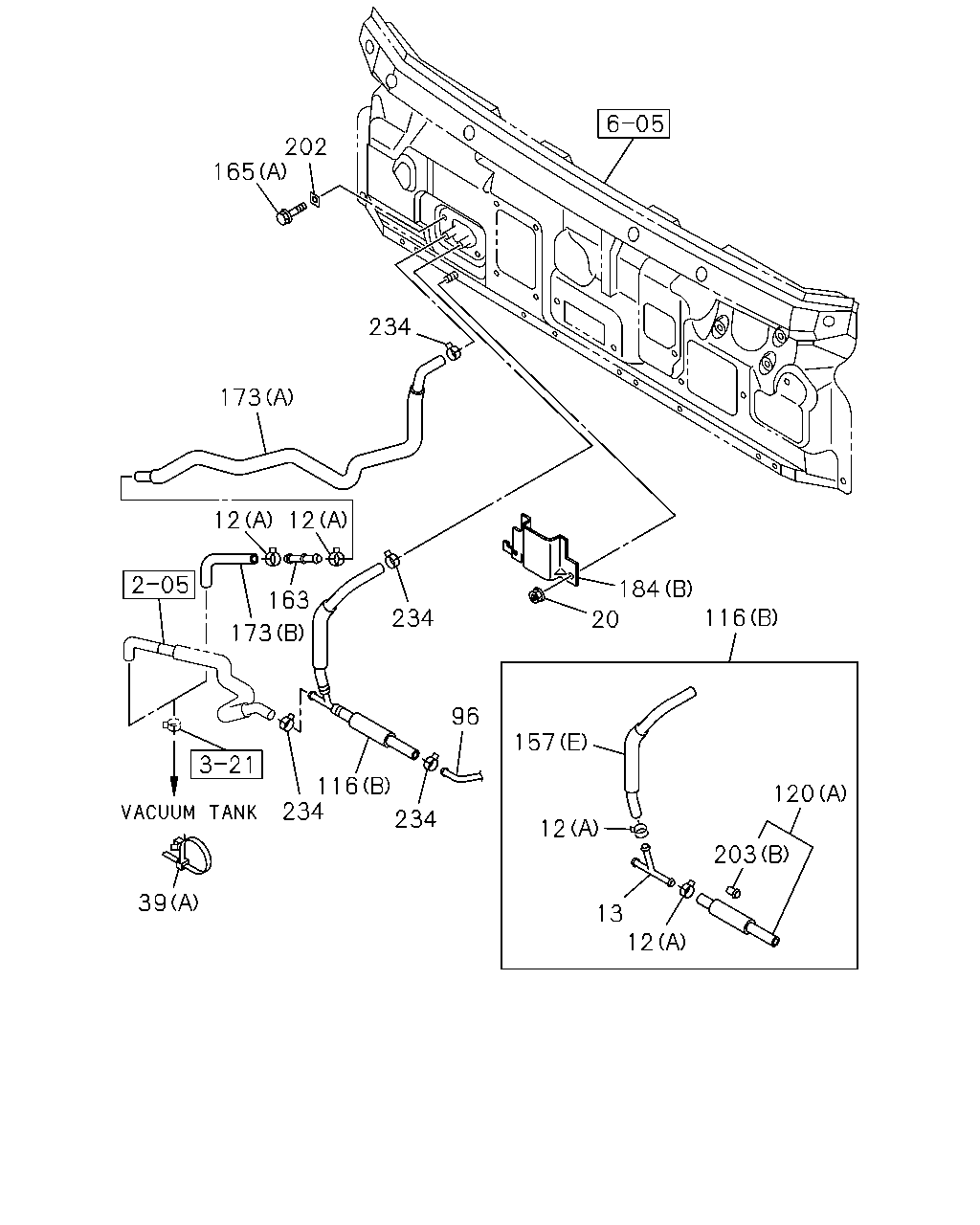

202 234 173 12 12 163 234 173 20 184 116 157 96 12 203 12 13 12 234 116 234 39 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1012-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0908-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1012-	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	03	1	0908-1011		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	03	1	1012-	●	●
20	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0908-1011		●
20	04.686 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0908-1011		●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	8-94238-568-0	02	1	0908-0911		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1011		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	0908-1011		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	04	1	1012-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0908-1011		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (A)	8-97389-674-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-689-3	01	1	1012-	●	●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	0908-1011		●
116	04.931 HOSE; VAC,M/VAC (C)	8-98033-137-1	01	1	1012-	●	●
157	04.931 HOSE; JOINT (E)	8-98017-168-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (E)	8-98017-168-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (D)	8-98027-350-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (D)	8-98027-350-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (C)	8-98027-351-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (C)	8-98027-351-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (B)	8-98027-353-3	01	1	0908-1011		●
157	04.931 HOSE; JOINT (B)	8-98027-353-3	01	1	1012-	●	●
157	04.931 HOSE; JOINT (A)	8-98027-354-2	01	1	0908-1011		●
157	04.931 HOSE; JOINT (A)	8-98027-354-2	01	1	1012-	●	●
163	04.681 JOINT; VAC HOSE 03.163	8-97353-668-0	01	1	0908-1011		●
163	04.681 JOINT; VAC HOSE 03.163	8-97353-668-0	01	1	1012-	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0908-1011		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0908-1011		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98055-936-1	01	1	0908-1011		●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98055-936-1	01	1	1012-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98121-941-0	01	1	1101-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98055-937-1	01	1	0908-1011		●
173	04.931 HOSE; VAC,VAC TANK SIDE (B)	8-98055-937-1	01	1	1012-1012	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE (A)	8-98121-940-0	01	1	1101-	●	●
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0908-1011		●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1103	●	●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0908-1011		●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1012-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0908-1011		●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-	●	●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	0908-1011		●
203	04.690 VALVE; CHECK (B)	8-94104-021-0	01	1	1012-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0908-1011		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-	●	●
234	04.685 CLAMP; PIPE 04.930 ID=16	8-94238-568-0	04	1	0908-1011		●
234	04.685 CLAMP; PIPE 04.930 ID=16	8-94238-568-0	04	1	1012-	●	●

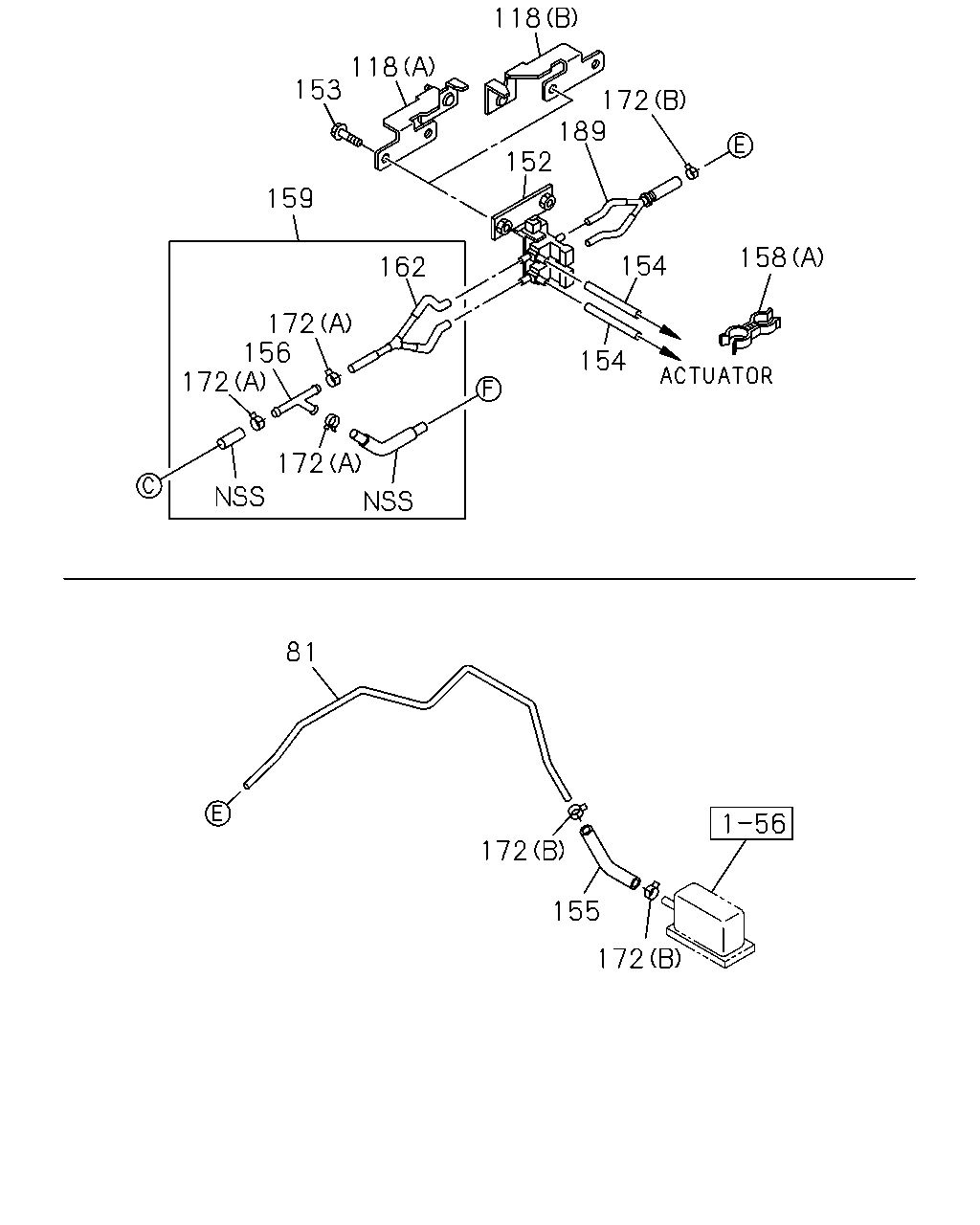

159 153 118 118 189 172 152 154 154 158 162 172 156 172 172 81 172 155 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	04.930 PIPE; VAC,VSV L=840	8-98173-621-2	01	1	1012-	●
81	04.930 PIPE; VAC,VSV	8-98001-363-1	01	1	0908-		●
118	04.930 BRACKET; VSV (B)	8-98154-334-0	01	1	1012-	●
118	04.930 BRACKET; VSV (A)	8-98107-986-0	01	1	0908-		●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	01	1	0908-1011		●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	01	1	1012-1302	●	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98222-432-0	01	1	1303-1310	●	●
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO 09.755	8-98256-404-0	01	1	1311-	●	●
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0908-1011		●
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	1012-	●	●
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=270 SERVICED BY L=3000	0-04840-300-0	02	1	0908-1011		●
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=270 SERVICED BY L=3000	0-04840-300-0	02	1	1012-	●	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
155	04.931 HOSE; VAC,AIR FILTER	8-98021-558-0	01	1	0908-		●
156	04.931 JOINT; 3 WAY L=430	8-94467-387-0	01	1	0908-1011		●
156	04.931 JOINT; 3 WAY L=430	8-94467-387-0	01	1	1012-	●	●
158	04.681 CLIP; HOSE 02.559 (C) ID=28 H=45 L=30	1-09700-707-0	01	1	1012-	●
158	04.681 CLIP; HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	0911-		●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	0908-1011		●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	1012-	●	●
159	04.931 HOSE ASM; VAC	8-97370-921-0	01	1	0908-1011		●
159	04.931 HOSE ASM; VAC	8-97370-921-0	01	1	1012-	●	●
162	04.931 HOSE; VAC	8-94481-279-1	01	1	0908-1011		●
162	04.931 HOSE; VAC	8-94481-279-1	01	1	1012-	●	●
172	04.930 CLIP; VAC HOSE (A) ID=14.5	8-94167-480-0	03	1	0908-1011		●
172	04.930 CLIP; VAC HOSE (A) ID=14.5	8-94167-480-0	03	1	1012-	●	●
172	04.930 CLIP; VAC HOSE (B) ID=16	8-94238-568-0	02	1	0908-0911		●
172	04.930 CLIP; VAC HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1011		●
172	04.930 CLIP; VAC HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1012-	●	●
189	04.930 CONNECTOR 04.931	8-94481-279-1	01	1	0908-1011		●
189	04.930 CONNECTOR 04.931	8-94481-279-1	01	1	1012-	●	●

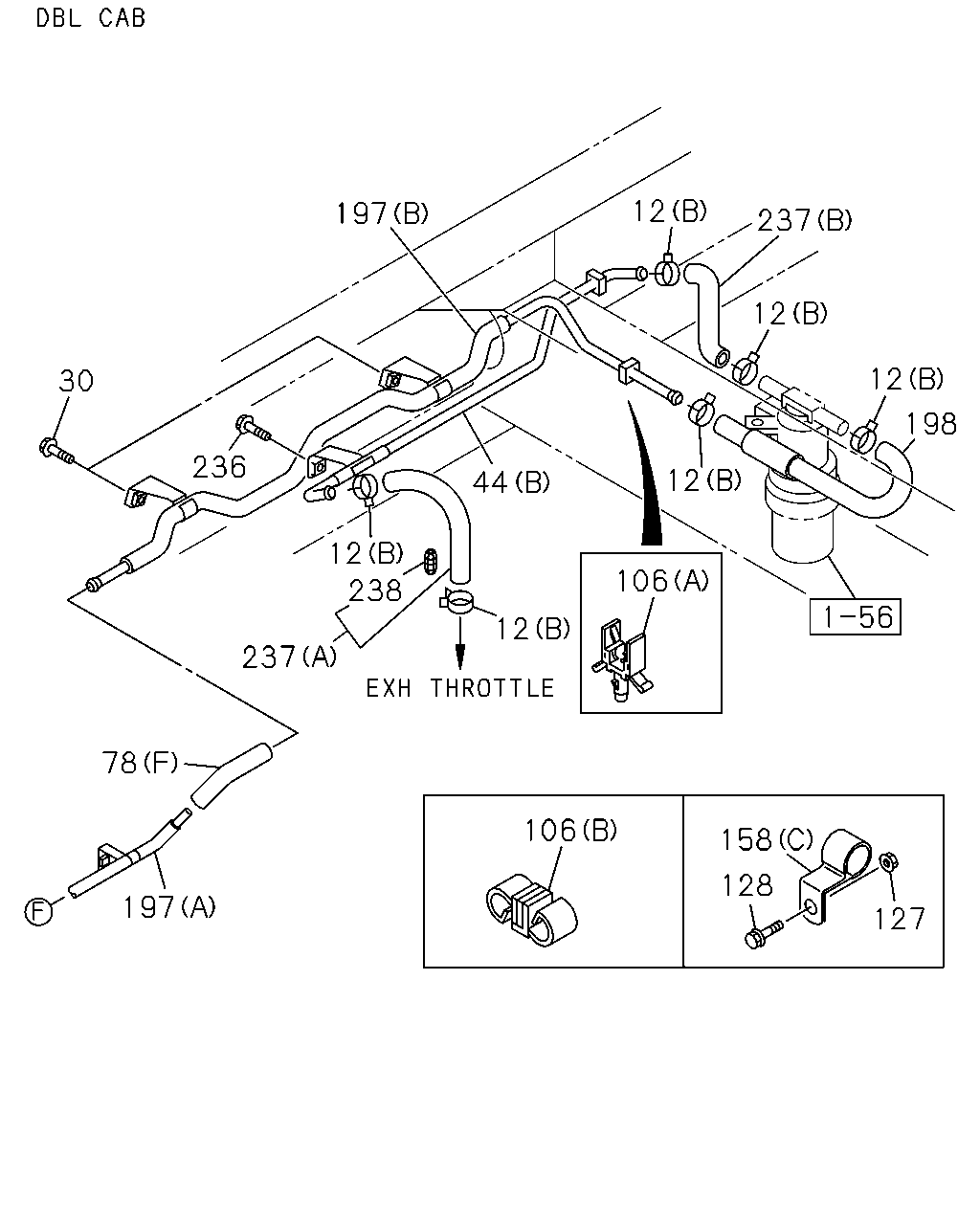

197 12 237 12 12 198 12 44 12 236 30 238 237 12 106 158 128 127 106 78 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1012-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0908-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1012-	●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0908-1008		●
30	04.686 BOLT; CLIP,VAC PIPE CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1009-1011		●
30	04.686 BOLT; CLIP,VAC PIPE CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1012-		●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV (B) L=399	8-98173-628-0	01	1	1012-	●
44	04.930 PIPE; VAC,MAG VLV (A)	8-98042-654-0	01	1	0908-0910		●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98042-654-0	01	1	0911-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (F) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98173-662-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0911-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0908-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	0908-1011		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0911-		●
106	04.930 CLIP; PIPE 03.483 (B) ID=10 & 12	1-09709-278-1	01	1	1012-	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	1012-	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
158	04.681 CLIP; HOSE 02.559 (C) ID=28 H=45 L=30	1-09700-707-0	01	1	1012-	●
158	04.681 CLIP; HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	0911-		●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	0908-1011		●
158	04.681 CLIP; HOSE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	1012-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B) L=1027	8-98173-622-0	01	1	1012-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (A)	8-97389-631-1	01	1	0908-1008		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97389-631-1	01	1	1009-1011		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97389-631-1	01	1	1012-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (A)	8-97389-631-1	01	1	1012-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B) L=822	8-98118-860-0	01	1	0908-0908		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B)	8-98038-754-0	01	1	0909-1008		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98038-754-0	01	1	1009-1403		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98258-154-0	01	1	1404-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-97373-197-0	01	1	1012-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98041-640-0	01	1	0908-1008		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM)	8-98041-640-0	01	1	1009-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0908-1011		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98036-102-0	01	1	0908-1008		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98036-102-0	01	1	1009-1011		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98036-102-0	01	1	1012-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98036-102-0	01	1	1012-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 03.630 (B) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0908-1008		●
238	04.892 ORIFICE; VACUUM HOSE CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	1009-1011		●
238	04.892 ORIFICE; VACUUM HOSE CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	1012-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	1012-	●

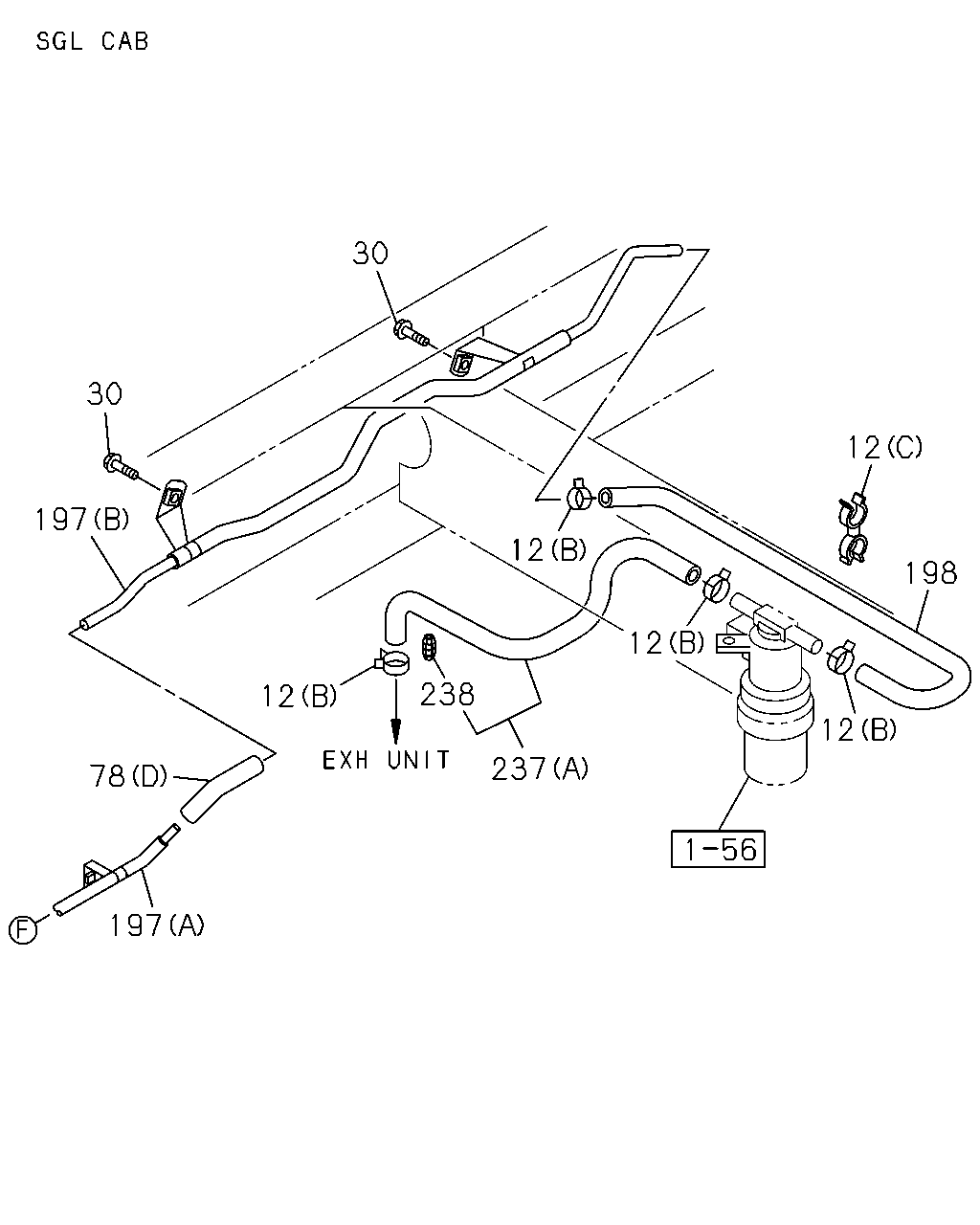

30 12 12 12 198 12 237 238 12 78 197 197 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	04	1	1012-	●
12	04.681 CLIP; HOSE 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	0908-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 02.559 (C) ID=16.5 & 16.5	8-94468-380-0	01	1	1009-		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	02	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	16	1	1101-	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	0908-1011		●
12	04.681 CLIP; HOSE 04.930 (A) ID=15.5	8-98008-097-0	14	1	1012-1012	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0908-0911		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-1008		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1009-1011		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1012-		●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1012-	●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0908-1008		●
30	04.686 BOLT; CLIP,VAC PIPE CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1009-1011		●
30	04.686 BOLT; CLIP,VAC PIPE CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1012-		●
30	04.686 BOLT; CLIP,VAC PIPE 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (F) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98173-662-0	01	1	1012-	●
78	04.931 HOSE; VAC,PIPE TO PIPE POOR QUALITY DIESEL FUEL(KF0) (E)	8-98139-198-0	01	1	0911-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0908-1008		●
78	04.931 HOSE; VAC,PIPE TO PIPE CATALYSIS CONTROL WITH DPD(8JM) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1009-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	0908-1011		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98039-728-1	01	1	1012-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98088-593-0	01	1	0908-0910		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98088-593-0	01	1	0911-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B) L=1027	8-98173-622-0	01	1	1012-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (A)	8-97389-631-1	01	1	0908-1008		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97389-631-1	01	1	1009-1011		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97389-631-1	01	1	1012-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (A)	8-97389-631-1	01	1	1012-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B) L=822	8-98118-860-0	01	1	0908-0908		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV (B)	8-98038-754-0	01	1	0909-1008		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98038-754-0	01	1	1009-1403		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98258-154-0	01	1	1404-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-97373-197-0	01	1	1012-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV	8-98041-640-0	01	1	0908-1008		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV CATALYSIS CONTROL WITH DPD(8JM)	8-98041-640-0	01	1	1009-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98036-102-0	01	1	0908-1008		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98036-102-0	01	1	1009-1011		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98036-102-0	01	1	1012-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE (A)	8-98036-102-0	01	1	1012-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 03.630 (B) L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1012-	●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0908-1008		●
238	04.892 ORIFICE; VACUUM HOSE CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	1009-1011		●
238	04.892 ORIFICE; VACUUM HOSE CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	01	1	1012-		●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
