3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#53358) — 73 parça

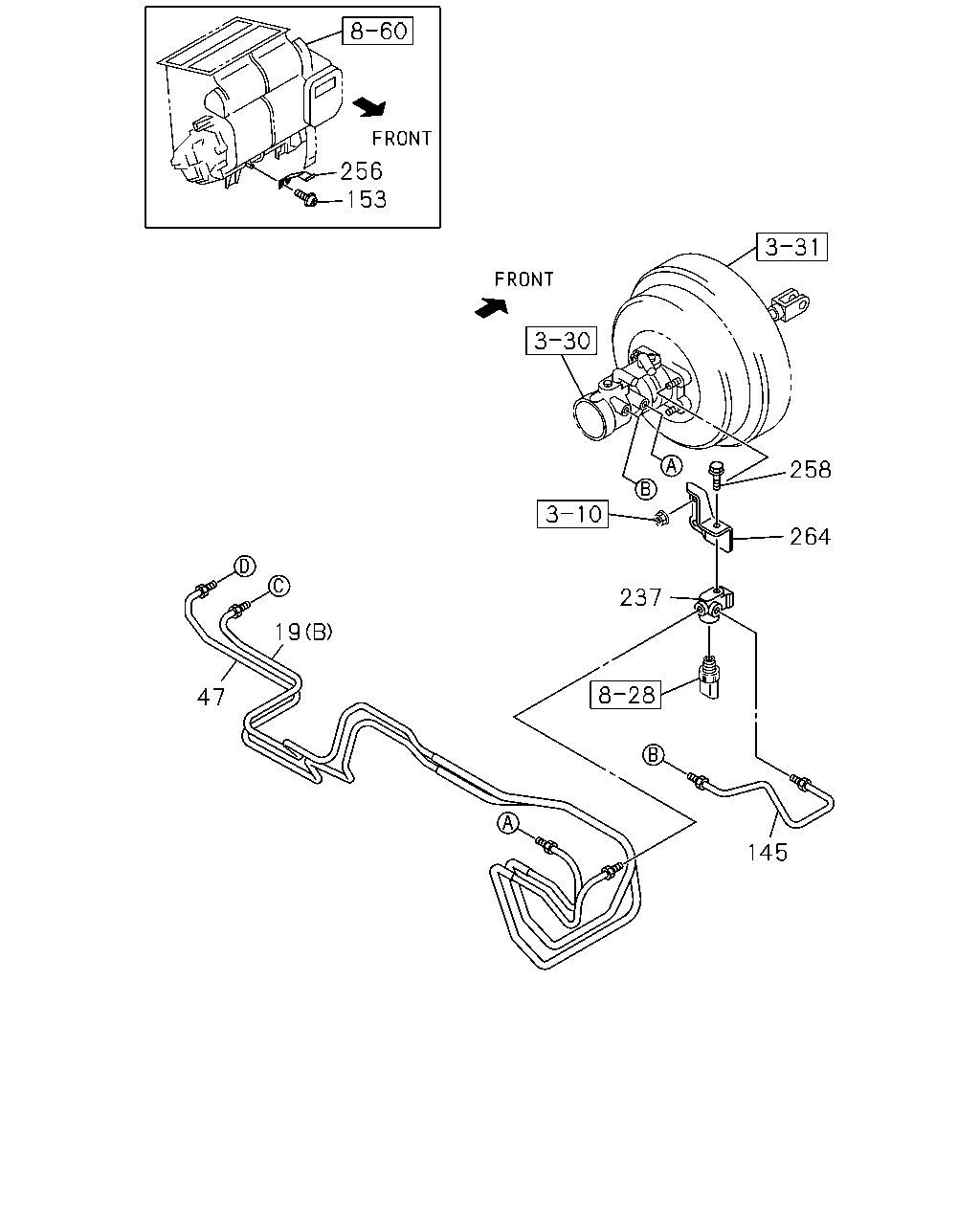

çizim 159984
56 153 19 47 237 258 264 145
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0908-1011 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1012- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 0908-1011 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 1012- ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1173 		8-98133-413-0 01 1 0908-1011 ●
47 04.685 PIPE; OIL,FRT BRK
L=1173 		8-98133-413-0 01 1 1012- ● ●
56 04.686 BRACKET; UNION,BRK 8-97389-281-1 01 1 0908-1005 ●
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1006-1011 ●
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1012- ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0908-1011 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
L=201 		8-98133-407-0 01 1 0908-1011 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
L=201 		8-98133-407-0 01 1 1012- ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0908-1011 ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1012- ● ●
237 04.840 CONNECTOR; MODULATOR 8-98111-748-1 01 1 0908-1011 ●
237 04.840 CONNECTOR; MODULATOR 8-98111-748-1 01 1 1012- ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98034-784-1 01 1 0908-1005 ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98163-521-0 01 1 1006-1011 ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98163-521-0 01 1 1012- ● ●
258 04.730 BOLT; PIPE,BRK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0908-1011 ●
258 04.730 BOLT; PIPE,BRK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ●
264 04.681 BRACKET; SENSOR,PRESSURE 8-97387-683-2 01 1 0908-1011 ●
264 04.681 BRACKET; SENSOR,PRESSURE 8-97387-683-2 01 1 1012- ● ●

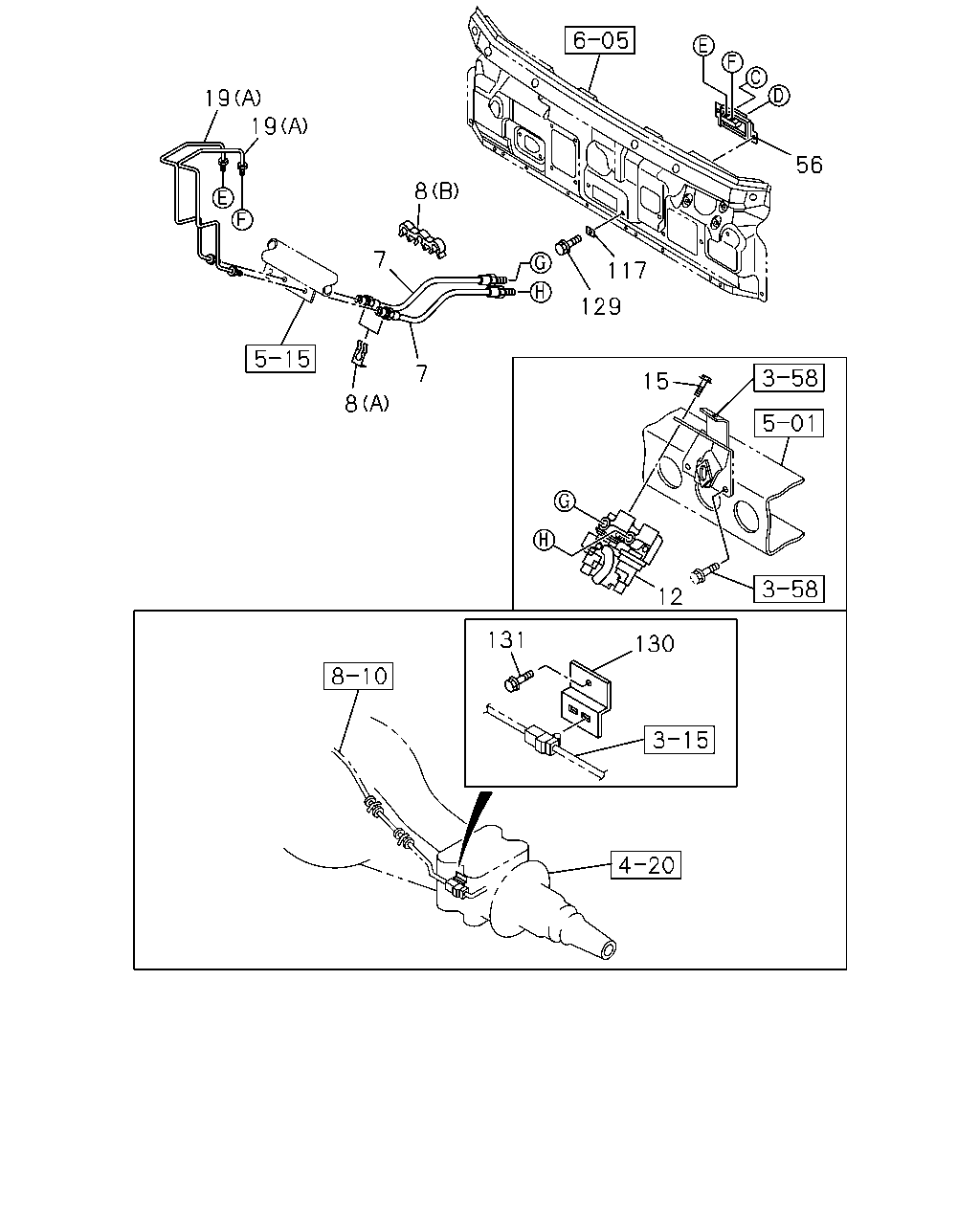

çizim 159987
130 130 7 7 19 19 117 129 8 8 15 12 56
BalonParca AdiParca NoAdetTipApplied Date A B
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 0908-1011 ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 1012- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0908-1011 ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1012- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 0908-1011 ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1012- ● ●
12 04.690 VALVE ASM; HSA 8-97331-331-2 01 1 0908-1011 ●
12 04.690 VALVE ASM; HSA 8-97331-331-2 01 1 1012-1107 ● ●
12 04.690 VALVE ASM; HSA 8-98159-364-1 01 1 1108- ● ●
15 04.730 BOLT; HSA VALVE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0908-1011 ●
15 04.730 BOLT; HSA VALVE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0908-1011 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1012- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 0908-1011 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 1012- ● ●
56 04.686 BRACKET; UNION,BRK 8-97389-281-1 01 1 0908-1005 ●
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1006-1011 ●
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1012- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 0908-1011 ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1012- ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0908-1011 ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012- ● ●
130 04.686 BRACKET; SPEED SENSOR 8-97080-060-2 02 1 0908-1011 ●
130 04.686 BRACKET; SPEED SENSOR 8-97080-060-2 02 1 1012- ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0908-1011 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98034-784-1 01 1 0908-1005 ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98163-521-0 01 1 1006-1011 ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98163-521-0 01 1 1012- ● ●

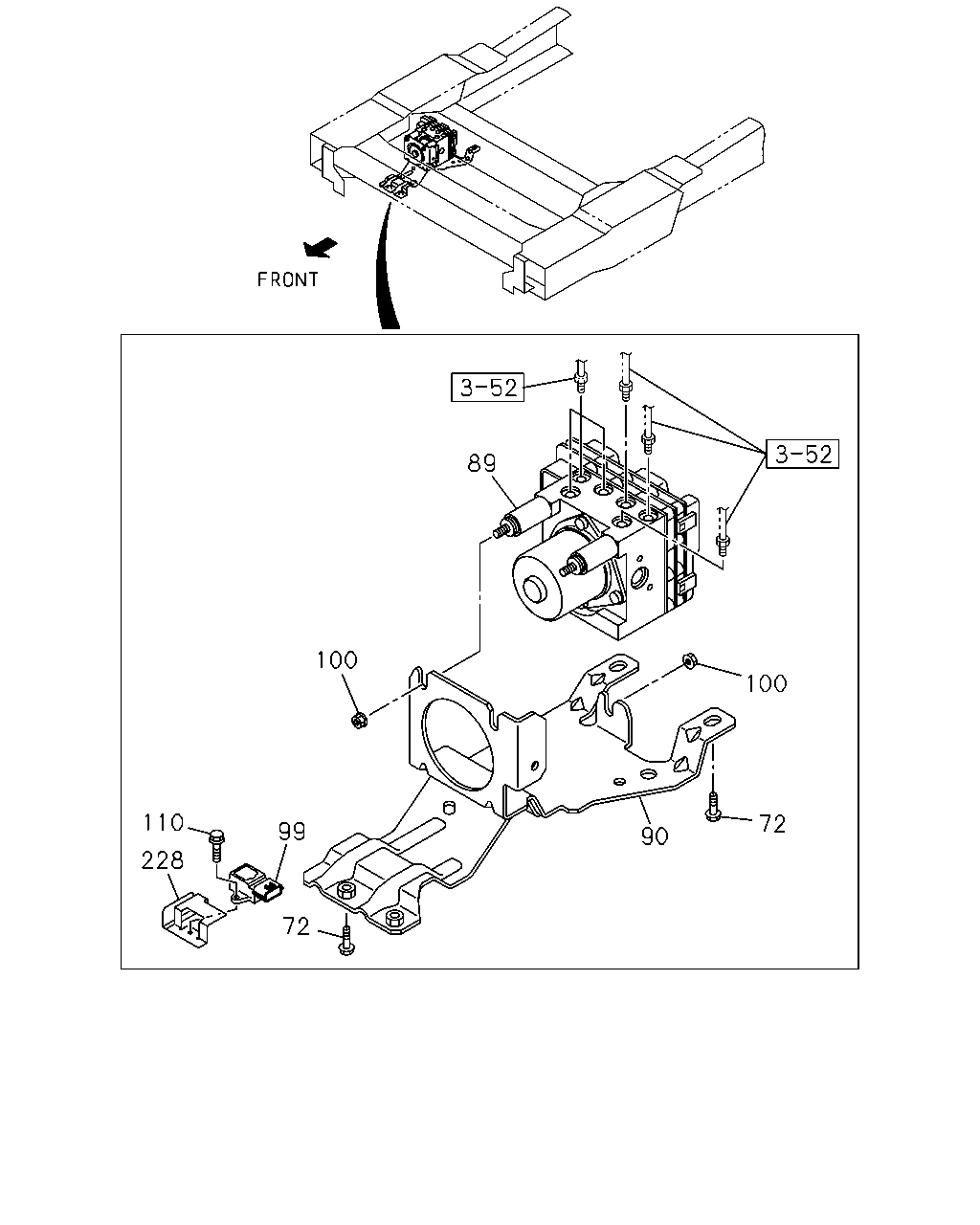

çizim 159989
72 100 90 100 89 99 72 110 228
BalonParca AdiParca NoAdetTipApplied Date A B
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0908-1011 ●
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98104-875-0 01 1 0908-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98158-010-1 01 1 1007-1011 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98158-010-1 01 1 1012- ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS 8-98001-105-0 01 1 0908-1011 ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS 8-98001-105-0 01 1 1012- ● ●
99 04.710 SENSOR; DECELERATION 8-97319-480-0 01 1 0908-1011 ●
99 04.710 SENSOR; DECELERATION 8-97319-480-0 01 1 1012- ● ●
100 04.730 NUT; HYDRAULIC UNIT
01.062 M8 FLANGE 		0-91180-108-0 03 1 0908-1011 ●
100 04.730 NUT; HYDRAULIC UNIT
01.062 M8 FLANGE 		0-91180-108-0 03 1 1012- ● ●
110 04.730 BOLT; HYDRAULIC UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0908-1011 ●
110 04.730 BOLT; HYDRAULIC UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1012- ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0908-1011 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
228 04.730 COVER; ABS 8-98062-231-1 01 1 0908-1011 ●
228 04.730 COVER; ABS 8-98062-231-1 01 1 1012- ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98034-784-1 01 1 0908-1005 ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98163-521-0 01 1 1006-1011 ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98163-521-0 01 1 1012- ● ●
