Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶
6-70 — FLOOR PANEL
(#53356) — 38 parça
◀

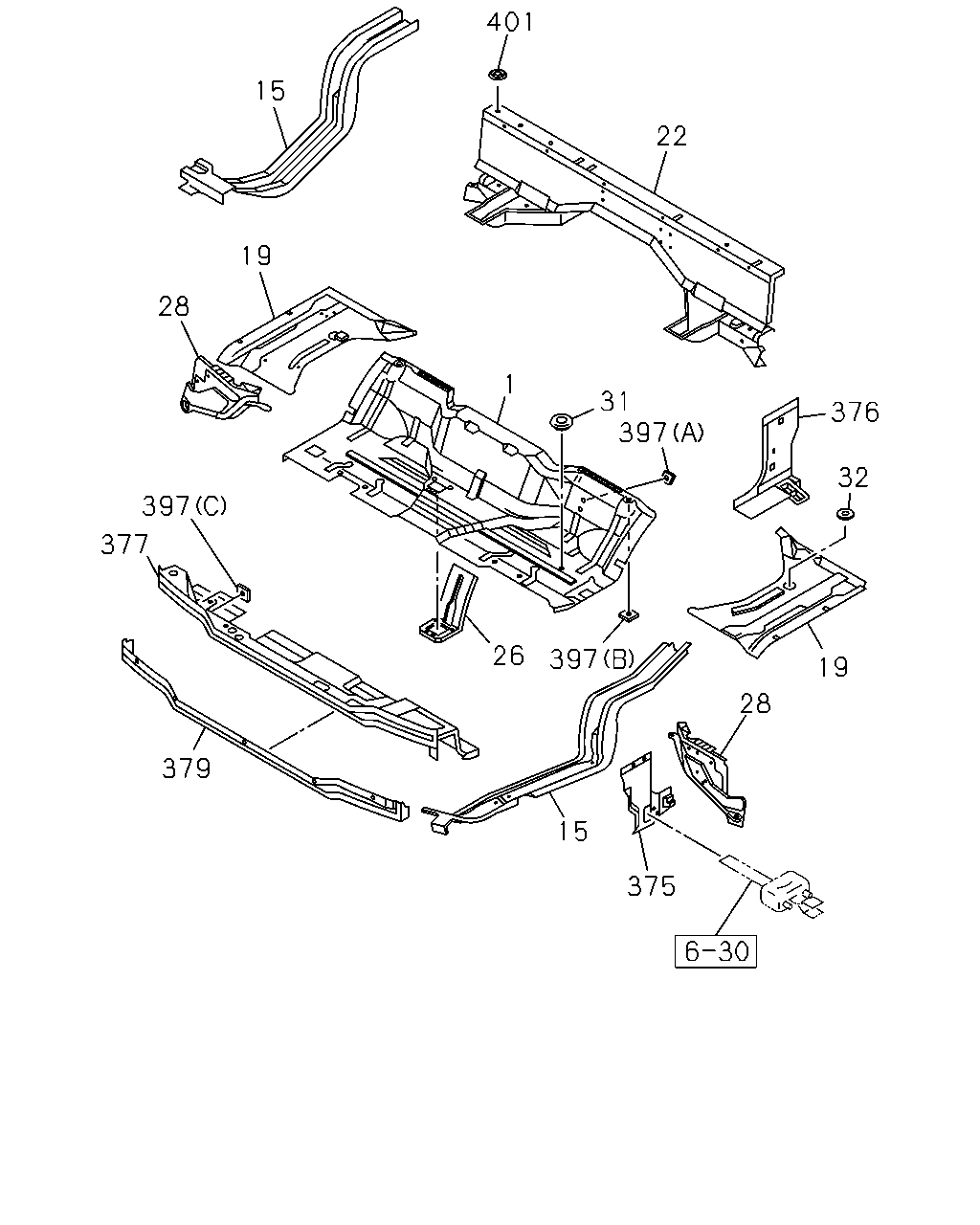

[670A] PANEL (25 parça)

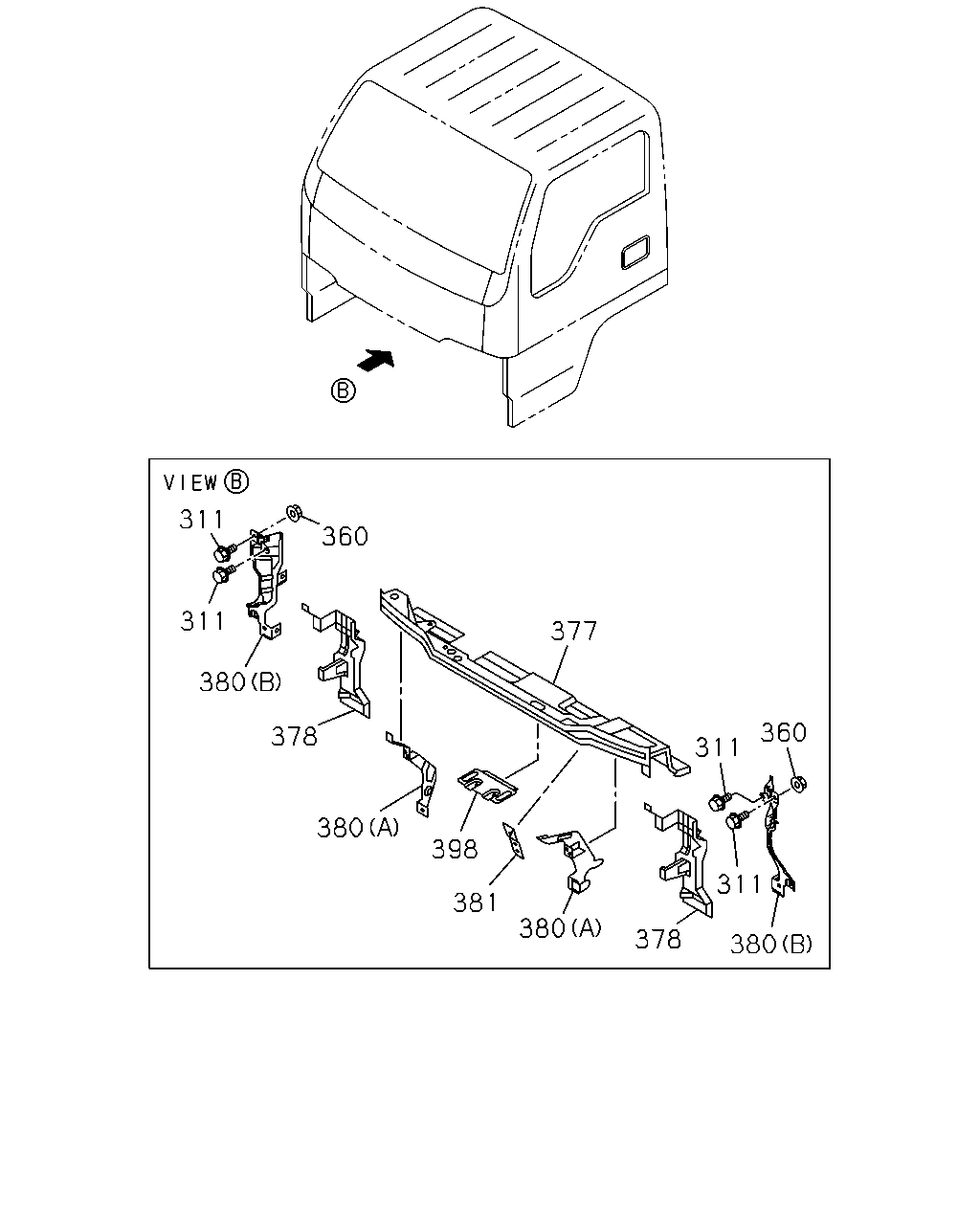

[670A] FRONT MTG RAIL (13 parça)
▶
401
15
22
19
28
1
31
397
376
32
397
377
26
397
19
28
379
15
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.545 PANEL; FLOOR
8-97581-801-0
01
1
0311-
15
16.545 FRAME; UNDER
8-97850-060-9
01
1
0311-
15
16.545 FRAME; UNDER
8-97850-059-9
01
1
0311-0505
15
16.545 FRAME; UNDER
8-98013-405-0
01
1
0506-
19
16.545 PANEL; FLOOR SIDE,REAR
8-97850-118-7
01
1
0311-
19
16.545 PANEL; FLOOR SIDE,REAR
8-97850-567-5
01
1
0311-
22
16.545 FRAME; FLOOR REAR
8-97850-657-9
01
1
0311-
26
16.545 PANEL; GEAR CONT REINF
8-97850-140-3
01
1
0311-
28
16.545 GUSSET; FLOOR PANEL SIDE
8-97850-017-7
01
1
0311-1106
28
16.545 GUSSET; FLOOR PANEL SIDE
8-98170-771-0
01
1
1107-
28
16.545 GUSSET; FLOOR PANEL SIDE
8-97850-338-5
01
1
0311-1106
28
16.545 GUSSET; FLOOR PANEL SIDE
8-98170-770-0
01
1
1107-
31
16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5
8-94279-711-0
02
1
0311-
32
16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 OD=53.5
8-94356-253-0
02
1
0311-
375
16.545 CLOSING; PILLAR
8-97850-086-5
01
1
0311-
375
16.545 CLOSING; PILLAR
8-97850-087-4
01
1
0311-
376
16.545 CLOSING; PILLAR,LWR
8-97850-320-6
01
1
0311-
376
16.545 CLOSING; PILLAR,LWR
8-97850-923-1
01
1
0311-
377
16.545 RAIL ASM; MTG,FRT
8-97997-638-0
01
1
0311-
379
16.545 PANEL
8-97581-640-0
01
1
0311-
397
16.545 NUT; PIERCE
(A) M6
9-09114-046-0
04
1
0311-
397
16.545 NUT; PIERCE
16.588 (B) M8
9-09114-048-0
04
1
0311-
397
16.545 NUT; PIERCE
(C) M10
9-09114-030-0
03
1
0311-
397
16.545 NUT; PIERCE
16.588 (B) M8
9-09114-048-0
06
1
0311-
401
16.545 GROMMET; HOLE
OD=24.5 T=7.5
8-97224-683-0
01
1
0311-
311
360
311
377
380
360
378
311
380
398
311
381
380
378
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
311
16.545 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0502-0804
311
16.545 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
04
1
0805-
360
16.545 NUT; BRKT
16.570 M6 POP NUT
8-94279-537-0
02
1
0502-0805
360
16.545 NUT; BRKT
09.786 M6 POP NUT
8-98013-752-0
02
1
0806-
377
16.545 RAIL ASM; MTG,FRT
8-97997-638-0
01
1
0311-
378
16.545 GASSET; LWR
8-97581-827-2
01
1
0311-
378
16.545 GASSET; LWR
8-97581-828-2
01
1
0311-
380
16.545 BRACKET; HEAD LAMP
02.726 (B)
8-98006-087-0
01
1
0502-
380
16.545 BRACKET; HEAD LAMP
02.726 (B)
8-98006-088-0
01
1
0502-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97850-090-2
01
1
0311-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97850-705-0
01
1
0311-
381
16.545 BRACKET; AIR INTAKE DUCT,FRT
8-97850-221-5
01
1
0311-
398
16.545 BRACKET; PIPE SUPPORT
8-97850-318-1
01
1
0311-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
