◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#53353) — 11 parça

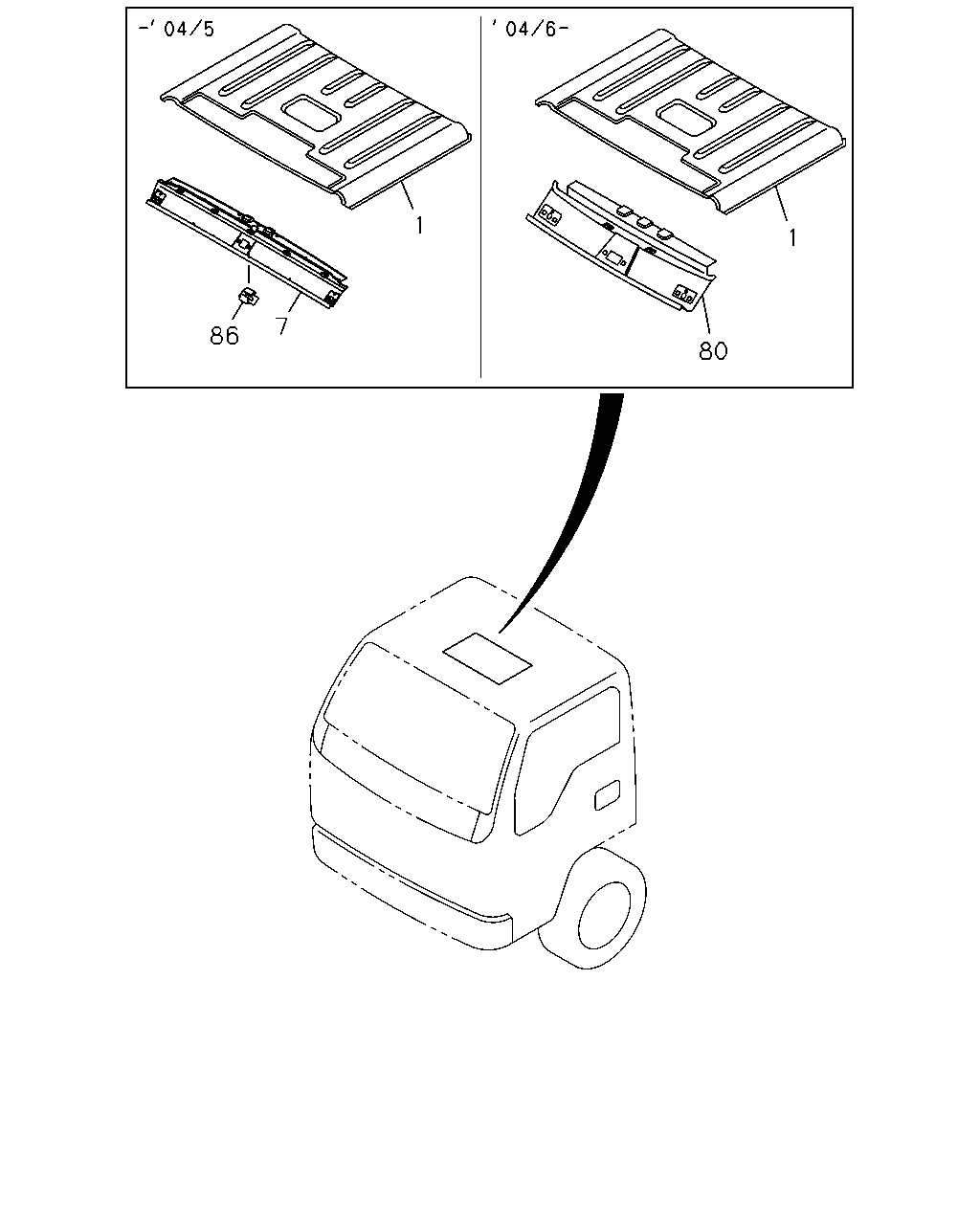

çizim 98898
1 1 7 86 80
BalonParca AdiParca NoAdetTipApplied Date
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-1 01 1 0502-
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0502-
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-1 01 1 0502-
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0502-
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-402-1 01 1 0311-0501
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-1 01 1 0502-
1 16.585 PANEL; ROOF
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-872-0 01 1 0311-0501
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0502-
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-143-1 01 1 0311-0405
80 16.585 PANEL; HEADER,ROOF 8-97583-507-0 01 1 0406-
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 0311-0405
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
