6-47 — MUD GUARD AND INSULATOR (#53352) — 131 parça

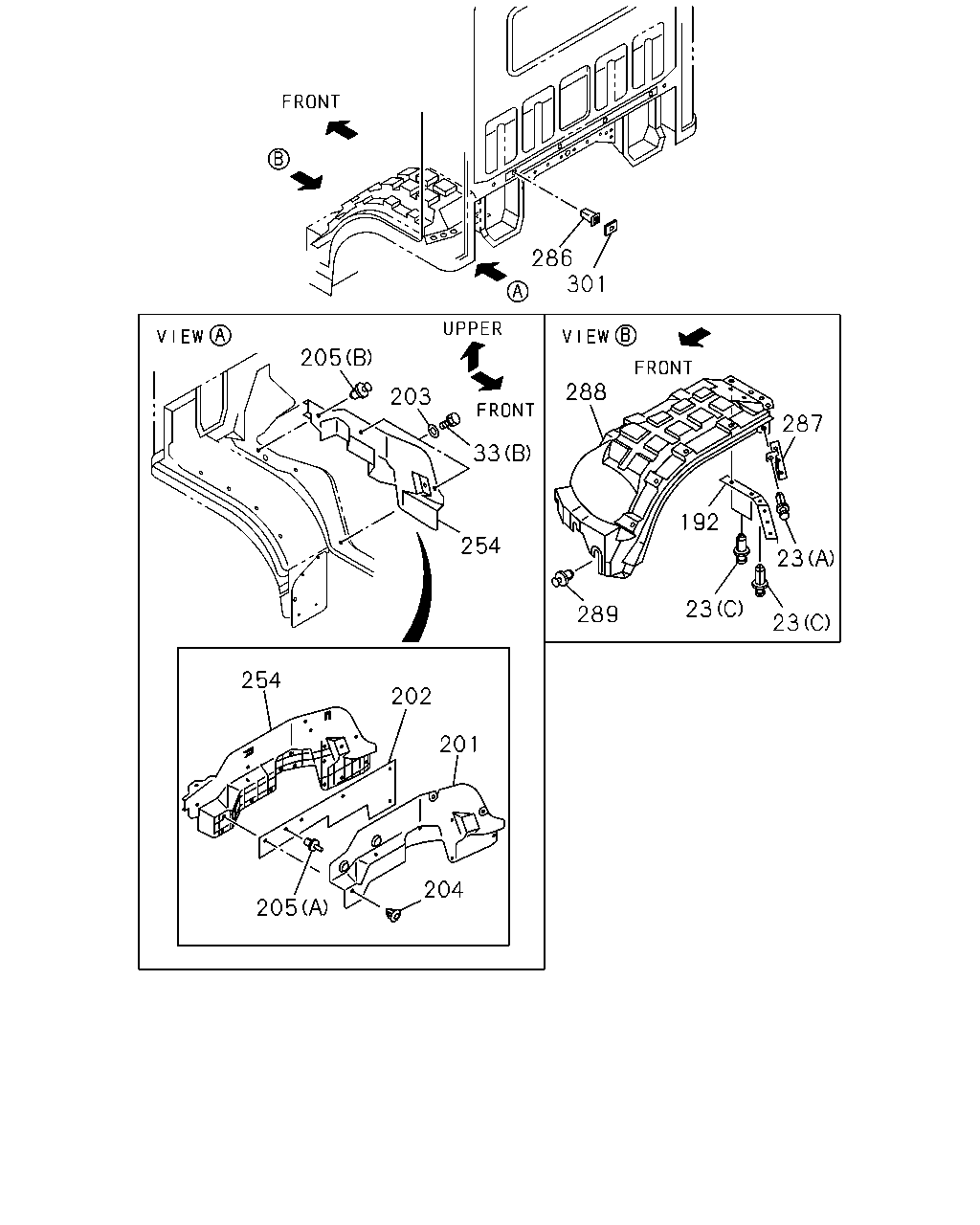

286 301 205 288 203 287 33 192 254 23 23 289 23 254 202 201 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	0311-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	0311-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0311-
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0311-0512
33	08.155 BOLT; MUD COVER 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0311-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	0311-0512
33	08.155 BOLT; MUD COVER 00.685 (B) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0311-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
192	08.153 SEAL; MUD COVER	8-97857-298-3	01	1	0311-
192	08.153 SEAL; MUD COVER	8-97857-299-3	01	1	0311-
201	08.155 INSULATOR; VALANCE	8-97853-630-3	01	1	0311-
201	08.155 INSULATOR; VALANCE	8-97853-631-3	01	1	0311-
202	08.155 RUBBER; MUD,VALANCE PANEL	8-97857-171-0	01	1	0311-
202	08.155 RUBBER; MUD,VALANCE PANEL	8-97997-869-1	01	1	0311-0311
202	08.155 RUBBER; MUD,VALANCE PANEL	8-97857-170-0	01	1	0312-
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0311-0604
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0311-
205	08.155 FASTENER; MUD COVER 12.934 (B) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0311-
205	08.155 FASTENER; MUD COVER (A)	5-09989-002-0	14	1	0311-0311
205	08.155 FASTENER; MUD COVER (A)	5-09989-002-0	12	1	0312-
254	08.153 COVER; MUD,VALANCE	8-97853-358-3	01	1	0311-
254	08.153 COVER; MUD,VALANCE	8-97853-359-3	01	1	0311-
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0311-
287	08.155 BRACKET; SEAL,MUD COVER	8-97856-347-3	01	1	0311-
287	08.155 BRACKET; SEAL,MUD COVER	8-97856-348-3	01	1	0311-
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0311-
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0311-
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0311-
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0311-

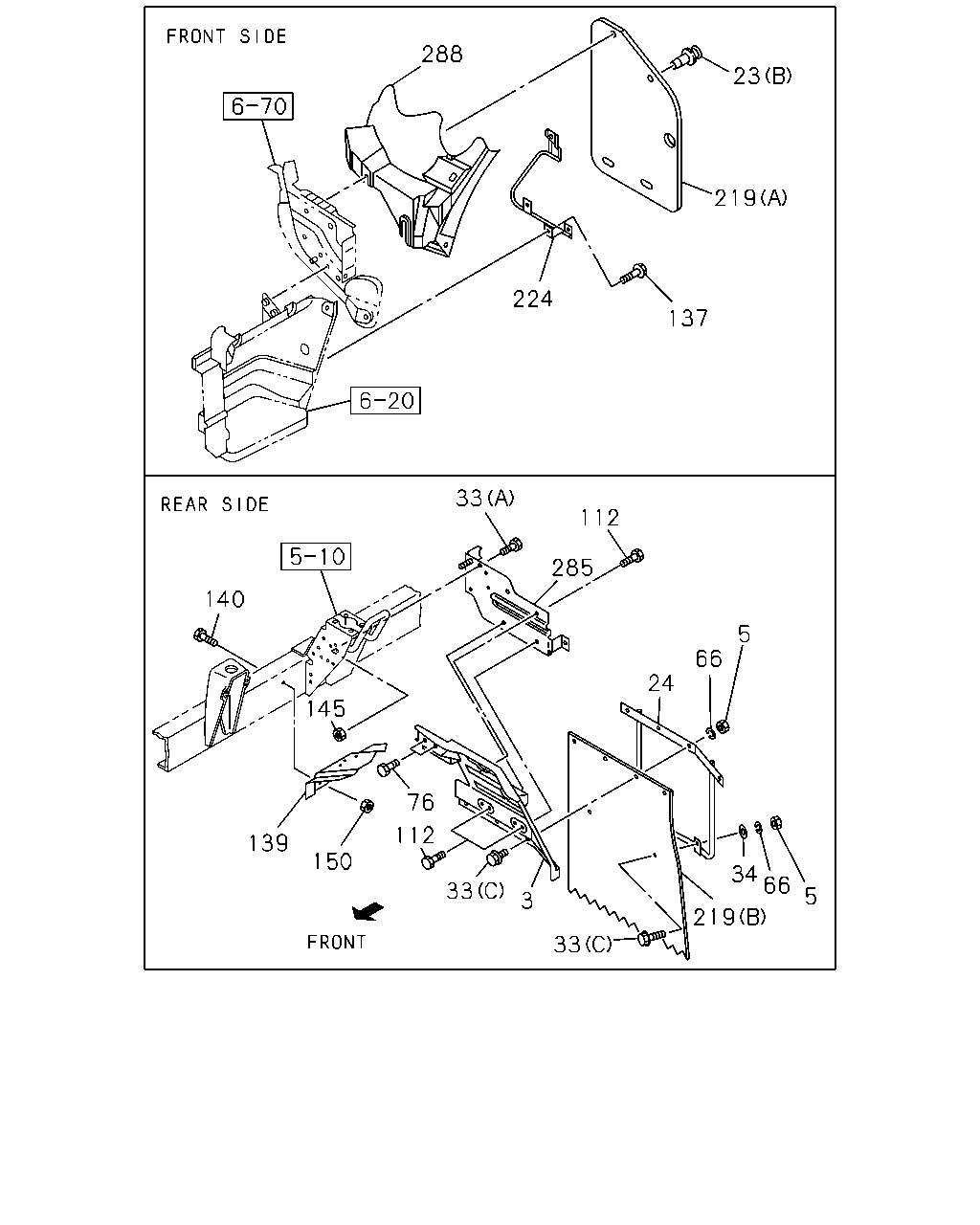

288 23 219 224 137 33 112 285 140 5 66 24 145 76 112 139 150 34 66 33 5 3 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	0311-
3	08.153 GUARD; MUD,RR	8-97048-729-1	01	1	0311-0312
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0401-
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	12	1	0311-0512
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	12	1	0601-
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	0311-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	0311-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0311-
24	08.155 PLATE; MUD COVER	8-97066-488-0	01	1	0311-
24	08.155 PLATE; MUD COVER	8-97066-489-0	01	1	0311-
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0311-0512
33	08.155 BOLT; MUD COVER 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0311-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	0311-0512
33	08.155 BOLT; MUD COVER 00.685 (B) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0311-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
34	08.155 WASHER; PL,MUD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0311-0605
34	08.155 WASHER; PL,MUD COVER 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	12	1	0311-0603
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	12	1	0604-
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0311-0512
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0311-0512
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-
137	08.155 BOLT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0311-
139	08.153 PANEL; SIDE	8-97222-097-1	01	1	0311-0501
139	08.153 PANEL; SIDE 4HG1 ENG(RJH)	8-97222-097-1	01	1	0502-0611
139	08.153 PANEL; SIDE	8-97222-097-1	01	1	0612-
139	08.153 PANEL; SIDE	8-97222-098-0	01	1	0311-
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0311-0501
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0611
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0311-0602
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
219	08.155 FLAP; MUD GUARD (B)	8-97218-083-0	02	1	0311-
219	08.155 FLAP; MUD GUARD (A)	8-97857-549-1	02	1	0311-
224	08.155 SUPPORT; MUD GUARD	8-97857-512-1	01	1	0311-
224	08.155 SUPPORT; MUD GUARD	8-97857-513-1	01	1	0311-
285	08.155 BRACKET; MUD COVER	8-97035-778-4	01	1	0311-
285	08.155 BRACKET; MUD COVER	8-97092-037-2	01	1	0311-
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0311-
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0311-

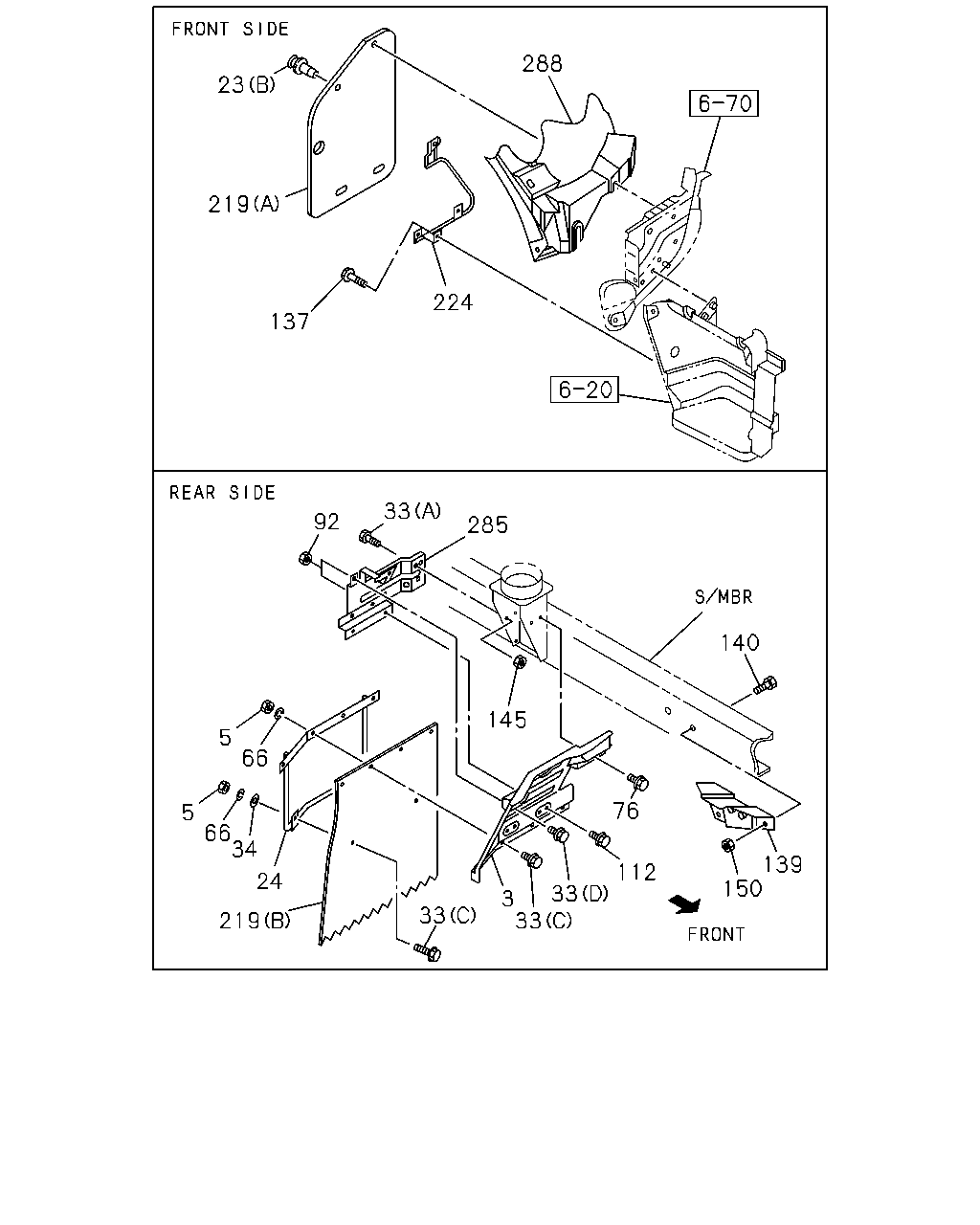

288 23 219 224 137 33 92 285 140 145 5 66 76 5 66 34 139 150 112 24 33 3 33 33 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	0311-
3	08.153 GUARD; MUD,RR	8-97048-729-1	01	1	0311-0312
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0401-
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	12	1	0311-0512
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	12	1	0601-
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	0311-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	0311-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0311-
24	08.155 PLATE; MUD COVER	8-97066-488-0	01	1	0311-
24	08.155 PLATE; MUD COVER	8-97066-489-0	01	1	0311-
33	08.155 BOLT; MUD COVER 00.738 (C) M6X16 FLANGE	0-28080-616-0	12	1	0311-0512
33	08.155 BOLT; MUD COVER 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0601-
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0311-0512
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-
33	08.155 BOLT; MUD COVER 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	0311-0512
33	08.155 BOLT; MUD COVER 00.685 (B) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0311-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
34	08.155 WASHER; PL,MUD COVER 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0311-0605
34	08.155 WASHER; PL,MUD COVER 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0606-
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	12	1	0311-0603
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	12	1	0604-
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0311-0512
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0601-
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0311-0512
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-
137	08.155 BOLT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0311-
139	08.153 PANEL; SIDE	8-97222-097-1	01	1	0311-0501
139	08.153 PANEL; SIDE 4HG1 ENG(RJH)	8-97222-097-1	01	1	0502-0611
139	08.153 PANEL; SIDE	8-97222-097-1	01	1	0612-
139	08.153 PANEL; SIDE	8-97222-098-0	01	1	0311-
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0311-0501
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0611
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0311-0602
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
219	08.155 FLAP; MUD GUARD (B)	8-97218-083-0	02	1	0311-
219	08.155 FLAP; MUD GUARD (A)	8-97857-549-1	02	1	0311-
224	08.155 SUPPORT; MUD GUARD	8-97857-512-1	01	1	0311-
224	08.155 SUPPORT; MUD GUARD	8-97857-513-1	01	1	0311-
285	08.155 BRACKET; MUD COVER	8-97035-778-4	01	1	0311-
285	08.155 BRACKET; MUD COVER	8-97092-037-2	01	1	0311-
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0311-
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0311-
