Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

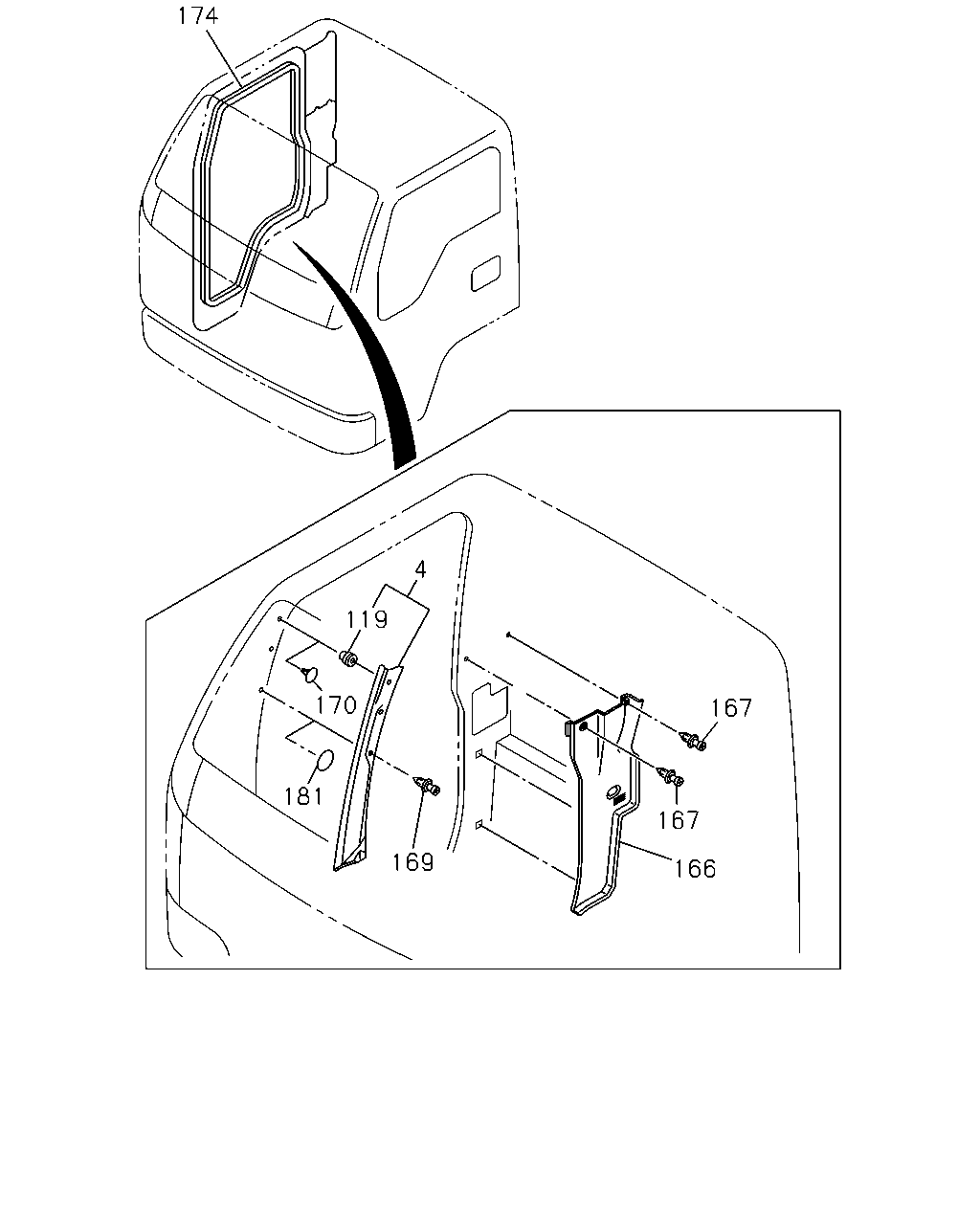

6-43 — SIDE TRIM
(#53351) — 22 parça
174
119
170
167
181
167
169
166
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-197-3
01
1
0502-
4
16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-198-3
01
1
0502-
119
16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742
1-73318-278-0
02
1
0502-
166
16.578 TRIM; RR PILLAR
DARK GRAY
8-97867-621-0
01
1
0311-0501
166
16.578 TRIM; RR PILLAR
GRAY
8-97582-818-0
01
1
0502-
166
16.578 TRIM; RR PILLAR
DARK GRAY
8-97868-653-3
01
1
0311-0501
166
16.578 TRIM; RR PILLAR
GRAY
8-97582-262-3
01
1
0502-
167
16.578 CLIP; TRIM,RR PILLAR
DARK GRAY
8-97857-211-0
04
1
0311-0501
167
16.578 CLIP; TRIM,RR PILLAR
GRAY
8-97582-265-0
04
1
0502-0610
167
16.578 CLIP; TRIM,RR PILLAR
GRAY
8-97406-439-0
04
1
0611-
169
16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET
8-97582-245-0
02
1
0502-
170
16.578 CLIP; HOLE
03.602
8-94244-922-0
02
1
0311-0501
170
16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602
8-94244-922-0
02
1
0502-
174
16.507 FINISHER; BODY SIDE
L=2982 DARK GRAY
8-97857-205-4
01
1
0311-0501
174
16.507 FINISHER; BODY SIDE
L=2982 GRAY
8-97582-255-5
01
1
0502-
174
16.507 FINISHER; BODY SIDE
L=2982 DARK GRAY
8-97857-206-4
01
1
0311-0501
174
16.507 FINISHER; BODY SIDE
L=2982 GRAY
8-97582-256-5
01
1
0502-
181
16.165 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0311-0501
181
16.165 SEAL; FRT PILLAR
BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0502-
181
16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE
8-97856-832-1
02
1
0311-0501
181
16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE
8-97856-832-2
02
1
0502-0610
181
16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE
8-98059-421-0
02
1
0611-
