Sayfa 2-05B - Isuzu EPC

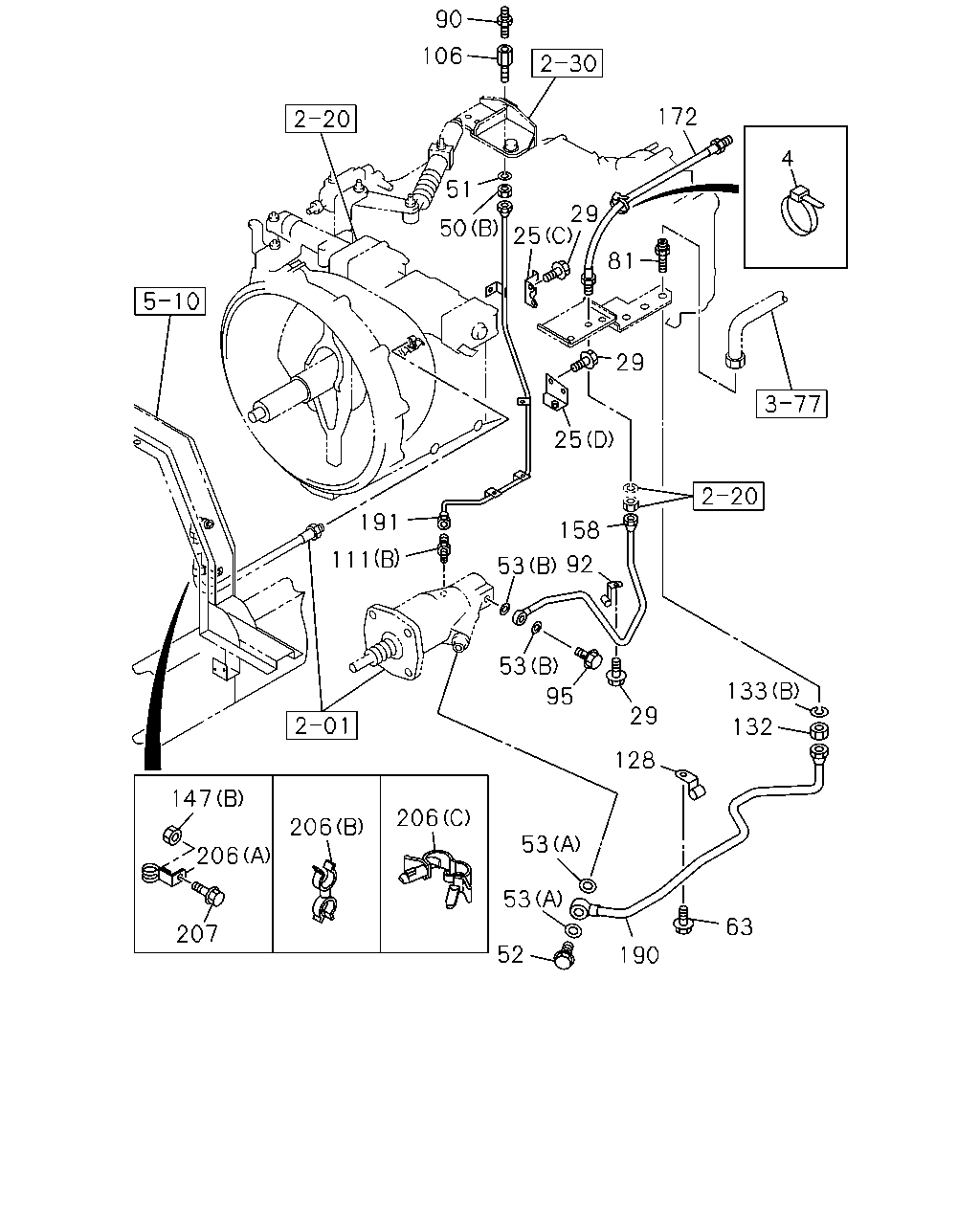

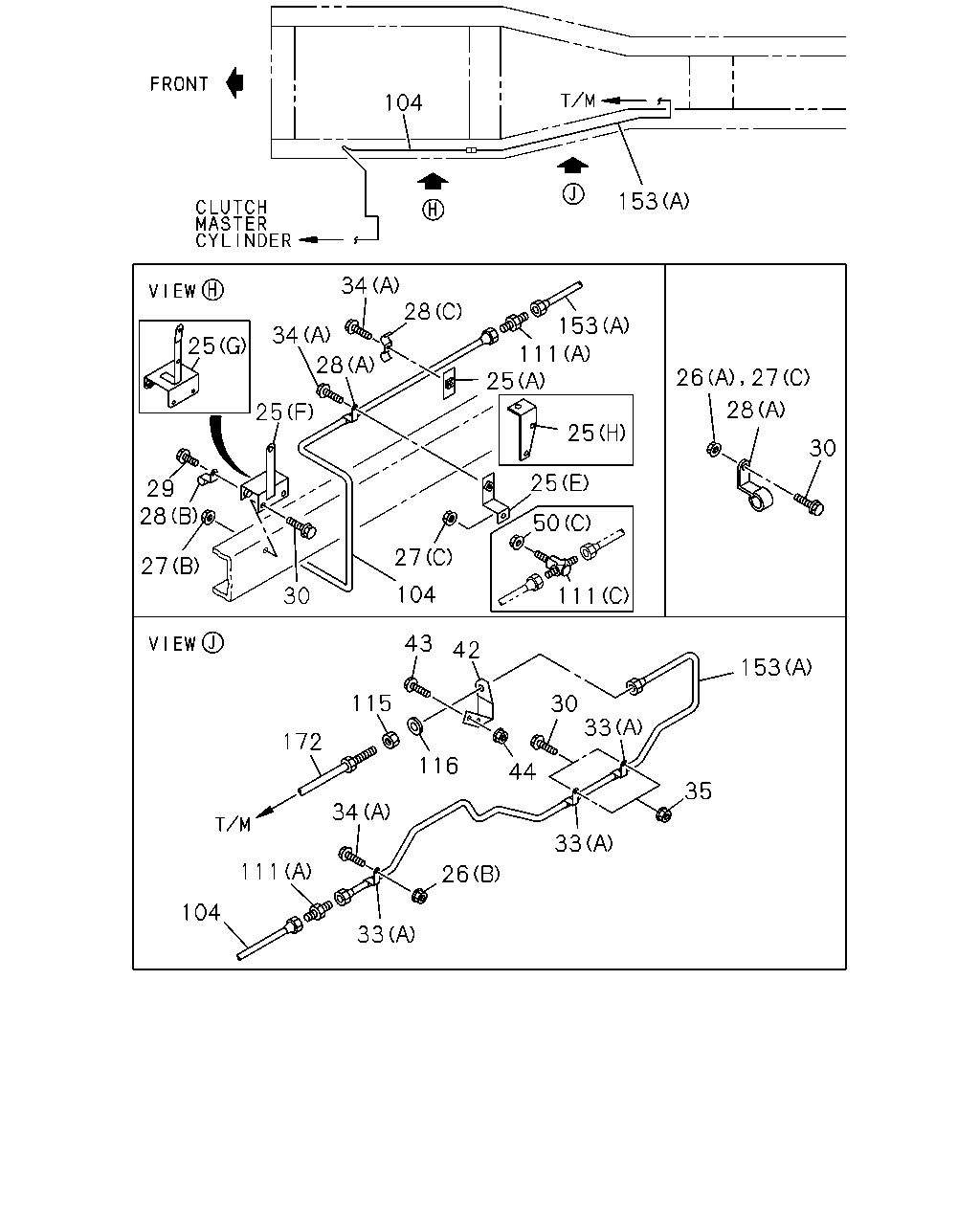

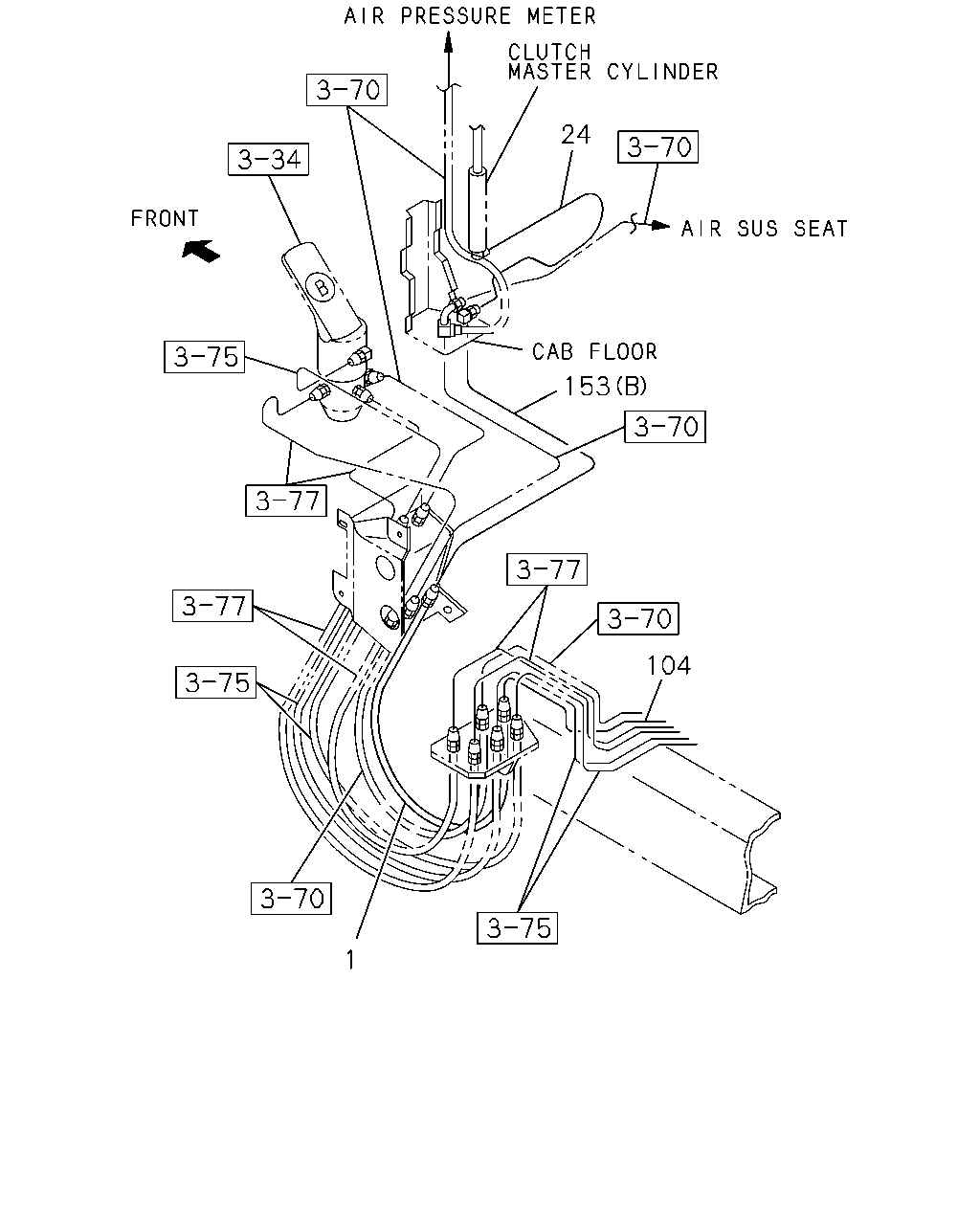

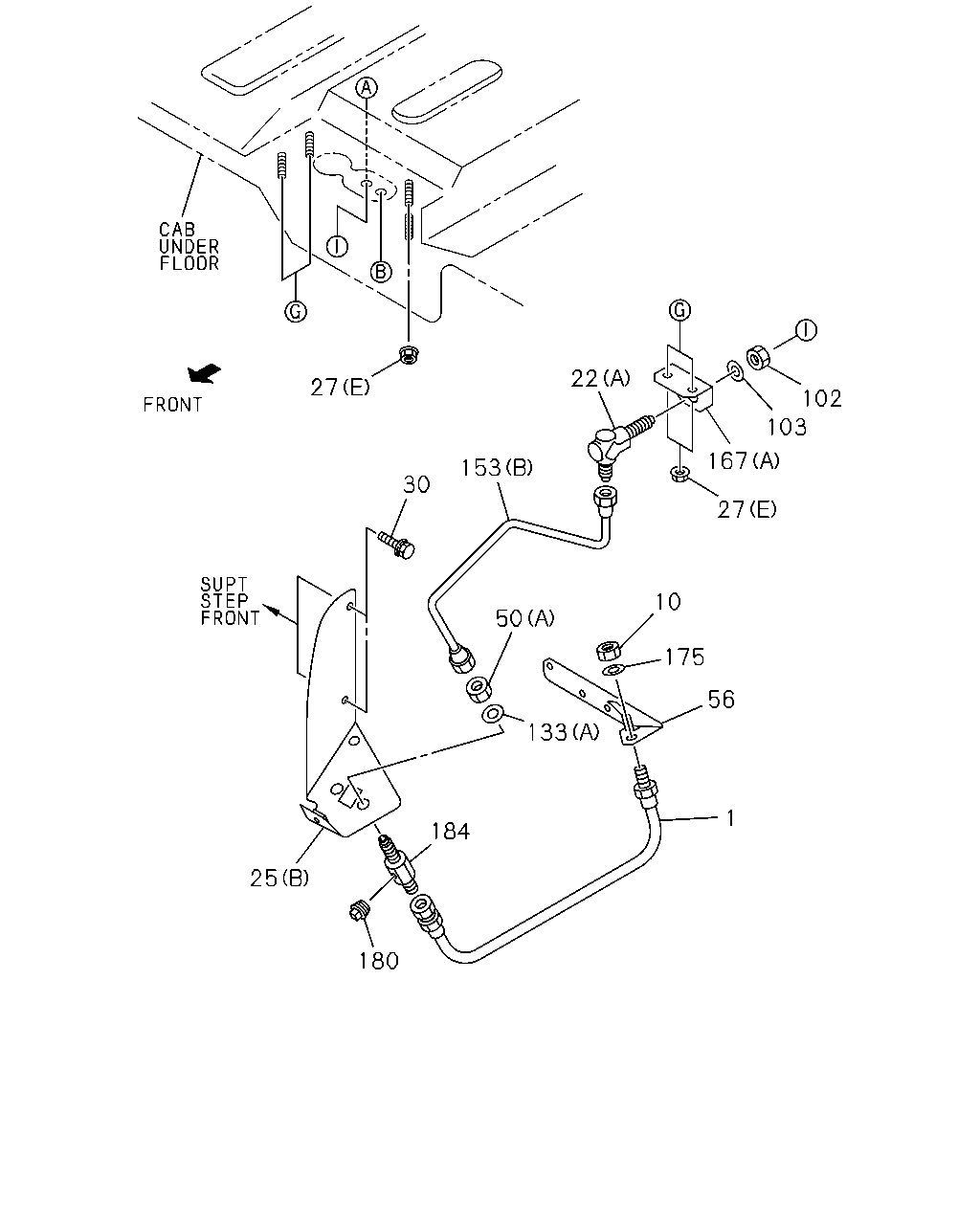

2-05B — CLUTCH PIPING (#5335) — 510 parça

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9603-9901	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9902-9904	●	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9603-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=2213 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2213	1-47429-325-0	01	1	9902-9903	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	9904-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) L=2143	1-49164-307-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9902-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9901	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9901	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9902-9903	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	9904-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9905	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●

104 153 34 28 153 111 25 34 25 28 26 27 28 25 25 30 25 29 28 50 27 27 104 111 30 43 42 153 115 30 33 172 116 44 35 34 33 111 26 104 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	BRACKET; OIL PIPE (F)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9703-9901	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9901	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (G)	1-47478-583-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9901	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9910-	●	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9901	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9910-	●	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A) L=50	1-47475-299-2	01	1	9603-9901	●
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	01	1	9902-0002	●	●
25	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (E)	1-47475-881-0	01	1	9603-9901	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (E)	1-47475-881-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9910-	●	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) (A) M8	9-09110-508-0	01	1	9603-9606	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L) (A) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●
26	NUT; CLIP,OIL PIPE (A) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) (B) M8	9-09110-508-0	02	1	9603-9606	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-S(56L) (B) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
26	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
26	NUT; CLIP,OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) M8 FLANGE	0-91150-108-0	02	1	9905-0002	●	●
26	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91150-108-0	02	1	0003-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9901	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9901	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
27	NUT; BRKT (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9901	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-9904	●	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
27	NUT; BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9603-9901	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9902-9904	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9905-0002	●	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9901	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-0002	●	●
28	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-	●	●
28	CLIP; OIL PIPE 6WA1 TC-S(56L) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9603-9901	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9902-9904	●	●
28	CLIP; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9905-	●	●
28	CLIP; OIL PIPE 6WA1 TC-S(56L) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9603-9901	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-0002	●	●
28	CLIP; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9603-9901	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9902-9909	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9910-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9902-9909	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9910-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9603-9901	●
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9902-9904	●	●
29	BOLT; CLIP,OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9910-	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9902-9904	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9901	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9904	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9902-9904	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-9903	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9904-9904	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9904-9904	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9901	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9904	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9902-9903	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9904-9904	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9904-9904	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●	●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9901	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9902-9903	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9904-9904	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9902-9903	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9904-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9904-	●	●
35	NUT; PIPE CLIP 10PE1S(60L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9901	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9905-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9905-	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9603-0102	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9902-9903	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9904-0102	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9902-9903	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9904-9904	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9905-0102	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9902-9904	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9905-0102	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9901	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9902-9904	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●	●
50	NUT; UNION (B) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9607-9901	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9902-9909	●	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9910-	●	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9904-9905	●	●
50	NUT; UNION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=2213 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2213	1-47429-325-0	01	1	9902-9903	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2143	1-49164-307-0	01	1	9904-9904	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) L=2143	1-49164-307-0	01	1	9905-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9905-	●	●
111	UNION; OIL PIPE (B) L=35.6 M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) L=41.1 M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9901	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9902-9909	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9910-	●	●	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9901	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9902-9903	●	●
111	UNION; OIL PIPE (C) M14 2WAY	1-09654-176-2	01	1	9904-9905	●	●
111	UNION; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9901	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9901	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9902-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9901	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9901	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9902-9903	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	9904-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9905	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L)	1-09364-316-0	01	1	9603-9901	●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9902-9904	●	●
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) L=470	1-09364-929-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=400	1-09364-263-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L=420	1-09364-615-0	01	1	9910-9912			●
172	HOSE; FLEX,CLU BOOSTER L=380	1-09364-261-0	01	1	0001-			●

90 106 172 4 51 50 29 25 81 29 25 191 158 111 92 53 53 133 95 29 132 128 147 206 206 53 206 53 63 207 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●
25	BRACKET; OIL PIPE (F)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9703-9901	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9901	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (G)	1-47478-583-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9901	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9910-	●	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9901	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9910-	●	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A) L=50	1-47475-299-2	01	1	9603-9901	●
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	01	1	9902-0002	●	●
25	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (E)	1-47475-881-0	01	1	9603-9901	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (E)	1-47475-881-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9910-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9603-9901	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9902-9909	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	9910-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9902-9909	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9910-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9603-9901	●
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	9902-9904	●	●
29	BOLT; CLIP,OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) M8X20 FLANGE	0-28680-820-0	02	1	9905-0002	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9910-	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9901	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9902-9904	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●	●
50	NUT; UNION (B) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9607-9901	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9902-9909	●	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9910-	●	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9904-9905	●	●
50	NUT; UNION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
51	WASHER; LK ID=10.2	9-09150-510-0	01	1	9603-9606	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9607-9901	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9902-9909	●	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9910-	●	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9603-9901	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9902-9909	●	●
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9910-	●	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9603-9901	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9902-9909	●	●
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9910-	●	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9603-9901	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9902-9909	●	●
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9910-	●	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9603-9901	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9902-9909	●	●
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9910-	●	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9603-9901	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9902-9909	●	●
81	UNION; AIR PIPE	1-09664-233-0	01	1	9910-	●	●	●
90	NIPPLE; OIL PIPE	1-31829-485-0	01	1	9902-9909	●	●
90	NIPPLE; OIL PIPE	1-31829-485-0	01	1	9910-	●	●	●
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9603-9901	●
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9902-	●	●
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9910-			●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9901	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9902-9909	●	●
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9910-	●	●	●
106	UNION; OIL PIPE	1-09654-368-0	01	1	9603-9606	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9607-9901	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9902-9909	●	●
106	UNION; OIL PIPE	1-09654-384-0	01	1	9910-	●	●	●
111	UNION; OIL PIPE (B) L=35.6 M8 & M10 STRAIGHT	1-09654-369-0	01	1	9603-9606	●
111	UNION; OIL PIPE (B) L=41.1 M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-9901	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9902-9909	●	●
111	UNION; OIL PIPE (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	9910-	●	●	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9603-9901	●
111	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9902-9903	●	●
111	UNION; OIL PIPE (C) M14 2WAY	1-09654-176-2	01	1	9904-9905	●	●
111	UNION; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M14 2WAY	1-09654-176-2	01	1	9906-	●	●
111	UNION; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M14 STRAIGHT	9-09223-008-1	01	1	9908-	●	●
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9603-9901	●
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9902-	●	●
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9910-			●
132	NUT; UNION,AIR PIPE M20	9-99111-420-0	01	1	9603-9812	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9901	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9902-9904	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9603-9810	●
147	NUT; CLIP FIX (A) M8 FLANGE	8-94279-517-0	01	1	9603-9611	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9901	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9902-9904	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●	●
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	9705-9901	●
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	9902-	●	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-47428-571-0	01	1	9603-9608	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-059-0	01	1	9609-9901	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9902-	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-054-0	01	1	9910-			●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L)	1-09364-316-0	01	1	9603-9901	●
172	HOSE; FLEX,CLU BOOSTER L=470	1-09364-929-0	01	1	9902-9904	●	●
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) L=470	1-09364-929-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=400	1-09364-263-0	01	1	9905-	●	●
172	HOSE; FLEX,CLU BOOSTER L=420	1-09364-615-0	01	1	9910-9912			●
172	HOSE; FLEX,CLU BOOSTER L=380	1-09364-261-0	01	1	0001-			●
190	PIPE; AIR,UNION TO MINIPAC	1-49115-023-0	01	1	9603-9608	●
190	PIPE; AIR,UNION TO MINIPAC	1-49161-065-0	01	1	9609-9901	●
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9902-	●	●
190	PIPE; AIR,UNION TO MINIPAC	1-49161-730-0	01	1	9910-			●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-328-0	01	1	9603-9606	●
191	PIPE; OIL,UNION TO MINIPAC	1-47429-927-0	01	1	9607-9901	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9902-	●	●
191	PIPE; OIL,UNION TO MINIPAC	1-49163-428-0	01	1	9910-			●
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9705-9901	●
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9902-9902	●	●
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9902-	●	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9705-9901	●
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9902-	●	●	●
206	CLIP; TUBE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0008-	●	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9705-9901	●
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●	●

22 27 102 103 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9603-9901	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9902-9904	●	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9901	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9603-9901	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9902-9904	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9905-	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-748-0	01	1	9603-9702	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9703-9901	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9905-9905	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9901	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (G)	1-47478-583-1	01	1	9905-	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9603-9901	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (D)	1-47477-498-1	01	1	9910-	●	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9603-9901	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9910-	●	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A) L=50	1-47475-299-2	01	1	9603-9901	●
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	01	1	9902-0002	●	●
25	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (A) L=50	1-47475-299-2	01	1	0003-	●	●
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (E)	1-47475-881-0	01	1	9603-9901	●
25	BRACKET; OIL PIPE (E)	1-47475-881-0	01	1	9902-9904	●	●
25	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (E)	1-47475-881-0	01	1	9905-	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9902-9909	●	●
25	BRACKET; OIL PIPE (H)	1-47478-406-0	01	1	9910-	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9901	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9901	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
27	NUT; BRKT (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9901	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-9904	●	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
27	NUT; BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9902-9904	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9901	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9904	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9901	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9902-9904	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●	●
50	NUT; UNION (B) M10 H=8	1-09400-029-0	01	1	9603-9606	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9607-9901	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9902-9909	●	●
50	NUT; UNION (B) M12	9-09840-280-0	01	1	9910-	●	●	●
50	NUT; UNION (C) M12 FLANGE	0-91150-212-0	01	1	9904-9905	●	●
50	NUT; UNION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M12 FLANGE	0-91150-212-0	01	1	9906-	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9603-9901	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9902-9904	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9905-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9901	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9902-9904	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9901	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9901	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9902-9904	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
133	WASHER; LK,UNION (B) ID=20.2	9-09150-520-0	01	1	9603-9810	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-N(54L),6WA1 TC-C(55L),10PE1S(60L), 10PE1N(61L),10PE1H(68L),6WA1 TC-R(93L) TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9902-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1806 SERVICED BY L=1950	1-47426-393-0	01	1	9603-9603	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9604-9901	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9604-9901	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1250 SERVICED BY L=1400	1-47426-389-0	01	1	9902-9903	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=955	1-49163-430-0	01	1	9904-9904	●	●
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9905-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1776 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9905	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=897	1-49164-397-0	01	1	9905-9907	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9901	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9902-9904	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9901	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9902-9904	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9901	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9902-9904	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9901	●
180	PLUG; PIPE	9-09204-510-0	01	1	9902-9904	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9901	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9902-9904	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●	●

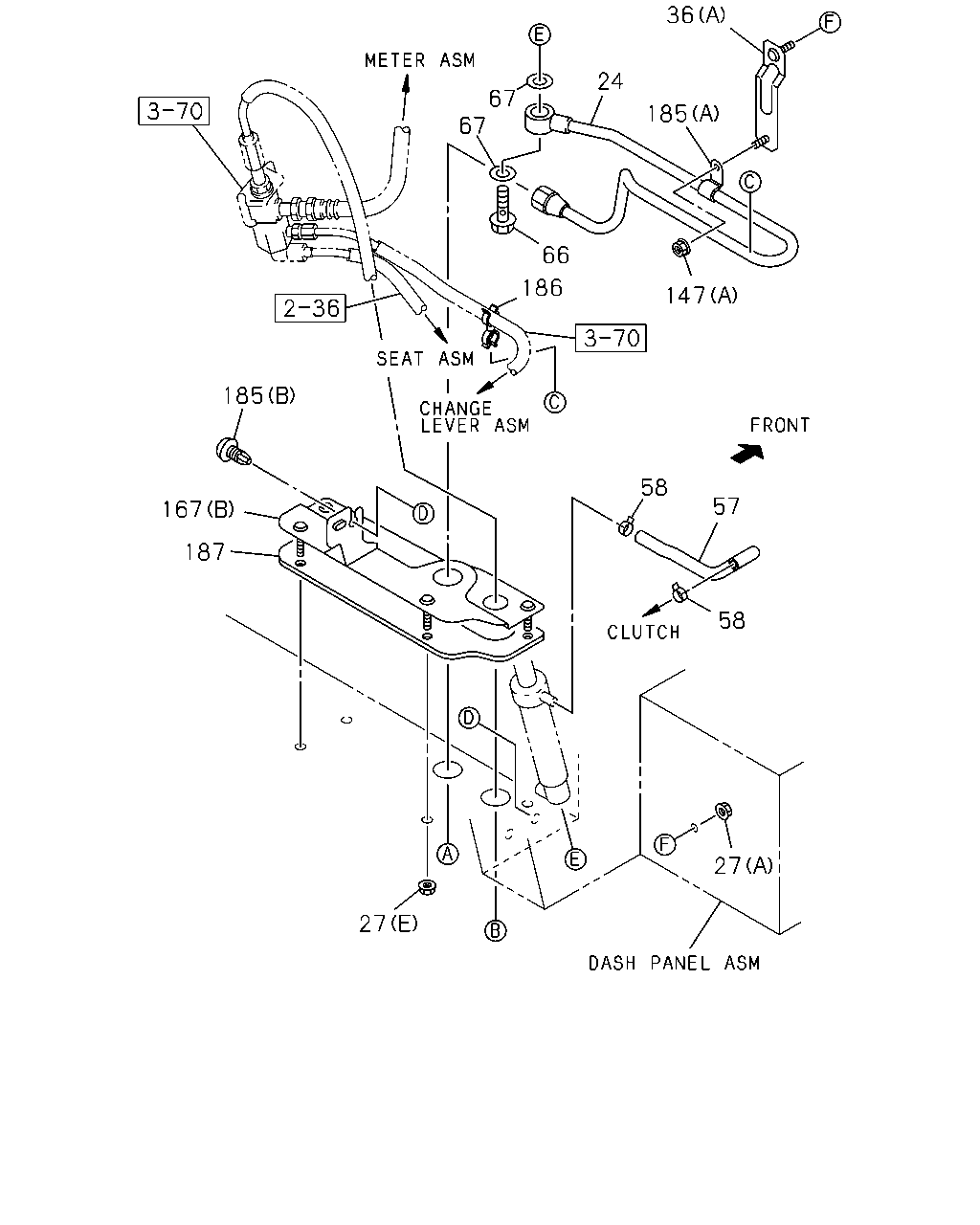

36 24 67 67 185 66 186 147 185 58 57 167 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION L=628	1-47428-381-1	01	1	9603-	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9901	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9901	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-9904	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●
27	NUT; BRKT (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9901	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-9904	●	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8	9-09110-508-0	01	1	9603-9606	●
27	NUT; BRKT 6WA1 TC-S(56L) (C) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●	●
27	NUT; BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (C) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9901	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9902-9904	●	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9603-9901	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9902-9904	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9905-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9901	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9902-9904	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9901	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9902-9904	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9901	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9902-9904	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●
147	NUT; CLIP FIX (A) M8 FLANGE	8-94279-517-0	01	1	9603-9611	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9901	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9902-9904	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●	●
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	9705-9901	●
147	NUT; CLIP FIX (B) M8 FLANGE	0-91150-208-0	01	1	9902-	●	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9901	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9902-9904	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9901	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9902-9904	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9603-9901	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9902-9904	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9901	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9902-9904	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9901	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9904	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9603-9901	●
187	SEAL; BRKT	1-71117-209-2	01	1	9902-9904	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
