Sayfa 2-05A - Isuzu EPC

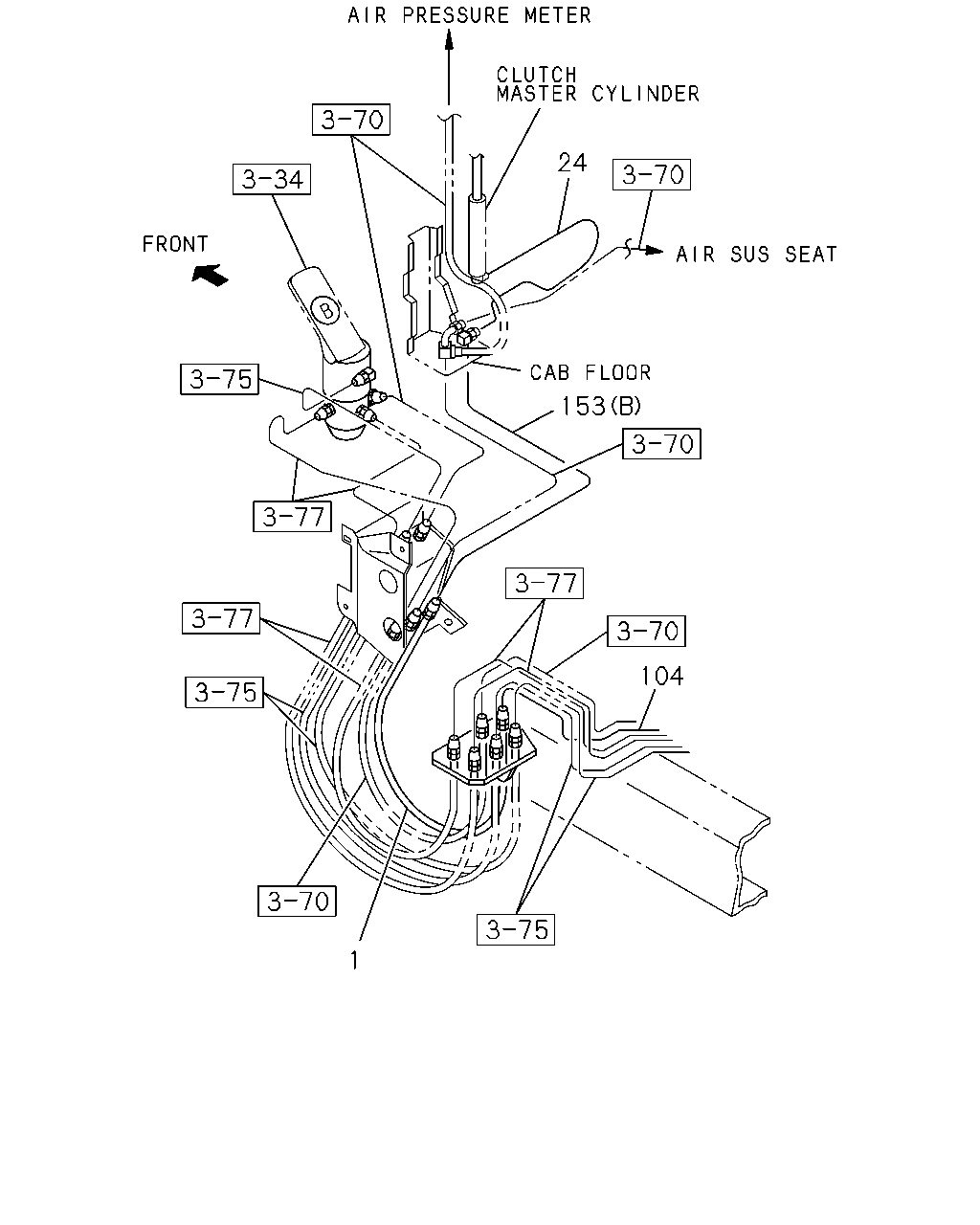

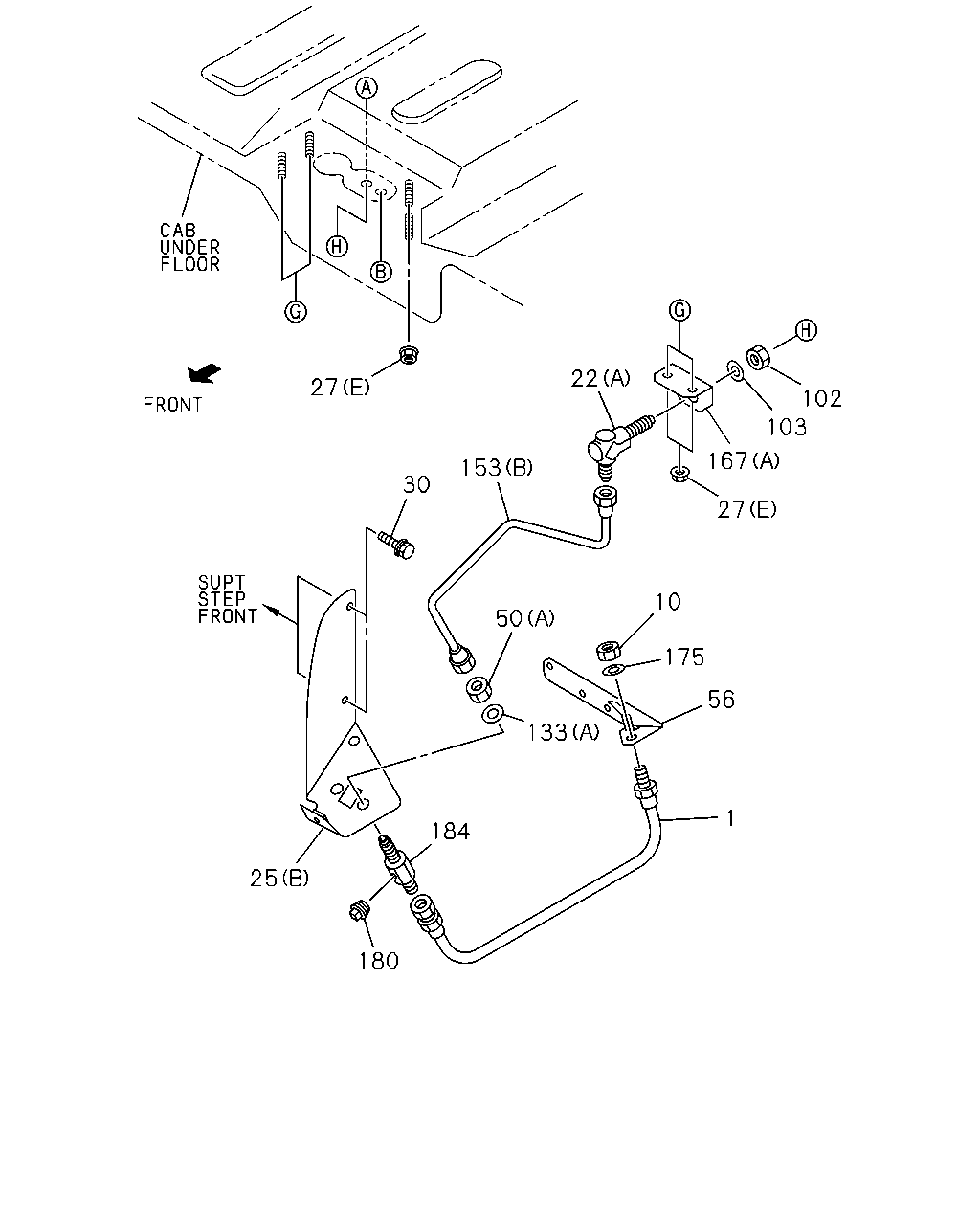

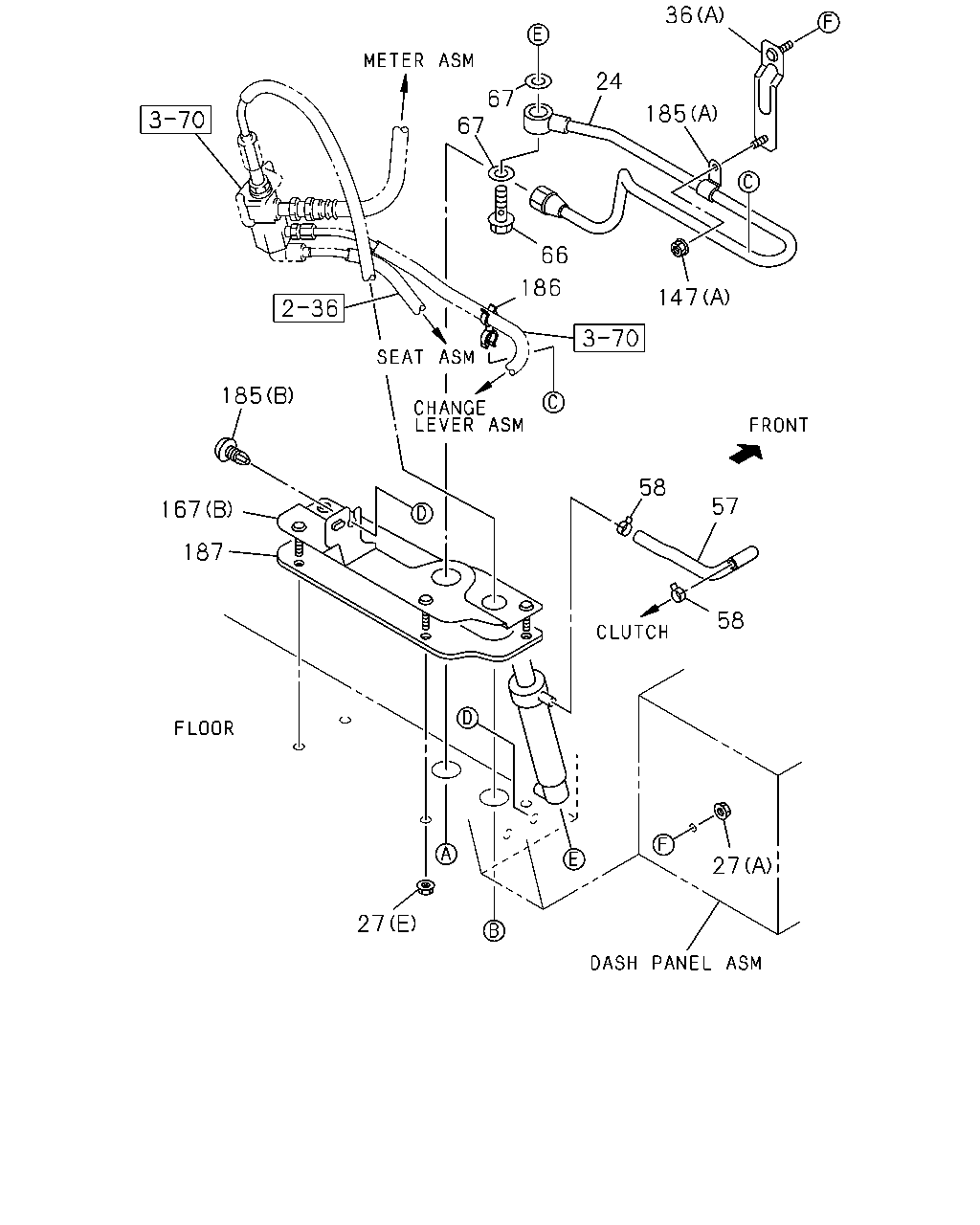

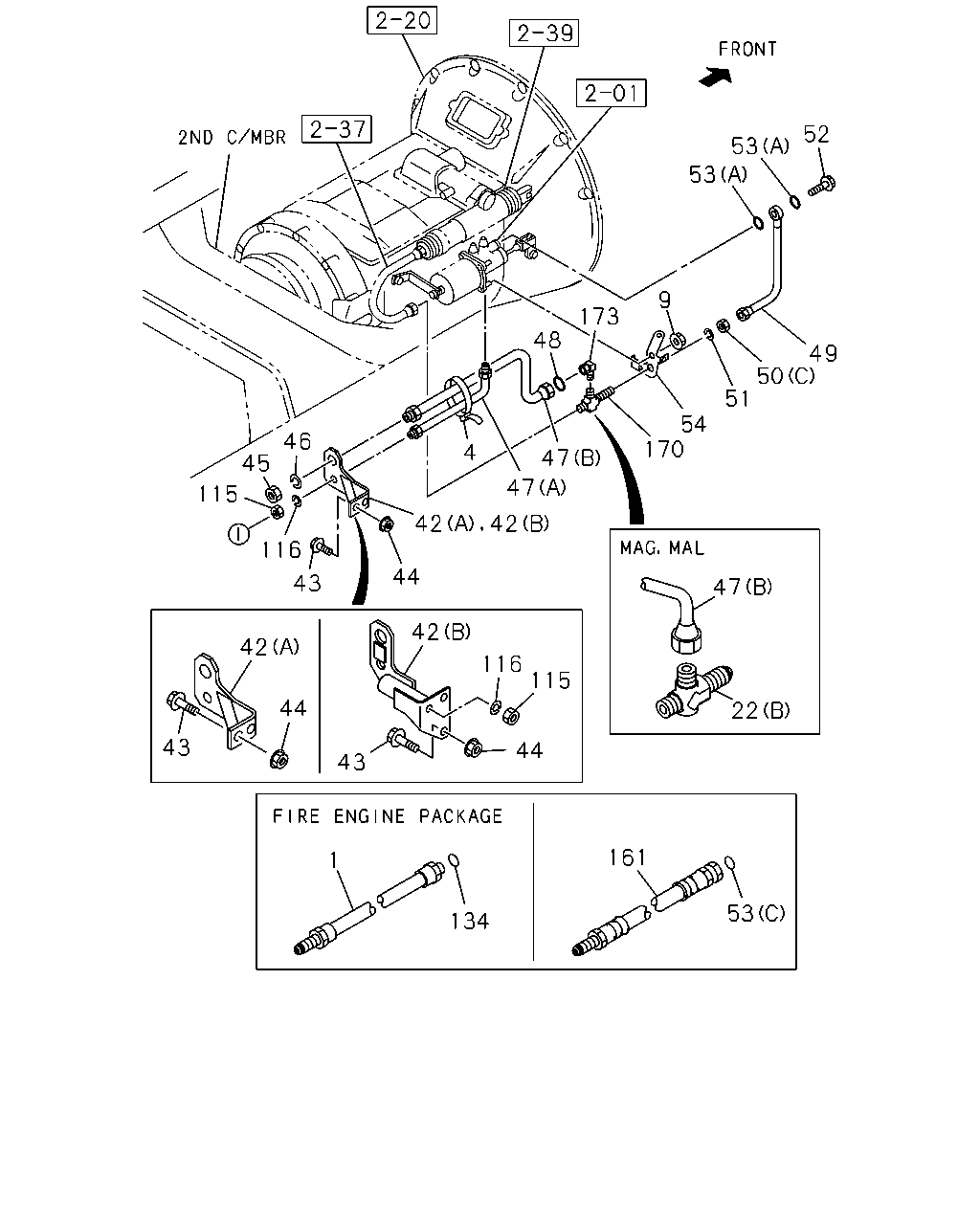

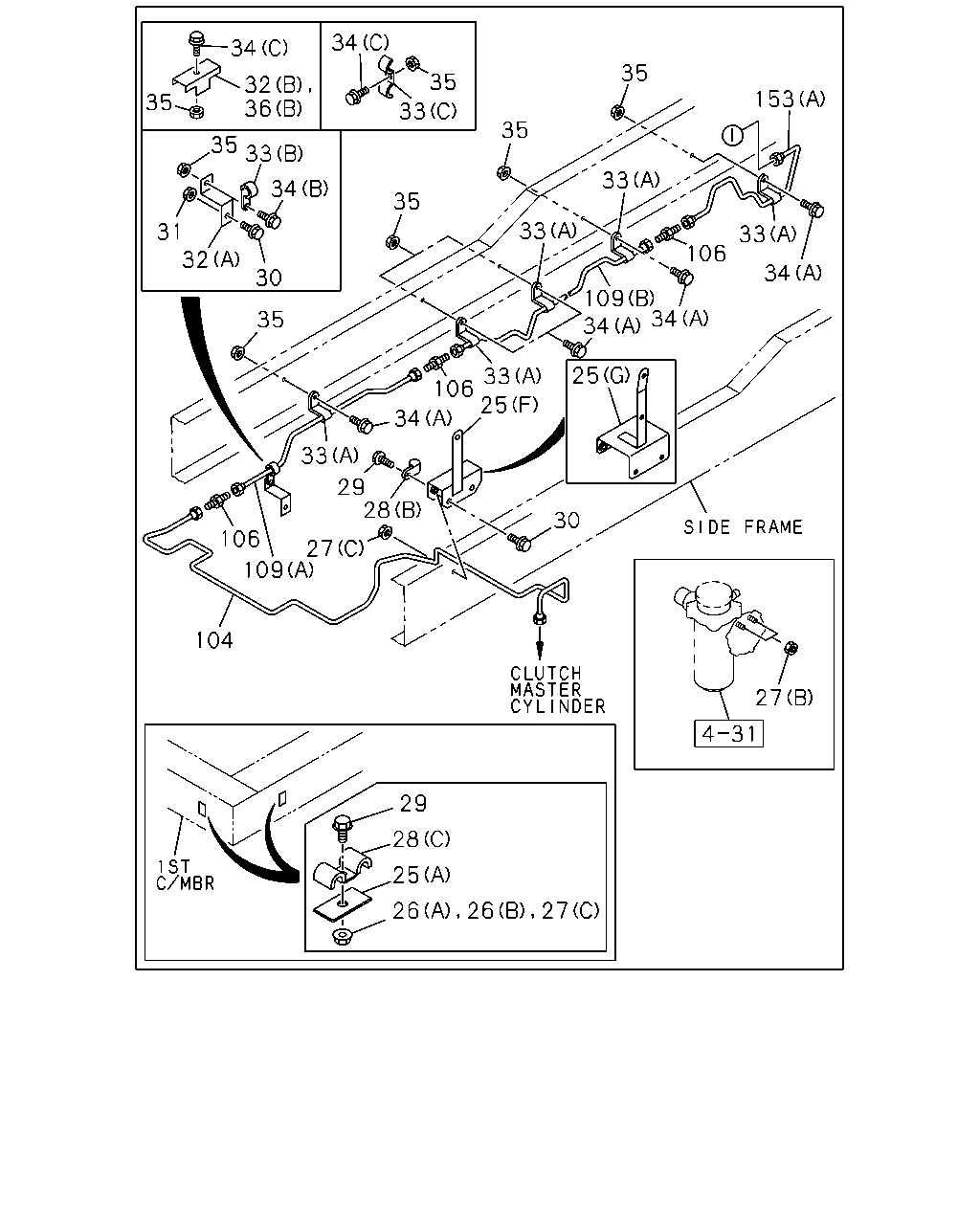

2-05A — CLUTCH PIPING (#5334) — 568 parça

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9603-9901	●	●	●	●	●
1	HOSE; FLEX,CLU CONT CXZ(CXZ***) L=520	1-09364-948-1	01	1	9902-9904	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-	●	●	●	●	●	●
1	HOSE; FLEX,CLU CONT L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> L=520	1-09364-583-0	01	1	9909-							●
1	HOSE; FLEX,CLU CONT CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> L=470	1-09364-692-0	01	1	9905-9908				●
1	HOSE; FLEX,CLU CONT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> L=470	1-09364-692-0	01	1	9909-				●			●
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9603-9901	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION CXZ(CXZ***) L=621	1-47428-362-1	01	1	9902-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9905-	●	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) L=2268 SERVICED BY L=2400	1-47426-395-0	01	1	9902-9903	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9904-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●					●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PE1S(59L),10PE1S(60L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901		●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXM(CXM***) (A) L=1778 SERVICED BY L=1800	1-47426-392-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-9901		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9905-9905	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433	1-47429-241-0	01	1	0004-	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433	1-47429-241-0	01	1	0004-		●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9901	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●					●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9901	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) (B) L=490	1-47428-363-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1S(60L) (A) L=433	1-47429-241-0	01	1	9603-9901	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-0001	●					●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-0001		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0002-0003	●
153	PIPE ASM; CLU,UNION TO FLEX 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0002-0003		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0004-	●
153	PIPE ASM; CLU,UNION TO FLEX 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0004-		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1798 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9905						●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9910						●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	9911-	●					●

34 34 35 35 32 36 153 35 33 35 35 33 33 34 35 33 31 32 33 106 34 30 109 34 34 35 25 33 106 25 34 33 29 28 30 106 27 109 104 27 29 28 25 26 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
25	BRACKET; OIL PIPE CXZ(CXZ***) (A) L=50	1-47475-299-2	02	1	9904-9904	●
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	9905-	●	●	●	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-748-0	01	1	9603-9702	●	●	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9703-9901	●	●	●	●	●
25	BRACKET; OIL PIPE CXZ(CXZ***) (F)	1-47477-935-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9905-9905	●	●	●	●	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●	●	●	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9901	●	●	●	●	●
25	BRACKET; OIL PIPE CXZ(CXZ***) (B)	1-71907-377-3	01	1	9902-9904	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●	●	●	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (G)	1-47478-583-1	01	1	9905-	●					●
25	BRACKET; OIL PIPE CXZ(CXZ***) (A) L=50	1-47475-299-2	01	1	9902-0002	●
26	NUT; CLIP,OIL PIPE CXZ(CXZ***) (A) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
26	NUT; CLIP,OIL PIPE (A) M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●	●	●	●	●
26	NUT; CLIP,OIL PIPE (A) M8 FLANGE	0-91150-108-0	01	1	0003-	●	●	●	●	●	●	●
26	NUT; CLIP,OIL PIPE (B) M8 FLANGE	0-91150-108-0	02	1	0003-	●	●	●	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (B) M10 FLANGE	0-91150-210-0	02	1	9902-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●	●	●	●	●
27	NUT; BRKT (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●	●	●	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-9904	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●	●	●	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●	●	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (C) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●	●	●	●
28	CLIP; OIL PIPE CXZ(CXZ***) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9904-9904	●
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9905-	●	●	●	●	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9603-9901	●	●	●	●	●
28	CLIP; OIL PIPE CXZ(CXZ***) (B) ID=9 L=20	9-09524-835-0	01	1	9902-9904	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9905-0002	●	●	●	●	●	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0003-	●	●	●	●	●	●	●
28	CLIP; OIL PIPE CXZ(CXZ***) (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9902-0002	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE CXZ(CXZ***) M8X25 FLANGE	0-28680-825-0	01	1	9902-9904	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9905-0002	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0003-	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	0003-	●	●	●	●	●	●	●
29	BOLT; CLIP,OIL PIPE CXZ(CXZ***) M8X20 FLANGE	0-28680-820-0	02	1	0003-	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
30	BOLT; BRKT CXZ(CXZ***) M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●	●	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●	●	●	●	●
30	BOLT; BRKT CXZ(CXZ***) M8X35 FLANGE	0-28680-835-0	02	1	9902-9904	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9901	●	●	●	●	●
30	BOLT; BRKT CXZ(CXZ***) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9904	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●	●	●	●
31	NUT; BRKT 6WA1 TC-S(56L) M8	9-09110-508-0	01	1	9603-9606	●	●	●	●	●
31	NUT; BRKT 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●	●	●	●	●
31	NUT; BRKT CXZ(CXZ***) M8 FLANGE	0-91150-108-0	01	1	9902-9904	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1S(60L) (B)	1-47475-427-1	02	1	9603-9901	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE 6WA1 TC-S(56L) (A)	1-47475-881-0	01	1	9603-9901	●	●	●	●	●
32	BRACKET; CLIP OIL PIPE CXZ(CXZ***) (A)	1-47475-881-0	01	1	9902-9903	●
32	BRACKET; CLIP OIL PIPE CXZ(CXZ***) (B)	1-47477-235-0	01	1	9904-9904	●
32	BRACKET; CLIP OIL PIPE CXZ(CXZ***) (B)	1-47477-235-0	01	1	9905-	●					●
33	CLIP; OIL PIPE CXM(CXM***) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9901	●
33	CLIP; OIL PIPE CXZ(CXZ***) 8PE1S(59L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9901	●
33	CLIP; OIL PIPE CXZ(CXZ***) 8PE1S(59L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9901	●
33	CLIP; OIL PIPE 8PE1S(59L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9901		●	●	●	●
33	CLIP; OIL PIPE 8PE1S(59L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9603-9901		●	●	●	●
33	CLIP; OIL PIPE CXZ(CXZ***) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9902-9904	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●	●	●	●	●
33	CLIP; OIL PIPE CXM(CXM***) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9901	●
33	CLIP; OIL PIPE CXZ(CXZ***) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9902-9903	●
33	CLIP; OIL PIPE CXZ(CXZ***) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9904-9904	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●	●	●	●	●	●
33	CLIP; OIL PIPE CXZ(CXZ***) 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●
33	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9905-		●	●	●
33	CLIP; OIL PIPE CXM(CXM***) (C) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9603-9901	●
33	CLIP; OIL PIPE CXZ(CXZ***) 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9603-9901	●
33	CLIP; OIL PIPE 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9603-9901		●	●	●	●
33	CLIP; OIL PIPE CXZ(CXZ***) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9905-		●	●	●
33	CLIP; OIL PIPE CXZ(CXZ***) 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9901	●
33	CLIP; OIL PIPE 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9603-9901		●	●	●	●
33	CLIP; OIL PIPE 6WA1 TC-S(56L) (B) ID=9 L=20	9-09524-835-0	01	1	9603-9901	●	●	●	●	●
33	CLIP; OIL PIPE CXZ(CXZ***) (B) ID=9 L=20	9-09524-835-0	01	1	9902-9904	●
33	CLIP; OIL PIPE CXZ(CXZ***) (B) ID=9 L=20	9-09524-835-0	01	1	9905-	●					●
34	BOLT; PIPE CLIP CXM(CXM***) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
34	BOLT; PIPE CLIP 8PE1S(59L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606		●	●	●	●
34	BOLT; PIPE CLIP 8PE1S(59L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606		●	●	●	●
34	BOLT; PIPE CLIP CXM(CXM***) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●
34	BOLT; PIPE CLIP 8PE1S(59L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901		●	●	●	●
34	BOLT; PIPE CLIP 8PE1S(59L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901		●	●	●	●
34	BOLT; PIPE CLIP CXZ(CXZ***) (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9904	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●	●	●	●	●
34	BOLT; PIPE CLIP CXM(CXM***) (A) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
34	BOLT; PIPE CLIP CXM(CXM***) (A) M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
34	BOLT; PIPE CLIP CXZ(CXZ***) (A) M8X30 FLANGE	0-28680-830-0	01	1	9902-9903	●
34	BOLT; PIPE CLIP CXZ(CXZ***) (A) M8X30 FLANGE	0-28680-830-0	01	1	9904-9904	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●	●	●	●	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M8X30 FLANGE	0-28680-830-0	01	1	9905-		●	●	●
34	BOLT; PIPE CLIP CXM(CXM***) (C) M8X45 FLANGE	0-28080-845-0	02	1	9603-9901	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8X45 FLANGE	0-28080-845-0	02	1	9603-9901	●
34	BOLT; PIPE CLIP 10PE1S(60L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8X45 FLANGE	0-28080-845-0	02	1	9603-9901		●	●	●	●
34	BOLT; PIPE CLIP CXZ(CXZ***) (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-	●
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	03	1	9905-		●	●	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●
34	BOLT; PIPE CLIP 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606		●	●	●	●
34	BOLT; PIPE CLIP CXZ(CXZ***) 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9901	●
34	BOLT; PIPE CLIP 10PE1S(60L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X30 FLANGE	0-28680-830-0	03	1	9607-9901		●	●	●	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L) (B) M8X16 FLANGE	0-28080-816-0	01	1	9603-9606	●	●	●	●	●
34	BOLT; PIPE CLIP 6WA1 TC-S(56L) (B) M8X20 FLANGE	0-28680-820-0	01	1	9607-9901	●	●	●	●	●
34	BOLT; PIPE CLIP CXZ(CXZ***) (B) M8X20 FLANGE	0-28680-820-0	01	1	9902-9903	●
35	NUT; PIPE CLIP CXM(CXM***) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP CXZ(CXZ***) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606	●
35	NUT; PIPE CLIP 8PE1S(59L) M8	9-09110-508-0	02	1	9603-9606		●	●	●	●
35	NUT; PIPE CLIP 8PE1S(59L) M8	9-09110-508-0	02	1	9603-9606		●	●	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	02	1	9603-9606		●	●	●	●
35	NUT; PIPE CLIP CXM(CXM***) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
35	NUT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
35	NUT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
35	NUT; PIPE CLIP CXZ(CXZ***) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
35	NUT; PIPE CLIP 8PE1S(59L) M8 FLANGE	0-91150-108-0	02	1	9607-9901		●	●	●	●
35	NUT; PIPE CLIP 8PE1S(59L) M8 FLANGE	0-91150-108-0	02	1	9607-9901		●	●	●	●
35	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9901		●	●	●	●
35	NUT; PIPE CLIP CXZ(CXZ***) M8 FLANGE	0-91150-108-0	03	1	9902-9903	●
35	NUT; PIPE CLIP CXZ(CXZ***) M8 FLANGE	0-91150-108-0	04	1	9904-9904	●
35	NUT; PIPE CLIP CXZ(CXZ***) 8PE1S(59L) M8 FLANGE	0-91150-108-0	02	1	9905-0001	●
35	NUT; PIPE CLIP 8PE1S(59L) M8 FLANGE	0-91150-108-0	02	1	9905-0001		●		●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9905-0001						●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0002-	●	●	●	●	●	●	●
35	NUT; PIPE CLIP CXM(CXM***) M8	9-09110-508-0	01	1	9603-9606	●
35	NUT; PIPE CLIP CXM(CXM***) M8 FLANGE	0-91150-108-0	01	1	9607-9901	●
35	NUT; PIPE CLIP CXZ(CXZ***) M8 FLANGE	0-91150-108-0	01	1	9902-9903	●
35	NUT; PIPE CLIP CXZ(CXZ***) M8 FLANGE	0-91150-108-0	01	1	9904-	●
35	NUT; PIPE CLIP CXM(CXM***) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP CXZ(CXZ***) 10PE1S(60L) M8	9-09110-508-0	03	1	9603-9606	●
35	NUT; PIPE CLIP 10PE1S(60L) M8	9-09110-508-0	03	1	9603-9606		●	●	●	●
35	NUT; PIPE CLIP CXM(CXM***) M8 FLANGE	0-91150-108-0	03	1	9607-9901	●
35	NUT; PIPE CLIP CXZ(CXZ***) 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9901	●
35	NUT; PIPE CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9901		●	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9905-	●	●	●	●		●
35	NUT; PIPE CLIP CXZ(CXZ***) M8 FLANGE	0-91150-108-0	04	1	9905-	●
36	BRACKET; CLIP CXM(CXM***) (B)	1-47475-427-1	02	1	9603-9901	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9901	●	●	●	●	●
36	BRACKET; CLIP CXZ(CXZ***) (A)	1-71117-191-1	01	1	9902-9904	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●	●	●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=2316 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) L=2268 SERVICED BY L=2400	1-47426-395-0	01	1	9902-9903	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9904-9904	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●					●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PE1S(59L),10PE1S(60L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9603-9901		●	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9905-		●	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9603-9901	●	●	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9603-9901	●	●	●	●	●
106	UNION; OIL PIPE CXZ(CXZ***) M14 STRAIGHT	9-09223-008-1	01	1	9603-9901	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9603-9901		●	●	●	●
106	UNION; OIL PIPE CXZ(CXZ***) M14 STRAIGHT	9-09223-008-1	01	1	9902-9904	●
106	UNION; OIL PIPE CXZ(CXZ***) M14 STRAIGHT	9-09223-008-1	01	1	9902-9904	●
106	UNION; OIL PIPE CXZ(CXZ***) M14 STRAIGHT	9-09223-008-1	01	1	9902-9904	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-	●	●	●	●	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-	●	●	●	●	●	●
106	UNION; OIL PIPE CXZ(CXZ***) M14 STRAIGHT	9-09223-008-1	01	1	9905-	●					●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9905-		●	●	●	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9603-9901	●
109	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9603-9901		●	●	●	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	0004-	●
109	PIPE; AIR,UNION TO UNION 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	0004-		●	●	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●
109	PIPE; AIR,UNION TO UNION 8PE1S(59L),10PE1S(60L) (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9905-		●	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=1031	1-47428-387-0	01	1	9603-9904	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) (B) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9902-9903	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) (B) L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	9904-9904	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) (B) L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	9905-	●					●
109	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1S(60L) (B) L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	9603-9901	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	9905-0001	●	●	●	●	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0002-0003	●
109	PIPE; AIR,UNION TO UNION 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0002-0003		●	●	●	●
109	PIPE; AIR,UNION TO UNION CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0004-	●
109	PIPE; AIR,UNION TO UNION 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0004-		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXM(CXM***) (A) L=1778 SERVICED BY L=1800	1-47426-392-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-9901		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9905-9905	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433	1-47429-241-0	01	1	0004-	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433	1-47429-241-0	01	1	0004-		●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9901	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●					●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9901	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) (B) L=490	1-47428-363-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1S(60L) (A) L=433	1-47429-241-0	01	1	9603-9901	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-0001	●					●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-0001		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0002-0003	●
153	PIPE ASM; CLU,UNION TO FLEX 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0002-0003		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0004-	●
153	PIPE ASM; CLU,UNION TO FLEX 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0004-		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1798 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9905						●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9910						●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	9911-	●					●

52 53 53 9 173 48 49 50 51 54 170 46 47 4 45 47 115 42 42 116 44 43 47 42 42 116 115 44 22 43 44 43 161 1 53 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9603-9901	●	●	●	●	●
1	HOSE; FLEX,CLU CONT CXZ(CXZ***) L=520	1-09364-948-1	01	1	9902-9904	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-	●	●	●	●	●	●
1	HOSE; FLEX,CLU CONT L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> L=520	1-09364-583-0	01	1	9909-							●
1	HOSE; FLEX,CLU CONT CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> L=470	1-09364-692-0	01	1	9905-9908				●
1	HOSE; FLEX,CLU CONT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> L=470	1-09364-692-0	01	1	9909-				●			●
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9603-9605	●	●	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9603-9901	●	●	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9902-9904	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9905-9908	●	●	●	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9909-	●	●	●	●	●	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9603-9901	●	●	●	●	●
22	UNION; CLU PIPE CXZ(CXZ***) (A) M14	9-09225-208-1	01	1	9902-9904	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9905-	●	●	●	●	●	●	●
22	UNION; CLU PIPE SHIFT CONTROL ASSISTER<WX8> (B)	1-09656-181-1	01	1	9603-9901			●	●	●
22	UNION; CLU PIPE SHIFT CONTROL ASSISTER<WX8> (B)	1-09656-181-1	01	1	9905-			●	●	●
42	BRACKET; FLEX HOSE,CLU CONT 6WA1 TC-S(56L) (B)	1-47477-414-0	01	1	9603-9901	●
42	BRACKET; FLEX HOSE,CLU CONT CXZ(CXZ***) (B)	1-47477-414-0	01	1	9902-9904	●
42	BRACKET; FLEX HOSE,CLU CONT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WG1 TC-R(75L), 6WA1 TC-R(93L) (B)	1-47477-414-0	01	1	9905-	●					●
42	BRACKET; FLEX HOSE,CLU CONT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) (A)	1-47477-546-0	01	1	9603-9901	●
42	BRACKET; FLEX HOSE,CLU CONT 8PE1S(59L),10PE1S(60L) (A)	1-47477-546-0	01	1	9603-9901		●	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A)	1-47477-546-1	01	1	9905-	●
42	BRACKET; FLEX HOSE,CLU CONT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A)	1-47477-546-1	01	1	9905-		●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXM(CXM***) M10X25 FLANGE	0-28081-025-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXM(CXM***) M8X30 FLANGE	0-28680-830-0	02	1	9607-9901	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	9902-9903	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	0103-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE	0-28680-830-0	02	1	0103-		●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9603-9606		●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9901		●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9902-9903	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9905-0102	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9905-0102		●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	0103-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	0103-		●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 FLANGE	0-28681-035-0	02	1	9904-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 FLANGE	0-28681-035-0	02	1	9905-	●	●	●	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE	0-28681-030-0	02	1	9904-9904	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L) M10	9-09110-510-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 6WA1 TC-S(56L) M10 FLANGE	0-91150-210-0	02	1	9607-9901	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) M10 FLANGE	0-91150-210-0	02	1	9902-9904	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) M8	9-09110-508-0	02	1	9603-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 8PE1S(59L),10PE1S(60L) M8	9-09110-508-0	02	1	9603-9606		●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 8PE1S(59L),10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9901		●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) M8 FLANGE	0-91150-108-0	02	1	9905-0102	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) M8 FLANGE	0-91150-108-0	02	1	9905-0102		●	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) M8 FLANGE	0-91150-108-0	02	1	0103-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) M8 FLANGE	0-91150-108-0	02	1	0103-		●	●	●	●
45	NUT; FLEX HOSE,CLU CONT CXM(CXM***) M20	9-99111-420-0	01	1	9603-9901	●
45	NUT; FLEX HOSE,CLU CONT CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> M20	9-99111-420-0	01	1	9603-9901	●
45	NUT; FLEX HOSE,CLU CONT SHIFT CONTROL ASSISTER<WX8> M20	9-99111-420-0	01	1	9603-9901		●	●	●	●
45	NUT; FLEX HOSE,CLU CONT CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> M20	9-99111-420-0	01	1	9902-9904	●
45	NUT; FLEX HOSE,CLU CONT SHIFT CONTROL ASSISTER<WX8> M20	9-99111-420-0	01	1	9905-	●	●	●	●	●	●
45	NUT; FLEX HOSE,CLU CONT CXZ(CXZ***) EXC. SHIFT CONTROL ASSISTER<WX8> M20	9-99111-420-0	02	1	9603-9901	●
45	NUT; FLEX HOSE,CLU CONT EXC. SHIFT CONTROL ASSISTER<WX8> M20	9-99111-420-0	02	1	9603-9901		●	●	●	●
45	NUT; FLEX HOSE,CLU CONT CXZ(CXZ***) EXC. SHIFT CONTROL ASSISTER<WX8> M20	9-99111-420-0	02	1	9902-	●
46	WASHER; LK,FLEX HOSE,CLU CONT CXM(CXM***) ID=20.2	9-09150-520-0	01	1	9603-9901	●
46	WASHER; LK,FLEX HOSE,CLU CONT CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9603-9901	●
46	WASHER; LK,FLEX HOSE,CLU CONT SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9603-9901		●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9902-9904	●
46	WASHER; LK,FLEX HOSE,CLU CONT SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9905-	●	●	●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CXZ(CXZ***) EXC. SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	02	1	9603-9901	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	02	1	9603-9901		●	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT CXZ(CXZ***) EXC. SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	02	1	9902-	●
47	HOSE; FLEX,CLU CONT CXM(CXM***) (A) L=500	0-07806-500-1	01	1	9603-9901	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> (A) L=500	0-07806-500-1	01	1	9603-9901	●
47	HOSE; FLEX,CLU CONT SHIFT CONTROL ASSISTER<WX8> (A) L=500	0-07806-500-1	01	1	9603-9901		●	●	●	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> (A) L=500	0-07806-500-1	01	1	9902-9904	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SHIFT CONTROL ASSISTER<WX8> (A) L=500	0-07806-500-1	01	1	9905-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SHIFT CONTROL ASSISTER<WX8> (A) L=500	0-07806-500-1	01	1	9905-		●	●	●	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) MIXER TRUCK<RA2> (B) L=500	1-09364-329-0	01	1	9902-9904	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) MIXER TRUCK<RA2> (B) L=500	1-09364-329-0	01	1	9905-9905	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) MIXER TRUCK<RA2> (B) L=500	1-09364-329-0	01	1	9905-	●					●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=600	0-07706-600-0	01	1	9603-9901	●
47	HOSE; FLEX,CLU CONT EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=600	0-07706-600-0	01	1	9603-9901		●	●	●	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=600	0-07706-600-0	01	1	9902-	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9603-9901	●	●	●	●	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	9902-9904	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	9905-9905	●	●	●	●	●	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	9905-	●
47	HOSE; FLEX,CLU CONT CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) L=550	1-09364-434-0	01	1	9905-	●
47	HOSE; FLEX,CLU CONT 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) L=550	1-09364-434-0	01	1	9905-		●	●	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) (B) L=550	1-09364-434-0	01	1	9905-						●
47	HOSE; FLEX,CLU CONT EXC. SHIFT CONTROL ASSISTER<WX8> (A) L=600	0-07706-600-0	01	1	9905-	●	●	●	●	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> (B) L=600	1-09364-705-0	01	1	9905-						●
47	HOSE; FLEX,CLU CONT SHORT CHASSIS(CX***C) SHIFT CONTROL ASSISTER<WX8> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=560	0-07806-560-1	01	1	9905-9905						●
47	HOSE; FLEX,CLU CONT SHIFT CONTROL ASSISTER<WX8> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=560	0-07806-560-1	01	1	9905-						●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9603-9901	●	●	●	●	●
48	GASKET; FLEX HOSE,CLU CONT CXZ(CXZ***) ID=10.2 OD=16.0	9-09571-410-0	01	1	9902-9904	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-	●	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49114-730-1	01	1	9603-9608	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9609-9901	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CXZ(CXZ***) L=293	1-49117-734-0	01	1	9902-9909	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9910-0006	●	●	●	●	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIV E(TBV) L=293	1-49117-734-0	01	1	0007-0011	●	●	●			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIV E(TBV) L=293	1-49117-734-0	01	1	0012-	●	●	●			●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=245	1-49117-733-0	01	1	9902-9909						●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6WG1 TC-C(72L),6WG1 TC-R(75L) L=245	1-49117-733-0	01	1	9910-0006						●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=245	1-49117-733-0	01	1	0007-				●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=245	1-49117-733-0	01	1	0007-						●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) L=245	1-49117-733-0	01	1	0007-							●
50	NUT; UNION CXM(CXM***) (C) M20	9-99111-420-0	01	1	9603-9901	●
50	NUT; UNION CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9603-9901	●
50	NUT; UNION SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9603-9901		●	●	●	●
50	NUT; UNION CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9902-9904	●
50	NUT; UNION SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9905-	●	●	●	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9901	●	●	●	●	●
50	NUT; UNION CXZ(CXZ***) (A) M14	9-99111-414-0	01	1	9902-9904	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●	●	●	●	●	●
51	WASHER; LK CXM(CXM***) ID=20.2	9-09150-520-0	01	1	9603-9901	●
51	WASHER; LK CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9603-9901	●
51	WASHER; LK SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9603-9901		●	●	●	●
51	WASHER; LK CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9902-9904	●
51	WASHER; LK SHIFT CONTROL ASSISTER<WX8> ID=20.2	9-09150-520-0	01	1	9905-	●	●	●	●	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9901	●	●	●	●	●
52	BOLT; EYE,AIR PIPE CXZ(CXZ***) M14X27 FLANGE	1-09675-086-0	01	1	9902-9904	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●	●	●
53	GASKET; JOINT BOLT (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9901	●	●	●	●	●
53	GASKET; JOINT BOLT CXZ(CXZ***) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	9902-9904	●
53	GASKET; JOINT BOLT (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●	●	●
53	GASKET; JOINT BOLT CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> (C) ID=11 OD=18	9-09572-510-0	01	1	9701-9901				●
53	GASKET; JOINT BOLT CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> (C) ID=11 OD=18	9-09572-510-0	01	1	9905-				●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9603-9901	●	●	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9902-9904	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9905-9908	●	●	●		●	●
54	BRACKET; AIR,FLEX HOSE EXC. FIRE TRUCK<RA9>	1-47477-284-1	01	1	9905-9908				●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9909-	●	●	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9709	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9901	●	●	●	●	●
115	NUT; FLEX HOSE,CLU CONT CXZ(CXZ***) M14	9-99111-414-0	01	1	9902-9904	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9709	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9901	●	●	●	●	●
116	WASHER; FLEX HOSE,CLU CONT CXZ(CXZ***) ID=14.2	9-09150-514-0	01	1	9902-9904	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●	●	●	●
134	GASKET CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> ID=10.2 OD=16.0	9-09571-410-0	01	1	9905-				●
161	HOSE; FLEX,SLAVE CYL CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> L=450	0-07806-450-1	01	1	9701-9901				●
161	HOSE; FLEX,SLAVE CYL CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> L=450	0-07806-450-1	01	1	9905-9908				●
161	HOSE; FLEX,SLAVE CYL V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> L=450	0-07806-450-1	01	1	9909-				●			●
170	UNION; AIR PIPE SHIFT CONTROL ASSISTER<WX8>	1-09656-640-0	01	1	9603-9901	●	●
170	UNION; AIR PIPE CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8>	1-09656-640-0	01	1	9902-9904	●
170	UNION; AIR PIPE SHIFT CONTROL ASSISTER<WX8>	1-09656-640-0	01	1	9905-9908	●	●				●
170	UNION; AIR PIPE SHIFT CONTROL ASSISTER<WX8>	1-09656-640-0	01	1	9909-	●	●		●		●
173	CONNECTOR SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9901	●	●
173	CONNECTOR CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9902-9904	●
173	CONNECTOR SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9905-9908	●	●				●
173	CONNECTOR SHIFT CONTROL ASSISTER<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9909-	●	●		●		●

36 24 67 67 185 66 186 147 185 58 57 167 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9603-9901	●	●	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION CXZ(CXZ***) L=621	1-47428-362-1	01	1	9902-9904	●
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9905-	●	●	●	●	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (B) M10 FLANGE	0-91150-210-0	02	1	9902-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●	●	●	●	●
27	NUT; BRKT (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●	●	●	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-9904	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●	●	●	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●	●	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (C) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●	●	●	●
36	BRACKET; CLIP CXM(CXM***) (B)	1-47475-427-1	02	1	9603-9901	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9603-9901	●	●	●	●	●
36	BRACKET; CLIP CXZ(CXZ***) (A)	1-71117-191-1	01	1	9902-9904	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	9905-	●	●	●	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9603-9901	●	●	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK CXZ(CXZ***)	1-47427-312-0	01	1	9902-9904	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9905-	●	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9603-9901	●	●	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL CXZ(CXZ***) ID=14	8-94238-572-0	02	1	9902-9904	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9905-	●	●	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9603-9901	●	●	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL CXZ(CXZ***) M14X30 EYE-BOLT	1-09675-146-0	01	1	9902-9904	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9905-	●	●	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9901	●	●	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL CXZ(CXZ***) ID=14.2 OD=19.2	1-09630-085-0	02	1	9902-9904	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●	●	●	●
147	NUT; CLIP FIX (A) M8 FLANGE	8-94279-517-0	01	1	9603-9611	●	●	●	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9901	●	●	●	●	●
147	NUT; CLIP FIX CXZ(CXZ***) (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9902-9904	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9905-	●	●	●	●	●	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9901	●	●	●	●	●
167	BRACKET; UNION CXZ(CXZ***) (B)	1-71117-207-1	01	1	9902-9904	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●	●	●	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9901	●	●	●	●	●
167	BRACKET; UNION CXZ(CXZ***) (A)	1-71907-376-1	01	1	9902-9904	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●	●	●	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9603-9901	●	●	●	●	●
185	CLIP; BRKT CXZ(CXZ***) (B) D8X13.5	1-09987-248-1	01	1	9902-9904	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9905-	●	●	●	●	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9603-9901	●	●	●	●	●
185	CLIP; BRKT CXZ(CXZ***) (A) ID=9 L=20	9-09545-108-0	01	1	9902-9904	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9905-	●	●	●	●	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9603-9901	●	●	●	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9904	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9905-	●	●	●	●	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	9603-9901	●	●	●	●	●
187	SEAL; BRKT CXZ(CXZ***)	1-71117-209-2	01	1	9902-9904	●
187	SEAL; BRKT	1-71117-209-2	01	1	9905-	●	●	●	●	●	●

22 27 102 103 167 153 30 27 10 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-0	01	1	9603-9901	●	●	●	●	●
1	HOSE; FLEX,CLU CONT CXZ(CXZ***) L=520	1-09364-948-1	01	1	9902-9904	●
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9905-	●	●	●	●	●	●
1	HOSE; FLEX,CLU CONT L TYPE ENG<90L> FIRE ENGINE PACKAGE<WS2> L=520	1-09364-583-0	01	1	9909-							●
1	HOSE; FLEX,CLU CONT CXZ&LONG CHASSIS(CXZ6MF) FIRE ENGINE PACKAGE<WS2> L=470	1-09364-692-0	01	1	9905-9908				●
1	HOSE; FLEX,CLU CONT V TYPE ENG<91L> FIRE ENGINE PACKAGE<WS2> L=470	1-09364-692-0	01	1	9909-				●			●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9901	●	●	●	●	●
10	NUT; FLEX HOSE,CLU CONT CXZ(CXZ***) M14	9-99111-414-0	01	1	9902-9904	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●	●	●	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9603-9901	●	●	●	●	●
22	UNION; CLU PIPE CXZ(CXZ***) (A) M14	9-09225-208-1	01	1	9902-9904	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	9905-	●	●	●	●	●	●	●
22	UNION; CLU PIPE SHIFT CONTROL ASSISTER<WX8> (B)	1-09656-181-1	01	1	9603-9901			●	●	●
22	UNION; CLU PIPE SHIFT CONTROL ASSISTER<WX8> (B)	1-09656-181-1	01	1	9905-			●	●	●
25	BRACKET; OIL PIPE CXZ(CXZ***) (A) L=50	1-47475-299-2	02	1	9904-9904	●
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	9905-	●	●	●	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-748-0	01	1	9603-9702	●	●	●	●	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9703-9901	●	●	●	●	●
25	BRACKET; OIL PIPE CXZ(CXZ***) (F)	1-47477-935-1	01	1	9902-9904	●
25	BRACKET; OIL PIPE (F)	1-47477-935-1	01	1	9905-9905	●	●	●	●	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (F)	1-47477-935-2	01	1	9905-	●	●	●	●	●	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9603-9901	●	●	●	●	●
25	BRACKET; OIL PIPE CXZ(CXZ***) (B)	1-71907-377-3	01	1	9902-9904	●
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9905-	●	●	●	●	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (G)	1-47478-583-1	01	1	9905-	●					●
25	BRACKET; OIL PIPE CXZ(CXZ***) (A) L=50	1-47475-299-2	01	1	9902-0002	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9603-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (B) M10 FLANGE	0-91150-210-0	02	1	9902-9904	●
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●	●	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9902-9904	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9905-	●	●	●	●	●	●	●
27	NUT; BRKT (E) M8 FLANGE	8-94279-517-0	04	1	9603-9611	●	●	●	●	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9902-9904	●
27	NUT; BRKT (E) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9905-	●	●	●	●	●	●
27	NUT; BRKT (C) M8	9-09110-508-0	02	1	9603-9606	●	●	●	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9607-9901	●	●	●	●	●
27	NUT; BRKT CXZ(CXZ***) (C) M8 FLANGE	0-91150-108-0	02	1	9902-9904	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-9901	●
30	BOLT; BRKT CXZ(CXZ***) M8X30 FLANGE	0-28680-830-0	01	1	9902-9904	●
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●	●	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●	●	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9901	●	●	●	●	●
30	BOLT; BRKT CXZ(CXZ***) M8X35 FLANGE	0-28680-835-0	02	1	9902-9904	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●	●	●	●	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9901	●	●	●	●	●
30	BOLT; BRKT CXZ(CXZ***) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9902-9904	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-	●	●	●	●	●	●
50	NUT; UNION CXM(CXM***) (C) M20	9-99111-420-0	01	1	9603-9901	●
50	NUT; UNION CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9603-9901	●
50	NUT; UNION SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9603-9901		●	●	●	●
50	NUT; UNION CXZ(CXZ***) SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9902-9904	●
50	NUT; UNION SHIFT CONTROL ASSISTER<WX8> (C) M20	9-99111-420-0	01	1	9905-	●	●	●	●	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9901	●	●	●	●	●
50	NUT; UNION CXZ(CXZ***) (A) M14	9-99111-414-0	01	1	9902-9904	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	9905-	●	●	●	●	●	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9603-9901	●	●	●	●	●
56	BRACKET; FLEX HOSE CXZ(CXZ***)	1-47477-603-1	01	1	9902-9904	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9905-	●	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9603-9901	●	●	●	●	●
102	NUT; FLEX HOSE,CLU CONT CXZ(CXZ***) M14	9-99111-414-0	01	1	9902-9904	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9905-	●	●	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9901	●	●	●	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT CXZ(CXZ***) ID=14.2	9-09150-514-0	01	1	9902-9904	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●	●	●	●	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9603-9901	●	●	●	●	●
133	WASHER; LK,UNION CXZ(CXZ***) (A) ID=14.2	9-09150-514-0	01	1	9902-9904	●
133	WASHER; LK,UNION (A) ID=14.2	9-09150-514-0	01	1	9905-	●	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXM(CXM***) (A) L=1778 SERVICED BY L=1800	1-47426-392-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-9901	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9603-9901		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) MIXER TRUCK<RA2> (A) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	9905-9905	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433	1-47429-241-0	01	1	0004-	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=433	1-47429-241-0	01	1	0004-		●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 6WA1 TC-S(56L) (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9606-9901	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	9905-	●					●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9603-9901	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) (B) L=490	1-47428-363-0	01	1	9902-9904	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9905-	●	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1S(60L) (A) L=433	1-47429-241-0	01	1	9603-9901	●	●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-0001	●					●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	9905-0001		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0002-0003	●
153	PIPE ASM; CLU,UNION TO FLEX 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0002-0003		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX CXZ(CXZ***) 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0004-	●
153	PIPE ASM; CLU,UNION TO FLEX 8PE1S(59L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0004-		●	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1798 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9905						●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	9905-9910						●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	9911-	●					●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9603-9901	●	●	●	●	●
167	BRACKET; UNION CXZ(CXZ***) (B)	1-71117-207-1	01	1	9902-9904	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9905-	●	●	●	●	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9603-9901	●	●	●	●	●
167	BRACKET; UNION CXZ(CXZ***) (A)	1-71907-376-1	01	1	9902-9904	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9905-	●	●	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9603-9901	●	●	●	●	●
175	WASER; LK,FLEX HOSE,CLU CONT CXZ(CXZ***) ID=14.2	9-09150-514-0	01	1	9902-9904	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9905-	●	●	●	●	●	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	9603-9901	●	●	●	●	●
180	PLUG; PIPE CXZ(CXZ***)	9-09204-510-0	01	1	9902-9904	●
180	PLUG; PIPE	9-09204-510-0	01	1	9905-	●	●	●	●	●	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9603-9901	●	●	●	●	●
184	UNION; FLEX HOSE CXZ(CXZ***) 3WAY	1-09656-679-0	01	1	9902-9904	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9905-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
