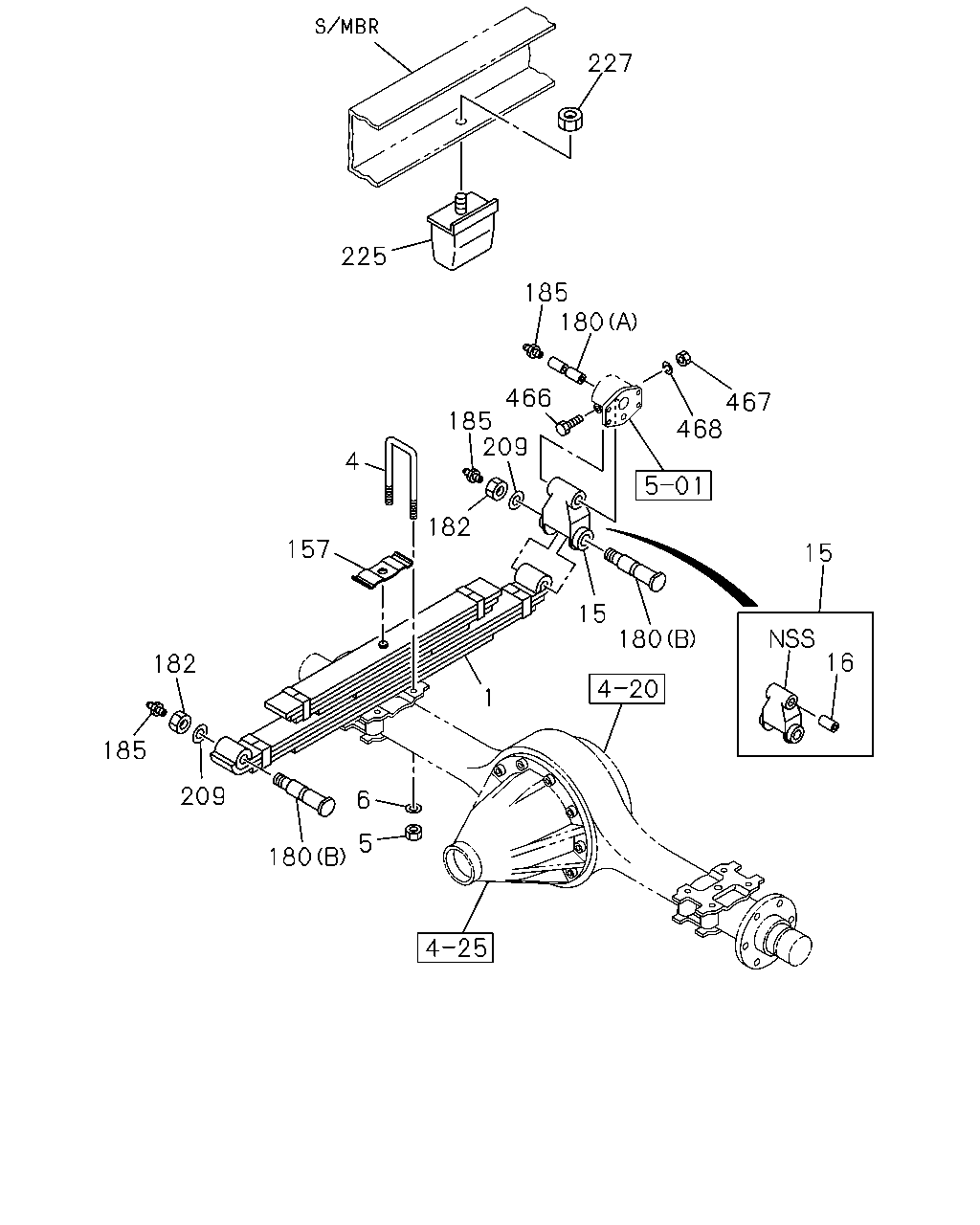

1 |
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
13-LEAF
|
8-97075-952-0 |
02 |
1 |
0311- |
| |
4 |
07.516 U-BOLT; RR SPR
L=295
|
8-94132-358-3 |
04 |
1 |
0311- |
| |
5 |
07.529 NUT; U-BOLT,RR SPR
07.516
M16
|
8-94107-767-0 |
08 |
1 |
0311-0611 |
| |
5 |
07.529 NUT; U-BOLT,RR SPR
07.417
M16
|
8-97360-121-0 |
08 |
1 |
0612- |
| |
6 |
07.516 WASHER; PL,U-BOLT
ID=16.4
|
8-94137-482-1 |
08 |
1 |
0311-0610 |
| |
6 |
07.516 WASHER; PL,U-BOLT
ID=16.4
|
8-97360-118-0 |
08 |
1 |
0611- |
| |
15 |
07.523 SHACKLE; RR SPR
|
8-94126-188-4 |
02 |
1 |
0311- |
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
ID=25
|
9-51151-032-0 |
02 |
1 |
0311-0902 |
| |
16 |
07.524 BUSHING; SHACKLE,RR SPR
ID=25
|
8-98082-176-0 |
02 |
1 |
0903- |
| |
157 |
07.518 CLAMP; UPR,RR SPR
L=140 T=4.5
|
8-94118-509-1 |
02 |
1 |
0311- |
| |
180 |
07.529 PIN; RR SPR
07.524
(A)
DO=25 L=115 PT1/8
|
1-51361-016-0 |
02 |
1 |
0311- |
| |
180 |
07.529 PIN; RR SPR
(B)
L=121
|
8-94122-174-3 |
04 |
1 |
0311- |
| |
182 |
07.529 NUT; PIN,RR SPR
00.050
REAR
M20
|
9-99110-520-0 |
02 |
1 |
0311-0512 |
| |
182 |
07.529 NUT; PIN,RR SPR
05.812
REAR
M20
|
0-91110-520-0 |
02 |
1 |
0601- |
| |
182 |
07.529 NUT; PIN,RR SPR
08.915
FRONT
M20
|
9-99111-520-0 |
02 |
1 |
0311-0512 |
| |
182 |
07.529 NUT; PIN,RR SPR
06.234
FRONT
M20
|
0-91111-520-0 |
02 |
1 |
0601- |
| |
185 |
08.984 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
9-09031-010-0 |
06 |
1 |
0311-0512 |
| |
185 |
08.984 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
|
0-90301-410-0 |
06 |
1 |
0601- |
| |
209 |
07.529 WASHER; PL
|
8-97073-436-0 |
04 |
1 |
0311- |
| |
225 |
07.535 RUBBER; CUSHION,RR SPR
|
8-94118-510-5 |
02 |
1 |
0311- |
| |
227 |
07.535 NUT; CUSHION RUBBER
05.586
M12 FLANGE
|
0-91150-112-0 |
02 |
1 |
0311-0602 |
| |
227 |
07.535 NUT; CUSHION RUBBER
02.042
M12 FLANGE
|
0-91180-112-0 |
02 |
1 |
0603- |
| |
466 |
07.529 BOLT; SPRING PIN
M12X55
|
0-10811-255-0 |
02 |
1 |
0311- |
| |
467 |
07.529 NUT; SPRING PIN
05.816
M12
|
9-99110-412-0 |
02 |
1 |
0311-0512 |
| |
467 |
07.529 NUT; SPRING PIN
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0601- |
| |
468 |
07.529 WASHER; LK,SPRING PIN
04.634
ID=12.2
|
9-09150-512-0 |
02 |
1 |
0311-0603 |
| |
468 |
07.529 WASHER; LK,SPRING PIN
03.634
ID=12.2
|
0-91510-512-0 |
02 |
1 |
0604- |
