Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

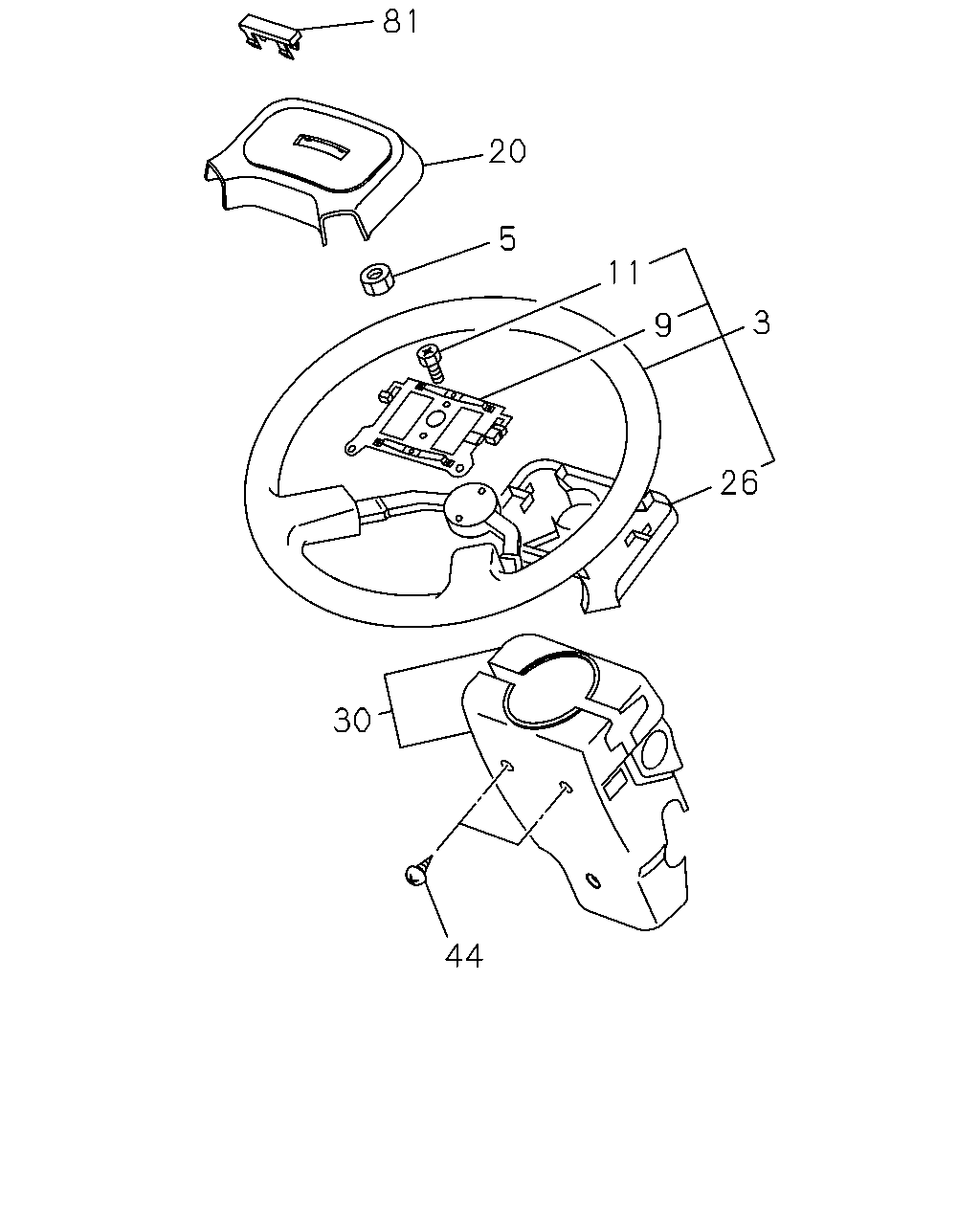

4-30 — STEERING WHEEL AND COWL
(#53323) — 18 parça
81
20
5
11
3
9
26
30
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
DARK GRAY
8-97098-531-2
01
1
0311-0501
3
06.513 WHEEL; STRG
DARK GRAY
8-97400-081-2
01
1
0502-
5
06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14
9-99111-414-0
01
1
0311-0512
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
0601-
9
02.819 PLATE; HORN CONTACT
8-97076-688-1
01
1
0311-
11
06.514 SCREW; PLATE TO BUTTON
8-97076-690-1
01
1
0311-
20
06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97098-526-0
01
1
0311-0501
20
06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY
8-97400-049-0
01
1
0502-
26
06.514 COVER; STRG WHEEL,LWR
DARK GRAY
8-97098-534-1
01
1
0311-0501
26
06.514 COVER; STRG WHEEL,LWR
DARK GRAY
8-97400-089-1
01
1
0502-
30
06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY
8-97582-825-8
01
1
0510-
30
06.518 COWL; STEERING
BLACK
8-97997-904-7
01
1
0311-0501
30
06.518 COWL; STEERING
DARK GRAY
8-97588-867-7
01
1
0502-0509
30
06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY
8-97588-867-7
01
1
0510-
44
06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER
8-94279-400-0
02
1
0311-0612
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
02
1
0701-
81
02.820 EMBLEM; STRG WHEEL
DARK GRAY
8-97098-527-0
01
1
0311-0501
81
02.820 EMBLEM; STRG WHEEL
DARK GRAY
8-97400-060-0
01
1
0502-
