◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#53316) — 81 parça

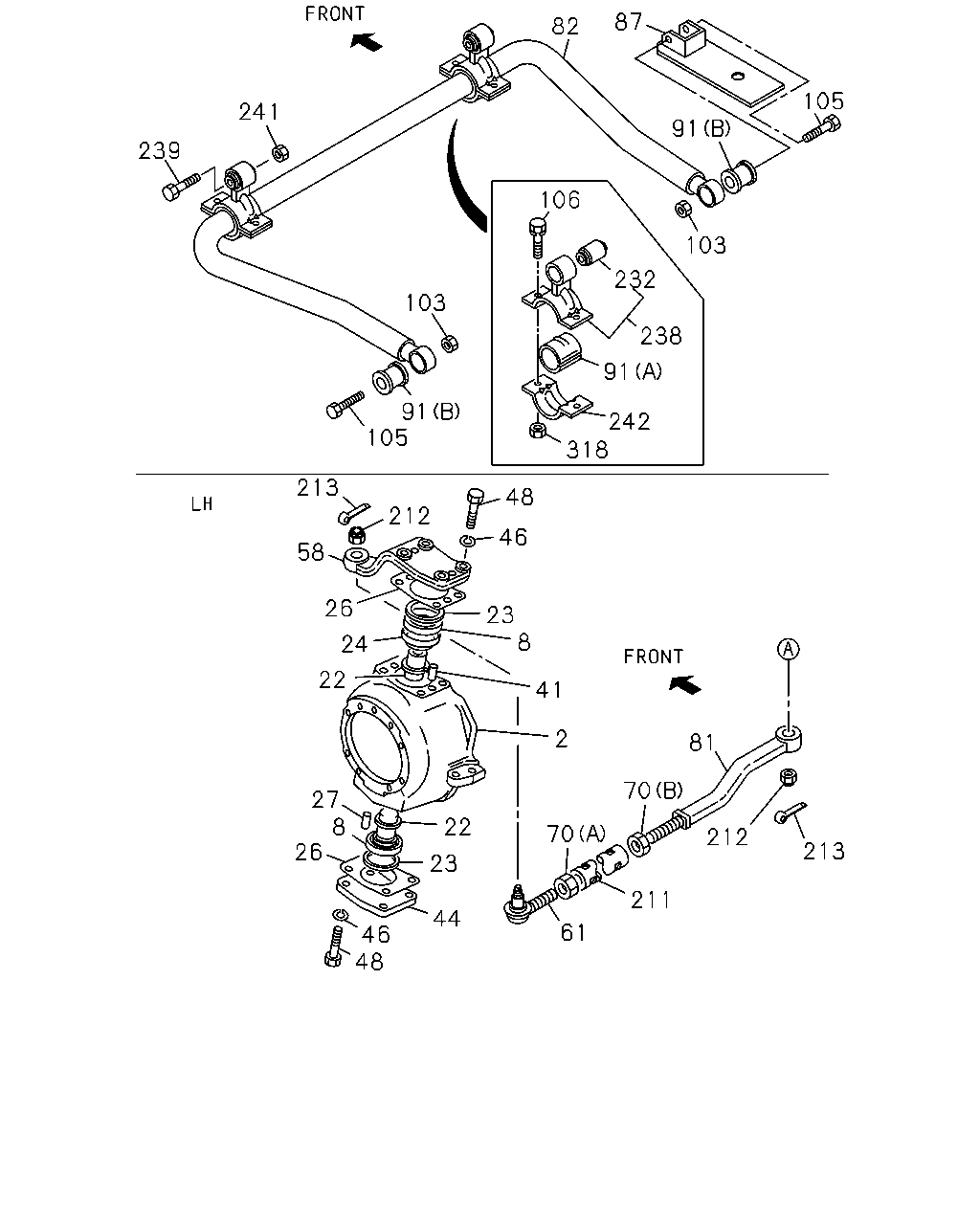

çizim 99332
87 82 105 241 91 239 106 103 232 103 238 91 91 105 242 318 213 48 212 46 58 26 23 8 24 22 41 2 81 70 27 8 22 70 212 213 26 23 211 44 61 46 48
BalonParca AdiParca NoAdetTipApplied Date
2 06.020 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 0311-
2 06.020 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 0311-
8 06.021 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 0311-
22 06.203 PIN; KING,FRT AXLE 8-94440-228-0 04 1 0311-
23 07.242 COLLAR; DIST BRG 8-94440-839-0 04 1 0311-
24 06.210 RECEIVER; KING PIN 8-94458-454-0 02 1 0311-
26 06.022 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 0311-
26 06.022 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 0311-
26 06.022 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 0311-
27 06.203 PIN; STRAIGHT,KING PIN
00.662 OD=4 L=8 		9-08160-408-0 04 1 0311-
41 06.177 PIN; KNOCK,KNUCKLE ARM
00.669 		9-08161-028-0 04 1 0311-
44 06.225 COVER; KING PIN 8-94440-230-0 02 1 0311-
46 07.347 WASHER; LK,COVER
05.422 ID=14.2 		9-09150-814-0 16 1 0311-0603
46 07.347 WASHER; LK,COVER
06.174 ID=14.2 		0-91510-814-0 16 1 0604-
48 06.225 BOLT; COVER
M14X45 		9-92361-445-0 16 1 0311-
58 06.103 ARM; TIE ROD 8-94440-366-0 01 1 0311-
61 06.233 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 0311-
70 06.234 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 0311-
70 06.234 NUT; TIE ROD END
(B) M20 		9-99111-420-0 02 1 0311-0512
70 06.234 NUT; TIE ROD END
(B) M20 		0-91111-520-0 02 1 0601-
81 06.230 ROD; TIE 8-94440-365-0 02 1 0311-
82 07.241 BAR; STAB,FRT SUSP 8-94322-468-2 01 1 0311-
87 07.242 BRACKET; STABILIZER 8-94321-458-0 01 1 0311-
91 07.243 BUSHING; RUBBER,STAB BAR
(B) 		8-94331-581-0 02 1 0311-
91 07.243 BUSHING; RUBBER,STAB BAR
(A) 		8-94440-793-0 02 1 0311-
103 07.242 NUT; BRKT FIX
03.613 M14 FLANGE 		0-91150-114-0 02 1 0311-0403
103 07.242 NUT; BRKT FIX
07.417 M14 FLANGE 		8-94137-483-0 02 1 0404-0610
103 07.242 NUT; BRKT FIX
06.174 M14 FLANGE 		8-97360-124-0 02 1 0611-
105 07.242 BOLT; BRKT FIX
M14X70 		0-10806-470-0 02 1 0311-0403
105 07.242 BOLT; BRKT FIX
M14X70 FLANGE 		0-28881-470-0 02 1 0404-0512
105 07.242 BOLT; BRKT FIX
M14X70 FLANGE 		0-28851-470-0 02 1 0601-
106 06.216 BOLT; CAP FIX
03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0311-0512
106 06.216 BOLT; CAP FIX
00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0601-
211 06.233 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 0311-
212 06.216 NUT; STRG ROD
06.243 		8-94107-727-0 02 1 0311-
213 06.203 PIN; COTTER,STRG ROD
06.022 OD=3.7 L=25 		9-08114-025-0 04 1 0311-0606
213 06.203 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 0607-
232 07.243 BUSHING; LINK ROD 8-94331-581-0 02 1 0311-
238 07.240 ROD LINK ASM; STABILIZER,FRT 8-94321-456-2 02 1 0311-
239 07.242 BOLT; LINK ROD
M14X70 FLANGE 		0-28881-470-0 02 1 0311-0512
239 07.242 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 0601-
241 07.242 NUT; LINK ROD
07.417 M14 FLANGE 		8-94137-483-0 02 1 0311-0610
241 07.242 NUT; LINK ROD
06.174 M14 FLANGE 		8-97360-124-0 02 1 0611-
242 07.242 CAP; LINK ROD 8-94178-430-2 02 1 0311-
318 07.242 NUT; CAP FIX
08.917 M10 FLANGE 		0-91150-210-0 04 1 0311-0602
318 07.242 NUT; CAP FIX
04.085 M10 FLANGE 		0-91180-210-0 04 1 0603-

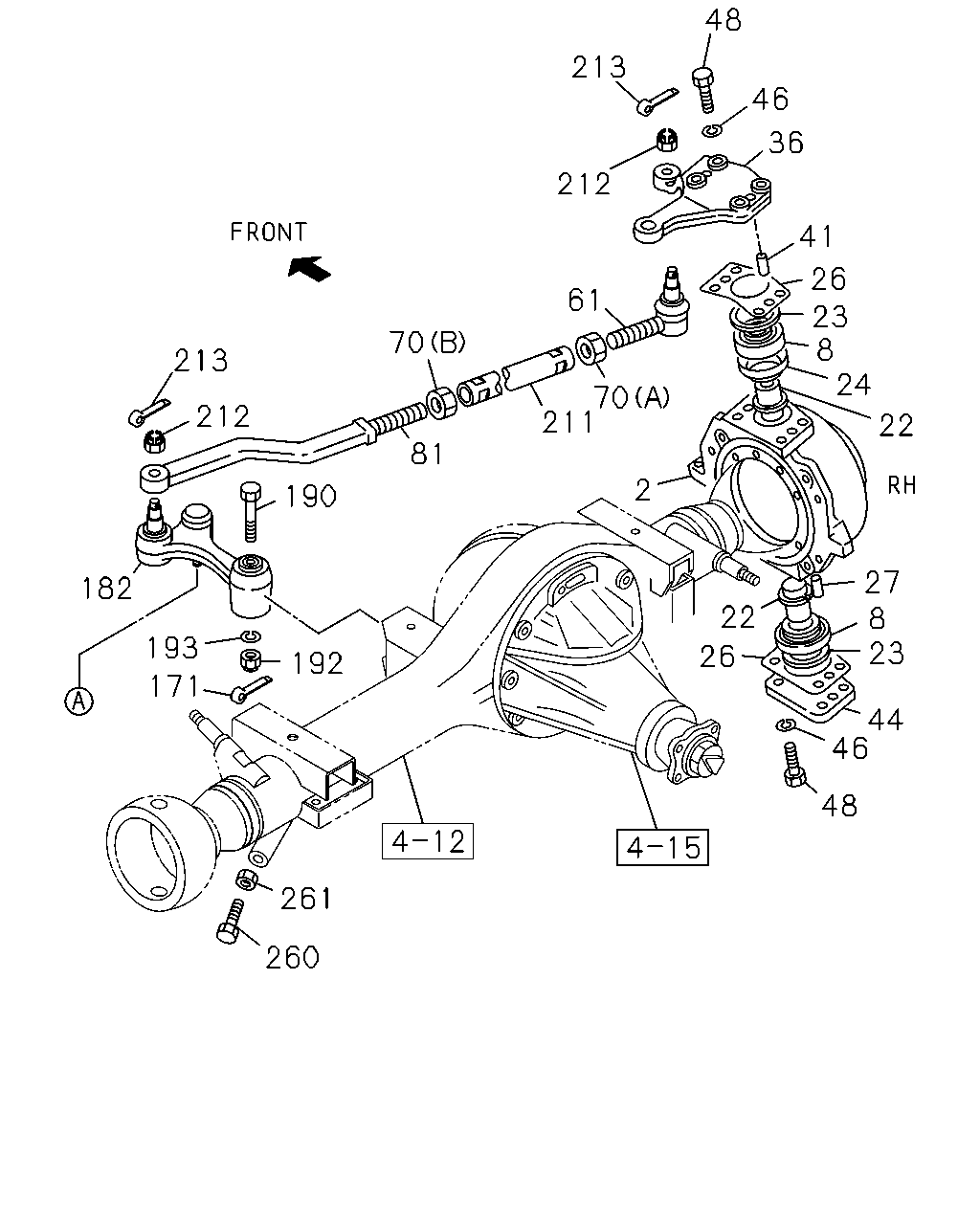

çizim 99499
48 213 46 36 212 41 26 61 23 8 24 70 213 70 211 212 22 81 2 190 27 8 23 182 22 193 26 192 171 44 46 48 261 260
BalonParca AdiParca NoAdetTipApplied Date
2 06.020 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 0311-
2 06.020 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 0311-
8 06.021 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 0311-
22 06.203 PIN; KING,FRT AXLE 8-94440-228-0 04 1 0311-
23 07.242 COLLAR; DIST BRG 8-94440-839-0 04 1 0311-
24 06.210 RECEIVER; KING PIN 8-94458-454-0 02 1 0311-
26 06.022 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 0311-
26 06.022 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 0311-
26 06.022 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 0311-
27 06.203 PIN; STRAIGHT,KING PIN
00.662 OD=4 L=8 		9-08160-408-0 04 1 0311-
36 06.103 ARM; KNUCKLE 8-97043-208-0 01 1 0311-
41 06.177 PIN; KNOCK,KNUCKLE ARM
00.669 		9-08161-028-0 04 1 0311-
44 06.225 COVER; KING PIN 8-94440-230-0 02 1 0311-
46 07.347 WASHER; LK,COVER
05.422 ID=14.2 		9-09150-814-0 16 1 0311-0603
46 07.347 WASHER; LK,COVER
06.174 ID=14.2 		0-91510-814-0 16 1 0604-
48 06.225 BOLT; COVER
M14X45 		9-92361-445-0 16 1 0311-
61 06.233 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 0311-
70 06.234 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 0311-
70 06.234 NUT; TIE ROD END
(B) M20 		9-99111-420-0 02 1 0311-0512
70 06.234 NUT; TIE ROD END
(B) M20 		0-91111-520-0 02 1 0601-
81 06.230 ROD; TIE 8-94440-365-0 02 1 0311-
171 06.104 PIN; SPLIT,STRG ARM
06.865 OD=2.8 L=25 		9-08113-025-0 01 1 0311-0606
171 06.104 PIN; SPLIT,STRG ARM
06.881 OD=2.8 L=25 		0-81123-025-0 01 1 0607-
182 06.103 ARM; STRG,TIE ROD,FRT AXLE 8-94323-964-1 01 1 0311-
190 06.104 BOLT; STRG ARM TO BRKT,FRT AXLE 8-94447-552-1 01 1 0311-
192 06.216 NUT; STRG ARM BRKT
07.529 M14 SLOTTED 		9-99116-514-0 01 1 0311-0605
192 06.216 NUT; STRG ARM BRKT
M14 SLOTTED 		0-91116-514-0 01 1 0606-
193 06.216 WASHER; PL,STRG ARM BRKT
06.164 ID=15 OD=30 		9-09164-614-0 01 1 0311-
211 06.233 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 0311-
212 06.216 NUT; STRG ROD
06.243 		8-94107-727-0 02 1 0311-
213 06.203 PIN; COTTER,STRG ROD
06.022 OD=3.7 L=25 		9-08114-025-0 04 1 0311-0606
213 06.203 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 0607-
260 07.240 BOLT; STOPPER,TIE ROD ARM
06.865 M12X40 		9-09602-128-0 03 1 0311-
261 07.242 NUT; STOPPER BOLT
04.634 M12 		9-99110-512-0 03 1 0311-0512
261 07.242 NUT; STOPPER BOLT
05.002 M12 		0-91110-512-0 03 1 0601-
