4-01 — PROPELLER SHAFT (#53314) — 78 parça

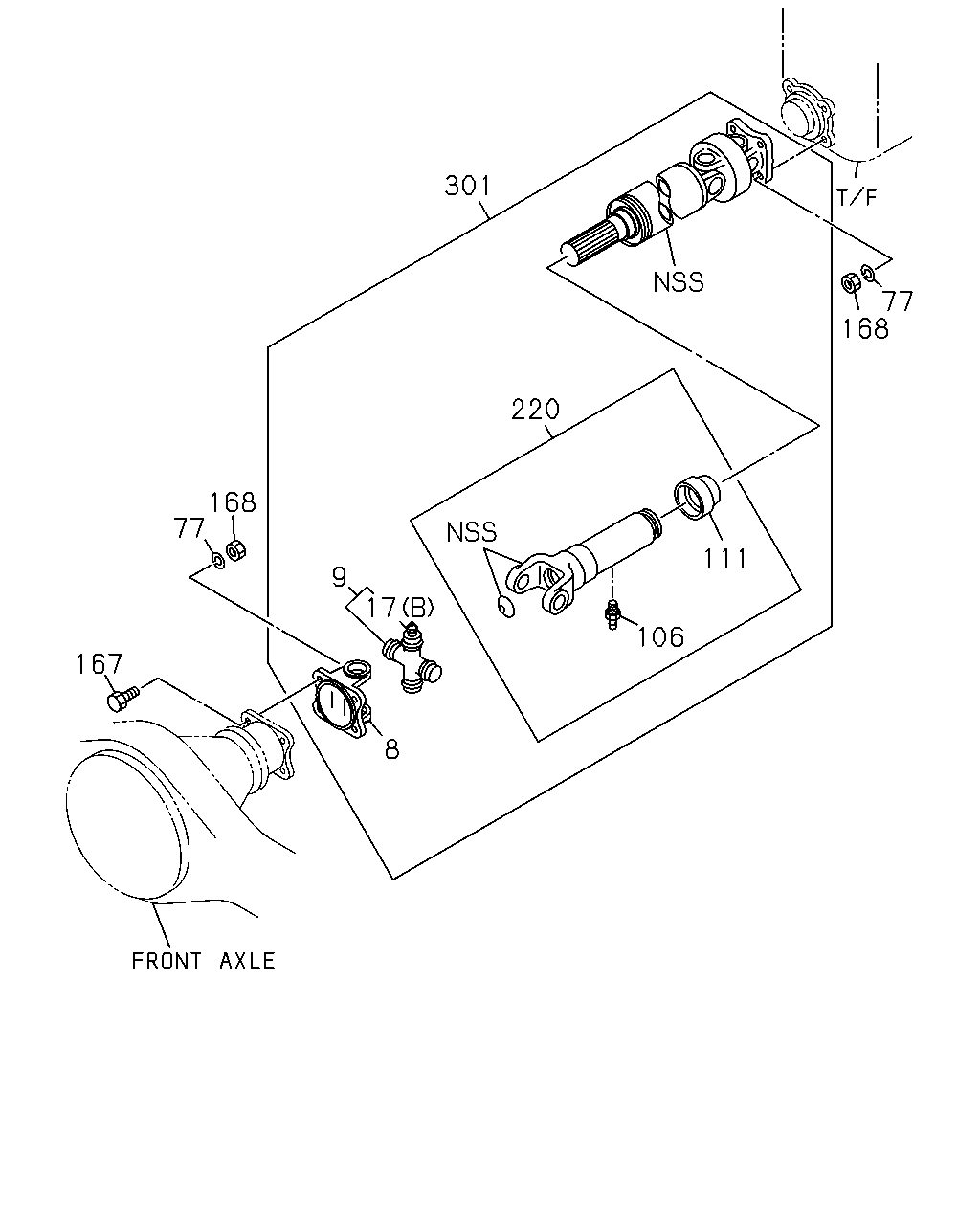

301 77 168 220 168 77 111 9 17 106 167 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT	8-97178-365-0	01	1	0311-
8	05.544 YOKE; FLANGE,PROP SHAFT REAR	8-97322-663-0	01	1	0311-
8	05.544 YOKE; FLANGE,PROP SHAFT REAR	8-97322-663-0	02	1	0311-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT	8-97167-317-0	01	1	0311-
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-97322-749-0	01	1	0311-0612
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-98033-605-0	01	1	0701-
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-97322-749-0	02	1	0311-0612
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-98033-605-0	02	1	0701-
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0311-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0502-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-
77	05.586 WASHER; LK,YOKE TO FLANGE,PROP S 00.002 ID=10.2	9-09150-610-0	08	1	0311-0603
77	05.586 WASHER; LK,YOKE TO FLANGE,PROP S 00.002 ID=10.2	0-91510-610-0	08	1	0604-
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0311-0607
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-
111	05.545 RING; SLEEVE	8-97020-597-1	01	1	0311-
167	05.586 BOLT; YOKE TO FLANGE,PROP SHAFT M10X29	8-97168-458-1	04	1	0311-0610
167	05.586 BOLT; YOKE TO FLANGE,PROP SHAFT M10X29	8-98056-948-0	04	1	0611-
168	05.586 NUT; YOKE TO FLANGE,PROP SHAFT M10	8-94159-009-1	08	1	0311-0610
168	05.586 NUT; YOKE TO FLANGE,PROP SHAFT M10	8-98056-949-0	08	1	0611-
220	05.544 YOKE; SPLINED 05.545	8-97167-316-0	01	1	0311-
301	05.544 SHAFT ASM; PROP,FRT L=794	8-97300-127-0	01	1	0311-

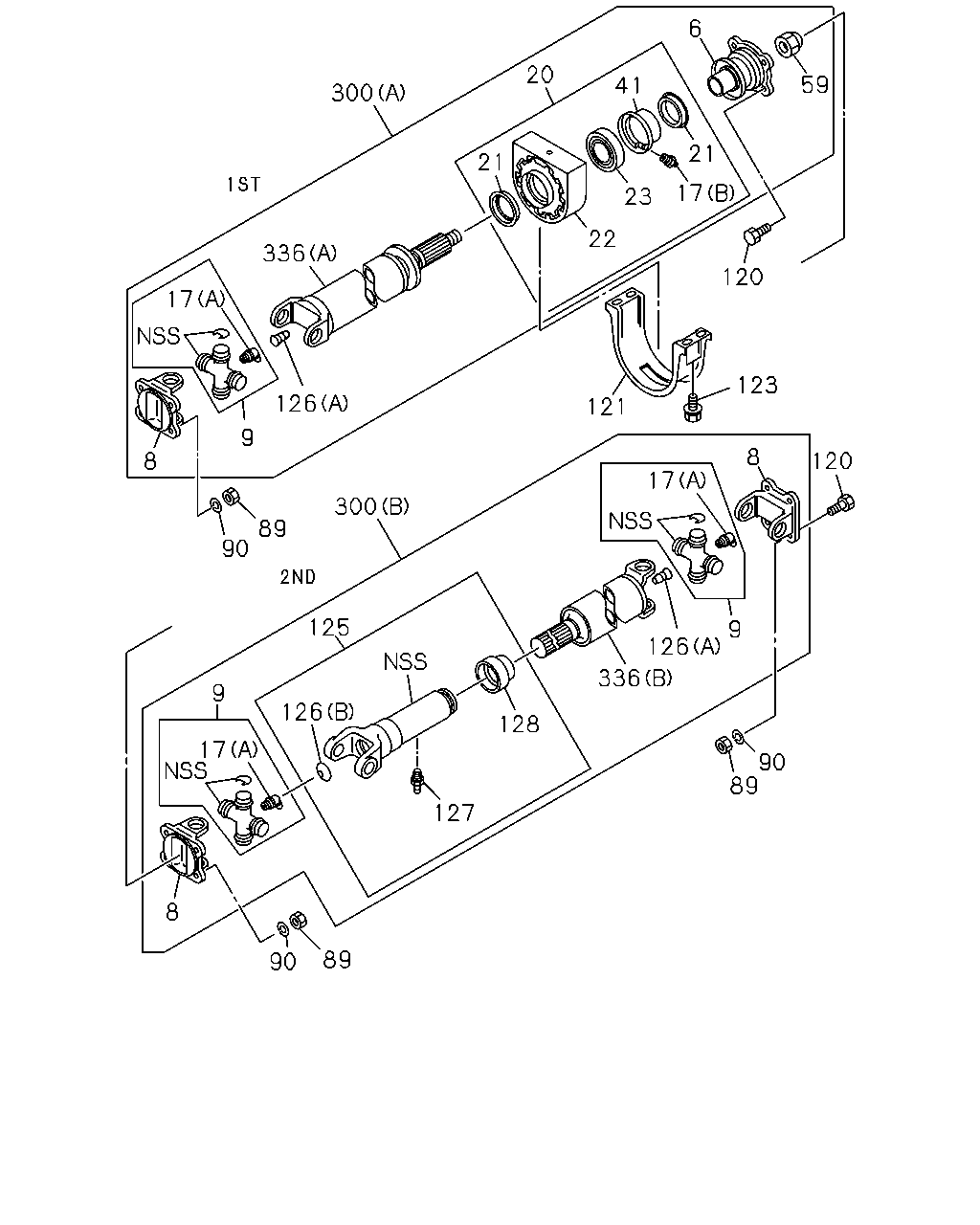

300 20 6 59 21 23 17 41 22 120 121 123 17 8 120 9 126 336 90 89 127 128 125 89 90 300 126 9 8 17 336 89 90 17 8 9 126 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	0311-
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT	8-97178-365-0	01	1	0311-
8	05.544 YOKE; FLANGE,PROP SHAFT REAR	8-97322-663-0	01	1	0311-
8	05.544 YOKE; FLANGE,PROP SHAFT REAR	8-97322-663-0	02	1	0311-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT	8-97167-317-0	01	1	0311-
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-97322-749-0	01	1	0311-0612
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-98033-605-0	01	1	0701-
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-97322-749-0	02	1	0311-0612
9	05.548 JOURNAL ASM; PROP SHAFT REAR	8-98033-605-0	02	1	0701-
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0311-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0502-0607
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0608-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0311-0501
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0502-0512
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0601-
20	05.600 BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0311-0702
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0703-
21	05.590 SEAL; OIL,CENTER BRG 05.601 ID=49	5-09625-067-1	02	1	0311-
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	5-37516-005-2	01	1	0311-0612
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	8-98020-875-0	01	1	0701-
23	05.600 BEARING; CENTER,PROP SHAFT OD=80	5-09800-068-0	01	1	0311-
41	05.601 COVER; CENTER BRG,PROP SHAFT	5-37512-004-0	01	1	0311-0612
41	05.601 COVER; CENTER BRG,PROP SHAFT	8-98020-795-0	01	1	0701-
59	05.586 NUT; RET TO SUPPORT 04.412 M27 H=25	8-97253-126-0	01	1	0311-0612
59	05.586 NUT; RET TO SUPPORT 04.525 M27 H=25	8-97360-410-0	01	1	0701-
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0311-0610
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0611-
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0311-0603
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0604-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0311-0610
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0611-
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0311-
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	0311-0512
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0601-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-97327-979-1	01	1	0311-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0311-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0311-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0311-
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0311-0607
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0311-
300	05.544 SHAFT ASM; PROP,RR (B) L=1074	8-97308-061-2	01	1	0311-
300	05.544 SHAFT ASM; PROP,RR (A) L=452	8-97314-842-3	01	1	0311-
336	05.600 TUBE; PROP SHAFT (B)	8-97327-992-2	01	1	0311-
336	05.600 TUBE; PROP SHAFT (A)	8-97332-540-2	01	1	0311-
