◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#53313) — 91 parça

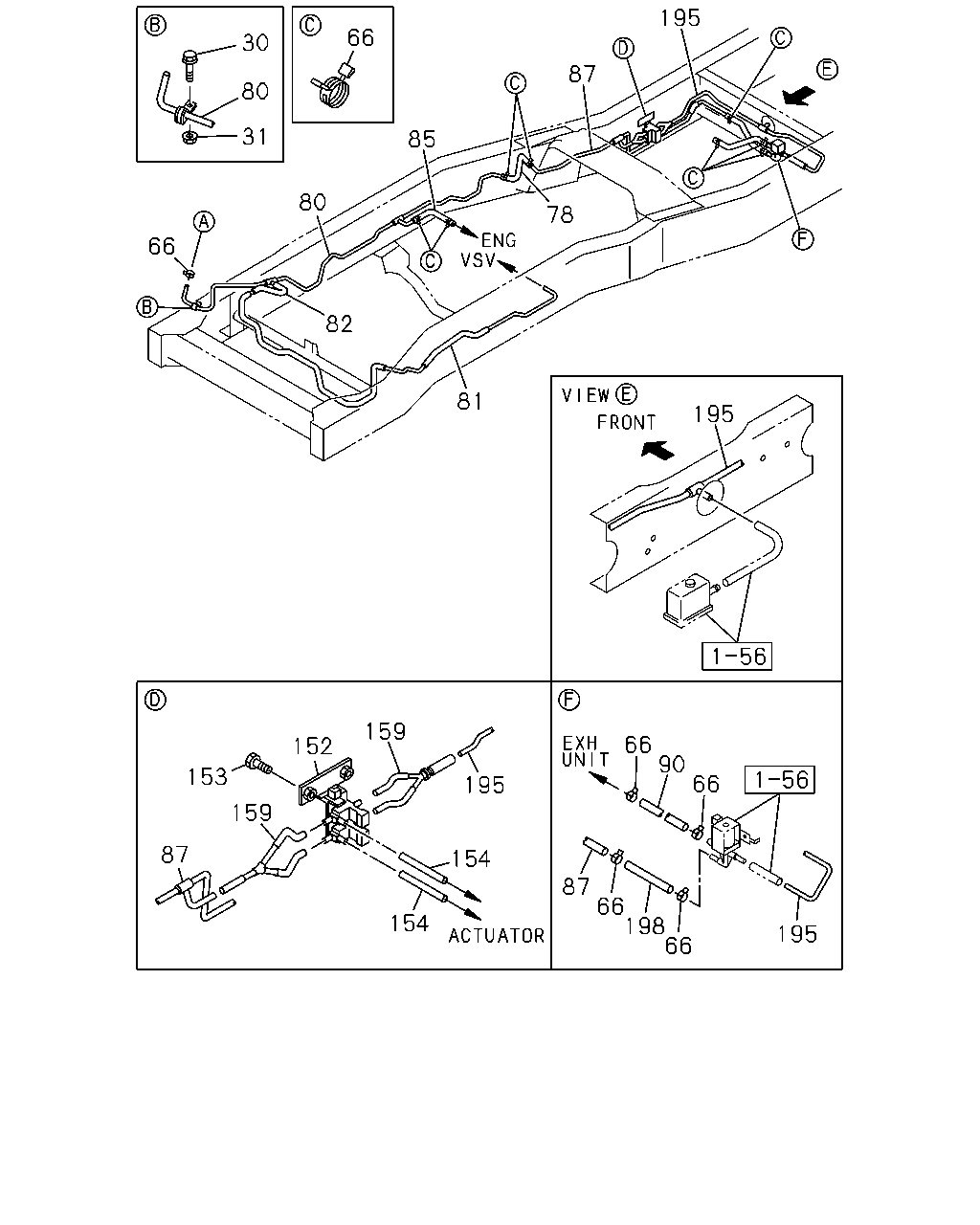

çizim 19917
195 66 30 87 80 31 85 80 78 66 82 81 195 159 66 90 66 152 153 195 159 87 154 87 66 198 66 154 195
BalonParca AdiParca NoAdetTipApplied Date
30 04.686 BOLT; CLIP,VAC PIPE
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0311-0512
30 04.686 BOLT; CLIP,VAC PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-
31 04.686 NUT; CLIP,VAC PIPE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0311-0602
31 04.686 NUT; CLIP,VAC PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 11 1 0311-0911
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 11 1 0912-
78 04.931 HOSE; VAC,PIPE TO PIPE
03.630 L=140 SERVICED BY L=3000 		0-08258-300-0 01 1 0311-
80 04.930 PIPE; VAC,ENG SIDE 8-97373-725-0 01 1 0311-
81 04.930 PIPE; VAC,VSV 8-97373-723-0 01 1 0311-0501
81 04.930 PIPE; VAC,VSV 8-97374-192-0 01 1 0502-
82 04.931 HOSE; VAC,VSV
08.962 L=120 SERVICED BY L=3000 		0-04740-300-0 01 1 0311-
85 04.931 HOSE; VAC,ENG SIDE
4HG1-T ENG(RDP) 		8-97109-066-0 01 1 0612-
85 04.931 HOSE; VAC,ENG SIDE
L=260 		8-97091-967-0 01 1 0311-0501
85 04.931 HOSE; VAC,ENG SIDE
4HG1 ENG(RJH) L=260 		8-97091-967-0 01 1 0502-
87 04.930 PIPE; VAC,ENG TO MAG VLV 8-97325-805-2 01 1 0311-
90 04.931 HOSE; VAC,MAG VLV 8-97374-081-0 01 1 0311-
152 04.690 VALVE; VAC SWITCHING,TRANSFER CO 8-94481-999-4 01 1 0311-
153 04.686 BOLT; VSV
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0311-0512
153 04.686 BOLT; VSV
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-
154 04.931 HOSE; VSV TO ACTUATOR
08.962 L=150 SERVICED BY L=3000 		0-04840-300-0 01 1 0311-
154 04.931 HOSE; VSV TO ACTUATOR
08.962 L=250 SERVICED BY L=3000 		0-04840-300-0 01 1 0311-
159 04.931 HOSE ASM; VAC 8-94481-279-1 02 1 0311-
195 04.685 PIPE; VAC,UNION TO VSV 8-97325-809-2 01 1 0311-
198 04.931 HOSE; VAC,PIPE TO MAG VLV
03.630 L=300 SERVICED BY L=3000 		0-08258-300-0 01 1 0311-

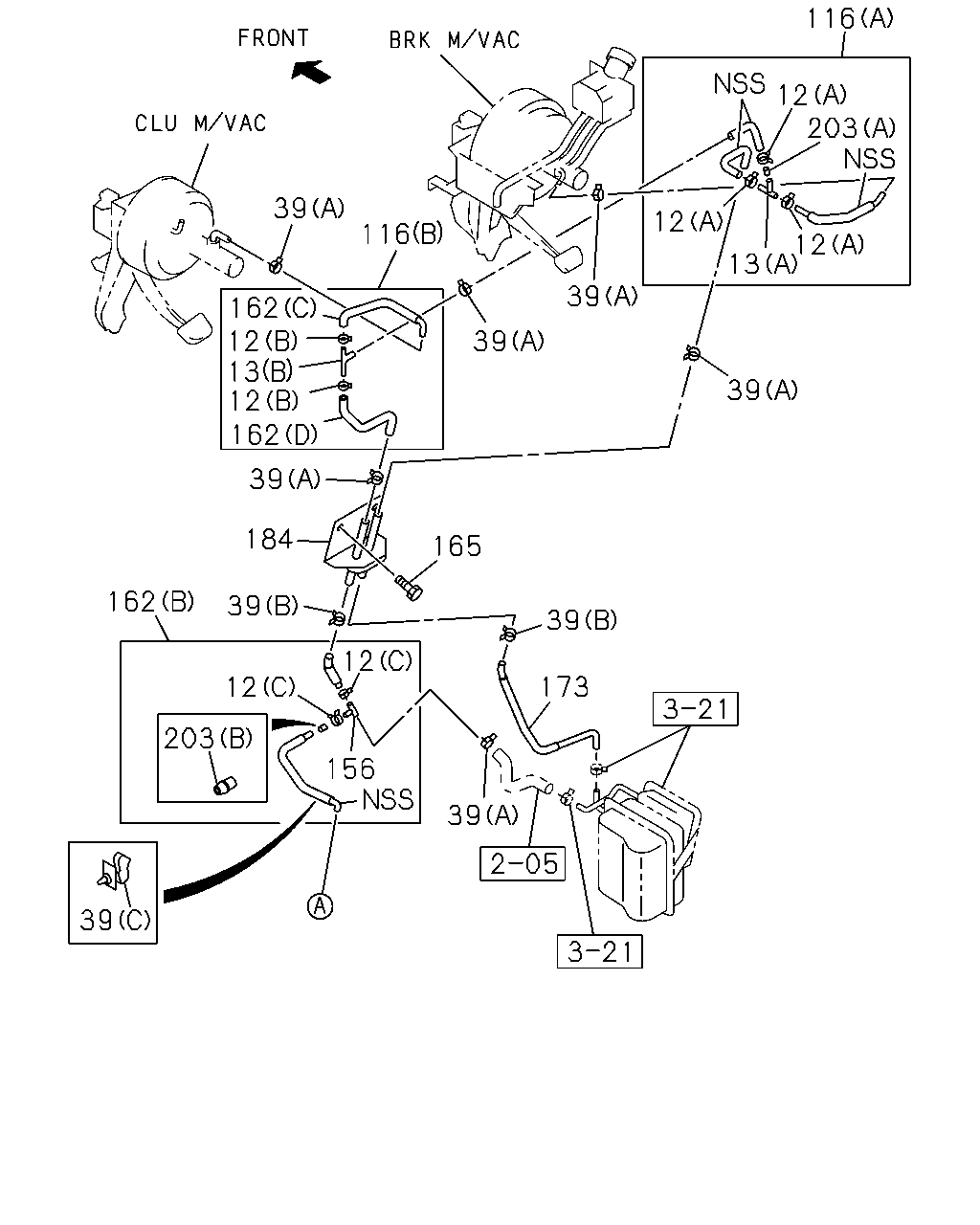

çizim 19985
116 12 203 39 12 116 12 13 39 162 12 13 12 162 39 39 39 184 165 162 39 39 12 173 12 203 156 39 39
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5 		8-94167-480-0 02 1 0311-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) (C) ID=15.5 		8-94367-944-0 02 1 0311-
12 04.681 CLIP; HOSE
04.930 (A) ID=14.5 		8-94167-480-0 03 1 0311-
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY 		8-94167-478-0 01 1 0311-
13 04.681 JOINT; HOSE,VAC
04.686 (A) 3WAY 		8-94441-184-0 01 1 0311-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16 		8-94238-568-0 06 1 0311-
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		5-09707-023-2 02 1 0311-
39 04.681 CLIP; HOSE,VAC
(C) ID=25.5 		8-97077-492-0 01 1 0311-
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16 		8-94238-568-0 03 1 0311-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-97314-596-1 01 1 0311-
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97314-597-1 01 1 0311-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-97035-968-0 01 1 0311-0403
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-97379-286-1 01 1 0404-
156 04.931 JOINT; 3 WAY
POWER ASSIST CLUTCH(S2T) 3WAY 		8-94167-478-0 01 1 0311-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97040-991-2 01 1 0311-
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-97178-658-0 01 1 0311-0501
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98000-392-0 01 1 0502-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (E) 		5-87411-837-0 01 1 0311-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		5-87411-838-0 01 1 0311-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		5-87411-840-0 01 1 0311-
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (C) 		5-87411-841-0 01 1 0404-
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (D) 		5-87411-842-0 01 1 0404-
165 04.686 BOLT; BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0311-0512
165 04.686 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601-
173 04.931 HOSE; VAC,VAC TANK SIDE 8-97129-875-0 01 1 0311-
184 04.685 BRACKET; UNION FIX 8-97035-967-3 01 1 0311-
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0311-
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94386-540-0 01 1 0311-0412
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0501-
çizim 20205
33 33 33 128 136 84 136
BalonParca AdiParca NoAdetTipApplied Date
33 04.930 CLIP; VAC PIPE
(A) ID=10 H=40 		8-94462-219-0 02 1 0311-
33 04.930 CLIP; VAC PIPE
(B) ID=10X2 OR 12X2 & 6.35 		8-97326-157-1 01 1 0311-
33 04.930 CLIP; VAC PIPE
(C) ID=10X2 H=37.5 		8-97018-546-0 01 1 0311-
33 04.930 CLIP; VAC PIPE
(C) ID=10X2 H=37.5 		8-97018-546-0 01 1 0311-
84 04.931 PROTECTOR; EDGE,VAC HOSE
03.008 L=80 		5-22439-006-0 01 1 0311-
128 04.930 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 0311-0602
128 04.930 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
136 04.681 CLIP; VAC HOSE
03.162 (A) L=140 		5-09707-031-1 01 1 0311-
136 04.681 CLIP; VAC HOSE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 0311-
çizim 20868
162 162 12 116 203 12 12 162 13 39 39 184 39 165 39 173 39 39 162 202
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5 		8-94167-480-0 02 1 0311-
12 04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) (C) ID=15.5 		8-94367-944-0 02 1 0311-
12 04.681 CLIP; HOSE
04.930 (A) ID=14.5 		8-94167-480-0 03 1 0311-
13 04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY 		8-94167-478-0 01 1 0311-
13 04.681 JOINT; HOSE,VAC
04.686 (A) 3WAY 		8-94441-184-0 01 1 0311-
39 04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16 		8-94238-568-0 06 1 0311-
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		5-09707-023-2 02 1 0311-
39 04.681 CLIP; HOSE,VAC
(C) ID=25.5 		8-97077-492-0 01 1 0311-
39 04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16 		8-94238-568-0 03 1 0311-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (A) 		8-97314-596-1 01 1 0311-
116 04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97314-597-1 01 1 0311-
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-97035-968-0 01 1 0311-0403
116 04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-97379-286-1 01 1 0404-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97040-991-2 01 1 0311-
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-97178-658-0 01 1 0311-0501
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (B) 		8-98000-392-0 01 1 0502-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (E) 		5-87411-837-0 01 1 0311-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (F) 		5-87411-838-0 01 1 0311-
162 04.931 HOSE; VAC
EXC. POWER ASSIST CLUTCH(S2T) (G) 		5-87411-840-0 01 1 0311-
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (C) 		5-87411-841-0 01 1 0404-
162 04.931 HOSE; VAC
POWER ASSIST CLUTCH(S2T) (D) 		5-87411-842-0 01 1 0404-
165 04.686 BOLT; BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0311-0512
165 04.686 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601-
173 04.931 HOSE; VAC,VAC TANK SIDE 8-97129-875-0 01 1 0311-
184 04.685 BRACKET; UNION FIX 8-97035-967-3 01 1 0311-
202 04.686 SEAL
EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0311-
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 0311-
203 04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (A) 		8-94386-540-0 01 1 0311-0412
203 04.690 VALVE; CHECK
(A) 		8-94386-540-0 01 1 0501-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
