Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

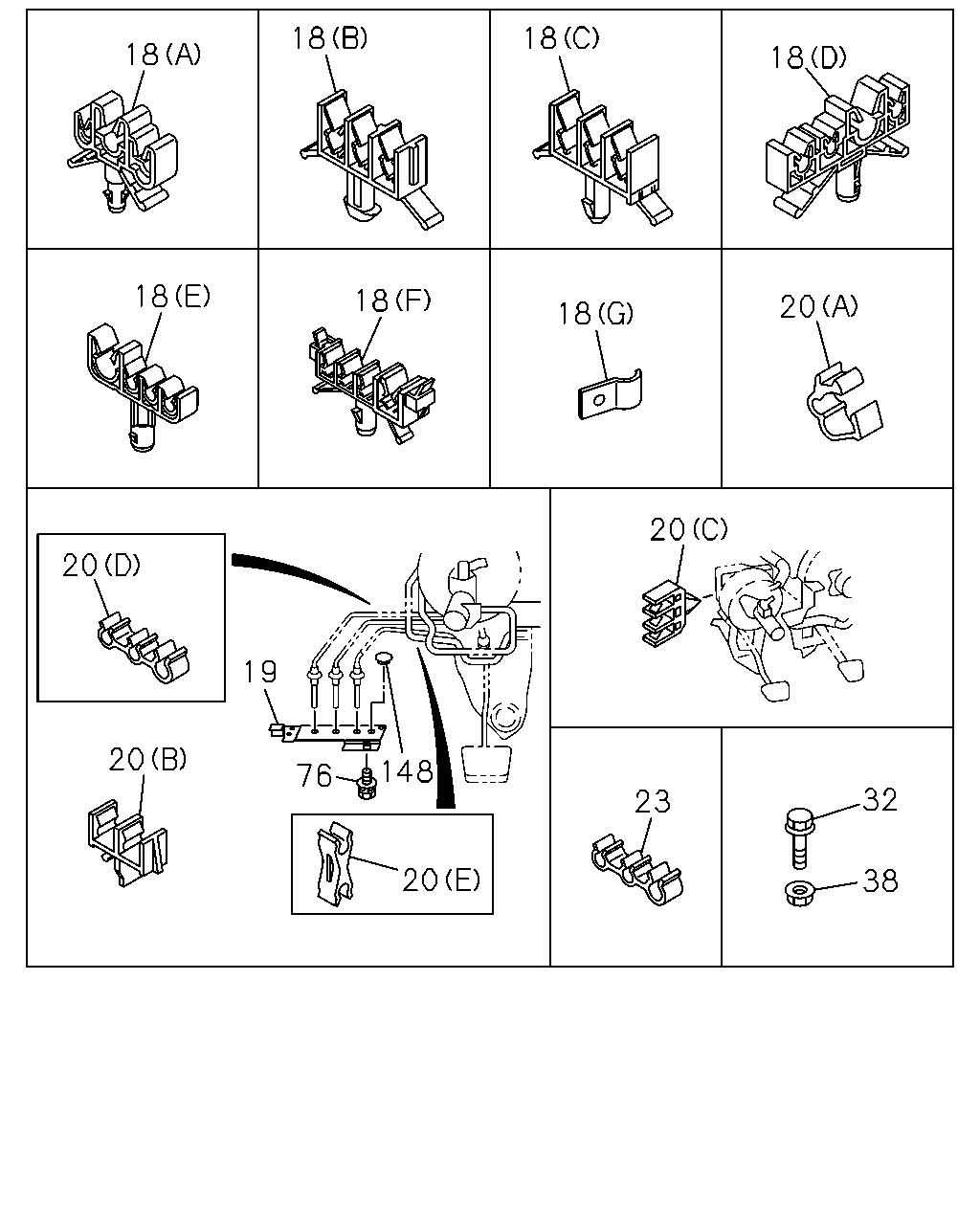

3-58 — FIXING PARTS; OIL PIPING
(#53312) — 25 parça
18
18
18
18
18
18
20
18
20
20
19
20
148
76
32
23
20
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
04.686 CLIP; BRK PIPE
(G) B=18 L=20
1-09700-372-0
02
1
0311-
18
04.686 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 H=29
8-94249-689-2
01
1
0311-
18
04.686 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 H=29
8-94249-689-2
03
1
0311-
18
04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3
8-97168-819-0
02
1
0311-
18
04.686 CLIP; BRK PIPE
(A) ID=12 & 6.35 & 4.76
8-97202-954-1
02
1
0311-
18
04.686 CLIP; BRK PIPE
03.162 (D) ID=10 OR 12 & 6.35X2 & 4.76
8-97326-156-2
02
1
0311-
18
04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3
8-97326-158-1
02
1
0311-
18
04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3
8-97326-158-1
06
1
0311-
18
04.686 CLIP; BRK PIPE
(C) ID=6.5 & 4.8X2
8-94131-710-2
01
1
0311-
18
04.686 CLIP; BRK PIPE
(C) ID=6.5 & 4.8X2
8-94131-710-2
01
1
0311-
19
04.686 BRACKET; OIL PIPE
8-97149-718-2
01
1
0311-
20
04.686 CLIP; BRK PIPE
(A) ID=6.35 & 4.76X2
8-94107-732-1
01
1
0311-
20
04.686 CLIP; BRK PIPE
(B) ID=4.8X2
8-94113-470-0
01
1
0311-
20
04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2
8-94146-043-0
01
1
0311-
20
04.686 CLIP; BRK PIPE
04.868 (E) ID=4.6X2
8-94241-454-0
01
1
0311-
20
04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2
8-94250-923-2
01
1
0311-
23
04.686 CLAMP; PIPE
ID=6.4 & 4.8X2
8-94146-043-0
02
1
0311-
32
04.686 BOLT; CLIP,OIL PIPE
02.664 M8X20 FLANGE
0-28680-820-0
02
1
0311-0512
32
04.686 BOLT; CLIP,OIL PIPE
01.531 M8X20 FLANGE
0-28650-820-0
02
1
0601-0612
32
04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0701-
38
04.686 NUT; CLIP FIX
07.633 M8 FLANGE
0-91150-108-0
02
1
0311-0602
38
04.686 NUT; CLIP FIX
01.062 M8 FLANGE
0-91180-108-0
02
1
0603-
76
04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE
0-28680-825-0
02
1
0311-0512
76
04.686 BOLT; BRKT,OIL PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0601-
148
04.686 GROMMET
03.483
8-94294-358-0
01
1
0311-
