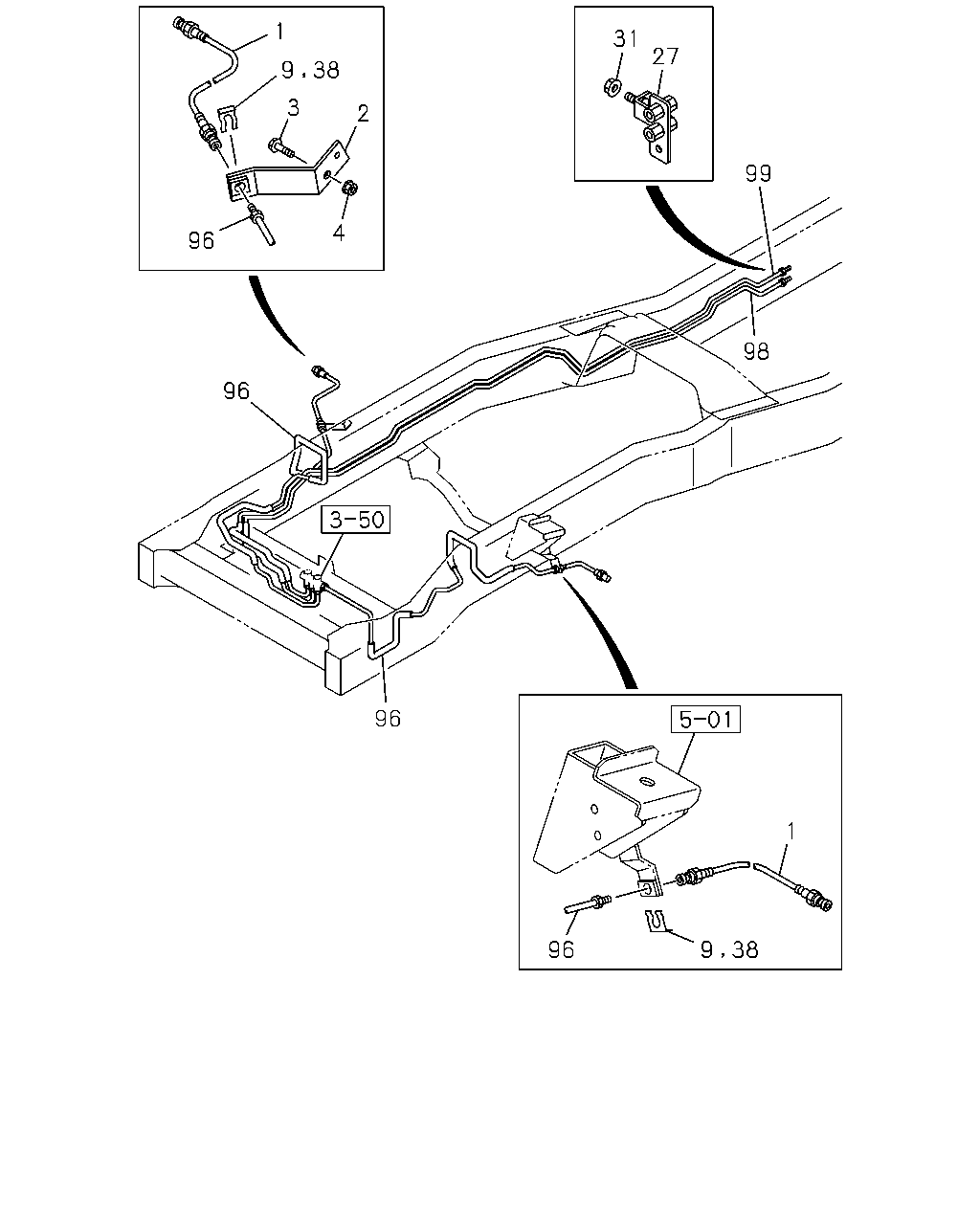

3-52 — BRAKE PIPING; OIL,FRONT (#53310) — 23 parça

1 31 27 3 2 99 4 96 98 96 96 1 96 9 38 9 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.680 HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0311-
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-94310-121-2	01	1	0311-
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0311-0512
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0602
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0311-0610
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-
27	04.686 UNION; BRK PIPE	8-97352-980-1	01	1	0311-
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0311-0602
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-
38	04.686 CLIP 04.681	8-94137-662-0	02	1	0311-0610
38	04.686 CLIP	8-97360-054-0	02	1	0611-
96	04.686 PIPE ASM; 6 WAY	8-97325-763-2	01	1	0311-
96	04.686 PIPE ASM; 6 WAY	8-97325-768-3	01	1	0311-0501
96	04.686 PIPE ASM; 6 WAY	8-97374-189-0	01	1	0502-
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97325-774-3	01	1	0311-
99	04.686 PIPE ASM; 4/5/6 WAY REAR	8-97325-775-3	01	1	0311-

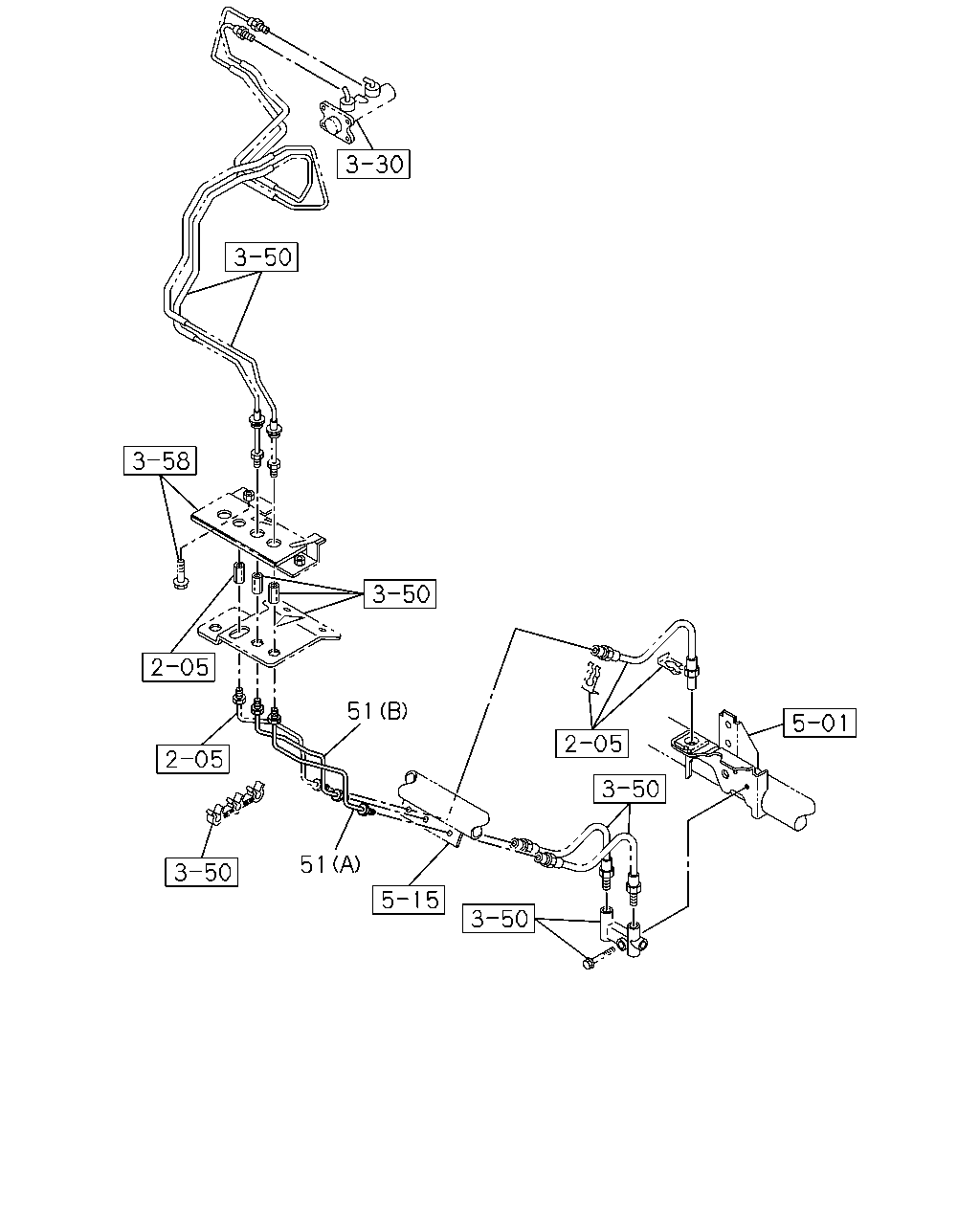

51 51

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	04.685 PIPE; BRK (A) FRONT	8-97209-514-0	01	1	0311-
	51	04.685 PIPE; BRK (B) REAR	8-97209-515-0	01	1	0311-

50 98 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	04.685 PIPE; BRK,UNION TO VLV FRONT	8-97373-731-0	01	1	0311-
98	04.686 PIPE ASM; 4/6 WAY FRONT	8-97325-774-3	01	1	0311-
99	04.686 PIPE ASM; 4/5/6 WAY REAR	8-97325-775-3	01	1	0311-
