Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶

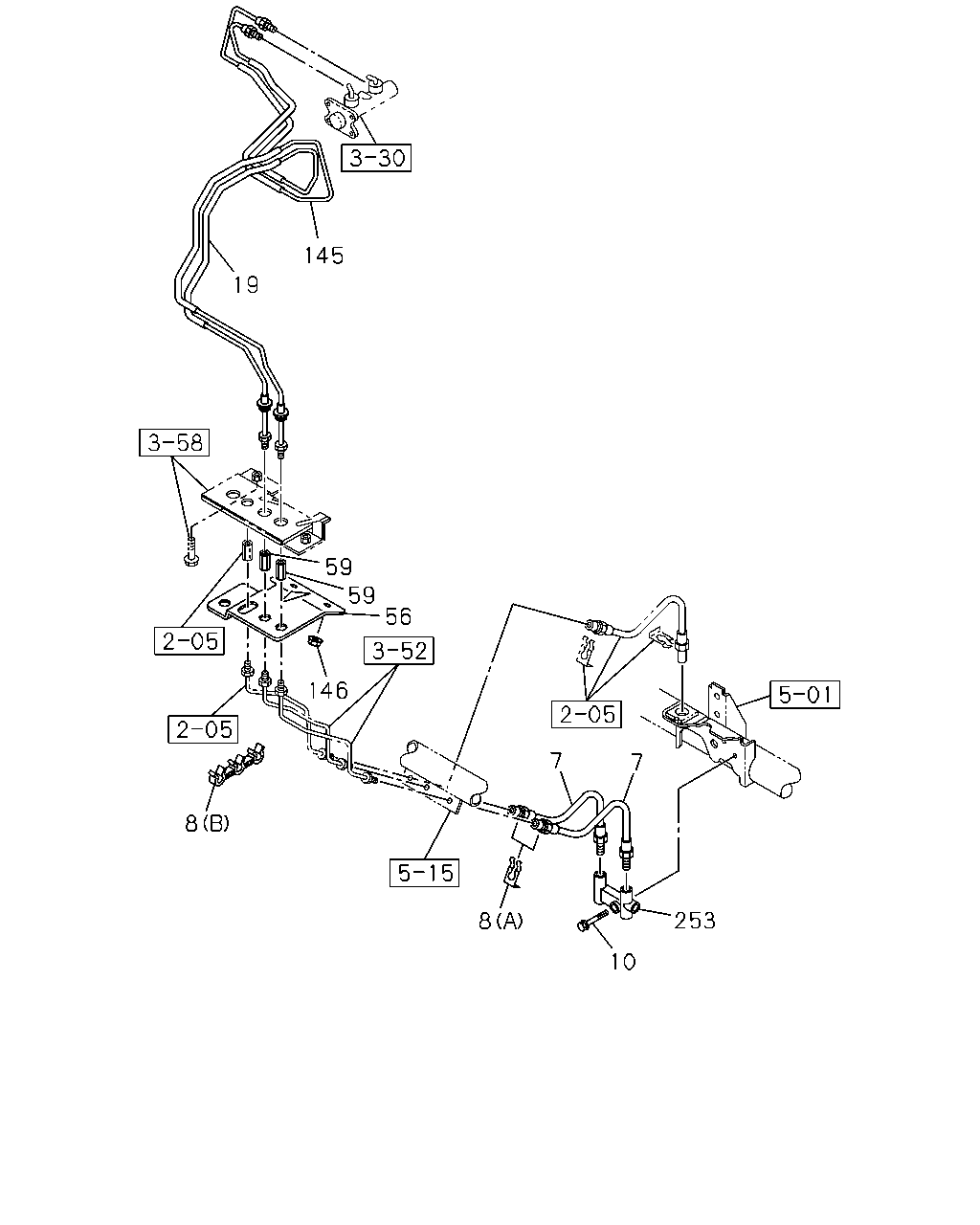

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#53309) — 15 parça
◀
[350A] REAR (1 parça)
[350A] FRONT (14 parça)
▶
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
04.686 PIPE; BRK,VLV TO UNION
8-97373-732-0
01
1
0311-
145
19
59
59
56
146
7
7
8
253
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
0311-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
0311-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A)
8-94167-006-0
02
1
0311-0610
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0611-
10
04.686 BOLT; JOINT
03.163 M6X40 FLANGE
0-28680-640-0
01
1
0311-0512
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0601-
19
04.685 PIPE; BRK,M/CYL TO UNION
REAR
8-97314-592-0
01
1
0311-
56
04.686 BRACKET; UNION,BRK
8-97149-604-1
01
1
0311-
59
04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT
9-09227-005-0
02
1
0311-0607
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0608-
145
04.685 PIPE; BRK,METERING VLV TO UNION
FRONT
8-97314-585-0
01
1
0311-
146
04.685 NUT; BRKT
07.633 M8 FLANGE
0-91150-108-0
02
1
0311-0602
146
04.685 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
0603-
253
04.840 JOINT
04.686
8-97120-033-2
01
1
0311-
