0-52 — OIL AND VACUUM PIPING; ENGINE (#53303) — 73 parça

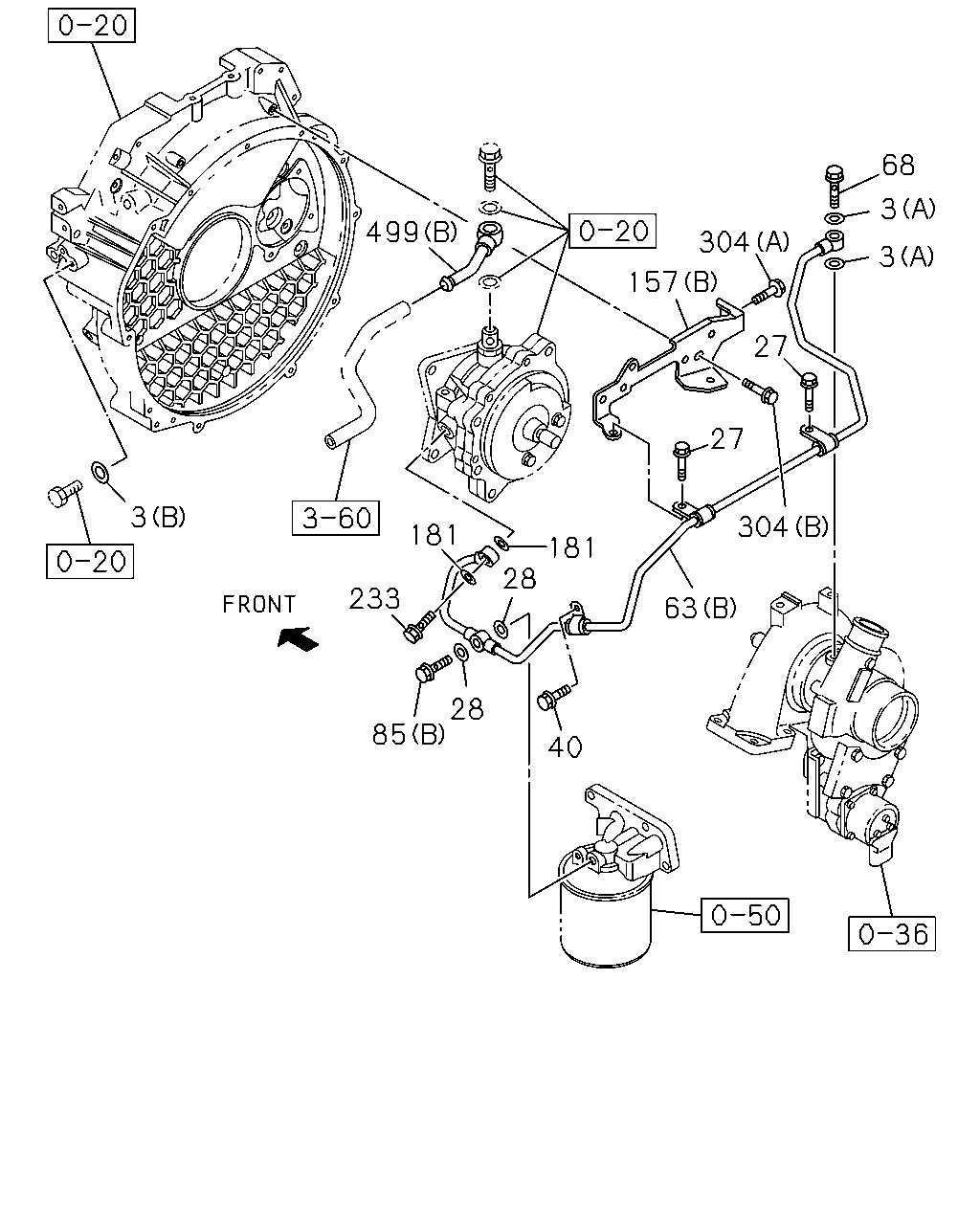

68 3 499 304 3 157 27 27 3 304 181 181 28 233 63 28 85 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-0803
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0804-1101
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.6	8-97331-137-1	01	1	1102-
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-0803
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	02	1	0804-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	04	1	0804-
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97386-643-2	01	1	0710-0803
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (B)	8-97386-643-2	01	1	0804-1509
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (B)	8-98328-013-0	01	1	1510-
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2) (A)	8-98092-070-0	01	1	0804-
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-97081-817-0	01	1	0710-0803
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-97081-817-0	01	1	0804-0805
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	0806-
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) M12X28 FLANGE	8-97166-518-1	01	1	0804-
85	01.531 BOLT; EYE,OIL PIPE FIX 03.330 (B) M10X28 FLANGE	8-97149-995-0	01	1	0710-0710
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	0711-
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2) (A) M10X22	1-09675-028-0	01	1	0804-
157	01.519 BRACKET; OIL PIPE (B)	8-98036-534-0	01	1	0710-0803
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (B)	8-98036-534-0	01	1	0804-
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (A)	8-98077-403-0	01	1	0804-
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	0710-0803
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	04	1	0804-
233	01.531 BOLT; EYE M10X22	1-09675-028-0	01	1	0710-0803
233	01.531 BOLT; EYE EURO4 SPECIFICATION(NT4) M10X22	1-09675-028-0	01	1	0804-
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0804-0811
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0710-0803
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0804-0811
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0812-1001
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	1002-
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	0804-
499	04.681 PIPE; VACUUM (B)	8-98040-104-2	01	1	0710-0803
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-98040-104-2	01	1	0804-
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (A)	8-98075-832-0	01	1	0804-

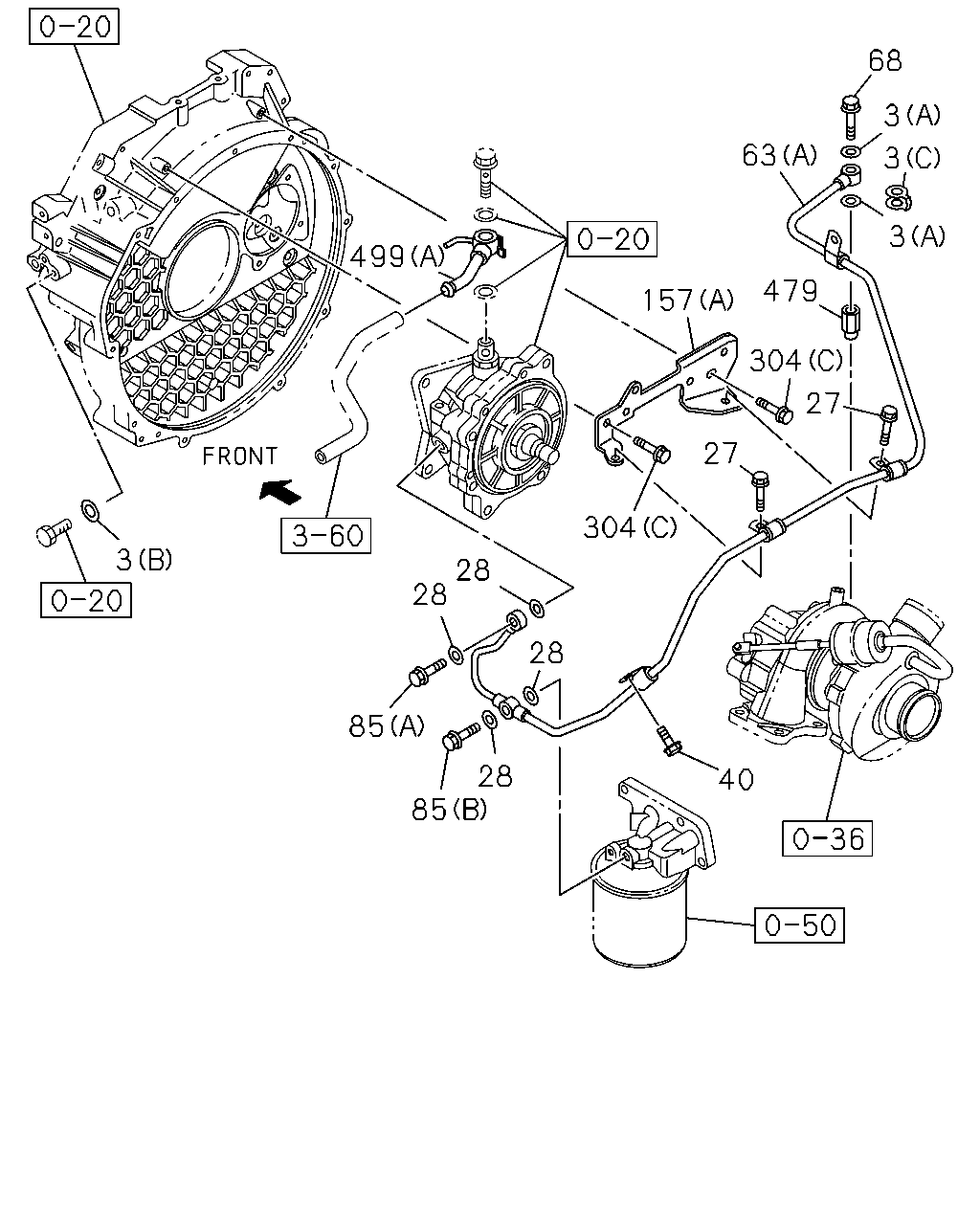

68 3 63 3 3 499 479 157 304 27 27 304 3 28 28 28 85 28 85 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-0803
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0804-1101
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.6	8-97331-137-1	01	1	1102-
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-0803
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	02	1	0804-
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	04	1	0804-
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97386-643-2	01	1	0710-0803
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (B)	8-97386-643-2	01	1	0804-1509
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (B)	8-98328-013-0	01	1	1510-
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2) (A)	8-98092-070-0	01	1	0804-
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-97081-817-0	01	1	0710-0803
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-97081-817-0	01	1	0804-0805
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	0806-
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) M12X28 FLANGE	8-97166-518-1	01	1	0804-
85	01.531 BOLT; EYE,OIL PIPE FIX 03.330 (B) M10X28 FLANGE	8-97149-995-0	01	1	0710-0710
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	0711-
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2) (A) M10X22	1-09675-028-0	01	1	0804-
157	01.519 BRACKET; OIL PIPE (B)	8-98036-534-0	01	1	0710-0803
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (B)	8-98036-534-0	01	1	0804-
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (A)	8-98077-403-0	01	1	0804-
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0804-0811
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0710-0803
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0804-0811
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0812-1001
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	1002-
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	0804-
479	01.531 ADAPTER EURO2 SPECIFICATION(NT2) 01.800	8-94436-891-0	01	1	0804-
499	04.681 PIPE; VACUUM (B)	8-98040-104-2	01	1	0710-0803
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-98040-104-2	01	1	0804-
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (A)	8-98075-832-0	01	1	0804-
