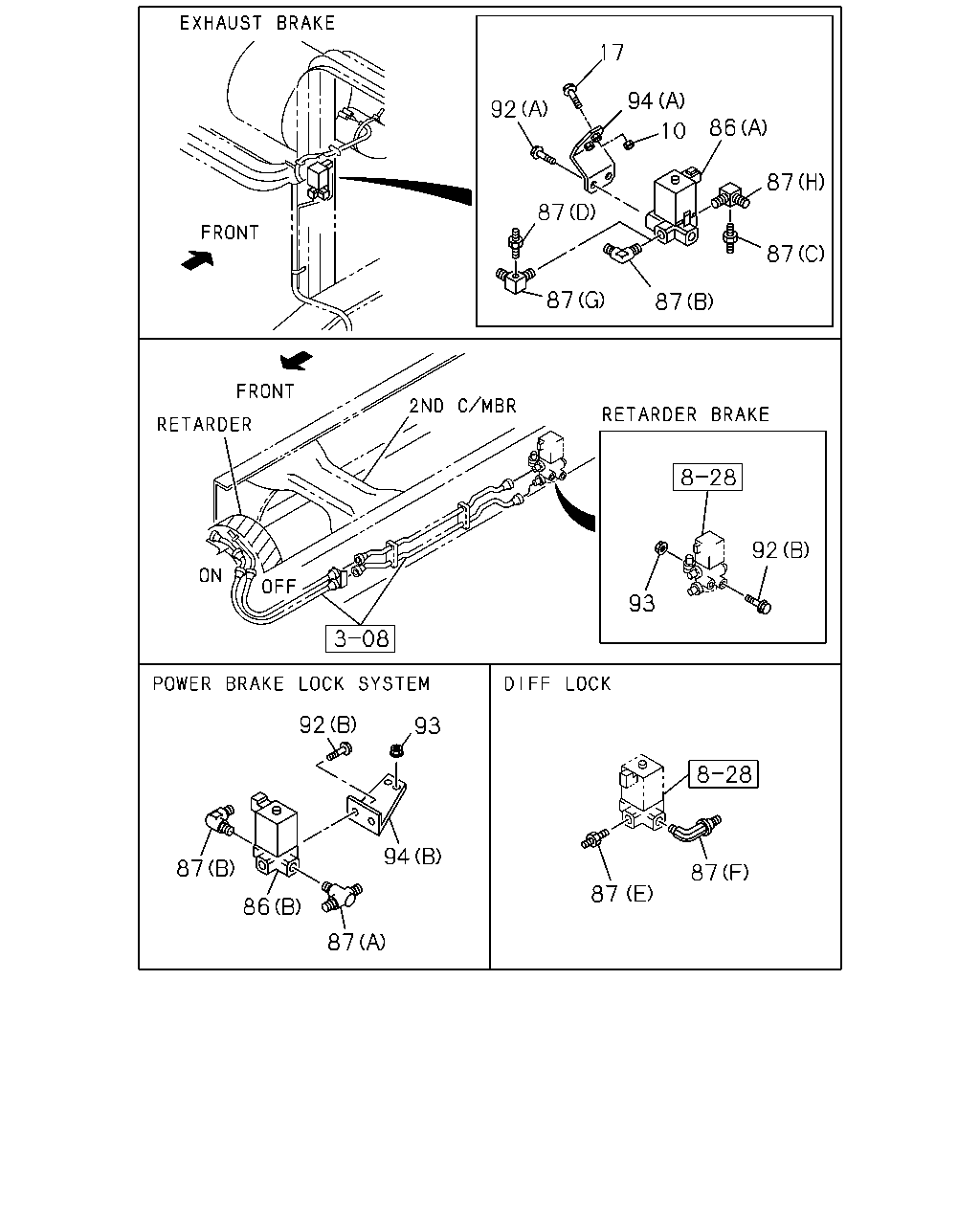

1-56B — EXHAUST BRAKE SYSTEM (#5330) — 113 parça

17 94 92 86 10 87 87 87 87 87 92 93 92 93 94 87 87 87 86 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	NUT; BRKT,EXH BRAKE M8	9-09110-508-0	03	1	9603-9606	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	03	1	9607-9901	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	03	1	9902-9904	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	02	1	9905-0103	●	●	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	01	1	0104-	●	●	●	●
10	NUT; BRKT,EXH BRAKE M10 FLANGE	0-91150-210-0	01	1	0104-	●	●	●	●
17	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
17	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
17	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●	●	●
17	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0104-	●	●	●	●
17	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	01	1	0104-	●	●	●	●
86	VALVE; MAG,EXH BRK (A)	1-82563-598-3	01	1	9603-9901	●	●
86	VALVE; MAG,EXH BRK (A)	1-82563-871-0	01	1	9902-9904	●	●
86	VALVE; MAG,EXH BRK EXC. GOVERNOR CONTROL<W69> (A)	1-82563-871-1	01	1	9905-0001	●	●	●	●
86	VALVE; MAG,EXH BRK EXC. GOVERNOR CONTROL<W69> (A)	1-82563-871-2	01	1	0002-	●	●	●	●
86	VALVE; MAG,EXH BRK CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (A)	1-82563-871-2	02	1	9905-	●	●	●	●
86	VALVE; MAG,EXH BRK SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (B)	1-82563-599-3	01	1	9603-9901		●
87	CONNECTOR (C) STRAIGHT M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
87	CONNECTOR EXC. GOVERNOR CONTROL<W69> (C) STRAIGHT M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9901	●	●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9901	●	●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9901	●	●
87	CONNECTOR FULL FLOATING CAB(W16) (A) M12,M12,PT1/4 3-WAY	1-09656-229-1	01	1	9603-9901		●
87	CONNECTOR SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (A) M12,M12,PT1/4 3-WAY	1-09656-229-1	01	1	9603-9901		●
87	CONNECTOR EXC. GOVERNOR CONTROL<W69> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9901	●	●
87	CONNECTOR SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9901		●
87	CONNECTOR (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-9901	●	●
87	CONNECTOR (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-	●	●
87	CONNECTOR (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9905-	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9603-9702	●	●	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9703-9901	●	●	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-9901	●	●	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (C) M20 & PT1/4	9-09902-386-0	01	1	9905-	●	●	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9608	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-9901	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9904	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (C) M6X50 FLANGE	0-28080-650-0	01	1	9905-	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE	0-28080-870-0	02	1	9603-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M8	9-09110-508-0	02	1	9603-9606	●	●	●	●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> M8	9-09110-408-0	02	1	9603-9606		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9905-	●	●	●	●
94	BRACKET; MAG VLV,EXH BRAKE (A)	1-82569-153-0	01	1	9603-9904	●	●
94	BRACKET; MAG VLV,EXH BRAKE (C)	1-82569-277-2	01	1	9905-	●	●
94	BRACKET; MAG VLV,EXH BRAKE CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B)	1-82569-233-0	01	1	9603-9904	●	●	●	●

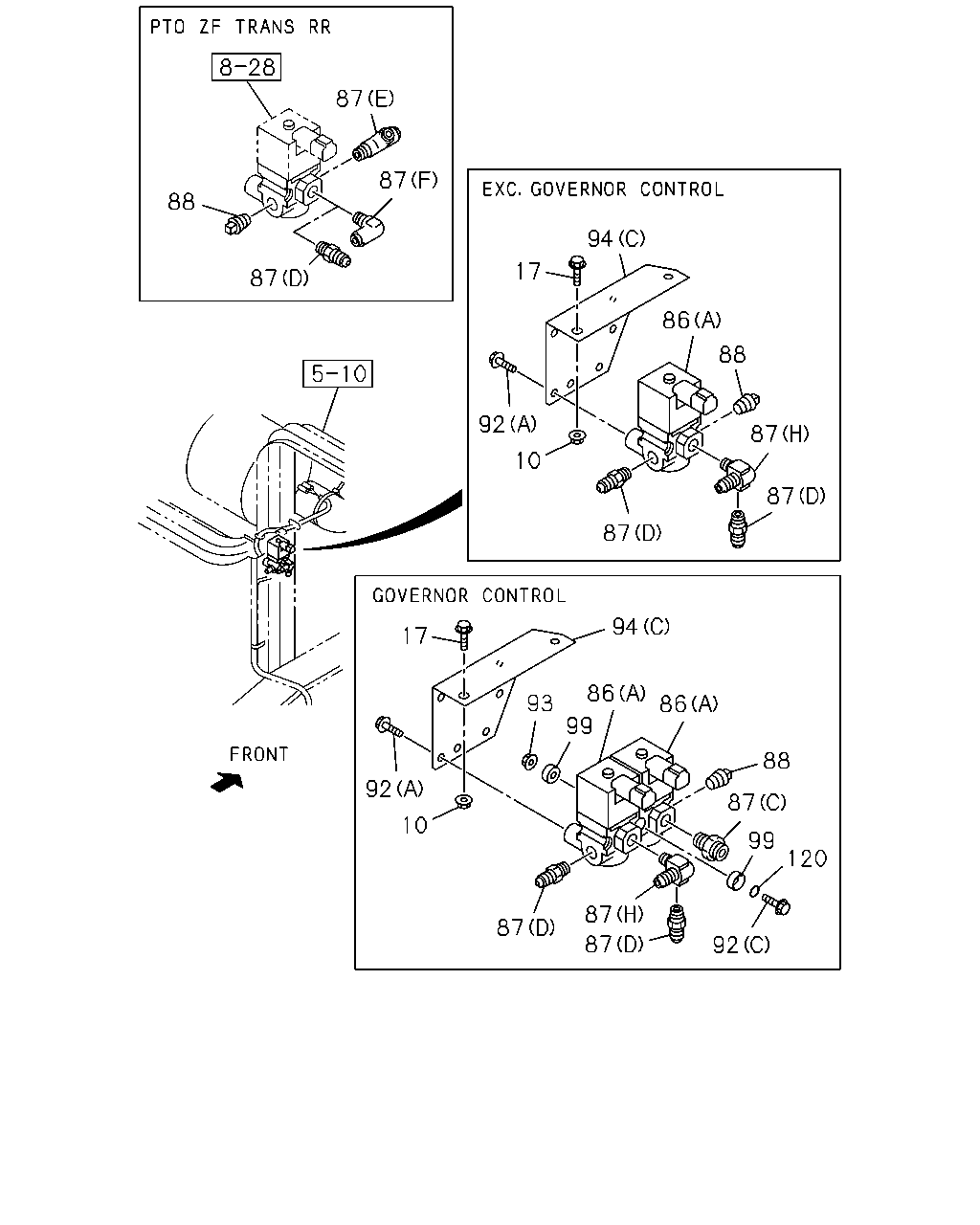

87 87 88 94 17 87 86 88 92 87 10 87 87 94 17 86 93 86 99 88 92 87 10 99 120 87 87 87 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	NUT; BRKT,EXH BRAKE M8	9-09110-508-0	03	1	9603-9606	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	03	1	9607-9901	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	03	1	9902-9904	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	02	1	9905-0103	●	●	●	●
10	NUT; BRKT,EXH BRAKE M8 FLANGE	0-91150-108-0	01	1	0104-	●	●	●	●
10	NUT; BRKT,EXH BRAKE M10 FLANGE	0-91150-210-0	01	1	0104-	●	●	●	●
17	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
17	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
17	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●	●	●
17	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0104-	●	●	●	●
17	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	01	1	0104-	●	●	●	●
86	VALVE; MAG,EXH BRK (A)	1-82563-598-3	01	1	9603-9901	●	●
86	VALVE; MAG,EXH BRK (A)	1-82563-871-0	01	1	9902-9904	●	●
86	VALVE; MAG,EXH BRK EXC. GOVERNOR CONTROL<W69> (A)	1-82563-871-1	01	1	9905-0001	●	●	●	●
86	VALVE; MAG,EXH BRK EXC. GOVERNOR CONTROL<W69> (A)	1-82563-871-2	01	1	0002-	●	●	●	●
86	VALVE; MAG,EXH BRK CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (A)	1-82563-871-2	02	1	9905-	●	●	●	●
86	VALVE; MAG,EXH BRK SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (B)	1-82563-599-3	01	1	9603-9901		●
87	CONNECTOR (C) STRAIGHT M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
87	CONNECTOR EXC. GOVERNOR CONTROL<W69> (C) STRAIGHT M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9901	●	●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9901	●	●
87	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9901	●	●
87	CONNECTOR FULL FLOATING CAB(W16) (A) M12,M12,PT1/4 3-WAY	1-09656-229-1	01	1	9603-9901		●
87	CONNECTOR SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (A) M12,M12,PT1/4 3-WAY	1-09656-229-1	01	1	9603-9901		●
87	CONNECTOR EXC. GOVERNOR CONTROL<W69> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9901	●	●
87	CONNECTOR SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9901		●
87	CONNECTOR (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-9901	●	●
87	CONNECTOR (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-	●	●
87	CONNECTOR (H) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9905-	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9603-9702	●	●	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9703-9901	●	●	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (G) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-9901	●	●	●	●
87	CONNECTOR CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (C) M20 & PT1/4	9-09902-386-0	01	1	9905-	●	●	●	●
88	PLUG PT1/4	9-99204-513-0	01	1	9905-0001	●	●	●	●
88	PLUG PT1/4	9-99204-513-0	01	1	0002-		●	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9608	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-9901	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9904	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (C) M6X50 FLANGE	0-28080-650-0	01	1	9905-	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE	0-28080-870-0	02	1	9603-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M8	9-09110-508-0	02	1	9603-9606	●	●	●	●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> M8	9-09110-408-0	02	1	9603-9606		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9905-	●	●	●	●
94	BRACKET; MAG VLV,EXH BRAKE (A)	1-82569-153-0	01	1	9603-9904	●	●
94	BRACKET; MAG VLV,EXH BRAKE (C)	1-82569-277-2	01	1	9905-	●	●
94	BRACKET; MAG VLV,EXH BRAKE CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B)	1-82569-233-0	01	1	9603-9904	●	●	●	●
99	WASHER; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69>	1-82569-266-0	02	1	9905-	●	●	●	●
120	GASKET; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> ID=16.8	9-09565-117-0	01	1	9905-	●	●	●	●

93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9608	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-9901	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9904	●	●
92	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9904	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (C) M6X50 FLANGE	0-28080-650-0	01	1	9905-	●	●	●	●
92	BOLT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> (B) M8X70 FLANGE	0-28080-870-0	02	1	9603-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M8	9-09110-508-0	02	1	9603-9606	●	●	●	●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> M8	9-09110-408-0	02	1	9603-9606		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M8 FLANGE	0-91150-108-0	02	1	9607-9904		●
93	NUT; MAG VLV CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9905-	●	●	●	●
