Sayfa 4-35 - Isuzu EPC

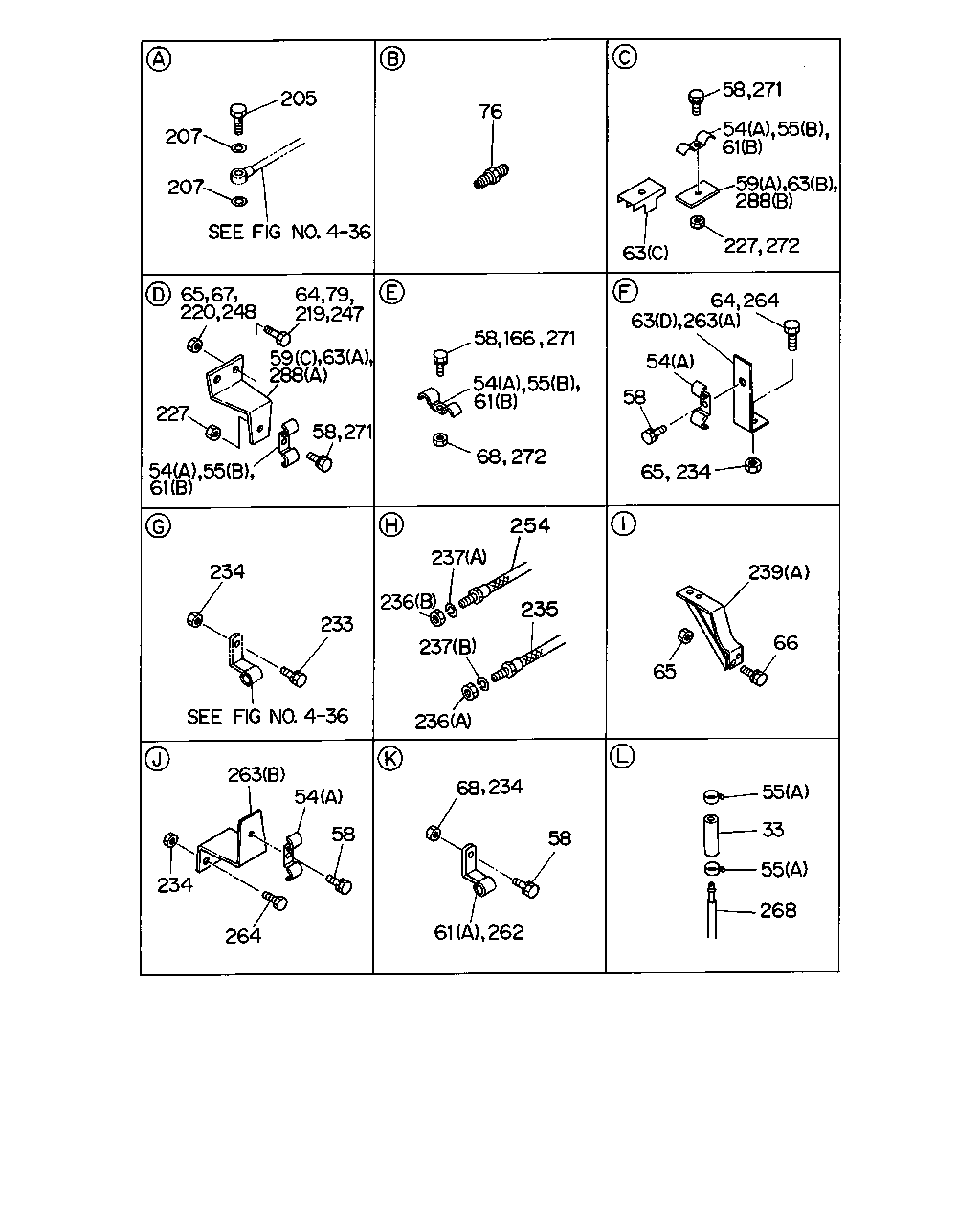

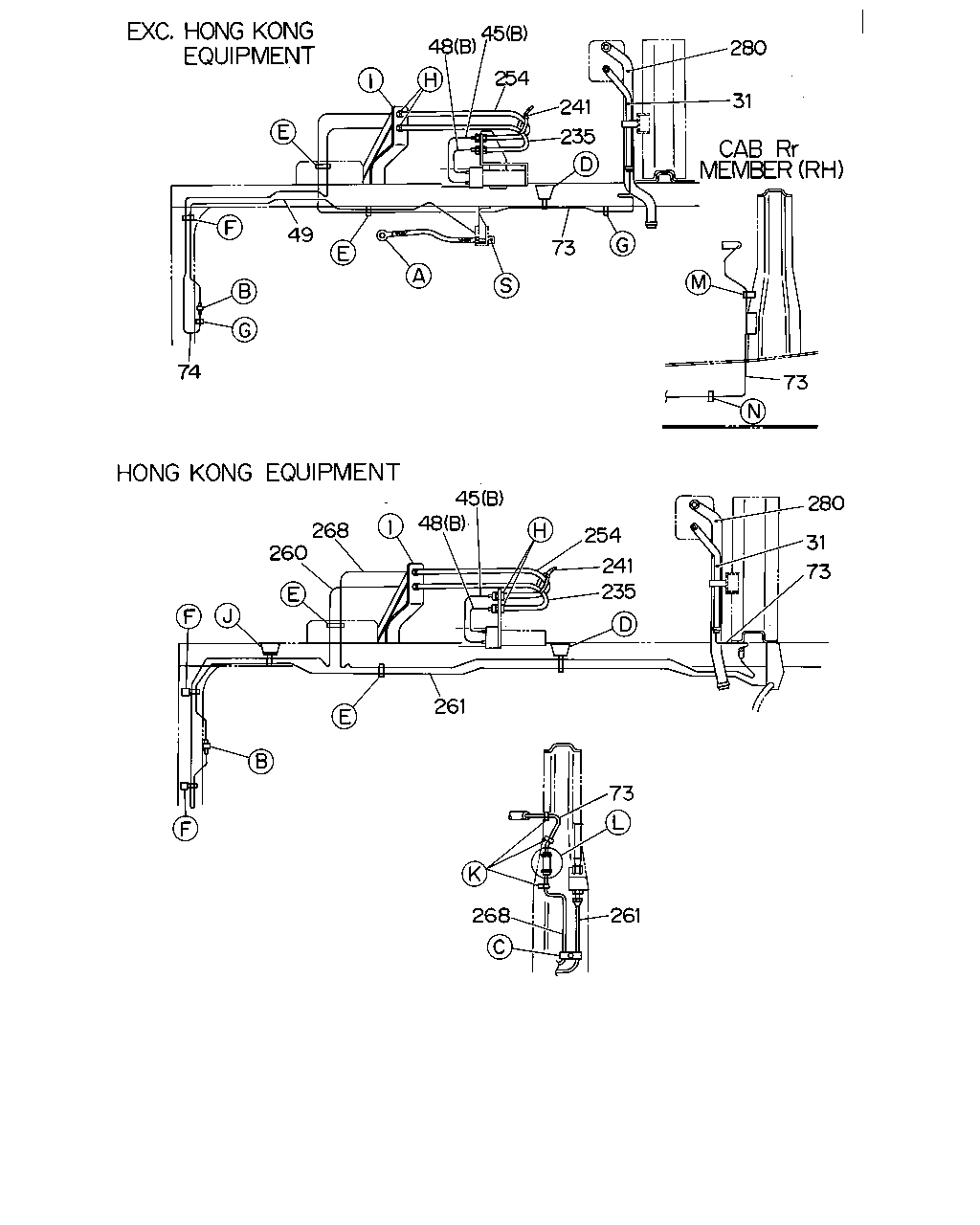

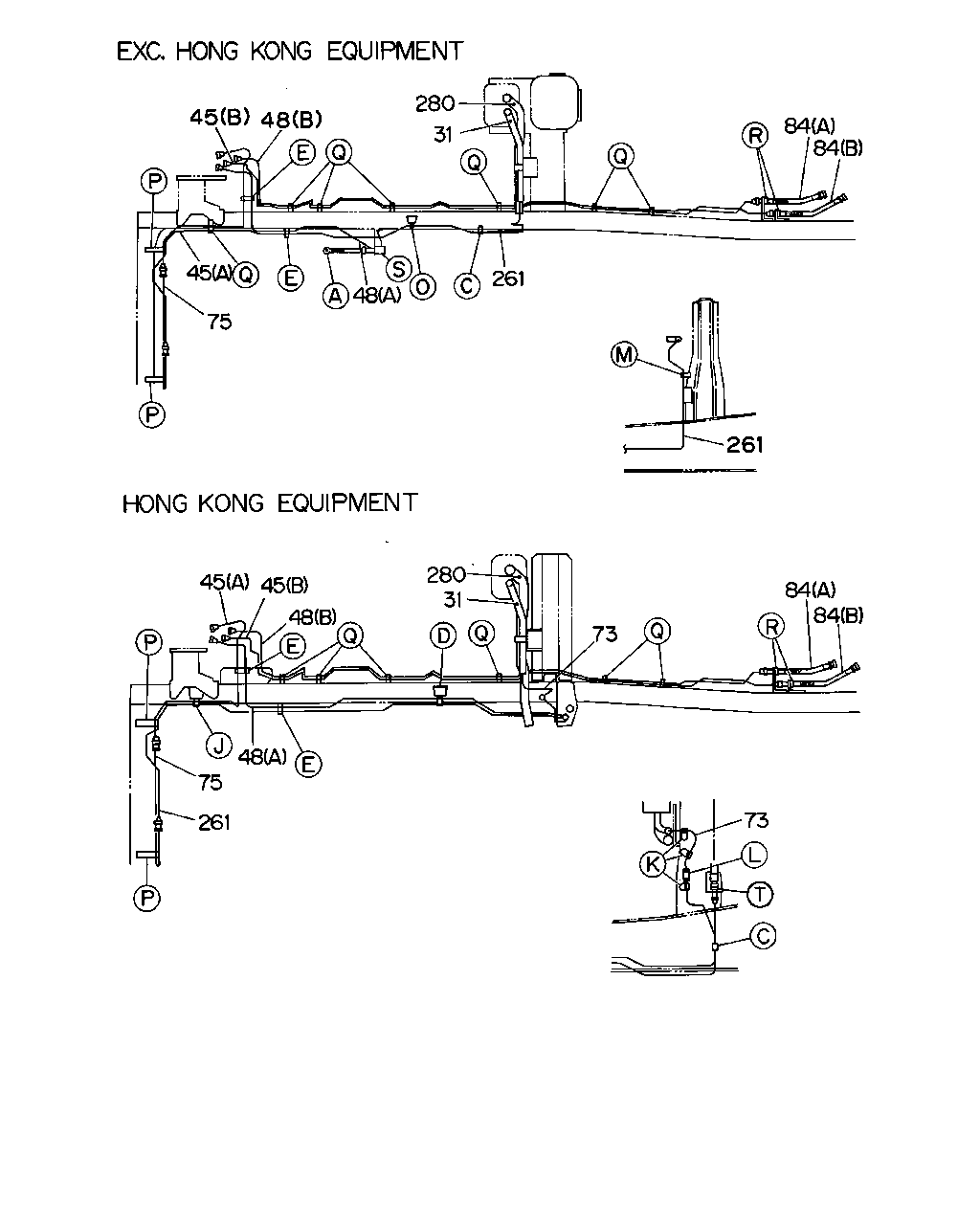

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#533) — 363 parça

268 55 33 55 58 234 68 61 262 58 54 263 234 264 233 234 236 236 235 237 254 65 66 239 234 65 58 54 63 263 64 264 271 166 58 54 55 61 68 272 271 58 55 54 61 227 248 67 220 65 64 79 219 247 59 63 268 207 207 205 76 58 271 55 54 61 59 63 288 272 227 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	HOSE; RUBBER,POWER STRG HONG KONG EQUIPMENT(PQ1) L=80	1-09360-570-0	01	1	8712-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	8712-9306
54	CLIP; OIL PIPE (C) ID=13X2 L=20	9-09535-236-0	07	1	9307-
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	01	1	8712-9206
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	02	1	9207-9306
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	8712-9306
54	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	8712-9306
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9307-
54	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9307-
54	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=16X2 L=20	9-09535-535-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE (C) ID=28 L=30	1-09700-607-1	01	1	8712-
55	CLIP; P/S RUBBER HOSE HONG KONG EQUIPMENT(PQ1) (A) ID=28	9-09915-672-1	02	1	8712-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=16 L=20	9-09525-535-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9307-
58	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	8712-9204
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER	9-01900-816-0	02	1	8712-9204
58	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28080-816-0	01	1	9307-
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	8712-9002
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01900-820-0	03	1	8712-9204
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9206
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	04	1	9207-9306
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	9-01900-845-0	01	1	8712-9204
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28080-850-0	07	1	9307-
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	07	1	9307-
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28010-816-0	01	1	8712-9204
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28080-816-0	01	1	9205-9306
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X45 FLANGE	0-28080-845-0	07	1	9307-
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	8910-9204
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306
59	BRACKET; CLIP,OIL PIPE (A) L=50	1-47475-299-2	01	1	9307-
59	BRACKET; CLIP,OIL PIPE (D)	1-47476-718-1	02	1	9307-
59	BRACKET; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47475-298-0	02	1	9307-
59	BRACKET; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-47475-298-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (E)	1-47475-369-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) L=90 W/NUT	1-47475-520-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	8911-9008
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	02	1	9307-
61	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=15 H=24 L=20	1-09700-606-0	02	1	8712-
61	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=15 H=24 L=20	1-09700-606-0	02	1	8712-8909
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	01	1	8712-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	8712-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=16 L=20	9-09525-535-0	01	1	8712-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	8910-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	8910-9306
63	BRACKET; CLIP,P/S HONG KONG EQUIPMENT(PQ1) (A)	1-47475-298-0	01	1	8712-9306
63	BRACKET; CLIP,P/S HONG KONG EQUIPMENT(PQ1) (B) L=50	1-47475-299-2	01	1	8712-9306
63	BRACKET; CLIP,P/S HONG KONG EQUIPMENT(PQ1) (C)	1-47475-427-1	01	1	8712-9306
63	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-47475-519-0	01	1	8712-9306
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-
64	BOLT; CLIP BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	02	1	8712-9204
64	BOLT; CLIP BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306
64	BOLT; CLIP BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204
64	BOLT; CLIP BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306
65	NUT; BRKT M8	9-09110-408-0	01	1	8712-9306
65	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	8712-9306
65	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	8712-9306
65	NUT; BRKT M10	9-09110-510-0	02	1	8712-9306
65	NUT; BRKT M8	9-09110-408-0	01	1	9307-
65	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	8712-9306
66	BOLT; BRKT,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-8805
66	BOLT; BRKT,OIL PIPE M10X35 W/LK WASHER	9-01911-035-0	02	1	8712-9002
66	BOLT; BRKT,OIL PIPE M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9306
66	BOLT; BRKT,OIL PIPE M8X40 FLANGE	0-28080-840-0	01	1	9307-
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	01	1	8806-8911
67	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	9307-
67	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	8712-9306
68	NUT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
68	NUT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	8910-9306
68	NUT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
68	NUT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
68	NUT; CLIP,OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	8712-9306
79	BOLT; BRKT M8X40 FLANGE	0-28080-840-0	01	1	9307-
79	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9307-
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	03	1	8712-9204
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9306
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	01	1	9307-
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	8712-9204
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306
166	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	8712-9010
166	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	01	1	9307-
205	BOLT; EYE,FLEX HOSE,P/S EXC. HONG KONG EQUIPMENT(PQ1) M18X39	1-09675-114-0	01	1	8712-9310
205	BOLT; EYE,FLEX HOSE,P/S EXC. HONG KONG EQUIPMENT(PQ1) M18X36	1-09675-205-0	01	1	9311-
207	GASKET; FLEX HOSE,P/S PUMP EXC. HONG KONG EQUIPMENT(PQ1) ID=18.2 OD=24.4	1-09630-087-0	02	1	8712-
219	BOLT; BRKT,UNION,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	03	1	9307-
220	NUT; BRKT,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	9307-
227	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9206
227	NUT; PIPE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	9207-9306
233	BOLT; PIPE CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-8910
233	BOLT; PIPE CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	01	1	8911-9001
233	BOLT; PIPE CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204
233	BOLT; PIPE CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	01	1	9205-9306
233	BOLT; PIPE CLIP,P/S NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	8712-9008
234	NUT; PIPE CLIP,P/S HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	04	1	8712-9306
234	NUT; PIPE CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	8712-9008
234	NUT; PIPE CLIP,P/S HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9307-
234	NUT; PIPE CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9009-9306
234	NUT; PIPE CLIP,P/S NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	8712-9008
235	HOSE; FLEX,BOOSTER,DELIVERY	1-09364-440-0	01	1	8712-9306
236	NUT; FLEX HOSE,P/S PIPING (A) M22	9-09111-422-0	02	1	8712-9306
236	NUT; FLEX HOSE,P/S PIPING (B) M20	9-99111-420-0	02	1	8712-9306
237	WASHER; LK,FLEX HOSE,P/S PIPE (A) ID=20.2	9-09150-520-0	02	1	8712-9306
237	WASHER; LK,FLEX HOSE,P/S PIPE (B) ID=22.5	9-09150-522-0	02	1	8712-9306
239	BRACKET; FLEX HOSE (A)	1-47475-327-3	01	1	8712-9306
239	BRACKET; FLEX HOSE (B)	1-47476-799-0	01	1	9307-
239	BRACKET; FLEX HOSE (C)	1-47476-859-0	01	1	9307-
239	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-47475-374-1	01	1	8712-
247	BOLT; BRKT,CLIP HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9307-
248	NUT; BRKT,CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
254	HOSE; FLEX,BOOSTER,RETURN	1-09364-440-0	01	1	8712-9306
262	CLIP; P/S PIPE HONG KONG EQUIPMENT(PQ1) ID=15 H=24 L=20	1-09700-606-0	01	1	8712-
263	BRACKET; P/S PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47475-298-0	01	1	8712-9306
263	BRACKET; P/S PIPE HONG KONG EQUIPMENT(PQ1) (A) L=90 W/NUT	1-47475-520-0	02	1	8712-9306
264	BOLT; PIPE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	9-01900-830-0	03	1	8712-9204
264	BOLT; PIPE BRKT HONG KONG EQUIPMENT(PQ1) M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-9306
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-131-0	01	1	8712-8801
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-164-0	01	1	8802-9306
271	BOLT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28080-816-0	01	1	9307-
271	BOLT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	02	1	9307-
271	BOLT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-
272	NUT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
272	NUT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-47475-369-0	01	1	8712-9306
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-47475-298-0	01	1	8712-9306
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) (B) L=50	1-47475-299-2	01	1	8712-9306
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-34656-004-0	01	1	9002-9306

79 59 62 67 54 58 65 79 58 271 54 55 61 65 220 59 288 79 219 272 68 58 59 79 66 67 65 258 54 58 238 239 84 84 239 81 238 256 257 255 255 79 239 257 256 280 41 287 41 41 41 37 31 58 55 37 26 25 15 19 12 5 3 2 19 20 8 7 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

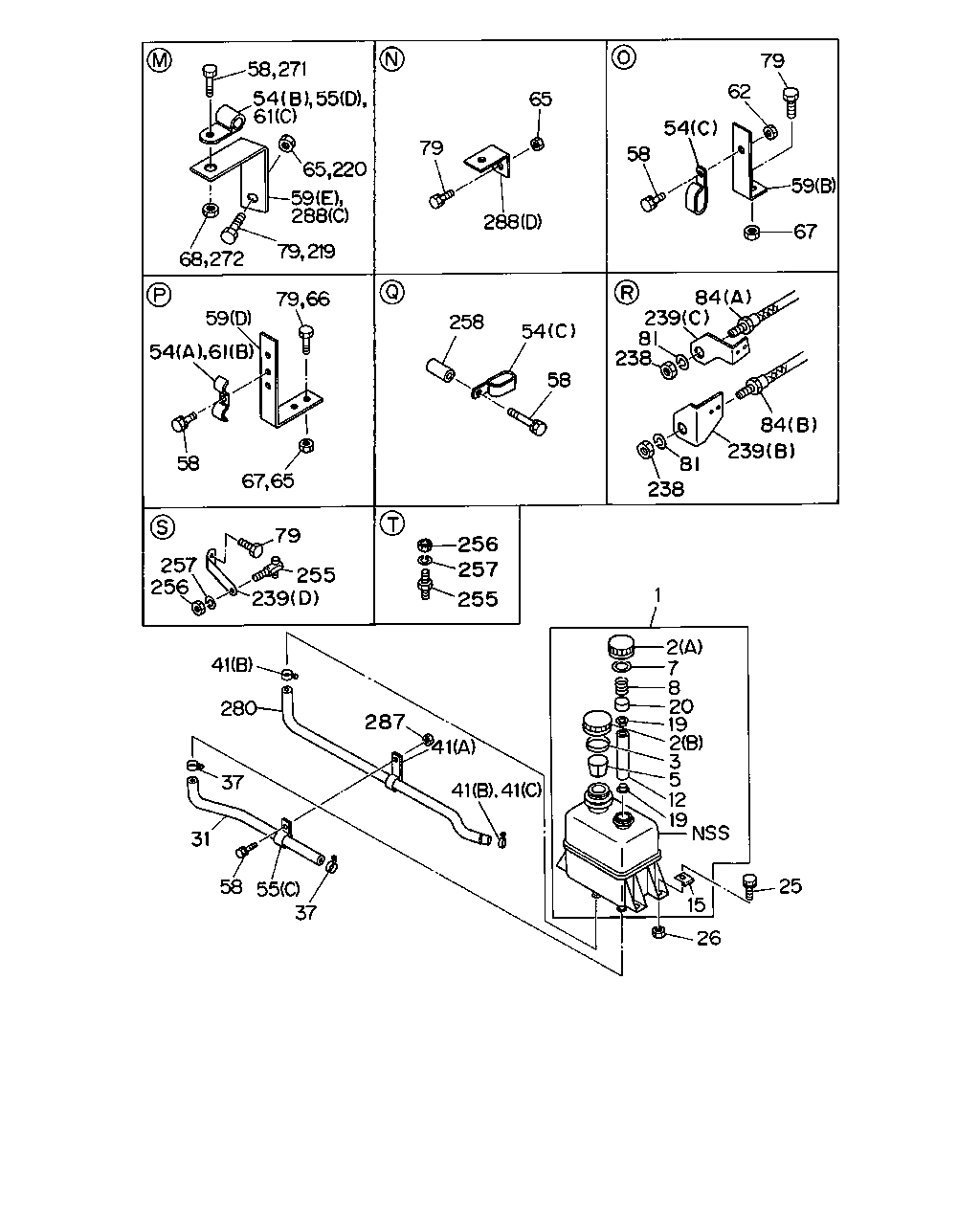

1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	8712-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	8712-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	8712-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	8712-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	8712-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	8712-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	8712-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	8712-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	8712-
19	SEAT; OIL TANK	1-21262-001-0	02	1	8712-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	8712-
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	9-01910-820-0	04	1	8712-9005
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9306
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9307-
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	8712-
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	8712-
37	CLIP; HOSE,P/S ID=28	9-09915-672-1	02	1	8712-
41	CLIP; HOSE,P/S (A) ID=35 L=75	1-09700-608-1	02	1	8712-8805
41	CLIP; HOSE,P/S (B) ID=38	9-09915-666-1	02	1	8712-8805
41	CLIP; HOSE,P/S L TYPE ENG<90L> (B) ID=38	9-09915-666-1	02	1	8806-9306
41	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=35 L=75	1-09700-608-2	01	1	8806-9409
41	CLIP; HOSE,P/S (C) ID=32 L=75	1-09700-702-0	01	1	9410-
41	CLIP; HOSE,P/S L TYPE ENG<90L> (B) ID=38	9-09915-666-1	02	1	9307-
41	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=32 L=75	1-09700-704-1	01	1	8806-9409
41	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=38	9-09915-666-1	01	1	8806-
41	CLIP; HOSE,P/S V TYPE ENG<91L> (C) ID=32	9-09915-692-1	01	1	8806-9001
41	CLIP; HOSE,P/S V TYPE ENG<91L> (C) ID=32	1-09704-085-0	01	1	9002-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	8712-9306
54	CLIP; OIL PIPE (C) ID=13X2 L=20	9-09535-236-0	07	1	9307-
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	01	1	8712-9206
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	02	1	9207-9306
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	8712-9306
54	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	8712-9306
54	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	9307-
54	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9307-
54	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=16X2 L=20	9-09535-535-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE (C) ID=28 L=30	1-09700-607-1	01	1	8712-
55	CLIP; P/S RUBBER HOSE HONG KONG EQUIPMENT(PQ1) (A) ID=28	9-09915-672-1	02	1	8712-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=16 L=20	9-09525-535-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9307-
55	CLIP; P/S RUBBER HOSE NYLON TUBE AIR PIPING<Z29> (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9307-
58	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	02	1	8712-9204
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER	9-01900-816-0	02	1	8712-9204
58	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28080-816-0	01	1	9307-
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-9204
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	8712-9002
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01900-820-0	03	1	8712-9204
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9206
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	04	1	9207-9306
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	9-01900-845-0	01	1	8712-9204
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X50 FLANGE	0-28080-850-0	07	1	9307-
58	BOLT; CLIP HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	07	1	9307-
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28010-816-0	01	1	8712-9204
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28080-816-0	01	1	9205-9306
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1) M8X45 FLANGE	0-28080-845-0	07	1	9307-
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	8910-9204
58	BOLT; CLIP EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306
59	BRACKET; CLIP,OIL PIPE (A) L=50	1-47475-299-2	01	1	9307-
59	BRACKET; CLIP,OIL PIPE (D)	1-47476-718-1	02	1	9307-
59	BRACKET; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47475-298-0	02	1	9307-
59	BRACKET; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-47475-298-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (E)	1-47475-369-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) L=90 W/NUT	1-47475-520-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> (A) L=50	1-47475-299-2	01	1	8911-9008
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	02	1	9307-
61	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (A) ID=15 H=24 L=20	1-09700-606-0	02	1	8712-
61	CLIP; OIL PIPE HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9307-
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=15 H=24 L=20	1-09700-606-0	02	1	8712-8909
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 16 L=17.5 & 17.5	1-09700-662-0	01	1	8712-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	8712-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=16 L=20	9-09525-535-0	01	1	8712-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	8910-9306
61	CLIP; OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	8910-9306
62	NUT; CLIP FIX M8	9-09110-408-0	01	1	9002-9306
62	NUT; CLIP FIX HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9307-
62	NUT; CLIP FIX EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
65	NUT; BRKT M8	9-09110-408-0	01	1	8712-9306
65	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	8712-9306
65	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	8712-9306
65	NUT; BRKT M10	9-09110-510-0	02	1	8712-9306
65	NUT; BRKT M8	9-09110-408-0	01	1	9307-
65	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	8712-9306
66	BOLT; BRKT,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	8712-8805
66	BOLT; BRKT,OIL PIPE M10X35 W/LK WASHER	9-01911-035-0	02	1	8712-9002
66	BOLT; BRKT,OIL PIPE M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-9306
66	BOLT; BRKT,OIL PIPE M8X40 FLANGE	0-28080-840-0	01	1	9307-
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	01	1	8806-8911
67	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	9307-
67	NUT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	8712-9306
68	NUT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	8712-9306
68	NUT; CLIP,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	8910-9306
68	NUT; CLIP,OIL PIPE HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
68	NUT; CLIP,OIL PIPE NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-
68	NUT; CLIP,OIL PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-
79	BOLT; BRKT M8X40 FLANGE	0-28080-840-0	01	1	9307-
79	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9307-
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	03	1	8712-9204
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9306
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	01	1	9307-
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	01	1	8712-9204
79	BOLT; BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9306
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9307-
81	WASHER; LK,FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	8712-9009
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9307-
84	HOSE; FLEX,P/S (B)	0-09538-370-0	01	1	9307-
219	BOLT; BRKT,UNION,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	03	1	9307-
220	NUT; BRKT,OIL PIPE EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	03	1	9307-
238	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9307-
239	BRACKET; FLEX HOSE (A)	1-47475-327-3	01	1	8712-9306
239	BRACKET; FLEX HOSE (B)	1-47476-799-0	01	1	9307-
239	BRACKET; FLEX HOSE (C)	1-47476-859-0	01	1	9307-
239	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1) (D)	1-47475-374-1	01	1	8712-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9307-
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9307-
256	NUT; UNION M22	9-09111-422-0	01	1	9307-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	8712-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	07	1	9307-
271	BOLT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE	0-28080-816-0	01	1	9307-
271	BOLT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	02	1	9307-
271	BOLT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-
272	NUT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9307-
272	NUT; P/S OIL PIPE FIX EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-
280	HOSE; P/S OIL PUMP,INL	1-21112-348-0	01	1	8712-8801
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21112-348-0	01	1	8802-
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L>	1-21112-084-1	01	1	8802-9306
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-
287	NUT; CLIP M8	9-09110-408-0	01	1	8712-8805
287	NUT; CLIP L TYPE ENG<90L> M8	9-09110-408-0	01	1	8806-9001
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-47475-369-0	01	1	8712-9306
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-47475-298-0	01	1	8712-9306
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1) (B) L=50	1-47475-299-2	01	1	8712-9306
288	BRACKET; CLIP,P/S EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (D)	1-34656-004-0	01	1	9002-9306

268 261 73 261 260 268 48 45 235 241 254 73 31 280 73 31 280 241 254 45 48 235 49 73 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	8712-
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21111-857-0	01	1	8712-9306
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21114-787-0	01	1	9307-9412
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-21114-787-0	01	1	9501-
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1) (A)	1-21114-423-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1) (B)	1-21115-274-0	01	1	9501-
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-21114-732-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION NYLON TUBE AIR PIPING<Z29> (A)	1-21114-200-0	01	1	9307-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21111-856-0	01	1	8712-9306
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21114-868-0	01	1	9307-9412
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-21114-868-0	01	1	9501-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-21114-422-0	01	1	9307-9412
48	PIPE; OIL,FLEX HOSE TO STRG UNIT HONG KONG EQUIPMENT(PQ1) (B)	1-21115-275-0	01	1	9501-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-21115-276-0	01	1	9501-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-21114-731-0	01	1	9307-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NYLON TUBE AIR PIPING<Z29> (A)	1-21114-734-0	01	1	9307-
49	PIPE; OIL,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1)	1-21113-090-0	01	1	8712-9008
49	PIPE; OIL,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29>	1-21113-790-0	01	1	9009-9306
49	PIPE; OIL,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21113-791-0	01	1	9009-9306
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE HONG KONG EQUIPMENT(PQ1) L=390	1-21111-975-1	01	1	8712-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21112-282-0	01	1	8712-8909
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21113-315-0	01	1	8910-9008
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21113-793-0	01	1	9009-9306
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE NYLON TUBE AIR PIPING<Z29>	1-21112-972-0	01	1	8712-8909
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE NYLON TUBE AIR PIPING<Z29>	1-21113-410-0	01	1	8910-9008
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE NYLON TUBE AIR PIPING<Z29>	1-21113-792-0	01	1	9009-9306
74	PIPE; OIL,P/S,UNION TO FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21112-310-0	01	1	8712-9306
74	PIPE; OIL,P/S,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29>	1-21112-971-1	01	1	8712-9306
235	HOSE; FLEX,BOOSTER,DELIVERY	1-09364-440-0	01	1	8712-9306
241	BAND; BRKT L=250	5-09707-030-0	01	1	8712-9306
254	HOSE; FLEX,BOOSTER,RETURN	1-09364-440-0	01	1	8712-9306
260	PIPE ASM; OIL STRG UNIT BOOSTER OUTER HONG KONG EQUIPMENT(PQ1)	1-21113-063-0	01	1	8712-8912
260	PIPE ASM; OIL STRG UNIT BOOSTER OUTER HONG KONG EQUIPMENT(PQ1)	1-21113-129-0	01	1	9001-9306
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-130-0	01	1	8712-8801
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-165-0	01	1	8802-8901
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-405-1	01	1	8902-9306
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21114-424-0	01	1	9307-
261	PIPE; OIL,UNION TO HOSE EXC. HONG KONG EQUIPMENT(PQ1)	1-21114-202-0	01	1	9307-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-131-0	01	1	8712-8801
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-164-0	01	1	8802-9306
280	HOSE; P/S OIL PUMP,INL	1-21112-348-0	01	1	8712-8801
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21112-348-0	01	1	8802-
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L>	1-21112-084-1	01	1	8802-9306
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-

45 48 280 45 48 261 31 84 84 75 261 84 84 73 73 280 31 48 45 45 48 75 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	8712-
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21111-857-0	01	1	8712-9306
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21114-787-0	01	1	9307-9412
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-21114-787-0	01	1	9501-
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1) (A)	1-21114-423-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION HONG KONG EQUIPMENT(PQ1) (B)	1-21115-274-0	01	1	9501-
45	PIPE; OIL,P/S UNIT TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-21114-732-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION NYLON TUBE AIR PIPING<Z29> (A)	1-21114-200-0	01	1	9307-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21111-856-0	01	1	8712-9306
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	1-21114-868-0	01	1	9307-9412
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-21114-868-0	01	1	9501-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-21114-422-0	01	1	9307-9412
48	PIPE; OIL,FLEX HOSE TO STRG UNIT HONG KONG EQUIPMENT(PQ1) (B)	1-21115-275-0	01	1	9501-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT HONG KONG EQUIPMENT(PQ1) (A)	1-21115-276-0	01	1	9501-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-21114-731-0	01	1	9307-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NYLON TUBE AIR PIPING<Z29> (A)	1-21114-734-0	01	1	9307-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE HONG KONG EQUIPMENT(PQ1) L=390	1-21111-975-1	01	1	8712-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21112-282-0	01	1	8712-8909
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21113-315-0	01	1	8910-9008
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-21113-793-0	01	1	9009-9306
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE NYLON TUBE AIR PIPING<Z29>	1-21112-972-0	01	1	8712-8909
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE NYLON TUBE AIR PIPING<Z29>	1-21113-410-0	01	1	8910-9008
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE NYLON TUBE AIR PIPING<Z29>	1-21113-792-0	01	1	9009-9306
75	PIPE; OIL,P/S,UNION TO UNION	1-21114-201-0	01	1	9307-
84	HOSE; FLEX,P/S (A)	0-09538-320-0	01	1	9307-
84	HOSE; FLEX,P/S (B)	0-09538-370-0	01	1	9307-
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-130-0	01	1	8712-8801
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-165-0	01	1	8802-8901
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21113-405-1	01	1	8902-9306
261	PIPE; OIL,UNION TO HOSE HONG KONG EQUIPMENT(PQ1)	1-21114-424-0	01	1	9307-
261	PIPE; OIL,UNION TO HOSE EXC. HONG KONG EQUIPMENT(PQ1)	1-21114-202-0	01	1	9307-
280	HOSE; P/S OIL PUMP,INL	1-21112-348-0	01	1	8712-8801
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21112-348-0	01	1	8802-
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L>	1-21112-084-1	01	1	8802-9306
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L> AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21113-001-0	01	1	9307-
280	HOSE; P/S OIL PUMP,INL V TYPE ENG<91L> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-21112-084-1	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
