0-40 — FUEL INJECTION SYSTEM (#53298) — 109 parça

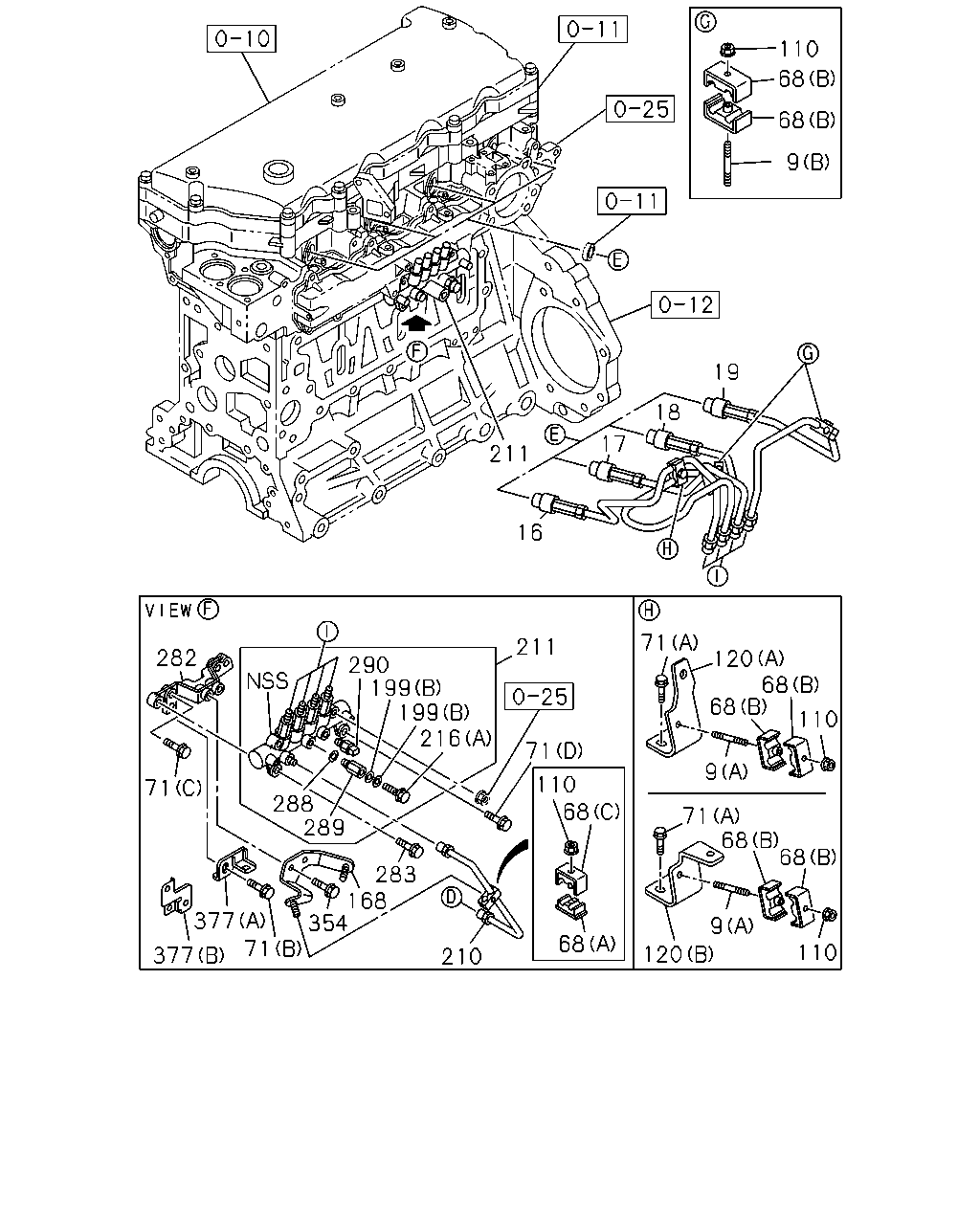

110 68 68 9 19 211 18 17 16 71 211 282 120 68 68 290 199 199 216 110 71 9 110 68 71 288 289 71 68 68 283 168 377 354 71 9 68 110 120 377 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.340 STUD; CLIP 00.413 (B) M6X30 L=38	0-41010-630-0	02	1	0710-
9	03.340 STUD; CLIP 00.413 (A) M6X35 L=43	8-97203-278-0	01	1	0710-
16	03.330 PIPE; INJ NO.1	8-98039-934-0	01	1	0710-1102
16	03.330 PIPE; INJ NO.1	8-98185-344-0	01	1	1103-1404
16	03.330 PIPE; INJ NO.1	8-98271-202-0	01	1	1405-1501
16	03.330 PIPE; INJ NO.1	8-98298-606-0	01	1	1502-
17	03.330 PIPE; INJ NO.2	8-98039-935-0	01	1	0710-1102
17	03.330 PIPE; INJ NO.2	8-98185-345-0	01	1	1103-1404
17	03.330 PIPE; INJ NO.2	8-98271-203-0	01	1	1405-1501
17	03.330 PIPE; INJ NO.2	8-98298-607-0	01	1	1502-
18	03.330 PIPE; INJ NO.3	8-98039-936-0	01	1	0710-1102
18	03.330 PIPE; INJ NO.3	8-98185-346-0	01	1	1103-1404
18	03.330 PIPE; INJ NO.3	8-98271-204-0	01	1	1405-1501
18	03.330 PIPE; INJ NO.3	8-98298-608-0	01	1	1502-
19	03.330 PIPE; INJ NO.4	8-98039-937-0	01	1	0710-1102
19	03.330 PIPE; INJ NO.4	8-98185-347-0	01	1	1103-1404
19	03.330 PIPE; INJ NO.4	8-98271-205-0	01	1	1405-1501
19	03.330 PIPE; INJ NO.4	8-98298-609-0	01	1	1502-
68	03.162 CLIP; INJ PIPE (C)	1-09701-195-3	01	1	0710-
68	03.162 CLIP; INJ PIPE (A)	1-09701-196-2	01	1	0710-
68	03.162 CLIP; INJ PIPE (B) ID=11 & 11 L=19	8-98039-293-0	06	1	0710-1405
68	03.162 CLIP; INJ PIPE (B) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	03	1	0710-0710
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0710-0803
71	03.162 BOLT; BRKT EURO4 SPECIFICATION(NT4) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0804-
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0710-
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0710-
71	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0804-
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-
120	03.330 BRACKET; INJ PIPE (B)	8-98041-601-0	01	1	0710-0803
120	03.330 BRACKET; INJ PIPE EURO4 SPECIFICATION(NT4) (B)	8-98041-601-0	01	1	0804-0906
120	03.330 BRACKET; INJ PIPE (B)	8-98041-601-0	01	1	0907-
120	03.330 BRACKET; INJ PIPE EURO2 SPECIFICATION(NT2) (A)	8-98001-041-0	01	1	0804-0906
168	03.890 BRACKET; FUEL PIPE	8-98036-175-1	01	1	0710-
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0710-
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0710-
210	03.330 PIPE; INJ,C/R	8-98036-176-1	01	1	0710-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0710-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	0710-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0710-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0710-
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0710-1005
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-
283	03.330 BOLT; COMMON RAIL 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0710-
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0710-
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0710-
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0710-0809
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	0810-
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-
377	03.332 BRACKET; HARNESS (A)	8-97310-438-0	02	1	0710-0803
377	03.332 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) (A)	8-97310-438-1	02	1	0804-
377	03.332 BRACKET; HARNESS (B)	8-97379-783-1	01	1	0710-0710
377	03.332 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (A)	8-97310-438-1	01	1	0804-

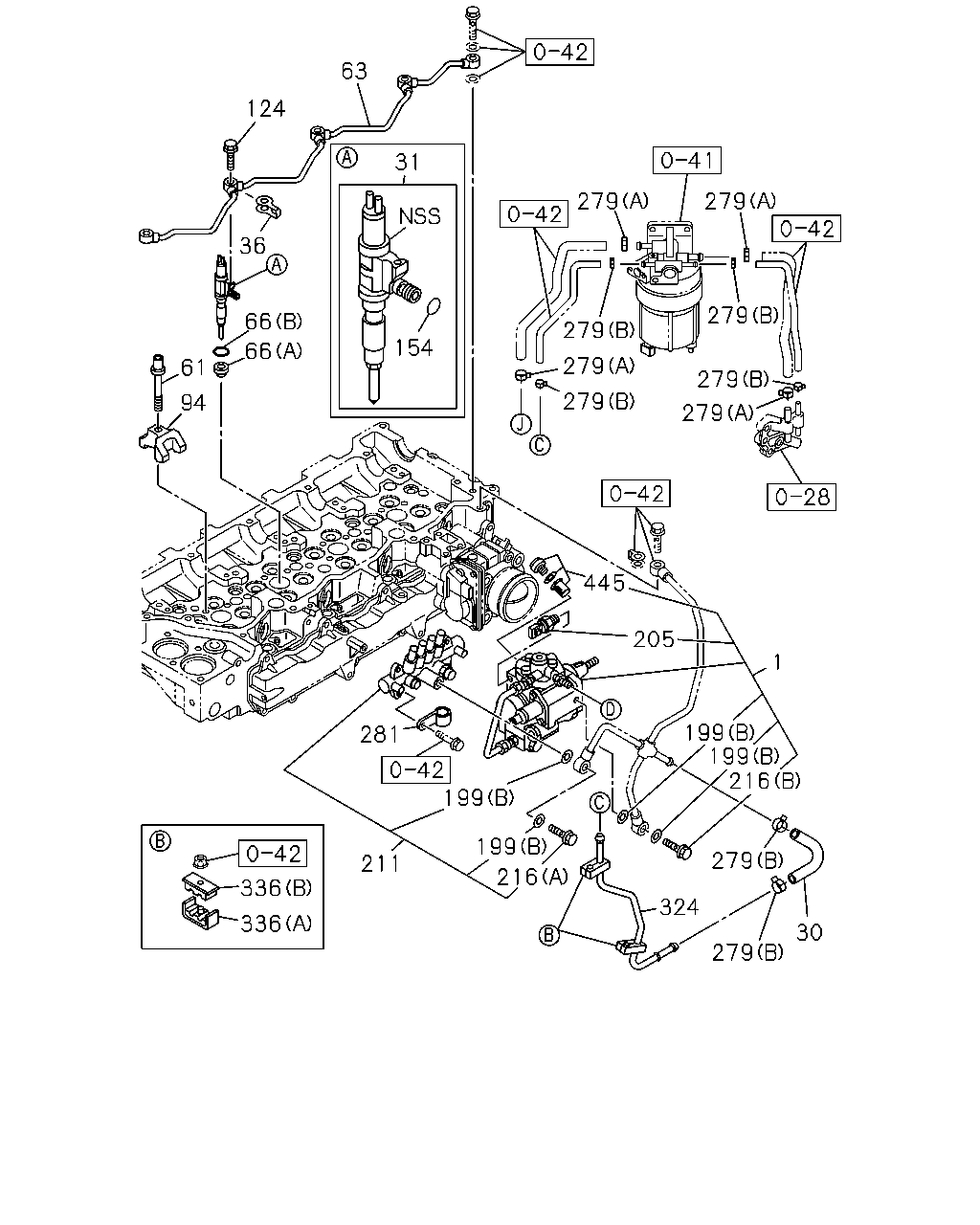

279 279 279 279 279 279 279 279 279 279 445 205 1 199 199 216 324 216 199 199 211 336 336 281 94 61 66 66 36 124 63 31 154 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	0710-
30	03.163 HOSE; RUBBER,FUEL LEAK	8-98036-320-2	01	1	0710-
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	0710-
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.162 ID=8.3	8-97600-925-0	04	1	0710-0908
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0710-
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0710-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	0710-
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-97601-447-2	04	1	0710-0909
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	0710-
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0710-
154	03.332 GASKET; CONNECTOR 06.609 ID=11.0	9-09561-111-0	04	1	0710-1106
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1107-
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0710-
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0710-
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0710-
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0710-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	0710-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0710-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0710-
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	0710-
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	06	1	0710-
281	03.162 CLIP ID=16 H=24 L=20	0-95207-315-0	01	1	0710-0710
324	03.330 PIPE; FUEL RETURN	8-98036-173-0	01	1	0710-
336	03.163 CLIP; FUEL PIPE 01.531 (A) ID=8 & 9 L=25	8-97603-522-0	02	1	0710-
336	03.163 CLIP; FUEL PIPE 01.531 (B) ID=8 & 9 L=25	8-97603-523-0	02	1	0710-
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	0710-

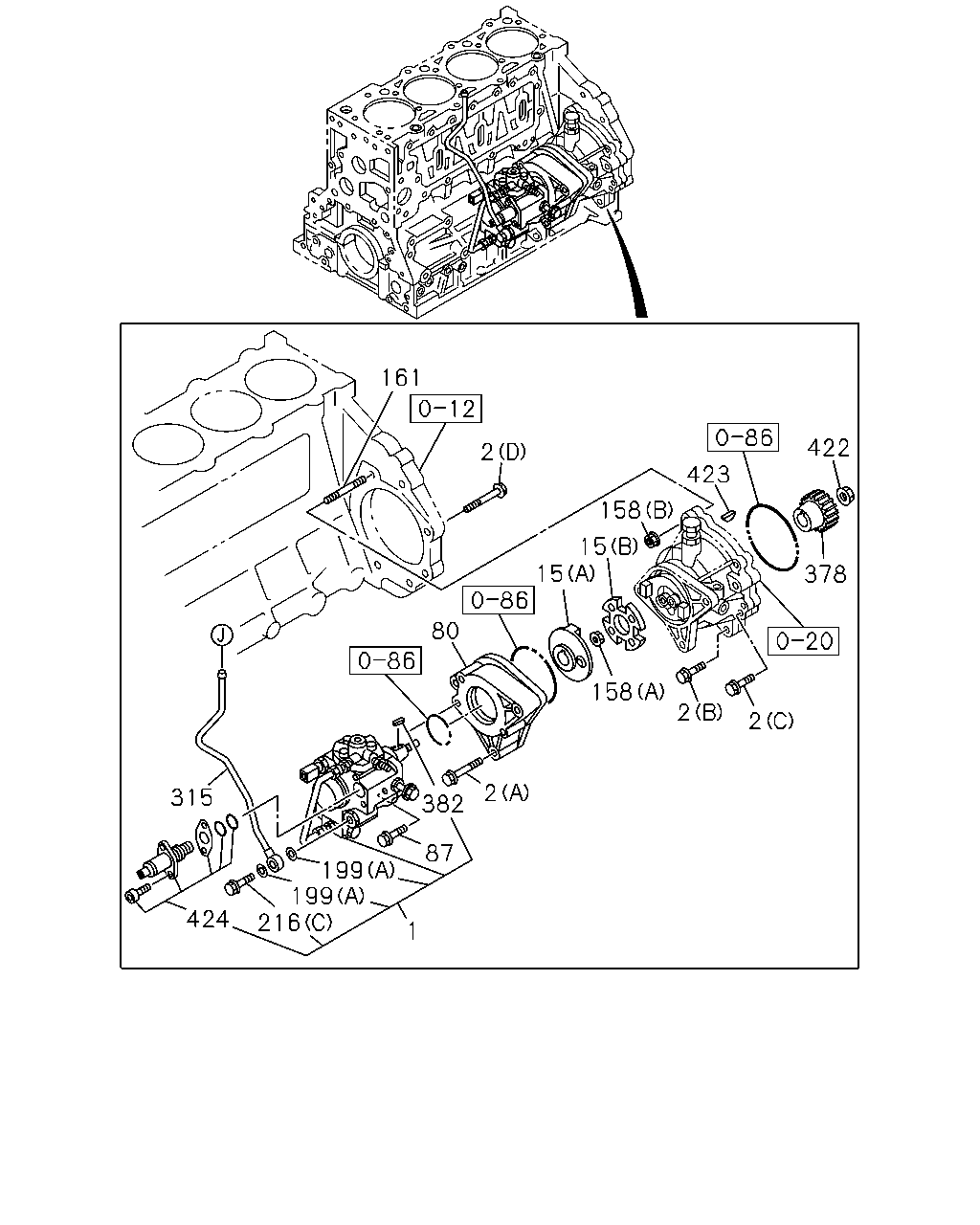

161 422 2 423 158 15 15 378 80 158 2 2 2 315 382 87 199 199 216 424 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	0710-
2	03.330 BOLT; INJ PUMP 00.685 (A) M10X60 FLANGE	0-28051-060-0	03	1	0710-
2	03.330 BOLT; INJ PUMP 02.277 (B) M10X70 FLANGE	0-28151-070-0	01	1	0710-
2	03.330 BOLT; INJ PUMP 00.206 (C) M12X70 FLANGE	0-28151-270-0	01	1	0710-
2	03.330 BOLT; INJ PUMP (D) M12X95 FLANGE	8-94396-485-1	01	1	0710-
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	0710-
15	03.340 COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	0710-
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	0710-
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	0710-
158	03.330 NUT; INJ PUMP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-
158	03.330 NUT; INJ PUMP 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	0710-
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0710-0910
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0710-
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0710-
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	0710-
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0710-
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0710-
315	03.163 PIPE; FUEL,SUCTION	8-98036-172-0	01	1	0710-0808
315	03.163 PIPE; FUEL,SUCTION	8-98126-333-0	01	1	0809-
378	03.330 GEAR; PUMP Z=35	8-98017-915-0	01	1	0710-
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0710-1201
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-
422	03.330 NUT; GEAR 06.172 M18	8-97141-154-0	01	1	0710-
423	03.162 KEY; GEAR 08.960	9-08055-519-0	01	1	0710-
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER	8-98145-484-0	01	1	0710-0905
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	0906-
