Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#53293) — 21 parça
◀

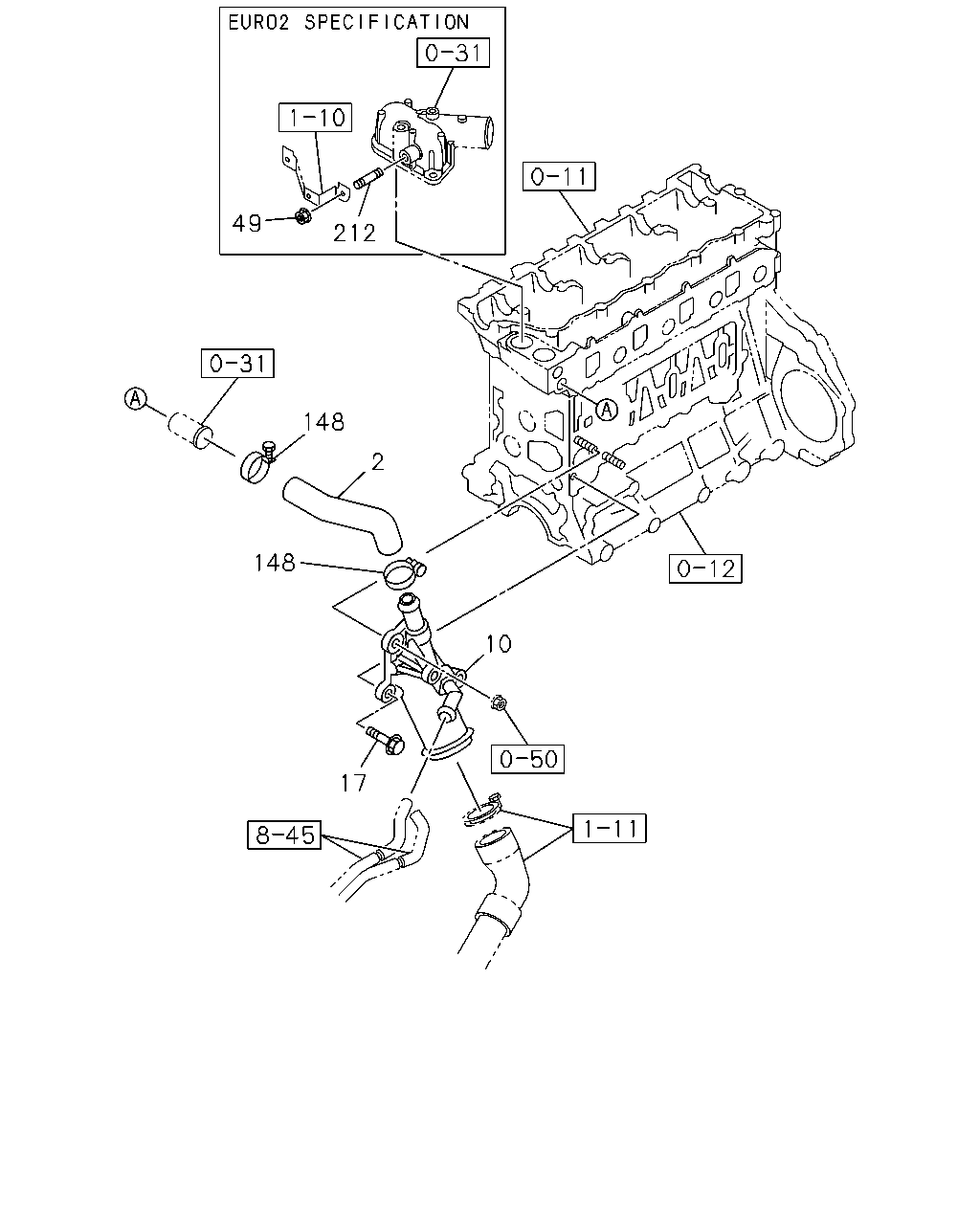

[032A] NO.1 (7 parça)

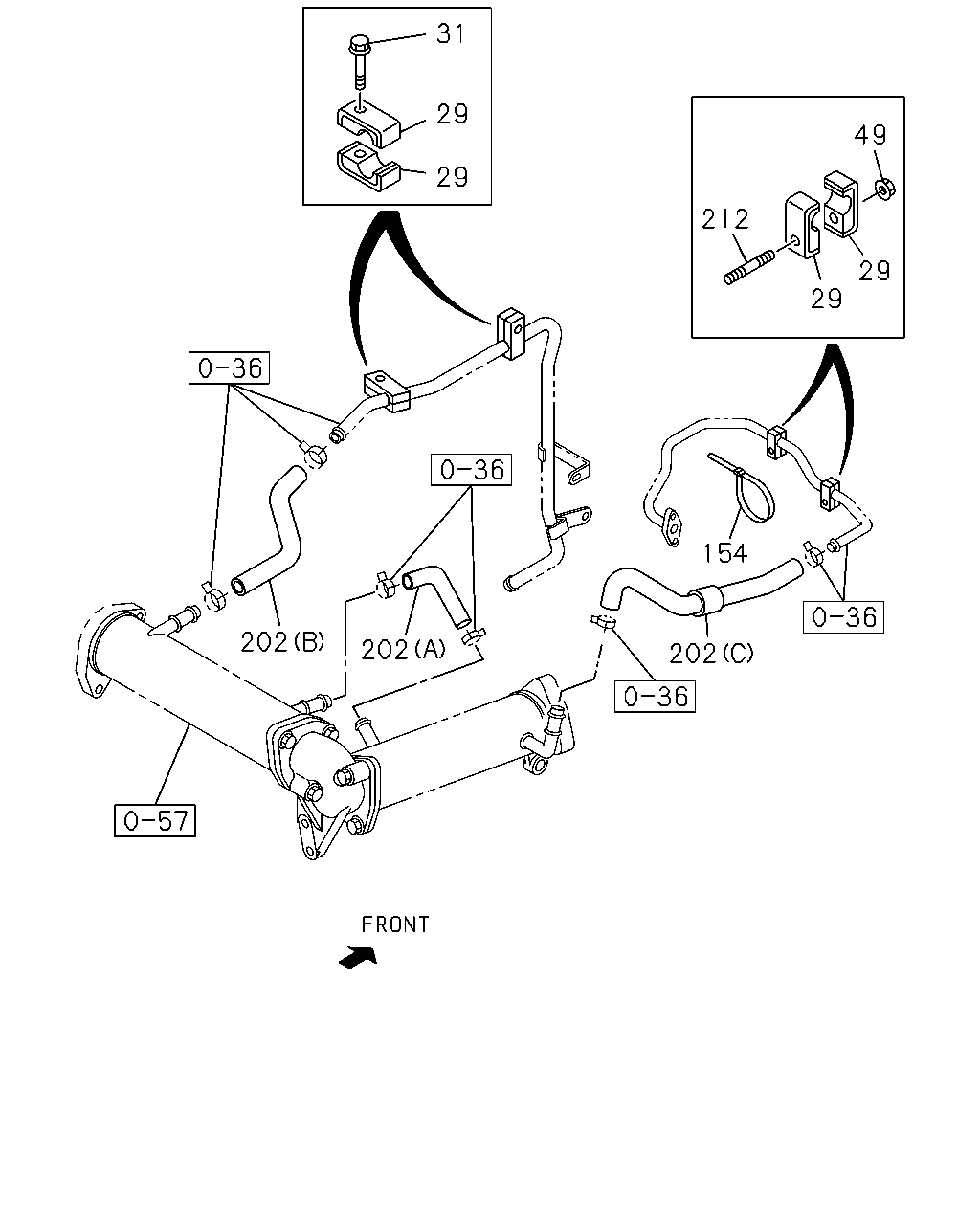

[032A] NO.2 (14 parça)
▶
212
49
148
2
148
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
01.097 HOSE; WATER,BY-PASS
8-97379-228-1
01
1
0710-
10
01.153 PIPE; SUCTION
8-97371-775-1
01
1
0710-1010
10
01.153 PIPE; SUCTION
8-98166-991-0
01
1
1011-
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0710-
49
01.153 NUT; WATER PIPE
01.062 M8 FLANGE
0-91180-108-0
02
1
0710-
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0710-
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
0710-
31
29
29
212
49
29
29
154
202
202
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
01.166 CLIP; PIPE
ID=17 L=17
1-09701-284-0
08
1
0710-0803
29
01.166 CLIP; PIPE
EURO4 SPECIFICATION(NT4) ID=17 L=17
1-09701-284-0
08
1
0804-
31
01.159 BOLT; CLIP
02.277 M8X40 FLANGE
0-28050-840-0
02
1
0710-0803
31
01.159 BOLT; CLIP
EURO4 SPECIFICATION(NT4) 02.277 M8X40 FLANGE
0-28050-840-0
02
1
0804-
49
01.153 NUT; WATER PIPE
01.062 M8 FLANGE
0-91180-108-0
02
1
0710-
154
01.153 CLIP; WATER HOSE
02.559 L=170.3
1-09987-182-0
01
1
0710-0803
154
01.153 CLIP; WATER HOSE
EURO4 SPECIFICATION(NT4) 02.559 L=170.3
1-09987-182-0
01
1
0804-
202
01.240 HOSE; RUBBER,EGR COOLER
(A)
8-97386-585-0
01
1
0710-0803
202
01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (A)
8-97386-585-0
01
1
0804-
202
01.240 HOSE; RUBBER,EGR COOLER
(B)
8-97386-586-1
01
1
0710-0803
202
01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (B)
8-97386-586-1
01
1
0804-
202
01.240 HOSE; RUBBER,EGR COOLER
(C)
8-98032-268-0
01
1
0710-0803
202
01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (C)
8-98032-268-0
01
1
0804-
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
0710-
