1-56A — EXHAUST BRAKE SYSTEM (#5329) — 123 parça

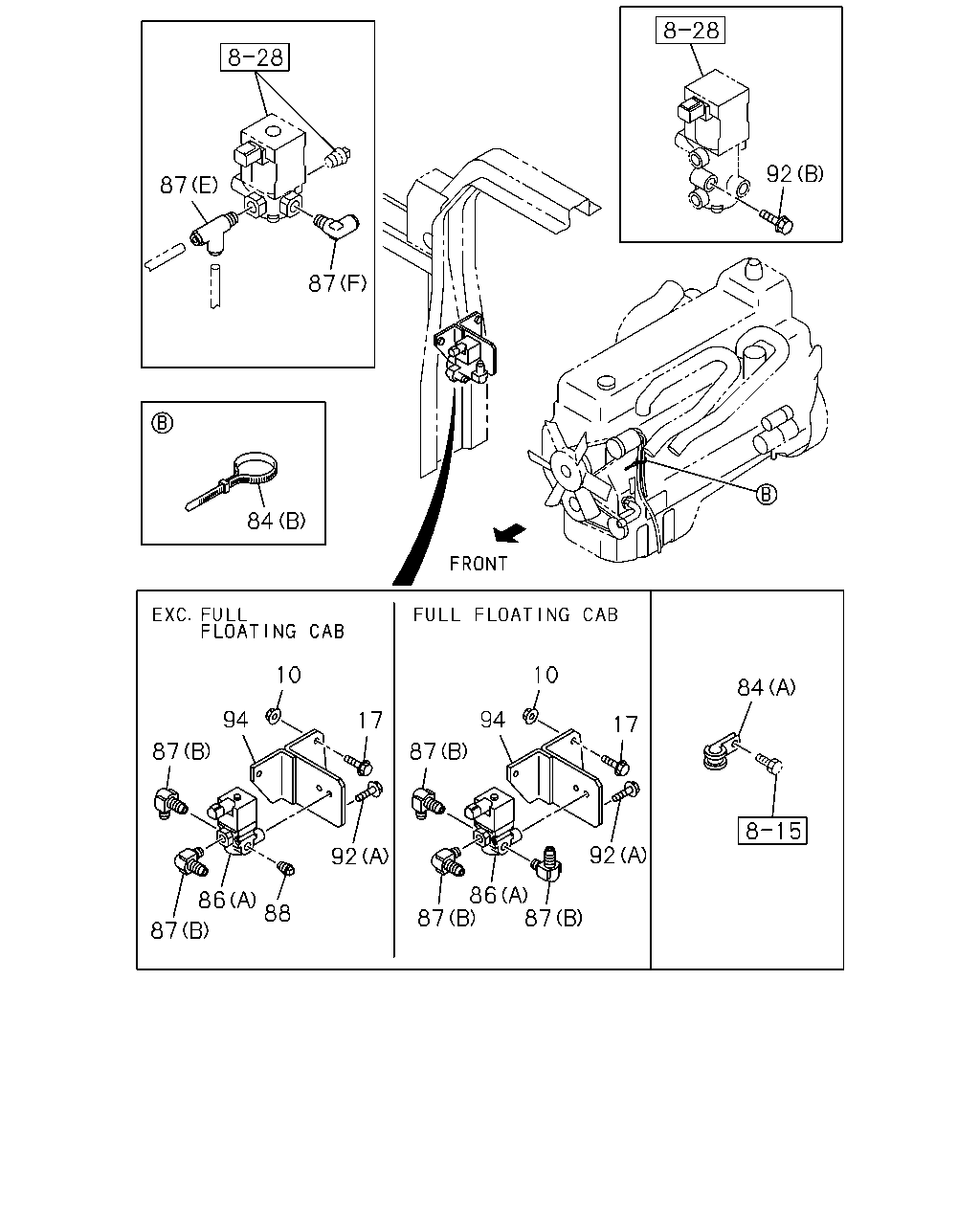

çizim 40537
92 87 87 84 10 10 84 94 94 17 17 87 87 92 92 86 87 87 86 88 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 NUT; BRKT,EXH BRAKE
M8 		9-09110-508-0 03 1 9603-9606 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9607-9901 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9902-9904 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606 ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9607-9901 ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9902-9904 ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9905- ● ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-0 01 1 9603-9901 ●
84 CLIP; HARNESS
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-0 01 1 9603-9901 ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9902-9904 ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 9902-9904 ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 9905- ● ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9905- ● ●
84 CLIP; HARNESS
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9603-9901 ●
84 CLIP; HARNESS
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9902-9904 ● ●
84 CLIP; HARNESS
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9905- ● ● ● ● ●
84 CLIP; HARNESS
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=26 L=27 		1-09701-006-0 01 1 9603-9901 ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=26 L=27 		1-09701-006-0 01 1 9902-9904 ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=26 L=27 		1-09701-006-0 01 1 9905- ● ● ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-598-3 01 1 9603-9901 ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-0 01 1 9902-9904 ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-1 01 1 9905-0001 ● ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0002- ● ● ● ● ●
87 CONNECTOR
(C) STRAIGHT M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ●
87 CONNECTOR
(C) STRAIGHT M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703-9901 ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9901 ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9901 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (A) M12,M12,PT1/4 3-WAY 		1-09656-229-1 01 1 9603-9901 ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9902-9904 ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9905- ● ● ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9901 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9902-9904 ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9905- ● ● ● ● ●
87 CONNECTOR
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9905- ●
87 CONNECTOR
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (A) M12,M12,PT1/2 3-WAY 		1-09656-229-1 01 1 9905- ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9902-9904 ● ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9905-0001 ● ● ●
88 PLUG
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 9905-0001 ●
88 PLUG
CXZ(CXZ***) EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9905-0001 ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0002- ● ● ● ●
88 PLUG
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0002- ●
88 PLUG
CXZ(CXZ***) EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0002- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9609-9901 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-173-0 01 1 9603-9901 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9902-9904 ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9905- ● ● ● ● ●

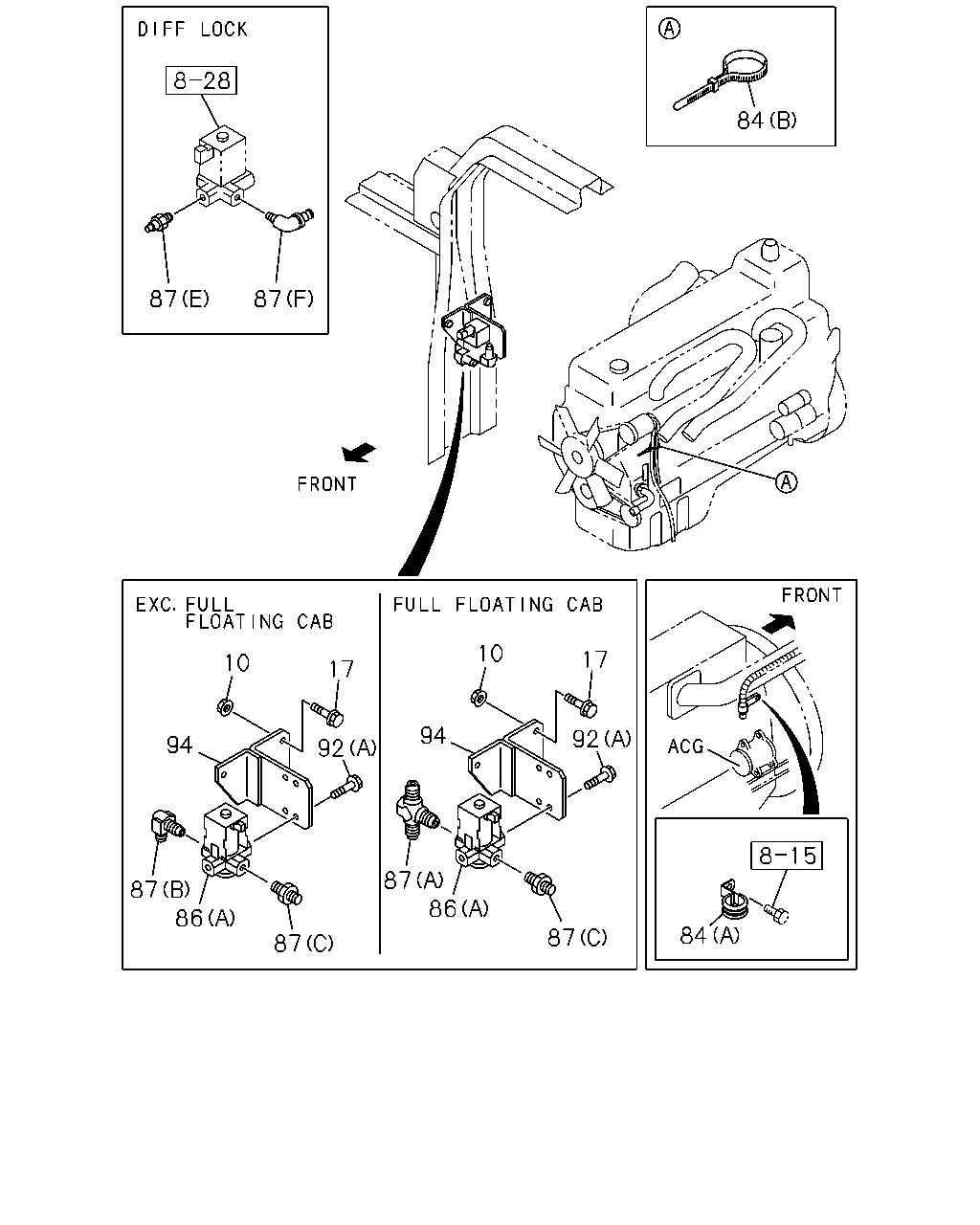

çizim 40662
84 87 87 10 17 10 17 94 92 94 92 87 86 87 86 84 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 NUT; BRKT,EXH BRAKE
M8 		9-09110-508-0 03 1 9603-9606 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9607-9901 ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9902-9904 ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 03 1 9905- ● ● ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606 ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9607-9901 ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9902-9904 ● ●
17 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 9905- ● ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-0 01 1 9603-9901 ●
84 CLIP; HARNESS
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-0 01 1 9603-9901 ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9902-9904 ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 9902-9904 ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 9905- ● ● ● ● ●
84 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 9905- ● ●
84 CLIP; HARNESS
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9603-9901 ●
84 CLIP; HARNESS
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9902-9904 ● ●
84 CLIP; HARNESS
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9905- ● ● ● ● ●
84 CLIP; HARNESS
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=26 L=27 		1-09701-006-0 01 1 9603-9901 ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=26 L=27 		1-09701-006-0 01 1 9902-9904 ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=26 L=27 		1-09701-006-0 01 1 9905- ● ● ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-598-3 01 1 9603-9901 ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-0 01 1 9902-9904 ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-1 01 1 9905-0001 ● ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0002- ● ● ● ● ●
87 CONNECTOR
(C) STRAIGHT M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ●
87 CONNECTOR
(C) STRAIGHT M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703-9901 ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9901 ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9901 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (A) M12,M12,PT1/4 3-WAY 		1-09656-229-1 01 1 9603-9901 ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9902-9904 ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9905- ● ● ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9901 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9902-9904 ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9905- ● ● ● ● ●
87 CONNECTOR
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9905- ●
87 CONNECTOR
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (A) M12,M12,PT1/2 3-WAY 		1-09656-229-1 01 1 9905- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9609-9901 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-173-0 01 1 9603-9901 ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9902-9904 ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 9905- ● ● ● ● ●

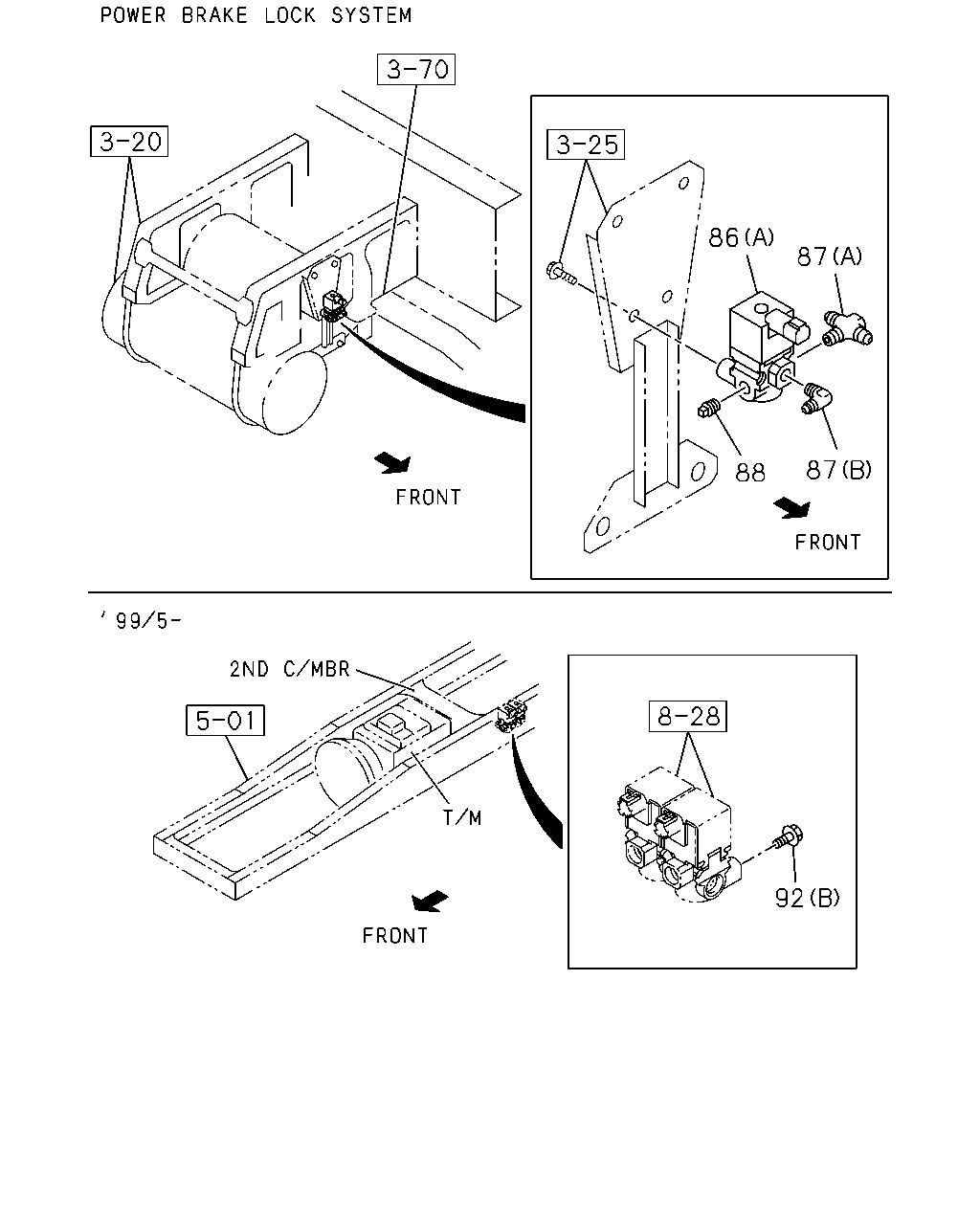

çizim 43217
86 87 87 88 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
86 VALVE; MAG,EXH BRK
(A) 		1-82563-598-3 01 1 9603-9901 ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-0 01 1 9902-9904 ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-1 01 1 9905-0001 ● ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0002- ● ● ● ● ●
87 CONNECTOR
(C) STRAIGHT M20 & PT1/4 		9-09902-386-0 01 1 9603-9702 ●
87 CONNECTOR
(C) STRAIGHT M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9703-9901 ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9603-9901 ●
87 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9603-9901 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (A) M12,M12,PT1/4 3-WAY 		1-09656-229-1 01 1 9603-9901 ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9902-9904 ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9905- ● ● ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9603-9901 ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9902-9904 ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 9905- ● ● ● ● ●
87 CONNECTOR
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9905- ●
87 CONNECTOR
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) (A) M12,M12,PT1/2 3-WAY 		1-09656-229-1 01 1 9905- ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9902-9904 ● ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9905-0001 ● ● ●
88 PLUG
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 9905-0001 ●
88 PLUG
CXZ(CXZ***) EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 9905-0001 ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0002- ● ● ● ●
88 PLUG
SHORT CHASSIS(CX***C) POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0002- ●
88 PLUG
CXZ(CXZ***) EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0002- ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9608 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9609-9901 ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ● ● ●
