Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#53287) — 20 parça
◀

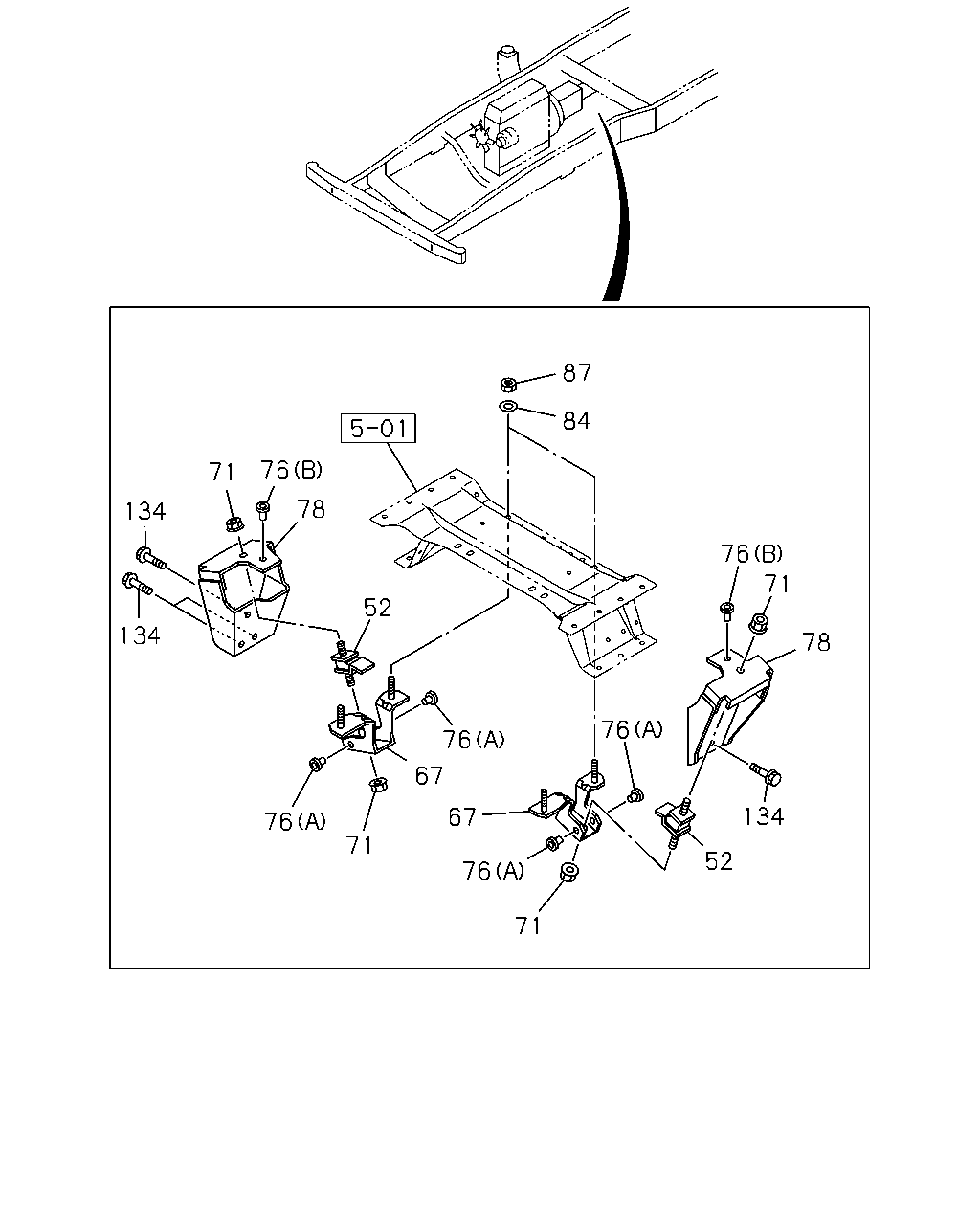

[022A] REAR (11 parça)
[022A] FRONT (9 parça)
▶
87
84
76
71
78
134
76
71
52
134
78
76
76
67
134
67
76
71
52
76
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
00.027 RUBBER; CUSHION,ENG MTG,RR
8-97176-994-0
02
1
0710-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-97303-863-0
01
1
0710-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-97303-864-0
01
1
0710-
71
00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
0710-
76
00.002 STOPPER; ENG MTG RUBBER
00.027 (B)
8-94111-904-0
02
1
0710-
76
00.002 STOPPER; ENG MTG RUBBER
(A)
8-97039-947-1
04
1
0710-
78
00.029 BRACKET; ENG MTG,RR
8-98098-900-0
01
1
0710-
78
00.029 BRACKET; ENG MTG,RR
8-98098-901-0
01
1
0710-
84
00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0710-
87
00.029 NUT; ENG MTG RR
03.162 M10 FLANGE
0-91180-110-0
04
1
0710-
134
00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE
0-28751-225-0
06
1
0710-
2
22
22
20
20
177
1
177
22
2
1
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.027 RUBBER; ENG FOOT,FRT
8-97387-250-2
01
1
0710-1112
1
00.027 RUBBER; ENG FOOT,FRT
8-98203-633-0
01
1
1201-
1
00.027 RUBBER; ENG FOOT,FRT
8-98061-232-0
01
1
0710-1112
1
00.027 RUBBER; ENG FOOT,FRT
8-98203-634-0
01
1
1201-
2
00.029 FOOT; ENG
8-97228-669-2
02
1
0710-
20
00.029 BOLT; ENG FOOT
M10X20 FLANGE
0-28161-020-0
08
1
0710-
22
00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE
0-91180-112-0
02
1
0710-
22
00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE
0-91180-210-0
04
1
0710-
177
00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5
8-94468-733-1
04
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
