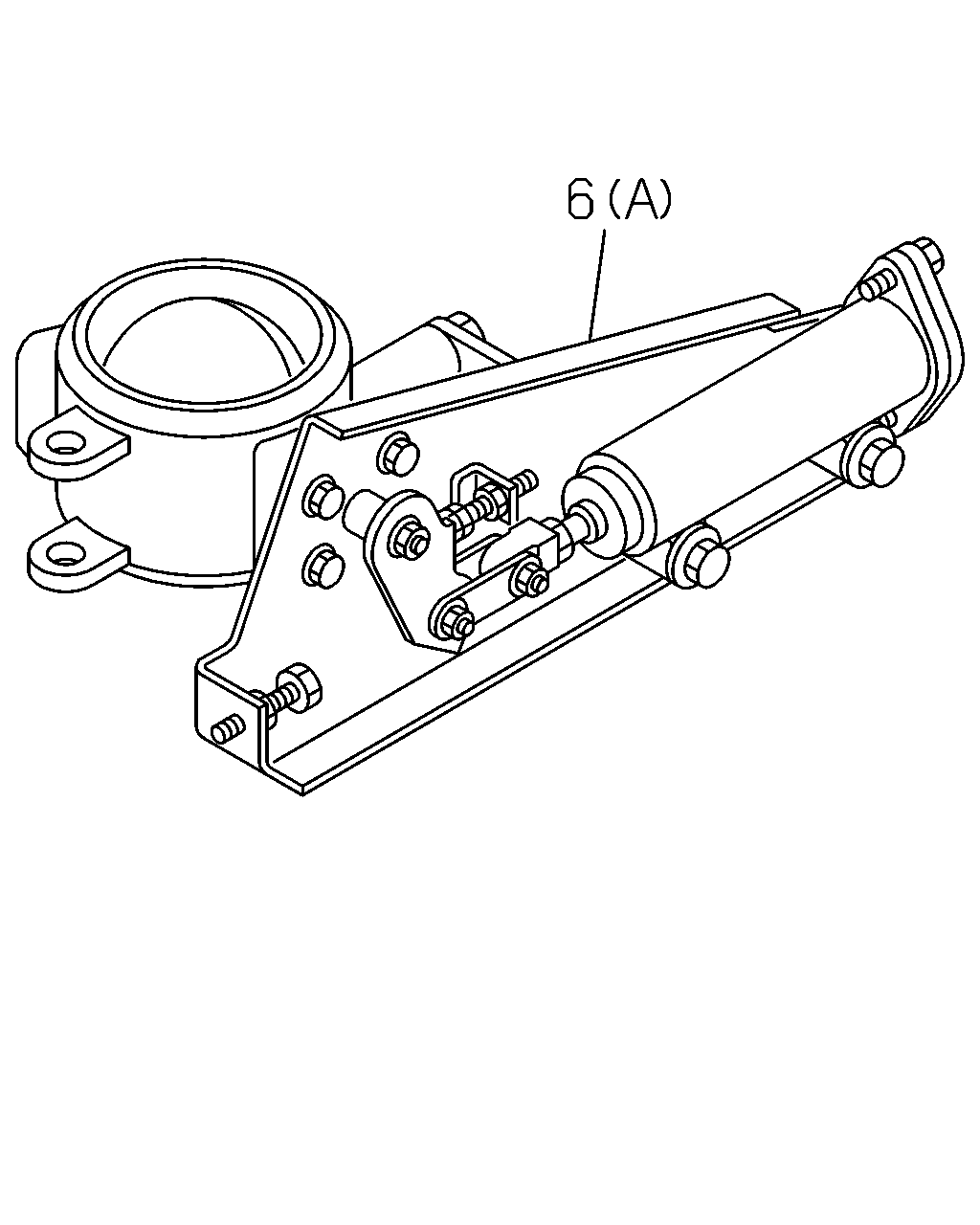

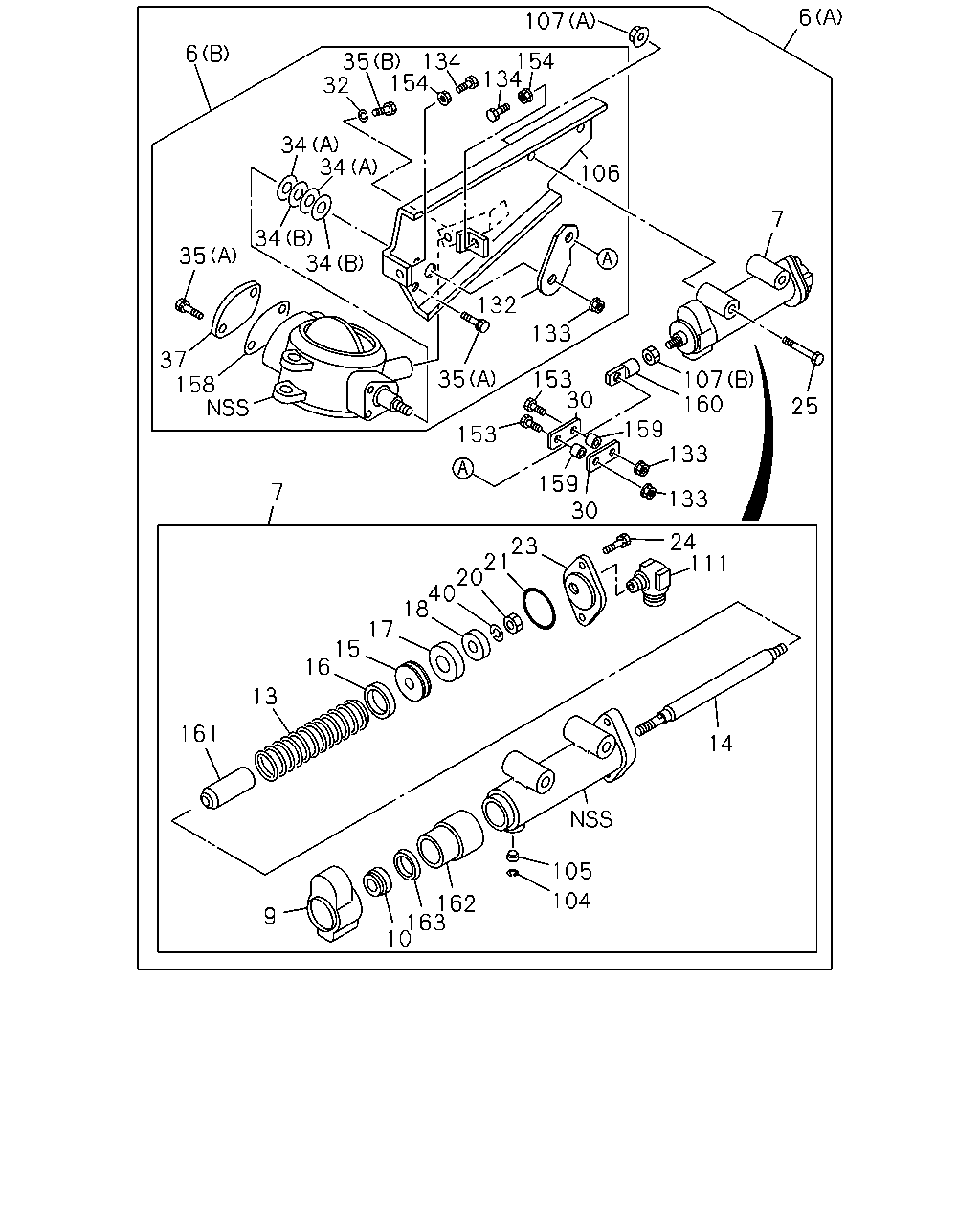

1-55B — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#5328) — 114 parça

6 107 6 35 134 32 154 154 134 34 34 106 7 34 34 35 132 133 37 158 35 153 30 107 160 25 159 133 153 159 30 7 133 24 111 23 21 20 40 18 17 15 16 13 161 14 105 104 162 163 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (A)	1-22180-330-1	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (A)	1-22180-349-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-364-0	01	1	9806-9904	●	●
6	VALVE; EXH BRAKE (A)	1-22180-364-0	01	1	9905-	●	●	●	●
6	VALVE; EXH BRAKE (B)	1-22180-341-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (B)	1-22181-144-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-340-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (A)	1-22180-348-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-363-0	01	1	9806-9904	●	●
6	VALVE; EXH BRAKE (A)	1-22180-363-0	01	1	9905-	●	●	●	●
6	VALVE; EXH BRAKE (B)	1-22180-343-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (B)	1-22181-145-0	01	1	9703-9805	●	●
7	CYLINDER ASM; CONT	1-22190-630-0	01	1	9603-9702	●	●
7	CYLINDER ASM; CONT	1-22190-639-0	01	1	9703-9805	●	●
7	CYLINDER ASM; CONT	1-22190-627-0	01	1	9603-9702	●	●
7	CYLINDER ASM; CONT	1-22190-640-0	01	1	9703-9805	●	●
9	COVER; CYL	1-22199-069-0	01	1	9603-9805	●	●
9	COVER; CYL	1-22199-070-0	01	1	9603-9805	●	●
10	SEAL; DUST,CONT	1-22199-071-0	02	1	9603-9805	●	●
13	SPRING; CONT CYL	1-22199-157-0	02	1	9603-9805	●	●
14	SHAFT; CONT CYL	1-22199-158-0	02	1	9603-9805	●	●
15	PLATE; CONT CYL PISTON	1-22199-156-0	02	1	9603-9805	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	02	1	9603-9805	●	●
17	GASKET; CONT CYL	1-22199-103-0	02	1	9603-9805	●	●
18	RETAINER; CONT CYL	9-88510-324-0	02	1	9603-9805	●	●
20	NUT; CONT CYL	9-83315-085-0	02	1	9603-9805	●	●
21	GASKET; COVER	1-22199-072-0	02	1	9603-9805	●	●
23	COVER; CONT CYL	9-88510-375-0	02	1	9603-9805	●	●
24	BOLT; COVER M8 W/FLANGE	1-22199-155-0	04	1	9603-9805	●	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	04	1	9603-9805	●	●
30	ROD; LINK,CONT CYL	1-22199-124-0	04	1	9603-9702	●	●
30	ROD; LINK,CONT CYL	1-22199-162-0	04	1	9703-9805	●	●
32	WASHER; LK PLAIN ID=10.2	9-09150-510-0	02	1	9603-9702	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	04	1	9603-9805	●	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	04	1	9603-9805	●	●
35	BOLT; PLATE FIX (B) M10X20	9-02051-020-0	02	1	9603-9702	●	●
35	BOLT; PLATE FIX (B) M10X20	0-28021-020-0	02	1	9703-9805	●	●
35	BOLT; PLATE FIX (A) M8X16 W/LK WASHER	0-50040-816-0	10	1	9603-9702	●	●
35	BOLT; PLATE FIX (A)	1-22189-308-0	10	1	9703-9805	●	●
37	COVER; BODY	1-22189-274-0	02	1	9603-9805	●	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	02	1	9603-9805	●	●
104	RING; RET	9-88510-331-0	02	1	9603-9805	●	●
105	FILTER; CONT CYL	9-88510-330-0	02	1	9603-9805	●	●
106	BRACKET; CONT CYL	1-22189-292-0	01	1	9603-9805	●	●
106	BRACKET; CONT CYL	1-22189-290-0	01	1	9603-9805	●	●
107	NUT; CONT CYL (A) M10 FLANGE	0-91150-110-0	04	1	9603-9805	●	●
107	NUT; CONT CYL (B)	9-83315-085-0	02	1	9603-9805	●	●
111	ELBOW; CONT CYL M20 & PT1/4 ELBOW	1-09660-137-1	02	1	9603-9702	●	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9703-9805	●	●
132	LEVER; BRK VLV	1-22196-342-0	02	1	9603-9805	●	●
133	NUT; LK M8 FLANGE	0-91150-108-0	06	1	9603-9805	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	04	1	9603-9805	●	●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	04	1	9603-9805	●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	04	1	9603-9805	●	●
158	GASKET; COVER	1-22189-286-0	02	1	9603-9805	●	●
159	COLLAR; CONT CYL	1-22199-138-0	04	1	9603-9805	●	●
160	JOINT; CONT CYL	1-22199-137-0	02	1	9603-9702	●	●
160	JOINT; CONT CYL	1-22199-163-0	02	1	9703-9805	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	02	1	9603-9805	●	●
162	GUIDE; CONT CYL	1-22199-147-0	02	1	9603-9805	●	●
163	WASHER; CONT CYL	1-22199-148-0	02	1	9603-9805	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (A)	1-22180-330-1	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (A)	1-22180-349-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-364-0	01	1	9806-9904	●	●
6	VALVE; EXH BRAKE (A)	1-22180-364-0	01	1	9905-	●	●	●	●
6	VALVE; EXH BRAKE (B)	1-22180-341-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (B)	1-22181-144-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-340-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (A)	1-22180-348-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-363-0	01	1	9806-9904	●	●
6	VALVE; EXH BRAKE (A)	1-22180-363-0	01	1	9905-	●	●	●	●
6	VALVE; EXH BRAKE (B)	1-22180-343-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (B)	1-22181-145-0	01	1	9703-9805	●	●

43 76 42 43 45 44 42 43 43 42 6 43 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	VALVE; EXH BRAKE (A)	1-22180-330-1	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (A)	1-22180-349-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-364-0	01	1	9806-9904	●	●
6	VALVE; EXH BRAKE (A)	1-22180-364-0	01	1	9905-	●	●	●	●
6	VALVE; EXH BRAKE (B)	1-22180-341-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (B)	1-22181-144-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-340-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (A)	1-22180-348-0	01	1	9703-9805	●	●
6	VALVE; EXH BRAKE (A)	1-22180-363-0	01	1	9806-9904	●	●
6	VALVE; EXH BRAKE (A)	1-22180-363-0	01	1	9905-	●	●	●	●
6	VALVE; EXH BRAKE (B)	1-22180-343-0	01	1	9603-9702	●	●
6	VALVE; EXH BRAKE (B)	1-22181-145-0	01	1	9703-9805	●	●

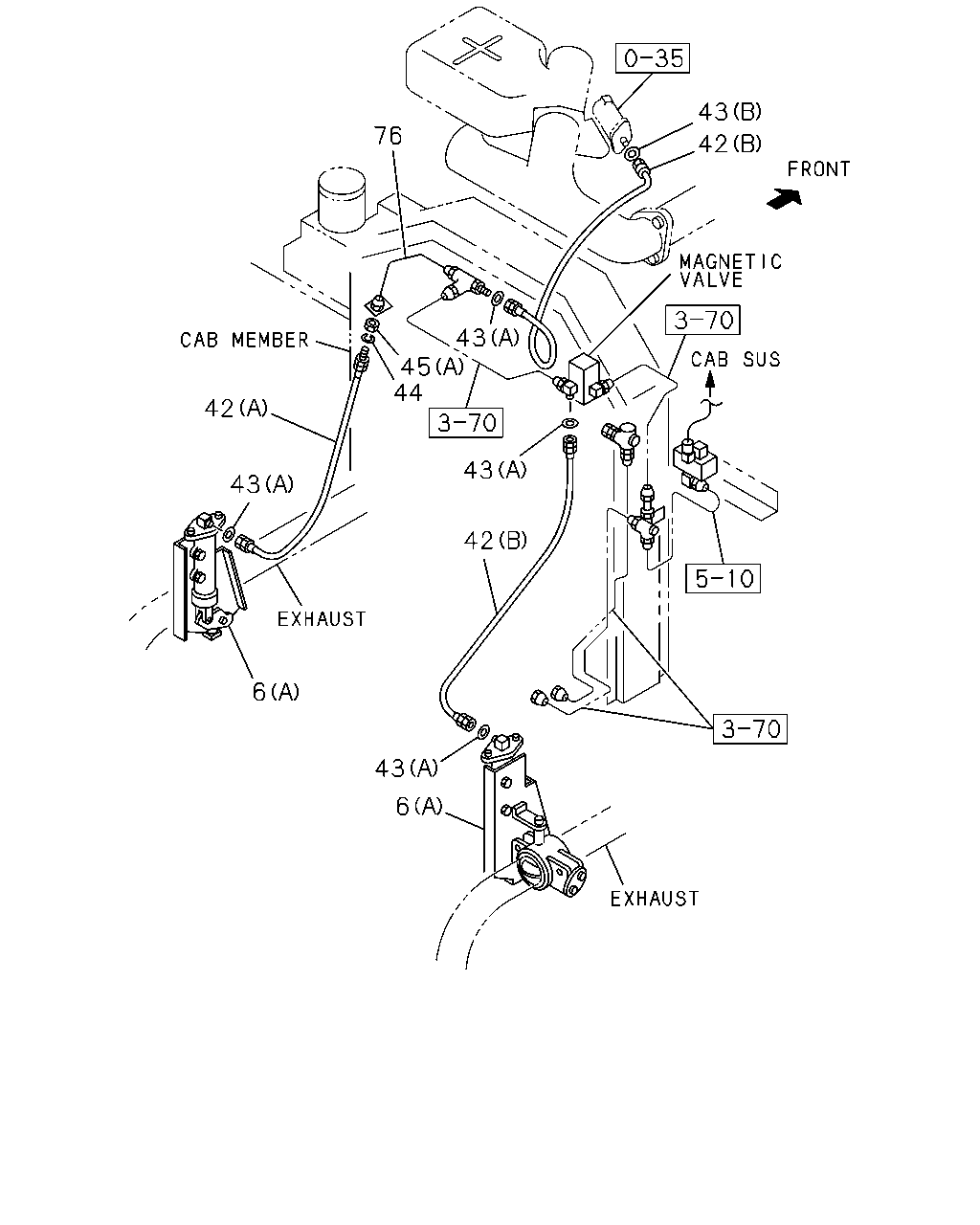

42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9902-9904	●	●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9905-	●	●	●	●
42	HOSE; FLEX,EXH BRK (A) L=320	0-07120-320-0	01	1	9603-9702	●	●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9703-9901	●	●
42	HOSE; FLEX,EXH BRK (B) L=270	0-07150-270-0	02	1	9603-9702	●	●
42	HOSE; FLEX,EXH BRK (B) L=250	1-09363-618-0	02	1	9703-9901	●	●
42	HOSE; FLEX,EXH BRK (B) L=250	1-09363-618-0	01	1	9905-	●	●	●	●
42	HOSE; FLEX,EXH BRK (B) L=300	1-09363-611-0	01	1	9905-	●	●	●	●
43	GASKET; FLEX HOSE (B) ID=11 OD=18	9-09572-510-0	01	1	9603-9702	●	●
43	GASKET; FLEX HOSE (A) ID=11 OD=18	9-09572-510-0	04	1	9603-9702	●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9603-9901	●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9902-9904	●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9905-	●	●	●	●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9603-9901	●	●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9902-9904	●	●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9905-	●	●	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=489 SERVICED BY L=500	1-47428-807-0	01	1	9703-9901	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=489 SERVICED BY L=500	1-47428-807-0	01	1	9905-9908	●	●	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28> L=488	1-49122-245-0	01	1	9909-	●	●	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50) L=1058	1-49117-297-0	01	1	9603-9612		●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> L=1058	1-49117-297-0	01	1	9701-9901	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),FIRE TRUCK<RA9> L=1058	1-49117-297-0	01	1	9905-9908	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=1066	1-49122-236-0	01	1	0002-			●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. MIXER TRUCK<RA2> L=1011	1-49122-240-0	01	1	0002-			●
76	PIPE ASM; AIR UNION TO UNION SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) L=1003	1-49117-296-0	01	1	9603-9901		●
76	PIPE ASM; AIR UNION TO UNION SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) L=1002 SERVICED BY L=1000	1-47428-814-0	01	1	9905-9908		●
76	PIPE ASM; AIR UNION TO UNION CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=1124 SERVICED BY L=1200	1-47428-816-0	01	1	9701-9901		●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> L=462	1-49122-247-0	01	1	9909-	●	●	●	●
76	PIPE ASM; AIR UNION TO UNION CXZ&LONG CHASSIS(CXZ6MF) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=1124 SERVICED BY L=1200	1-47428-816-0	01	1	9905-9908		●
