Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

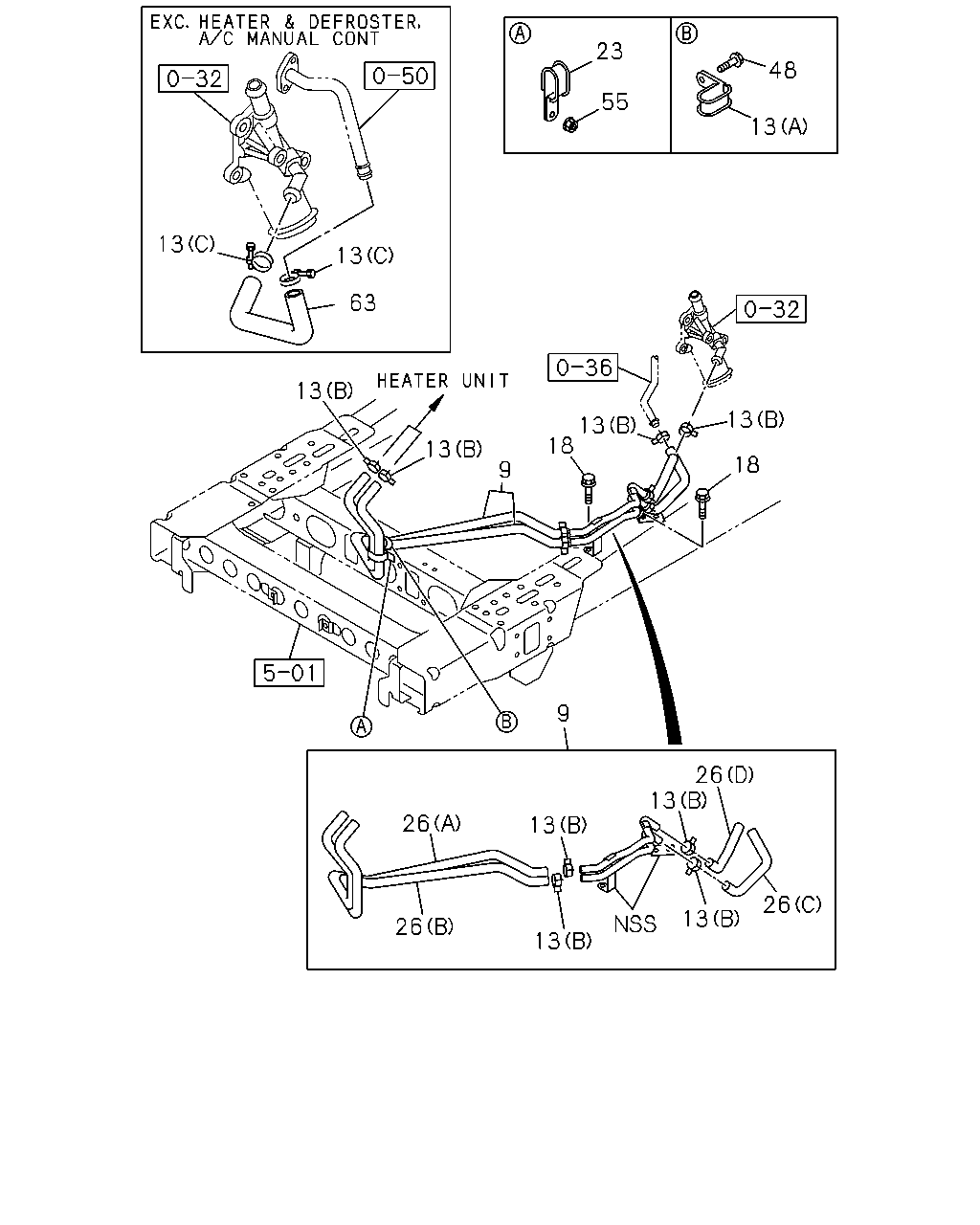

8-45 — HEATER PIPING
(#53274) — 16 parça
23
48
55
13
13
13
63
13
13
13
18
13
18
9
9
26
13
26
13
26
13
26
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
08.846 PIPE; HTR
HEATER & DEFROSTER(C41)
8-98064-107-1
01
1
0804-0807
13
08.846 CLIP; HTR HOSE
EXC. HEATER & DEFROSTER(C41) 01.166 (C) ID=25
8-94233-115-0
02
1
0804-0807
13
08.846 CLIP; HTR HOSE
01.166 (C) ID=25
8-94233-115-0
02
1
0808-
13
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) 03.278 (B) ID=22
8-97359-141-0
04
1
0804-0807
13
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) 03.278 (B) ID=22
8-97359-141-0
04
1
0804-0807
13
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) (A)
8-98029-678-0
01
1
0804-0807
18
08.866 BOLT; WATER HOSE
HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE
0-28650-825-0
02
1
0804-0807
23
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41) B=18
8-97359-144-0
01
1
0804-0807
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (A)
8-98050-293-0
01
1
0804-0807
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (B)
8-98050-294-0
01
1
0804-0807
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (C)
8-98050-295-0
01
1
0804-0807
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (D)
8-98050-296-0
01
1
0804-0807
48
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE
0-28050-612-0
01
1
0804-0807
55
08.845 NUT; CLAMP
HEATER & DEFROSTER(C41) 01.062 M6 FLANGE
0-91180-106-0
01
1
0804-0807
63
08.846 HOSE; WATER
EXC. HEATER & DEFROSTER(C41) 01.540
8-94134-250-1
01
1
0804-0807
63
08.846 HOSE; WATER
01.540
8-94134-250-1
01
1
0808-
