Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶

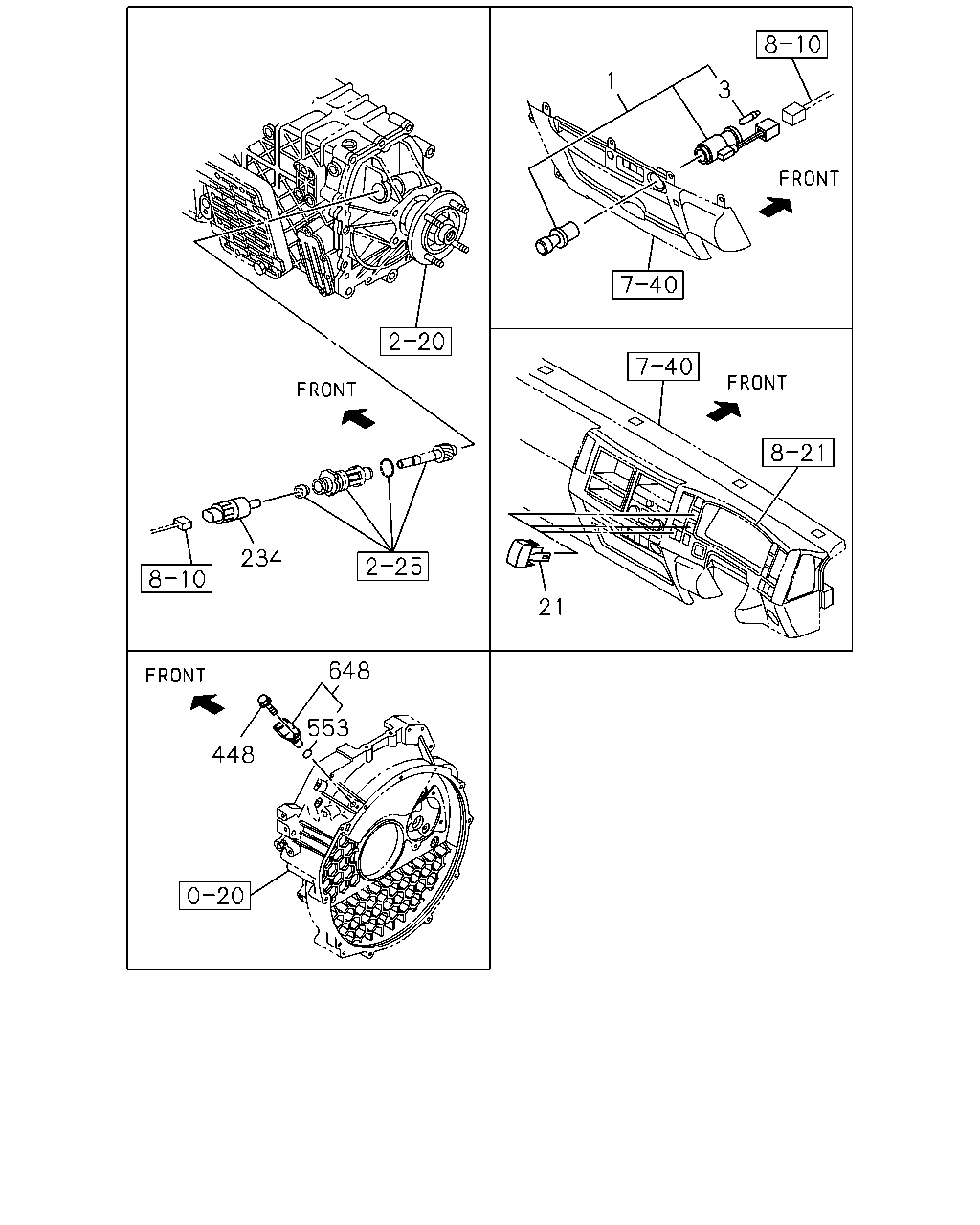

8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#53271) — 19 parça
◀
[826A] NO.1 (9 parça)
[826A] NO.2 (10 parça)
▶
68
67
67
263
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
03.887 BRACKET; CONT UNIT
(A)
8-98022-170-1
01
1
0804-
67
03.887 BRACKET; CONT UNIT
(B)
8-98022-206-2
01
1
0804-1111
67
03.887 BRACKET; CONT UNIT
(B)
8-98203-057-0
01
1
1112-1207
67
03.887 BRACKET; CONT UNIT
(B)
8-98217-377-0
01
1
1208-1212
67
03.887 BRACKET; CONT UNIT
(B)
8-98237-555-0
01
1
1301-1404
67
03.887 BRACKET; CONT UNIT
(B)
8-98217-377-0
01
1
1405-
68
02.500 BOLT; BRKT
00.206 M6X12 FLANGE
0-28450-612-0
01
1
0804-
69
02.458 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
02
1
0804-
263
04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE
0-28650-616-0
02
1
0804-0809
1
3
234
21
648
553
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.709 LIGHTER; CIGAR
8-97320-325-0
01
1
0804-0906
1
09.709 LIGHTER; CIGAR
8-98142-962-0
01
1
0907-
3
08.991 BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0804-0906
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
0804-
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
0804-
21
09.744 COVER; HOLE
16.081
8-98025-954-1
01
1
0804-
234
03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
0804-
448
02.500 BOLT; SENSOR
09.242 M6X16 FLANGE
0-28050-616-0
01
1
0804-
553
02.500 GASKET
00.724 ID=14.2 OD=18.8
8-97369-404-0
01
1
0804-
648
03.682 SENSOR; CRANK ANGLE
8-97606-943-0
01
1
0804-
