Sayfa 1-55A - Isuzu EPC

1-55A — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#5327) — 269 parça

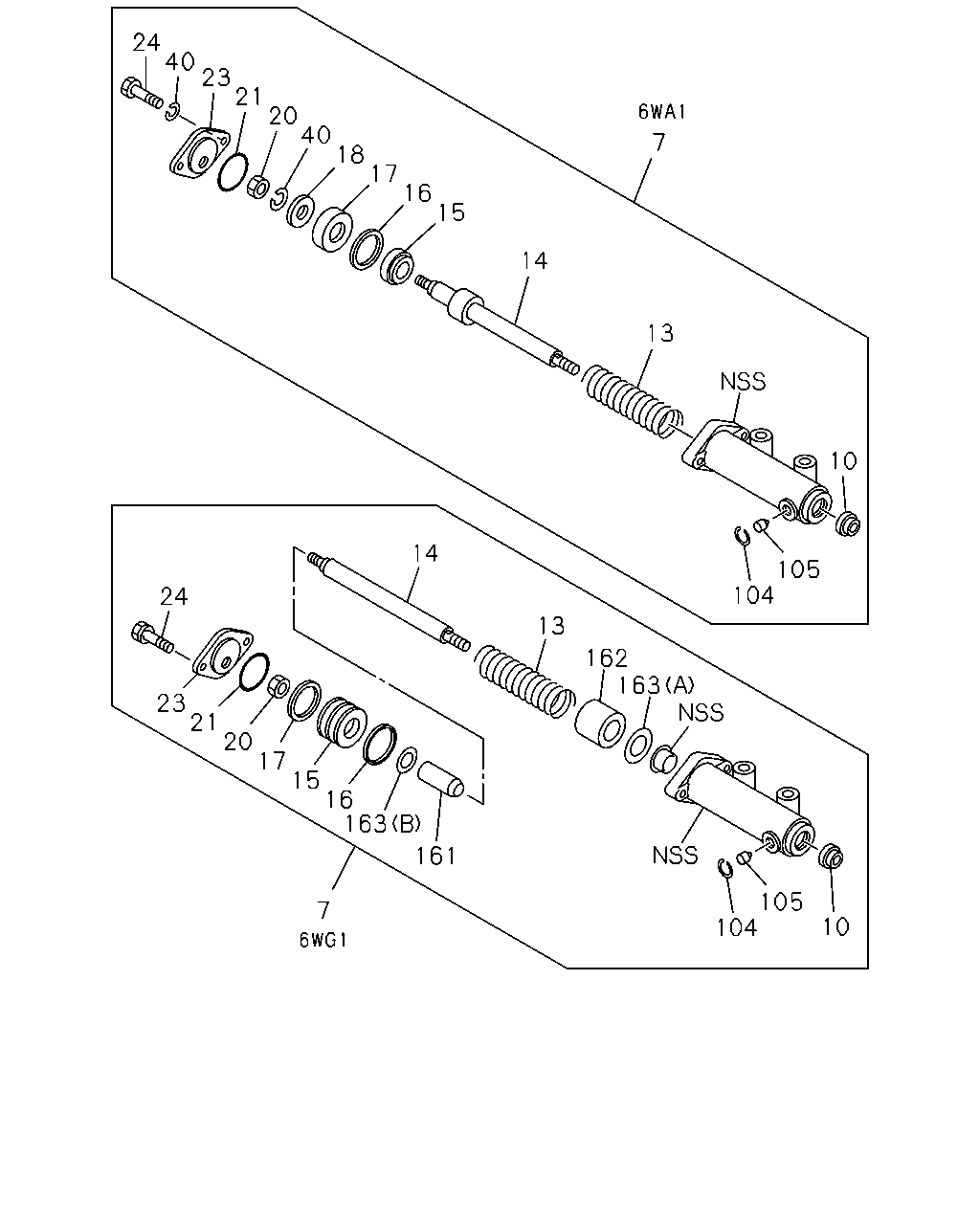

24 40 23 21 20 40 18 17 16 15 7 14 13 10 14 105 104 24 13 162 163 23 21 20 17 15 16 163 161 105 104 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9603-9901	●
7	CYLINDER ASM; CONT	1-22190-592-1	01	1	9902-9904		●	●
7	CYLINDER ASM; CONT	1-22190-592-1	01	1	9905-		●	●	●
7	CYLINDER ASM; CONT	1-22190-642-0	01	1	9905-9909					●
7	CYLINDER ASM; CONT	1-22190-642-0	01	1	9910-					●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9603-9901	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9902-9904		●	●
10	SEAL; DUST,CONT	1-22189-016-0	01	1	9905-		●	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9905-9909					●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9910-					●	●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9603-9901	●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9902-9904		●	●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9905-		●	●	●
13	SPRING; CONT CYL	1-22199-173-0	01	1	9905-9909					●
13	SPRING; CONT CYL	1-22199-173-0	01	1	9910-					●	●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9603-9901	●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9902-9904		●	●
14	SHAFT; CONT CYL	1-22199-142-0	01	1	9905-		●	●	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9905-9909					●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9910-					●	●
15	PLATE; CONT CYL PLATE	1-22199-096-0	01	1	9603-9901	●
15	PLATE; CONT CYL PLATE	1-22199-096-0	01	1	9902-9904		●	●
15	PLATE; CONT CYL PLATE	1-22199-096-0	01	1	9905-		●	●	●
15	PLATE; CONT CYL PISTON	1-22199-168-0	01	1	9905-9909					●
15	PLATE; CONT CYL	1-22199-168-0	01	1	9910-					●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9603-9901	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9902-9904		●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9905-		●	●	●
16	RING; WEAR,CONT CYL	1-22199-169-0	01	1	9905-9909					●
16	RING; WEAR,CONT CYL	1-22199-169-0	01	1	9910-					●	●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9603-9901	●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9902-9904		●	●
17	GASKET; CONT CYL	1-22189-160-0	01	1	9905-		●	●	●
17	GASKET; CONT CYL	1-22199-170-0	01	1	9905-9909					●
17	GASKET; CONT CYL	1-22199-170-0	01	1	9910-					●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9603-9901	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9902-9904		●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9905-		●	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9603-9901	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9902-9904		●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	9905-		●	●	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9905-9909					●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	9910-					●	●
21	GASKET; COVER	9-88510-372-0	01	1	9603-9901	●
21	GASKET; COVER	9-88510-372-0	01	1	9902-9904		●	●
21	GASKET; COVER	9-88510-372-0	01	1	9905-		●	●	●
21	GASKET; COVER	1-22199-171-0	01	1	9905-9909					●
21	GASKET; COVER	1-22199-171-0	01	1	9910-					●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9603-9901	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9902-9904		●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	9905-		●	●	●
23	COVER; CONT CYL	1-22199-172-0	01	1	9905-9909					●
23	COVER; CONT CYL	1-22199-172-0	01	1	9910-					●	●
24	BOLT; COVER M8X20	9-01000-820-0	02	1	9603-9603	●
24	BOLT; COVER M8 W/FLANGE	1-22199-155-0	02	1	9604-9901	●
24	BOLT; COVER M8 W/FLANGE	1-22199-155-0	02	1	9902-9904		●	●
24	BOLT; COVER M8 W/FLANGE	1-22199-155-0	02	1	9905-9909		●	●	●	●
24	BOLT; COVER	1-22199-155-0	02	1	9910-		●	●	●	●	●
40	WASHER; LK,COVER COVER & SHAFT ID=8.2	9-09150-508-0	03	1	9603-9603	●
40	WASHER; LK,COVER SHAFT ID=8.2	9-09150-508-0	01	1	9604-9901	●
40	WASHER; LK,COVER SHAFT ID=8.2	9-09150-508-0	01	1	9902-9904		●	●
40	WASHER; LK,COVER SHAFT ID=8.2	9-09150-508-0	01	1	9905-		●	●	●
104	RING; RET	9-88510-331-0	01	1	9603-9901	●
104	RING; RET	9-88510-331-0	01	1	9902-9904		●	●
104	RING; RET	9-88510-331-0	01	1	9905-9909		●	●	●	●
104	RING; RET	9-88510-331-0	01	1	9910-		●	●	●	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9603-9901	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9902-9904		●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9905-9909		●	●	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9910-		●	●	●	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9905-9909					●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9910-					●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9905-9909					●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9910-					●	●
163	WASHER; CONT CYL (A)	1-22199-148-0	01	1	9905-9909					●
163	WASHER; CONT CYL (A)	1-22199-148-0	01	1	9910-					●	●
163	WASHER; CONT CYL (B)	1-22199-179-0	01	1	9905-9909					●
163	WASHER; CONT CYL (B)	1-22199-179-0	01	1	9910-					●	●

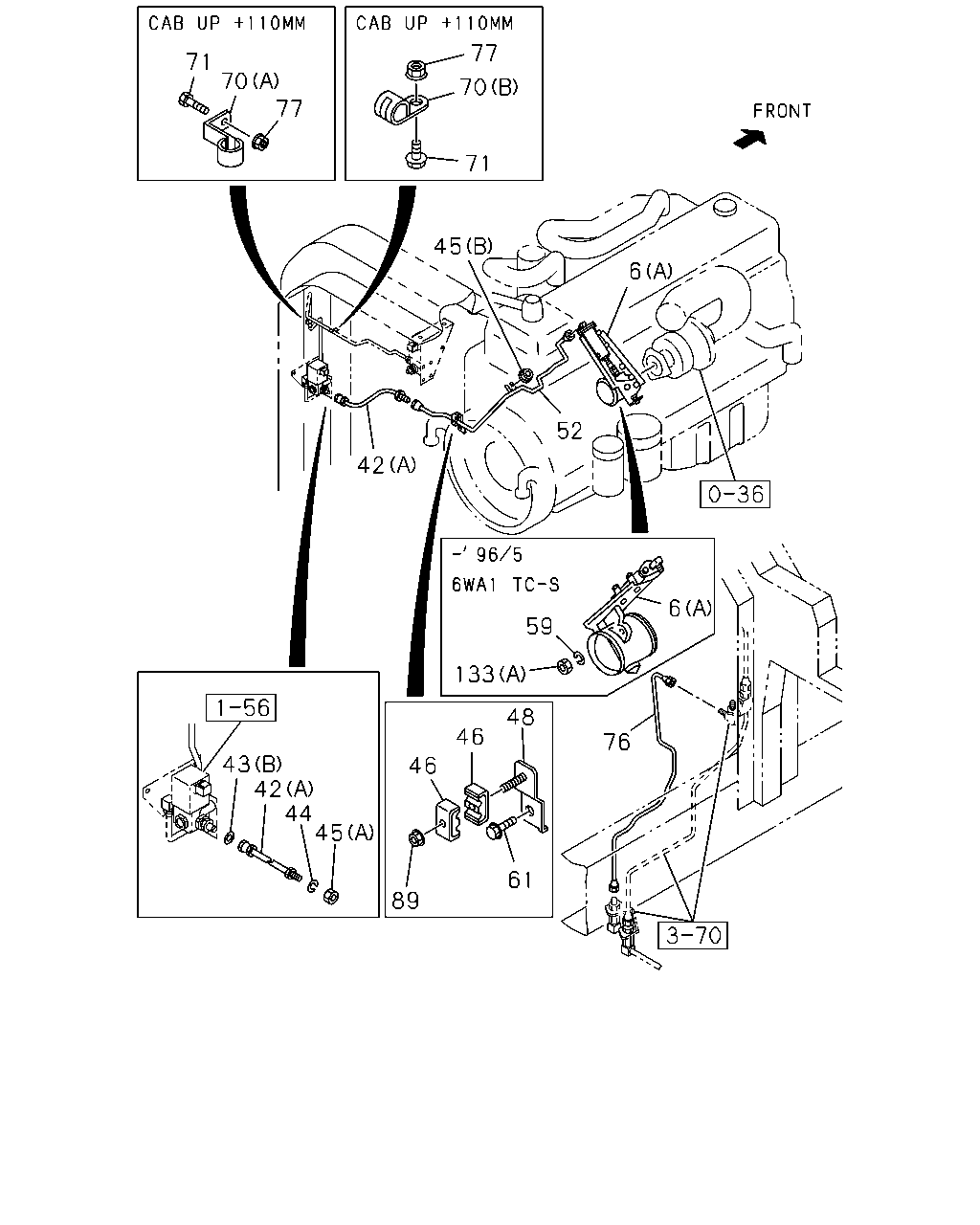

77 71 70 77 70 71 45 6 52 42 6 59 133 48 46 76 43 42 44 45 46 61 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (A)	1-14144-603-0	01	1	9603-9603	●
6	VALVE; EXH BRAKE (A)	1-14144-603-1	01	1	9604-9612	●
6	VALVE; EXH BRAKE (A)	1-14144-603-2	01	1	9701-9901	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9902-9904		●	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9905-		●	●	●
6	VALVE; EXH BRAKE (B)	1-14144-612-0	01	1	9603-9603	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9604-9612	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9701-9901	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9902-9904		●	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9905-		●	●	●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9905-9909					●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9910-					●	●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9905-9909					●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9910-					●	●
42	HOSE; FLEX,EXH BRK (A) L=260	0-07120-260-0	01	1	9603-9702	●
42	HOSE; FLEX,EXH BRK (A) L=260	1-09363-609-0	01	1	9703-9901	●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9902-9904		●	●
42	HOSE; FLEX,EXH BRK (A) L=320	1-09363-656-0	01	1	9905-		●	●	●	●	●
43	GASKET; FLEX HOSE (B) ID=11 OD=18	9-09572-510-0	01	1	9603-9702	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9603-9901	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9902-9904		●	●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	9905-		●	●	●	●	●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9603-9901	●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9902-9904		●	●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9905-9909		●	●	●	●
45	NUT; FLEX HOSE (B) M8 FLANGE	0-91150-108-0	01	1	9910-		●	●	●	●	●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9603-9901	●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9902-9904		●	●
45	NUT; FLEX HOSE (A) M12	9-09840-280-0	01	1	9905-		●	●	●	●	●
46	CLIP; AIR PIPE	1-09701-132-0	02	1	9603-9901	●
46	CLIP; AIR PIPE	1-09701-132-1	02	1	9902-9904		●	●
46	CLIP; AIR PIPE	1-09701-132-1	02	1	9905-9909		●	●	●	●
46	CLIP; AIR PIPE	1-09701-132-1	02	1	9910-		●	●	●	●	●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9603-9901	●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9902-9904		●	●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9905-9909		●	●	●	●
48	BRACKET; AIR PIPE	1-47477-407-0	01	1	9910-		●	●	●	●	●
52	PIPE ASM; AIR FLEX HOSE	1-19192-904-0	01	1	9603-9901	●
52	PIPE ASM; AIR FLEX HOSE EXC. MIXER TRUCK<RA2>	1-19192-904-0	01	1	9902-9904		●	●
52	PIPE ASM; AIR FLEX HOSE EXC. MIXER TRUCK<RA2>	1-19192-904-0	01	1	9905-9909		●	●	●	●
52	PIPE ASM; AIR FLEX HOSE EXC. MIXER TRUCK<RA2>	1-19192-904-0	01	1	9910-		●	●	●	●	●
59	WASHER; LK ID=13 OD=26 DISH	1-09556-002-0	03	1	9603-9605	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28181-420-0	01	1	9603-9606	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9607-9901	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9902-9904		●	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9905-9909		●	●	●	●
61	BOLT; BRKT AIR PIPE M14X20 FLANGE	0-28981-420-0	01	1	9910-		●	●	●	●	●
70	CLIP; AIR PIPE CAB UP +110MM<TGG> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9902-9902		●
70	CLIP; AIR PIPE CAB UP +110MM<TGG> (B) ID=7 L=20	9-09524-635-0	01	1	9902-9902		●
71	BOLT; CLIP CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9902-9902		●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=489 SERVICED BY L=500	1-47428-807-0	01	1	9603-9702	●
76	PIPE ASM; AIR UNION TO UNION CXZ(CXZ***) L=489 SERVICED BY L=500	1-47428-807-0	01	1	9703-9901	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> L=489 SERVICED BY L=500	1-47428-807-0	01	1	9902-9904		●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> L=489 SERVICED BY L=500	1-47428-807-0	01	1	9905-9908		●	●	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> L=488	1-49122-245-0	01	1	9909-		●	●	●	●	●
76	PIPE ASM; AIR UNION TO UNION CXM(CXM***) L=1058	1-49117-297-0	01	1	9603-9612	●
76	PIPE ASM; AIR UNION TO UNION CXM(CXM***) L=1058	1-49117-297-0	01	1	9701-9901	●
76	PIPE ASM; AIR UNION TO UNION CXM(CXM***) L=1058	1-49117-297-0	01	1	9905-9908	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=1066	1-49122-236-0	01	1	9909-0001		●			●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=1066	1-49122-236-0	01	1	0002-					●
76	PIPE ASM; AIR UNION TO UNION SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> L=504 SERVICED BY L=550	1-47428-808-0	01	1	9902-9904		●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> L=504 SERVICED BY L=550	1-47428-808-0	01	1	9905-		●			●
76	PIPE ASM; AIR UNION TO UNION SHORT CHASSIS(CX***C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. MIXER TRUCK<RA2> L=1011	1-49122-240-0	01	1	9909-0001		●			●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) EXC. MIXER TRUCK<RA2> L=1011	1-49122-240-0	01	1	0002-					●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> L=1003	1-49122-239-0	01	1	9909-					●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> SERVICED BY L=500	1-47428-807-0	01	1	9902-9903		●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> L=496 SERVICED BY L=500	1-47428-807-0	01	1	9904-9904		●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> L=496 SERVICED BY L=500	1-47428-807-0	01	1	9905-9908		●	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> L=462	1-49122-247-0	01	1	9909-		●	●	●	●	●
76	PIPE ASM; AIR UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> EXC. POWER BRAKE LOCK SYSTEM(J50) L=1058	1-49122-238-0	01	1	9909-					●
77	NUT; CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	9902-9902		●
89	NUT; BRKT M6 FLANGE	0-91150-106-0	01	1	9603-9901	●
89	NUT; BRKT EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91150-106-0	01	1	9902-9904		●	●
89	NUT; BRKT EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91150-106-0	01	1	9905-9909		●	●	●	●
89	NUT; BRKT EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91150-106-0	01	1	9910-		●	●	●	●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9603-9603	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9603-9603	●
133	NUT; LK (A) M12	1-09400-010-0	03	1	9603-9605	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9604-9901	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9902-9904		●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9905-9909		●	●	●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9910-		●	●	●	●	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9604-9901	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9902-9904		●	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9905-9909		●	●	●	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9910-		●	●	●	●	●

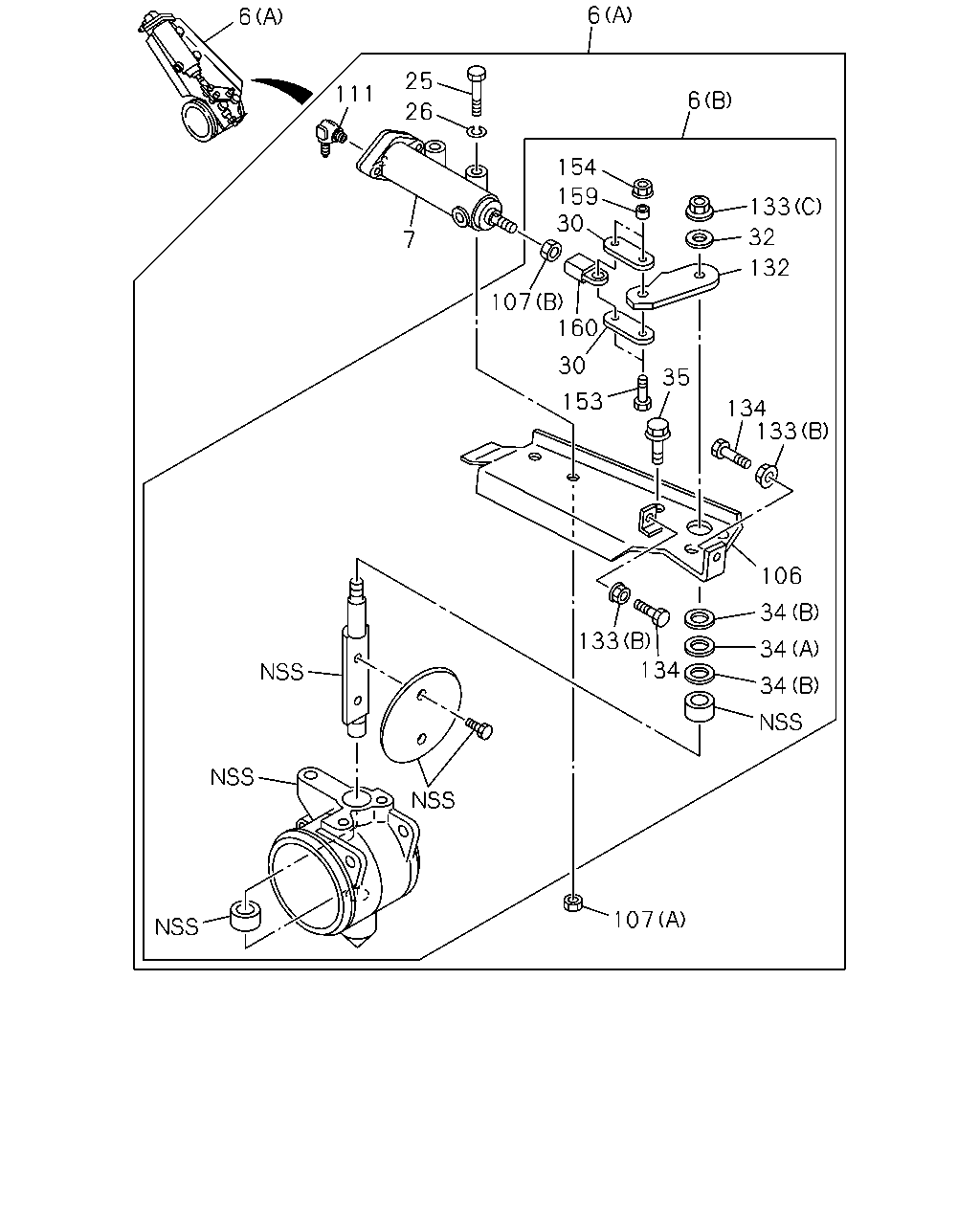

6 6 25 111 6 26 154 159 30 133 32 7 132 107 160 30 35 153 134 133 106 34 133 34 134 34 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	VALVE; EXH BRAKE (A)	1-14144-603-0	01	1	9603-9603	●
6	VALVE; EXH BRAKE (A)	1-14144-603-1	01	1	9604-9612	●
6	VALVE; EXH BRAKE (A)	1-14144-603-2	01	1	9701-9901	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9902-9904		●	●
6	VALVE; EXH BRAKE (A)	1-14144-603-3	01	1	9905-		●	●	●
6	VALVE; EXH BRAKE (B)	1-14144-612-0	01	1	9603-9603	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9604-9612	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9701-9901	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9902-9904		●	●
6	VALVE; EXH BRAKE (B)	1-14144-616-0	01	1	9905-		●	●	●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9905-9909					●
6	VALVE; EXH BRAKE (B)	1-22181-154-0	01	1	9910-					●	●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9905-9909					●
6	VALVE; EXH BRAKE (A)	1-22190-646-0	01	1	9910-					●	●
7	CYLINDER ASM; CONT	1-22190-592-0	01	1	9603-9901	●
7	CYLINDER ASM; CONT	1-22190-592-1	01	1	9902-9904		●	●
7	CYLINDER ASM; CONT	1-22190-592-1	01	1	9905-		●	●	●
7	CYLINDER ASM; CONT	1-22190-642-0	01	1	9905-9909					●
7	CYLINDER ASM; CONT	1-22190-642-0	01	1	9910-					●	●
25	BOLT; CONT CYL M10X60	9-01056-060-0	02	1	9603-9603	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9604-9901	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9902-9904		●	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	9905-		●	●	●
25	BOLT; CONT CYL	1-19519-244-0	02	1	9905-9909					●
25	BOLT; CONT CYL	1-19519-244-0	02	1	9910-					●	●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9603-9603	●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9603-9603	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9604-9901	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9902-9904		●	●
30	ROD; LINK,CONT CYL	1-22199-165-0	02	1	9905-		●	●	●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9905-9909					●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9910-					●	●
32	WASHER; LK PLAIN ID=10.5 OD=26	9-09164-710-0	01	1	9603-9901	●
32	WASHER; LK PLAIN ID=10.5 OD=26	9-09164-710-0	01	1	9902-9904		●	●
32	WASHER; LK PLAIN ID=10.5 OD=26	9-09164-710-0	01	1	9905-9909		●	●	●	●
32	WASHER; LK PLAIN ID=10.5 OD=26	9-09164-710-0	01	1	9910-		●	●	●	●	●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9603-9901	●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9902-9904		●	●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9905-9909		●	●	●	●
34	RING; SEAL (A) ID=21	1-22189-158-0	01	1	9910-		●	●	●	●	●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9603-9901	●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9902-9904		●	●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9905-9909		●	●	●	●
34	RING; SEAL (B) ID=18.8	1-22189-159-0	02	1	9910-		●	●	●	●	●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9603-9901	●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9902-9904		●	●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9905-9909		●	●	●	●
35	BOLT; PLATE FIX M10X20	0-28021-020-0	03	1	9910-		●	●	●	●	●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9603-9901	●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9902-9904		●	●
106	BRACKET; CONT CYL	1-22186-138-0	01	1	9905-		●	●	●
106	BRACKET; CONT CYL	1-22186-144-0	01	1	9905-9909					●
106	BRACKET; CONT CYL	1-22186-144-0	01	1	9910-					●	●
107	NUT; CONT CYL (A) W/FLANGE	9-83315-080-0	02	1	9603-9901	●
107	NUT; CONT CYL (A) W/FLANGE	9-83315-080-0	02	1	9902-9904		●	●
107	NUT; CONT CYL (A) W/FLANGE	9-83315-080-0	02	1	9905-		●	●	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9603-9901	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9902-9904		●	●
107	NUT; CONT CYL (B)	9-83315-085-0	01	1	9905-		●	●	●
107	NUT; CONT CYL (A) M10 FLANGE	0-91150-110-0	02	1	9905-9909					●
107	NUT; CONT CYL (A) M10 FLANGE	0-91150-110-0	02	1	9910-					●	●
107	NUT; CONT CYL (B) M8	9-09110-508-0	01	1	9905-9909					●
107	NUT; CONT CYL (B) M8	9-09110-508-0	01	1	9910-					●	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9603-9901	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9902-9904		●	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9905-9909		●	●	●	●
111	ELBOW; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9910-		●	●	●	●	●
132	LEVER; BRK VLV	1-22196-332-0	01	1	9603-9603	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9604-9901	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9902-9904		●	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9905-9909		●	●	●	●
132	LEVER; BRK VLV	1-22196-346-0	01	1	9910-		●	●	●	●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9603-9603	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9603-9603	●
133	NUT; LK (A) M12	1-09400-010-0	03	1	9603-9605	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9604-9901	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9902-9904		●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9905-9909		●	●	●	●
133	NUT; LK (B) M8 FLANGE	0-91150-108-0	02	1	9910-		●	●	●	●	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9604-9901	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9902-9904		●	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9905-9909		●	●	●	●
133	NUT; LK (C) M10 FLANGE	0-91150-110-0	01	1	9910-		●	●	●	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9603-9901	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9902-9904		●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9905-9909		●	●	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9910-		●	●	●	●	●
153	BOLT; CLEVIS,CONT CYL M8	1-33739-200-0	02	1	9603-9901	●
153	BOLT; CLEVIS,CONT CYL M8	1-33739-200-0	02	1	9902-9904		●	●
153	BOLT; CLEVIS,CONT CYL M8	1-33739-200-0	02	1	9905-		●	●	●
153	BOLT; CLEVIS,CONT CYL M8X25 FLANGE	0-28080-825-0	02	1	9905-9909					●
153	BOLT; CLEVIS,CONT CYL M8X25 FLANGE	0-28080-825-0	02	1	9910-					●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9603-9901	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9902-9904		●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9905-9909		●	●	●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9910-		●	●	●	●	●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9603-9901	●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9902-9904		●	●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9905-9909		●	●	●	●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9910-		●	●	●	●	●
160	JOINT; CONT CYL	1-22199-150-0	01	1	9603-9603	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9604-9901	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9902-9904		●	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9905-9909		●	●	●	●
160	JOINT; CONT CYL	1-22199-164-0	01	1	9910-		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
