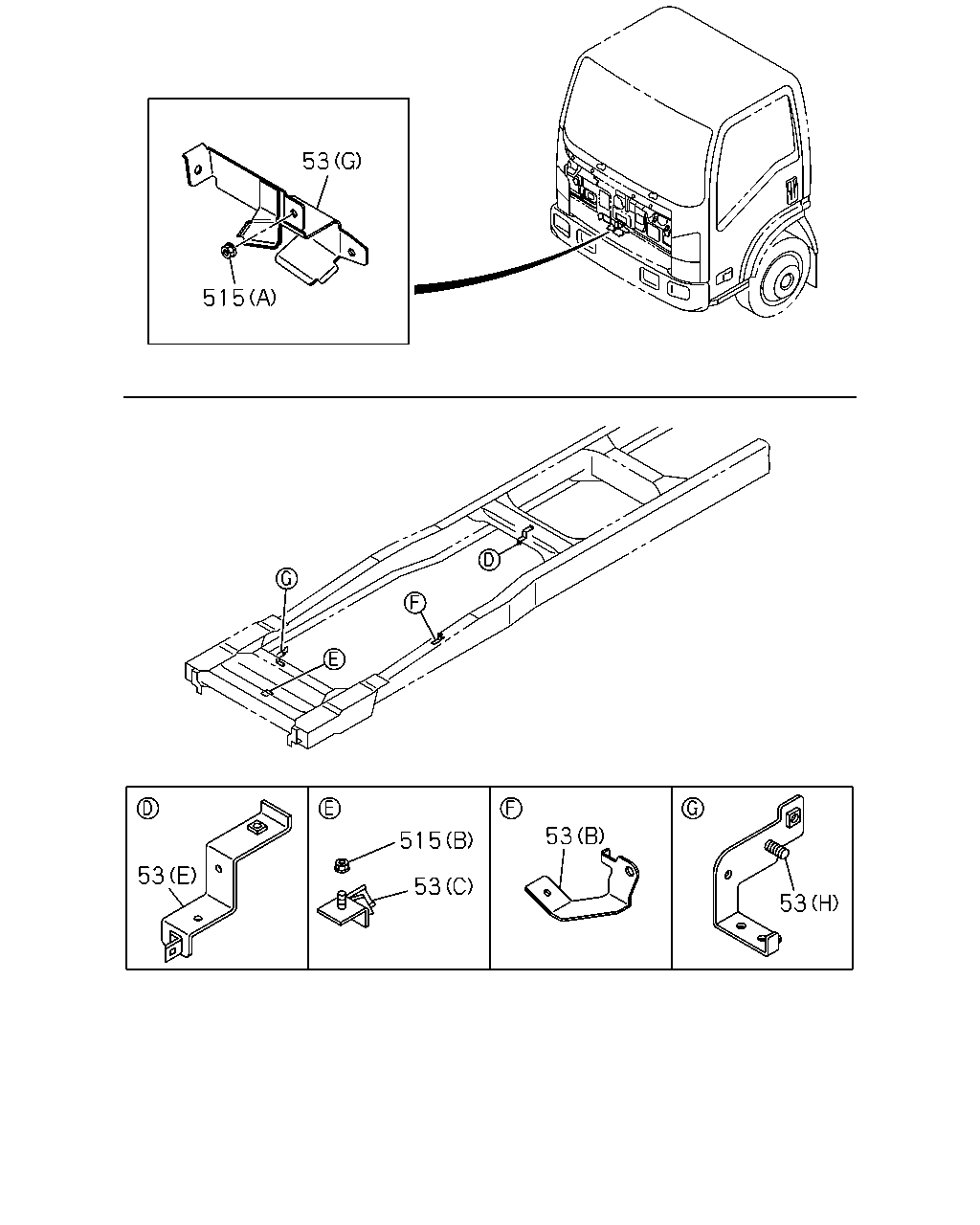

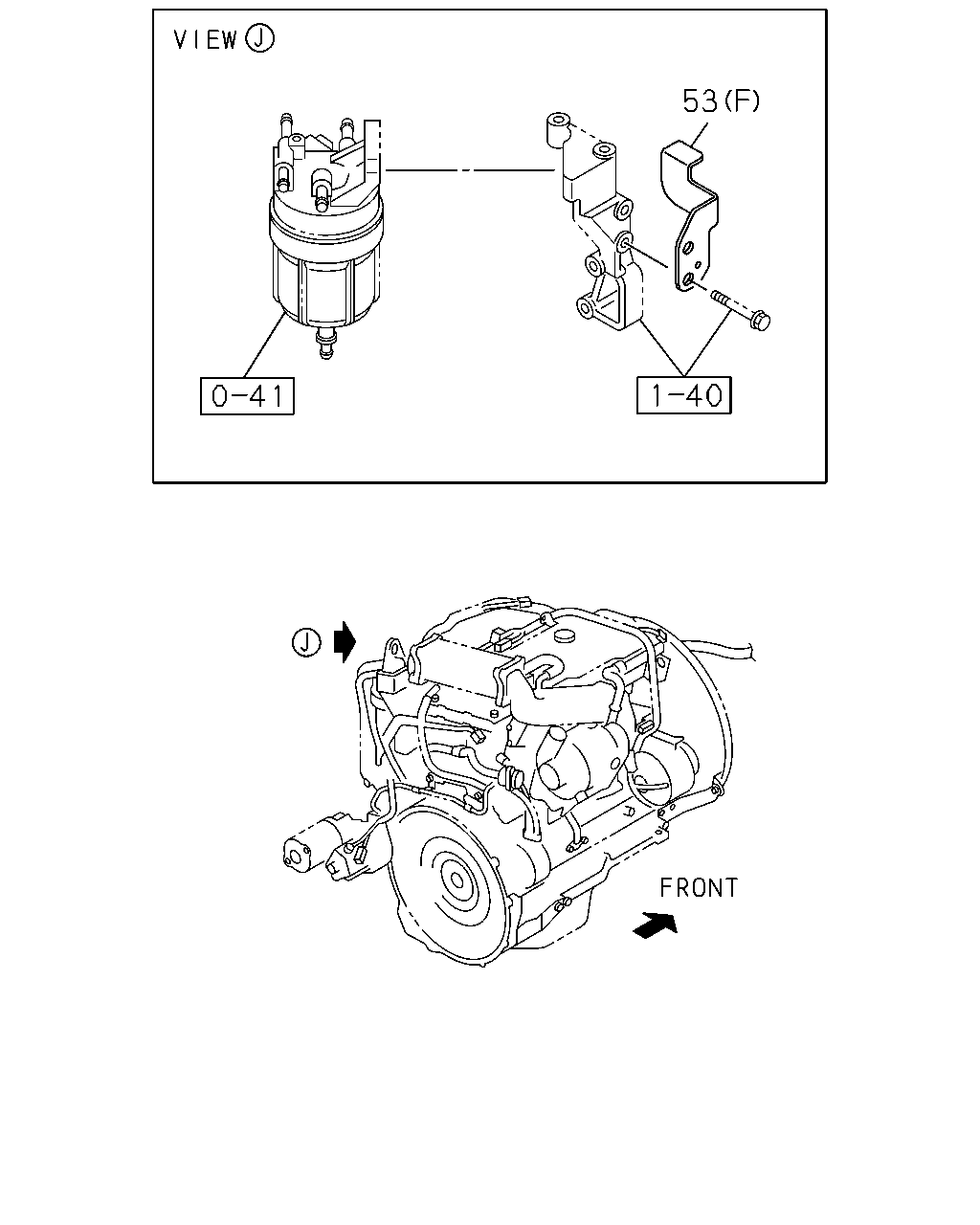

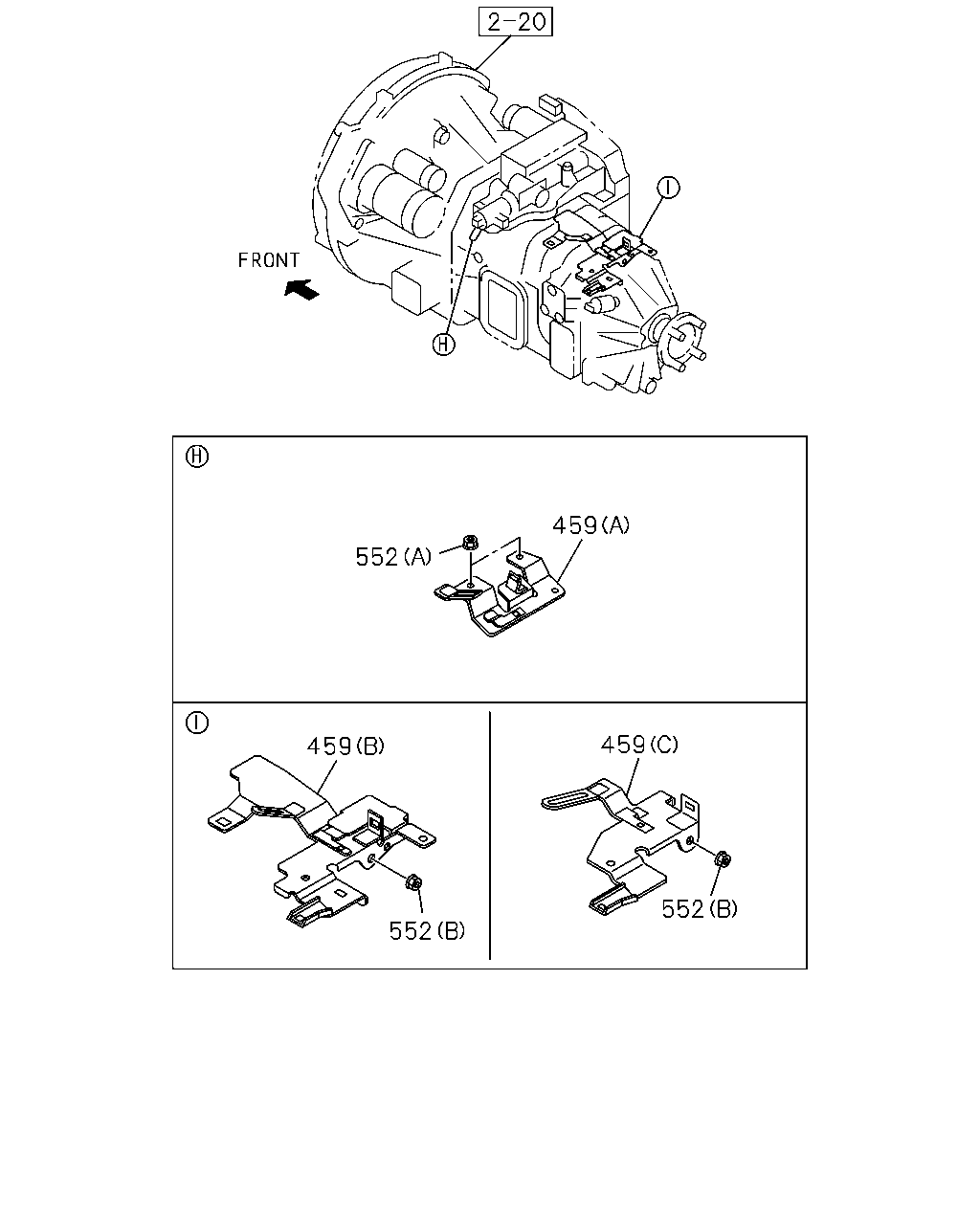

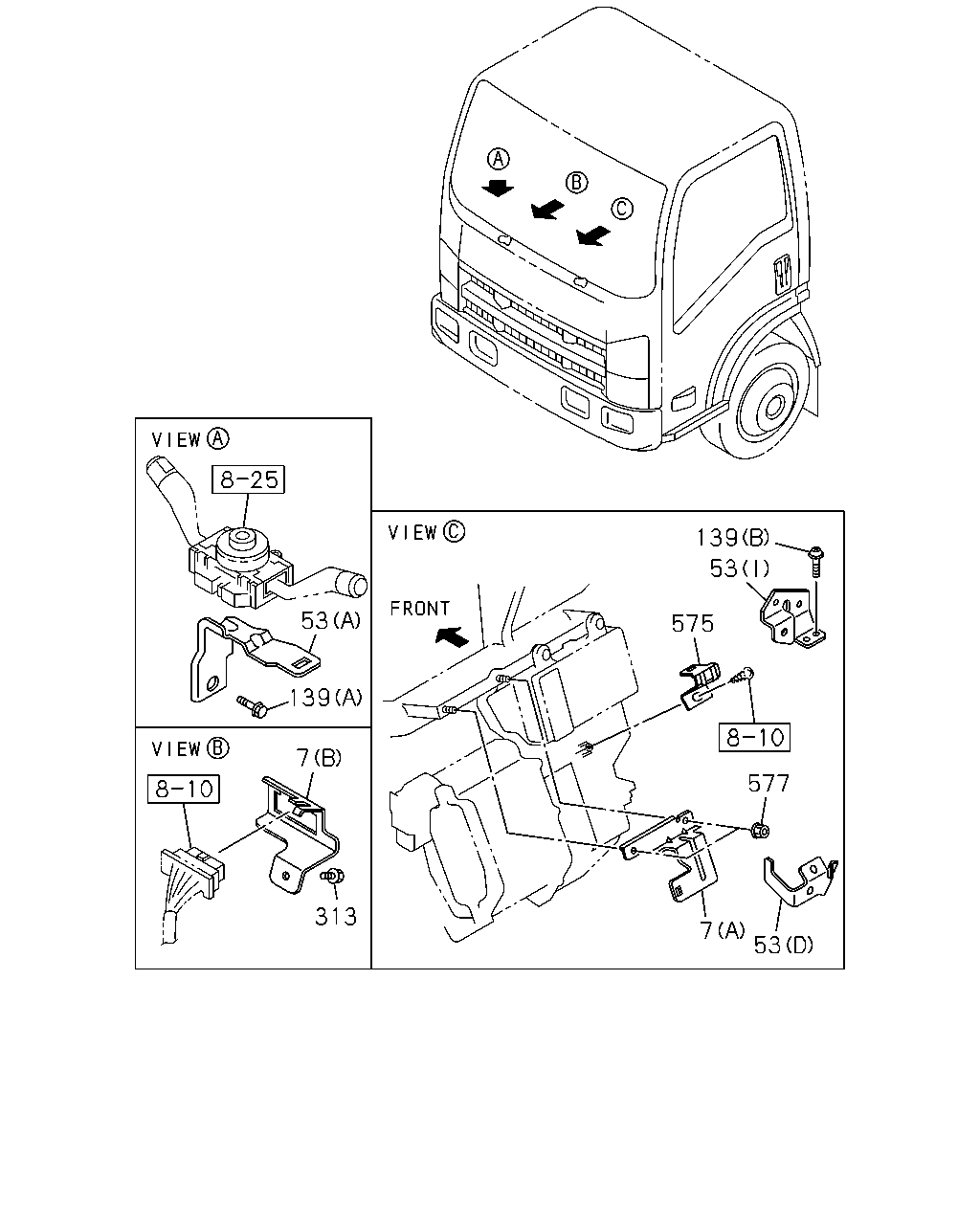

8-15 — FIXING PARTS; WIRING HARNESS (#53268) — 122 parça

483 483 483 483 16 507 16 16 513 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0804-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0804-
16	02.559 CLIP; HARNESS 03.483 (A)	8-97101-436-0	01	1	0804-
483	02.559 CLIP; ENG HARNESS (D) ID=19 L=60	0-95235-896-0	01	1	0907-
483	02.559 CLIP; ENG HARNESS 03.671 (E) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
483	02.559 CLIP; ENG HARNESS 04.785 (A) ID=12 L=70	1-09700-097-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS 01.152 (C) L=36	8-94224-891-1	04	1	0804-
507	02.559 FINISHER 16.742 L=120	1-73948-004-0	01	1	1309-1309
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0804-0902
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 130X80	8-97304-373-0	01	1	0808-0808
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	0808-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0804-0808

22 14 14 102 22 102 617 488 22 483 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0804-0810
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	02	1	0811-0906
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0907-
22	02.559 CLIP; ENG HARNESS 03.162 (C) L=140	5-09707-031-1	02	1	0804-0809
22	02.559 CLIP; ENG HARNESS 08.852 (B) L=350	8-94152-256-1	02	1	0804-0902
22	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	06	1	0804-0805
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0806-
48	02.559 CLIP; FRAME HARNESS (B) T=6.0	5-09709-024-0	01	1	0804-0804
48	02.559 CLIP; FRAME HARNESS (C) T=4.5 & 9	8-97371-947-0	01	1	0805-
102	02.559 CLIP; BAND (B) L=250	5-09707-030-1	01	1	0804-
102	02.559 CLIP; BAND 03.162 (A) L=140	5-09707-031-1	04	1	0804-1202
102	02.559 CLIP; BAND 03.162 (A) L=140	5-09707-031-1	02	1	1203-
483	02.559 CLIP; ENG HARNESS (D) ID=19 L=60	0-95235-896-0	01	1	0907-
483	02.559 CLIP; ENG HARNESS 03.671 (E) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
483	02.559 CLIP; ENG HARNESS 04.785 (A) ID=12 L=70	1-09700-097-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0804-
483	02.559 CLIP; ENG HARNESS 01.152 (C) L=36	8-94224-891-1	04	1	0804-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0804-
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106

53 515 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0804-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (B)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (I)	8-98084-590-0	01	1	0804-0807
53	02.483 BRACKET; HARNESS (I)	8-98084-590-0	01	1	0808-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-

139 53 53 575 139 7 577 313 7 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (A)	8-98029-762-4	01	1	0804-
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0804-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0804-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (B)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (I)	8-98084-590-0	01	1	0804-0807
53	02.483 BRACKET; HARNESS (I)	8-98084-590-0	01	1	0808-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0807
139	02.559 BOLT; BRKT 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0808-1101
139	02.559 BOLT; BRKT 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0804-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0804-

459 552 459 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	0804-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	0804-1109
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-

150 313 139 150 480 529 480 377 377 386 377 386 386 377 386 516 139 24 515 577 219 294 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-1409
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0807
139	02.559 BOLT; BRKT 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0808-1101
139	02.559 BOLT; BRKT 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
150	02.343 BOLT; CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0907-
150	02.343 BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0804-0906
150	02.343 BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	0907-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-
294	02.559 NUT 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0804-0904
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0804-1004
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0804-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0804-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0804-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0804-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0804-
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	0804-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0804-
53	02.483 BRACKET; HARNESS (E)	8-98077-504-0	01	1	0804-
53	02.483 BRACKET; HARNESS (B)	8-98094-629-0	01	1	0804-1303
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1304-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (I)	8-98084-590-0	01	1	0804-0807
53	02.483 BRACKET; HARNESS (I)	8-98084-590-0	01	1	0808-
