Isuzu WW
▶
TRUCKS
▶
NPR
▶
51159 - NPR(BUS CHAS)RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶

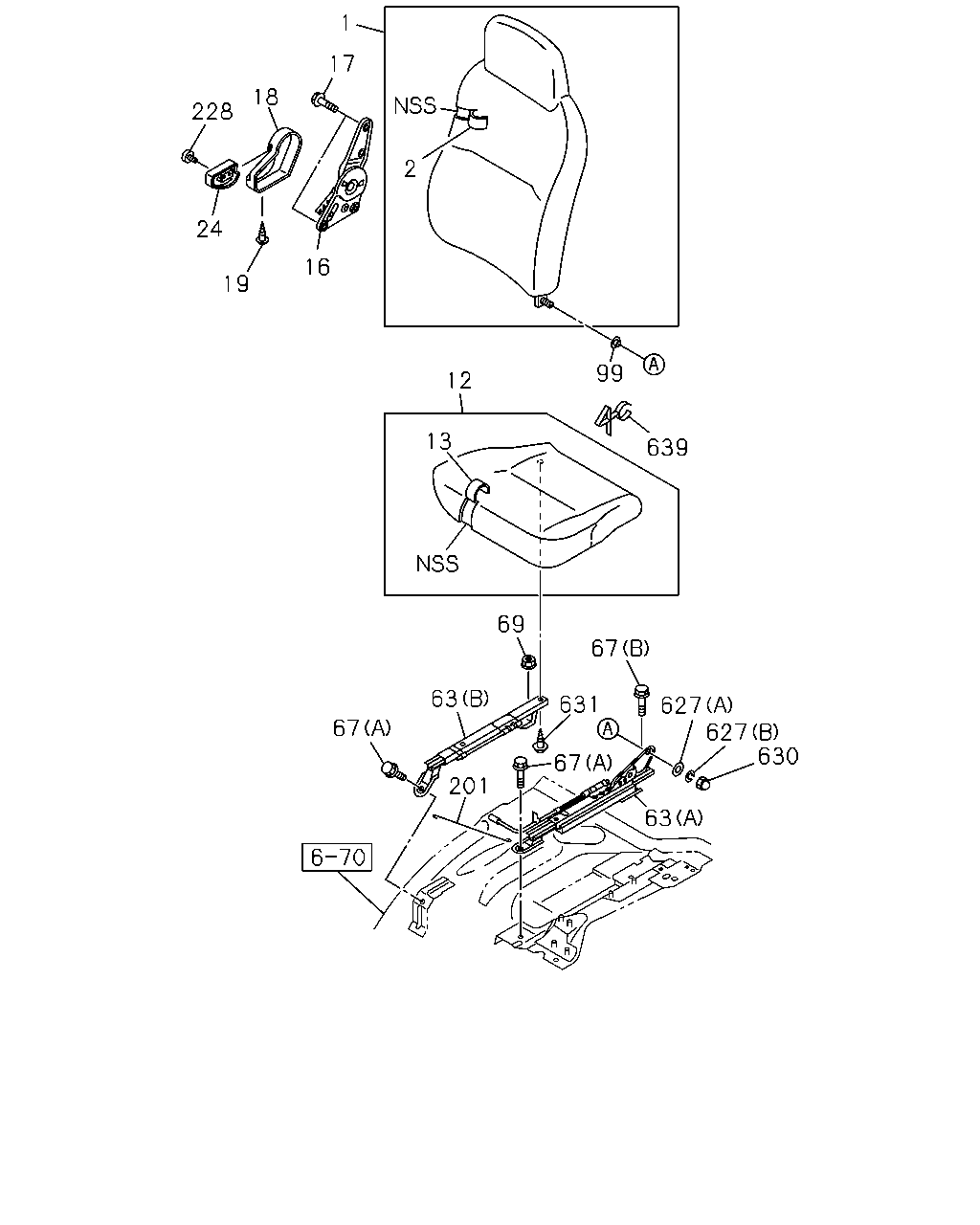

7-50 — FRONT SEAT
(#53264) — 24 parça
1
17
18
228
2
24
16
19
99
12
13
639
69
67
63
631
627
627
630
67
67
201
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97409-312-7
01
1
0804-
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97409-318-2
01
1
0804-
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97414-706-0
01
1
0804-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97414-707-0
01
1
0804-
16
16.682 ADJUSTER ASM; RECLINING
8-98003-087-1
01
1
0804-
17
16.682 BOLT; RECLINING
M10X20
8-98062-661-0
04
1
0804-
18
16.682 COVER; RECLINING
GRAY
8-97409-332-0
01
1
0804-
19
16.686 SCREW; COVER
M5
8-98062-663-0
01
1
0804-
24
16.682 KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-333-0
01
1
0804-
63
16.682 ADJUSTER; SEAT SLIDE
(A)
8-97382-800-2
01
1
0804-
63
16.682 ADJUSTER; SEAT SLIDE
(B)
8-97382-801-1
01
1
0804-
67
16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE
8-98055-941-0
02
1
0804-
67
16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE
8-98055-942-0
01
1
0804-
69
16.682 NUT; FRT SEAT
M10 FLANGE
8-98055-961-0
01
1
0804-
99
16.716 BUSHING; SEAT BACK
8-98063-219-0
01
1
0804-0804
99
16.716 BUSHING; SEAT BACK
8-98112-751-0
01
1
0805-
201
16.682 CABLE; ADJ
8-98003-086-1
01
1
0804-
228
16.714 SCREW; KNOB
M4
8-98062-662-0
01
1
0804-
627
16.682 WASHER; FRT SEAT
(A)
8-98063-223-0
01
1
0804-
627
16.682 WASHER; FRT SEAT
(B)
8-98063-224-0
01
1
0804-
630
16.682 NUT; CAP
M8
8-98063-225-0
01
1
0804-
631
16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER
8-98062-658-0
02
1
0804-
631
16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER
8-98062-659-0
02
1
0804-
639
16.679 CLIP; SEAT
8-98097-693-0
01
1
0804-
