7-40 — INSTRUMENT PANEL AND BOX (#53261) — 165 parça

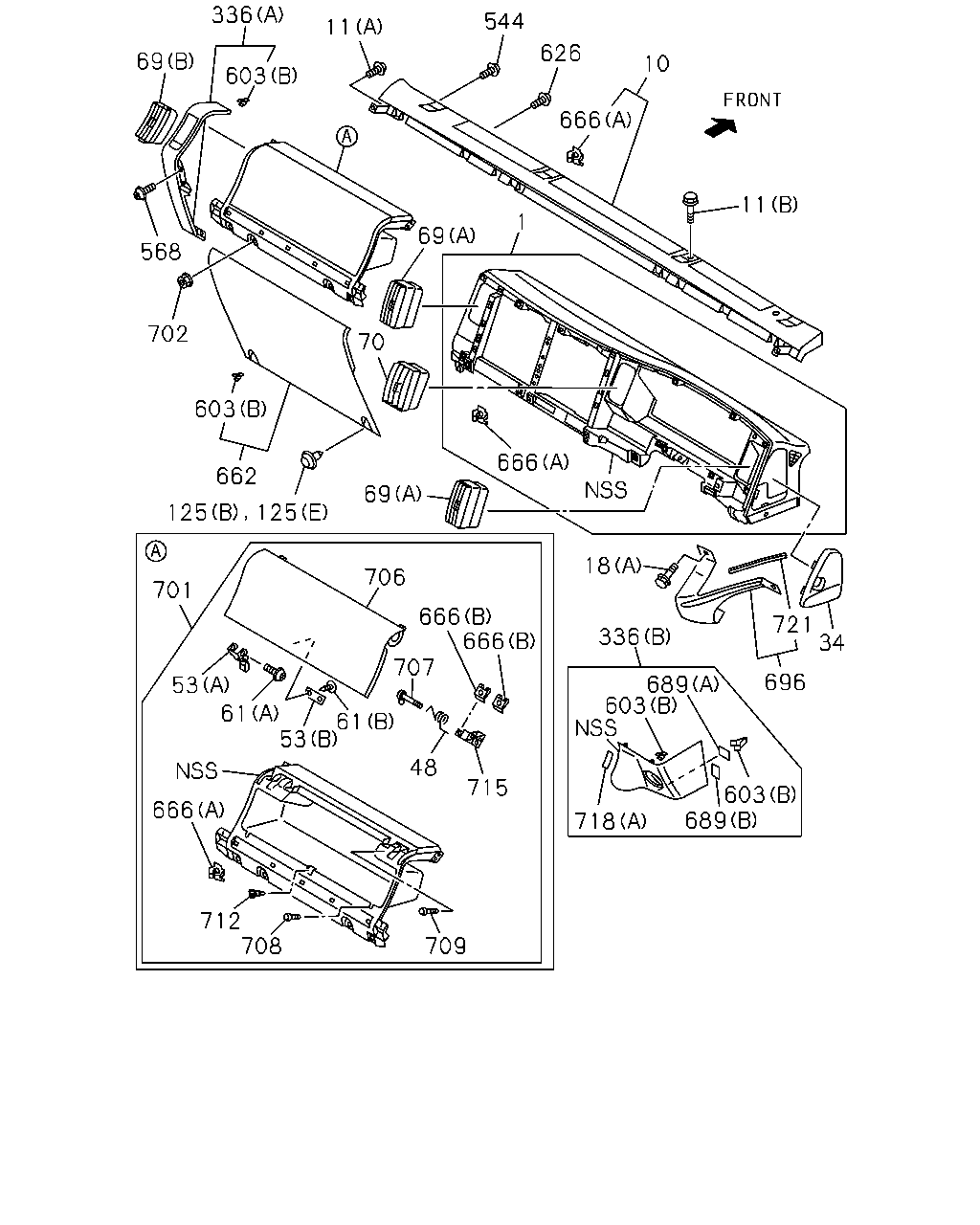

çizim 156868
336 69 603 568 702 603 125 125 69 666 706 701 53 61 666 61 53 48 707 666 666 715 709 708 712 718 689 603 336 689 696 721 34 18 11 1 69 70 666 626 544 11 10 662 603
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 0804-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0804-1003
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0804-1101
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0804-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0804-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804-
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0804-
48 16.110 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0804-1311
48 16.110 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
48 16.110 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0804-1311
48 16.110 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
53 16.115 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0805-1405
53 16.115 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
61 16.100 SCREW; GLOVE BOX
(A) 		8-98108-915-0 01 1 0805-1405
61 16.100 SCREW; GLOVE BOX
(B) M4X85 		8-97926-404-0 02 1 1406-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0804-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0804-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0804-
125 16.085 CLIP; INST PANEL
(D) M6 SPIRE NUT 		8-97210-973-1 01 1 0809-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0809-
125 16.085 CLIP; INST PANEL
16.742 (C) DARK GRAY 		8-97098-326-0 01 1 0809-0809
125 16.085 CLIP; INST PANEL
16.802 (C) GRAY 		8-97405-205-0 01 1 0809-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 04 1 0804-0808
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0809-0909
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 01 1 0910-0911
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97408-063-0 01 1 0912-1001
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 01 1 1002-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0804-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0804-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0804-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0804-1101
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0804-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0804-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0804-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0804-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 0804-
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 0804-
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0804-1003
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0804-1003
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 1004-
666 16.085 INSERT; INST PANEL
(B) 		8-98038-450-0 04 1 0804-1311
666 16.085 INSERT; INST PANEL
(B) M5 		8-97926-400-0 04 1 1312-
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0804-
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0804-
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 0804-1211
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212-
701 16.100 TRAY; INST
GRAY 		8-97405-261-4 01 1 0804-0804
701 16.100 TRAY; INST
GRAY 		8-97415-542-6 01 1 0805-1405
701 16.100 TRAY; INST
GRAY 		8-97429-702-1 01 1 1406-
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804-
706 16.081 LID; TRAY INST
GRAY 		8-97405-372-2 01 1 0804-0804
706 16.081 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0805-1405
706 16.081 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 09.744 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0804-1311
707 09.744 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0804-
709 16.085 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0804-
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 0804-
715 16.081 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0804-1311
715 16.081 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
715 16.081 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0804-1311
715 16.081 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0804-
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0804-1211
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212-

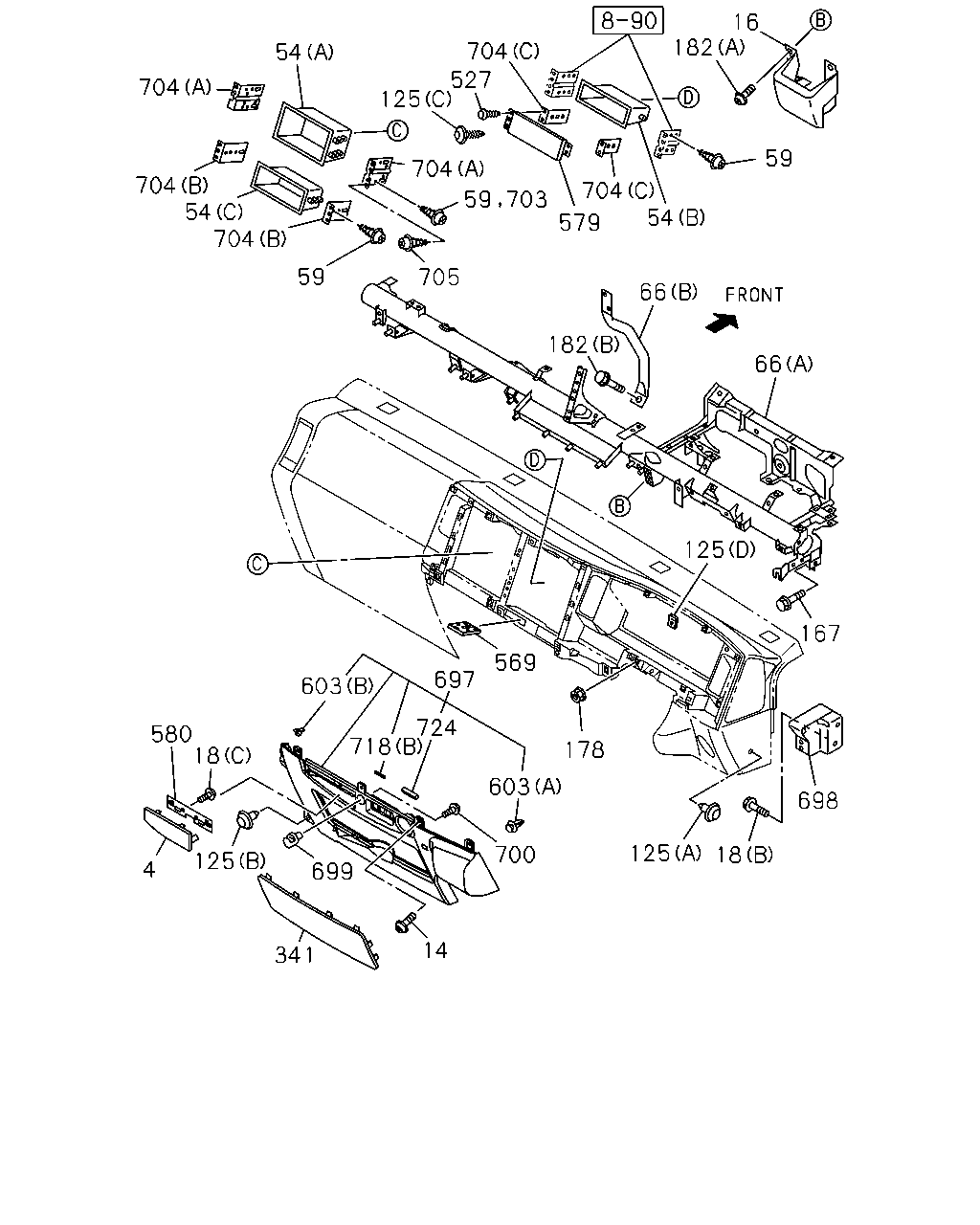

çizim 156873
125 18 698 167 125 178 700 14 341 699 125 4 603 718 603 18 580 724 697 569 66 182 66 579 705 59 704 54 704 59 703 704 59 182 16 527 704 125 704 54 704 54
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
GRAY 		8-97407-898-1 01 1 0804-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL 8-98053-711-0 01 1 0804-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0804-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0804-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0804-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0804-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0804-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0804-0808
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804-0811
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0812-
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 0804-
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98089-363-0 01 1 0804-0808
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98106-831-3 01 1 0809-1204
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1205-
125 16.085 CLIP; INST PANEL
(D) M6 SPIRE NUT 		8-97210-973-1 01 1 0809-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0809-
125 16.085 CLIP; INST PANEL
16.742 (C) DARK GRAY 		8-97098-326-0 01 1 0809-0809
125 16.085 CLIP; INST PANEL
16.802 (C) GRAY 		8-97405-205-0 01 1 0809-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 04 1 0804-0808
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 01 1 0809-0909
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 01 1 0910-0911
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97408-063-0 01 1 0912-1001
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 01 1 1002-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0804-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0804-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 0804-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0804-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0804-
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 0804-1205
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206-
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.742 DARK GRAY 		8-97098-326-0 01 1 0804-0807
527 16.100 CLIP; INST CLUSTER
16.742 DARK GRAY 		8-97098-326-0 01 1 0808-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0804-
579 16.080 COVER; INST PNL
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) BLACK 		8-97408-909-0 01 1 0804-0807
579 16.080 COVER; INST PNL
BLACK 		8-97408-909-0 01 1 0808-0808
580 16.080 BRACKET; COVER 8-98091-546-0 01 1 0804-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0804-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0804-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0804-
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0804-1205
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-0 01 1 0804-0905
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0906-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-0 01 1 0804-0905
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0906-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0804-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0804-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0804-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0804-
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) 		8-98073-822-0 02 1 0804-0807
704 16.085 BRACKET; CENTER POCKET
(C) 		8-98073-822-0 02 1 0808-0808
704 16.085 BRACKET; CENTER POCKET
(C) 		8-98107-549-0 02 1 0809-
705 16.100 SCREW; BRACKET CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0811
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0804-1101
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0804-0807
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0808-1101
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0804-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110-

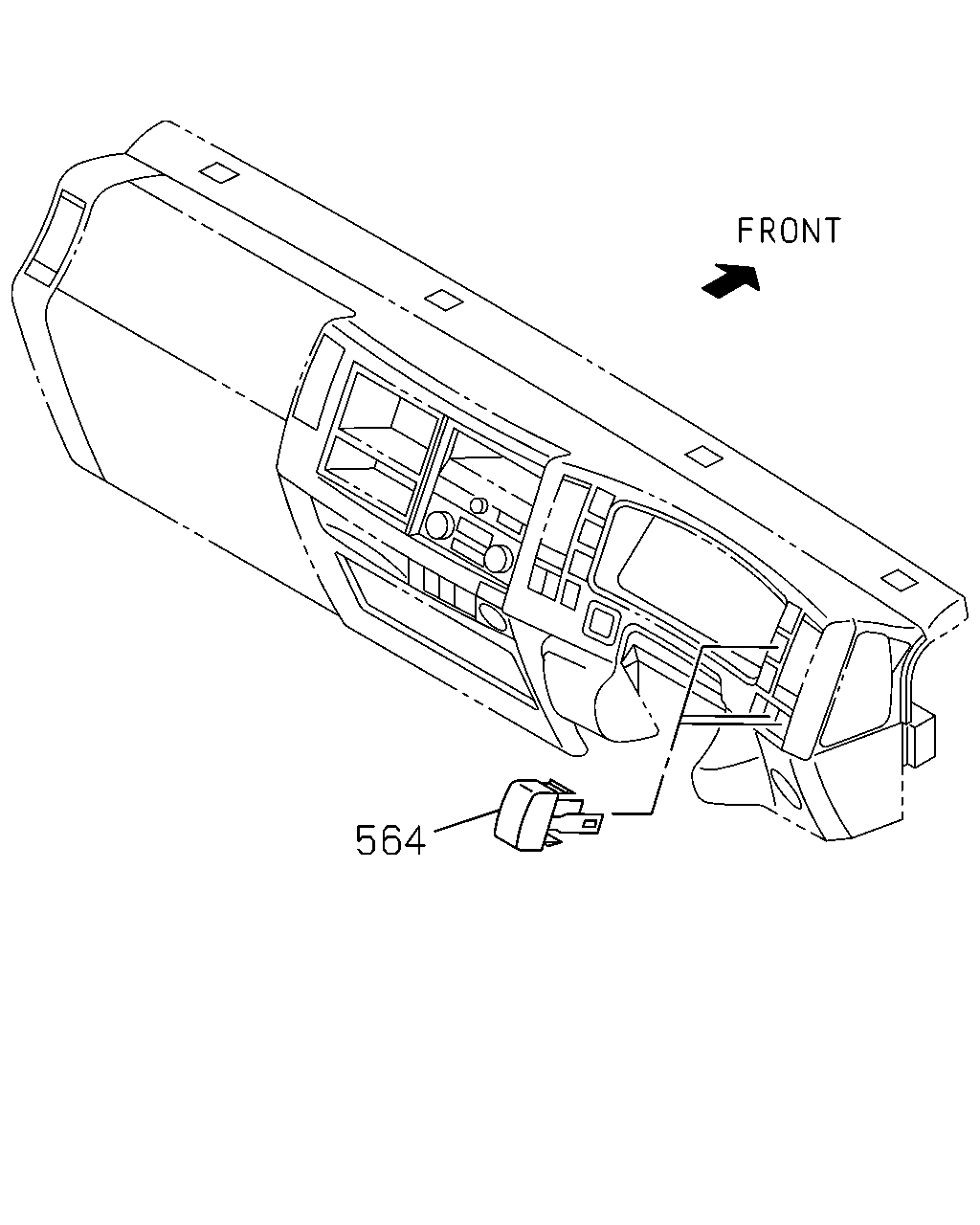

çizim 156880
564
BalonParca AdiParca NoAdetTipApplied Date
564 16.081 COVER; SW 8-98025-954-1 03 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
